 200346

4-27

Removal and installation

INTERNAL CAB COMPONENTS

ΧΦ65/75/85 series

1

2

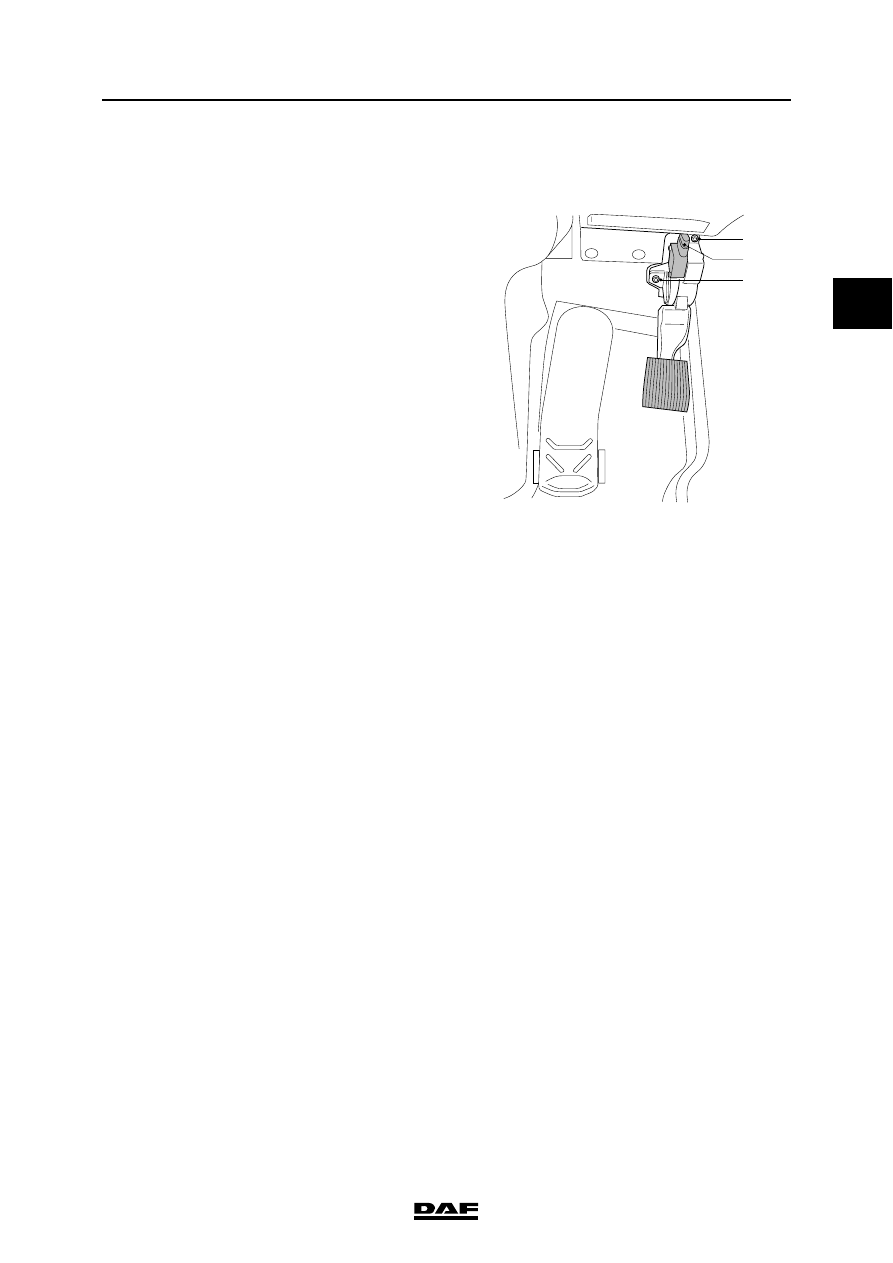

4.18 REMOVAL AND INSTALLATION, ACCELERATOR PEDAL

Removing accelerator pedal
1.

Remove the dashboard panel from above
the accelerator pedal.

2.

Remove the connector (1) from the
accelerator pedal.

3.

Remove the attachment bolts (2) and
remove the accelerator pedal.

Installing accelerator pedal
1.

Fit the accelerator pedal with the attachment
bolts (2).

2.

Install the connector (1).

3.

Fit the dashboard panel above the
accelerator pedal.

1

2

2

K1 01 088

INTERNAL CAB COMPONENTS

4-28

©

 200346

Removal and installation

2

ΧΦ65/75/85 series

1

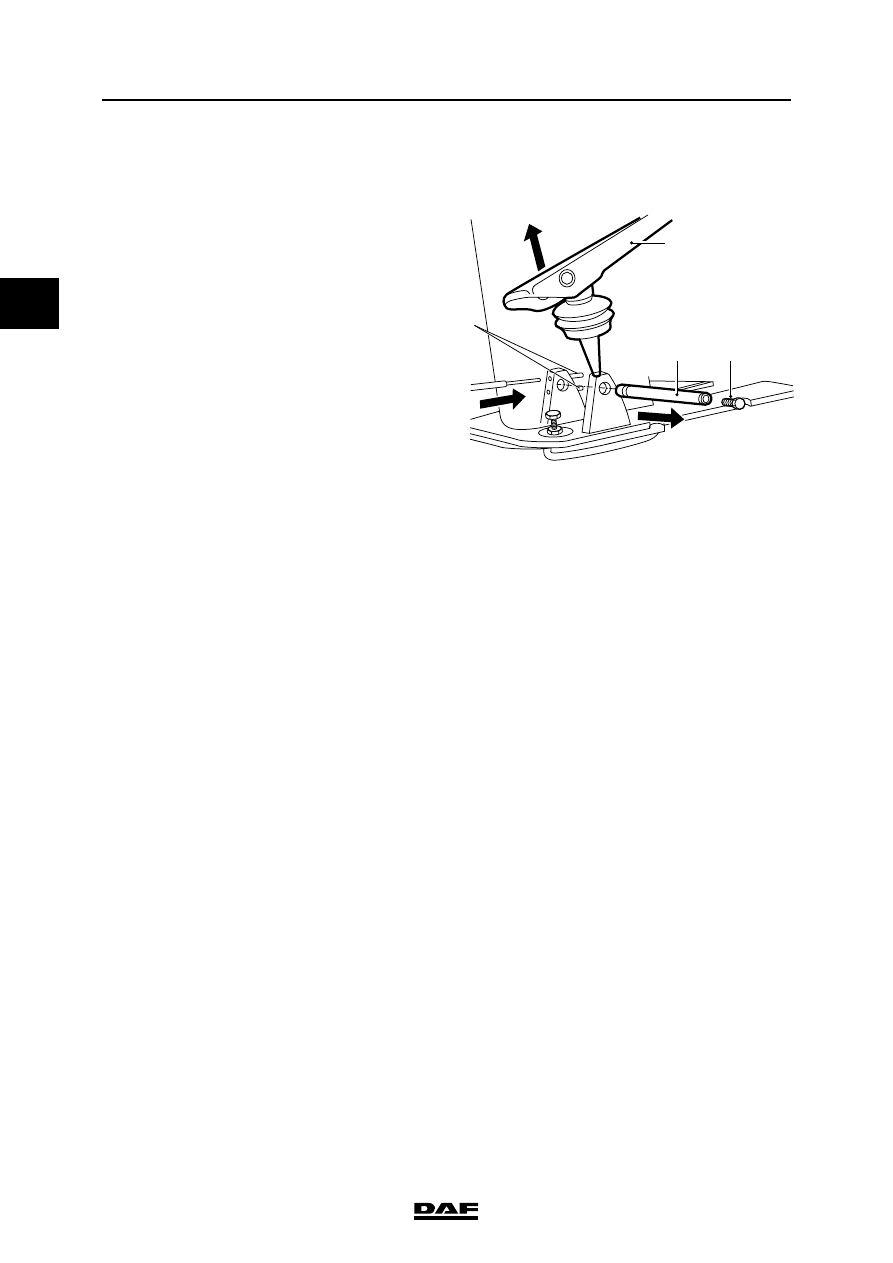

4.19 REMOVAL AND INSTALLATION, BRAKE PEDAL

Removing brake pedal
1.

Remove the clamping bushes (1) with a
punch in the direction indicated.

2.

Remove the sealing plug out of the hinge pin
(3) using a screwdriver.

3.

Put an M5 bolt (4) in the hinge pin and
remove the hinge pin in the direction shown.

4.

Remove the brake pedal (2) and fittings.

Installing brake pedal
1.

Fit the brake pedal (2) and fittings.

2.

Fit the hinge pin (3).

3.

Fit the sealing plug.

4.

Fit the clamping bushes (1) in the driving
direction of the vehicle.

5.

Check the operation of the brake pedal.

6.

Check that the locked nut underneath the
brake pedal has adequate play.

K1 00 912

3

2

1

4

©

 200346

4-29

Removal and installation

INTERNAL CAB COMPONENTS

ΧΦ65/75/85 series

1

2

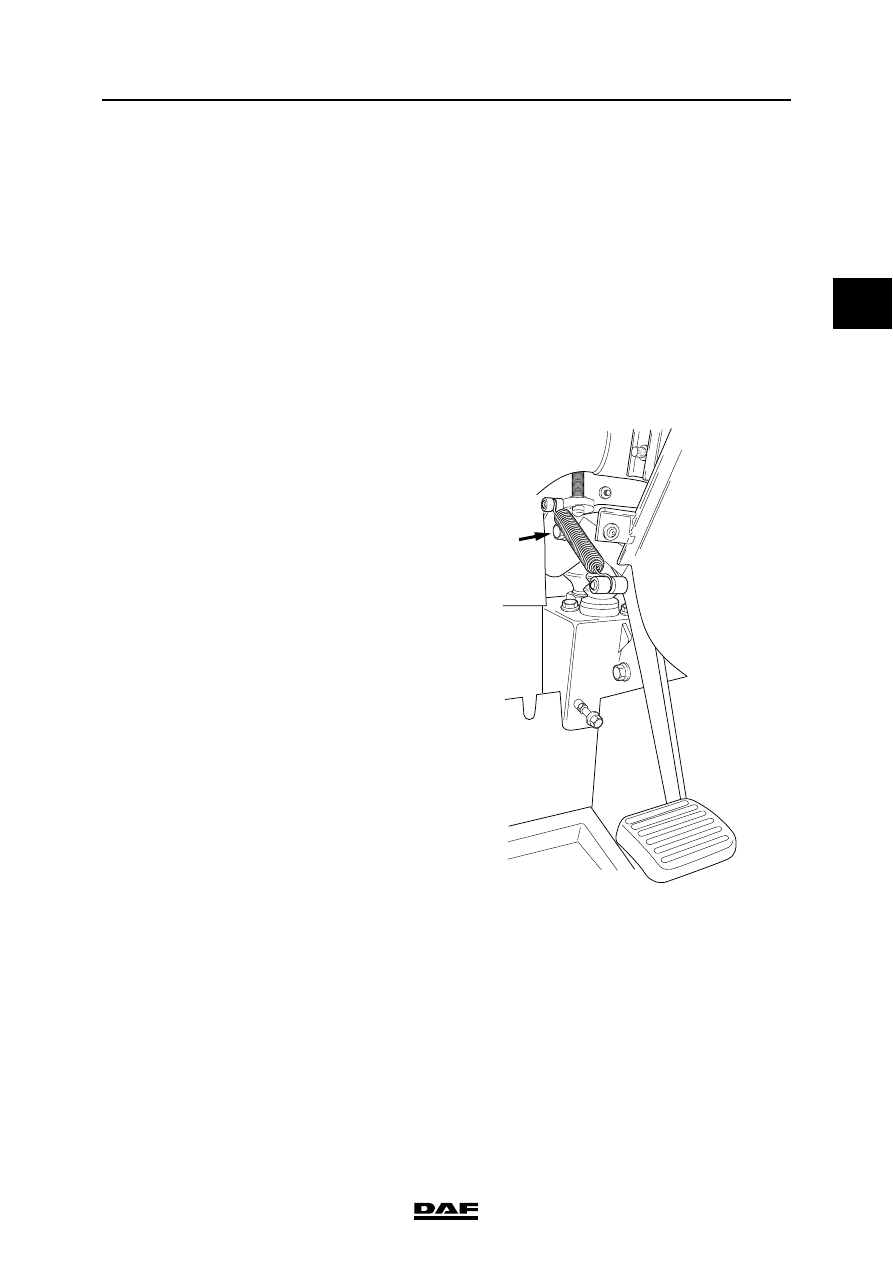

4.20 REMOVAL AND INSTALLATION, CLUTCH PEDAL

Removing clutch pedal
1.

Remove the storage tray from the engine
tunnel.

2.

Remove the dashboard panels to the left and
right of the steering column.

3.

Remove the steering column panel.

4.

Remove the spring from the clutch pedal.

5.

Remove the bolt that controls the clutch
cylinder.

6.

Loosen the recessed locking bolt (1) on the
outside of the vehicle and push the clutch
pedal spindle to the left.

7.

Remove the clutch pedal from the inside.

Installing clutch pedal
1.

Put the clutch pedal in place.

K1 00 945

INTERNAL CAB COMPONENTS

4-30

©

 200346

Removal and installation

2

ΧΦ65/75/85 series

1

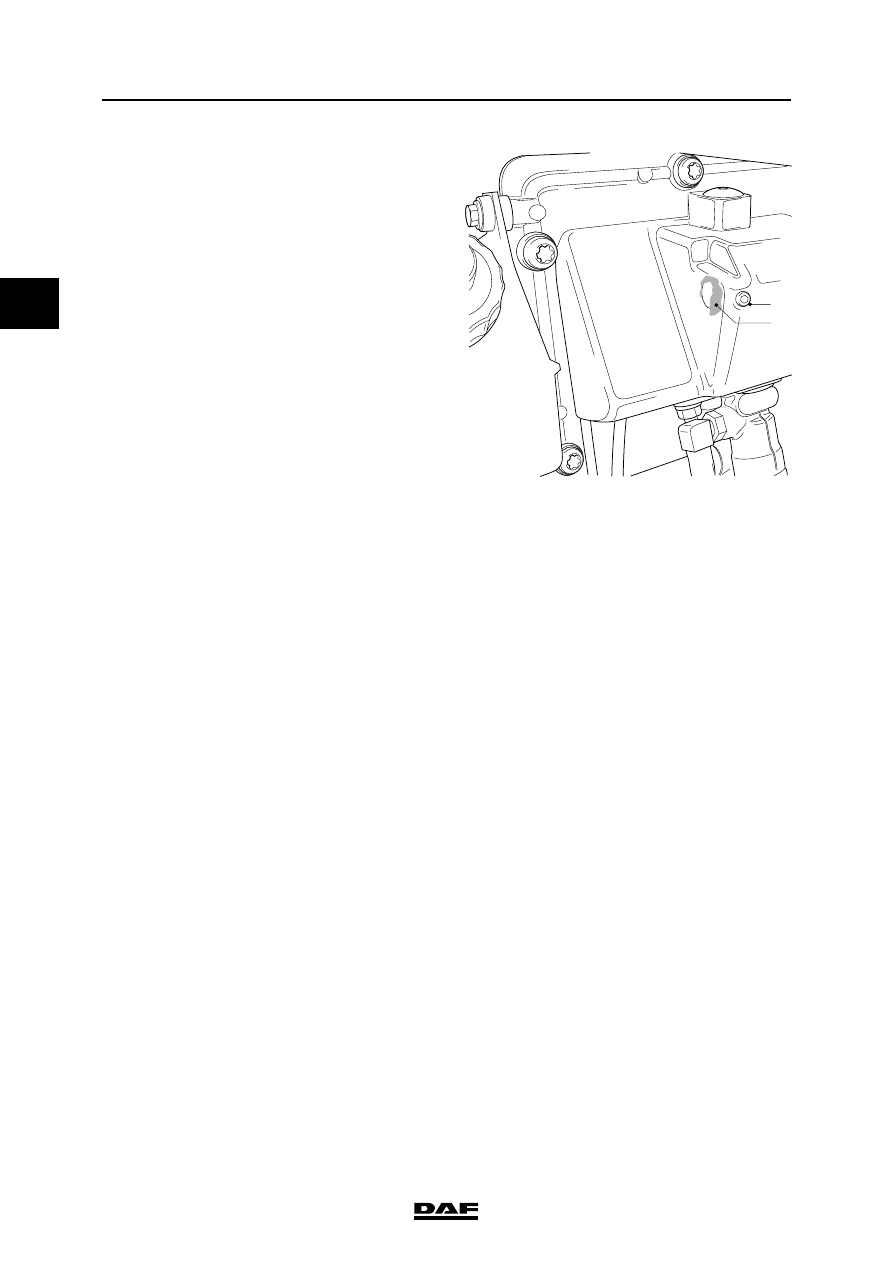

2.

Apply locking compound to the recessed
locking bolt (1). See "Technical data".

3.

Push the spindle to the right and tighten the
recessed locking bolt. Put silicone sealant on
the end of the clutch pedal spindle (2).

4.

Replace the bolt that controls the clutch
cylinder (take care with the ring).

5.

Install the clutch pedal spring.

6.

Fit the dashboard panels to the left and right
of the steering column.

7.

Fit the steering column panel.

8.

Fit the storage tray on the engine tunnel.

K1 01 065

1
2
