Removal and installation

INTERNAL CAB COMPONENTS

ΧΦ65/75/85 series

1

2

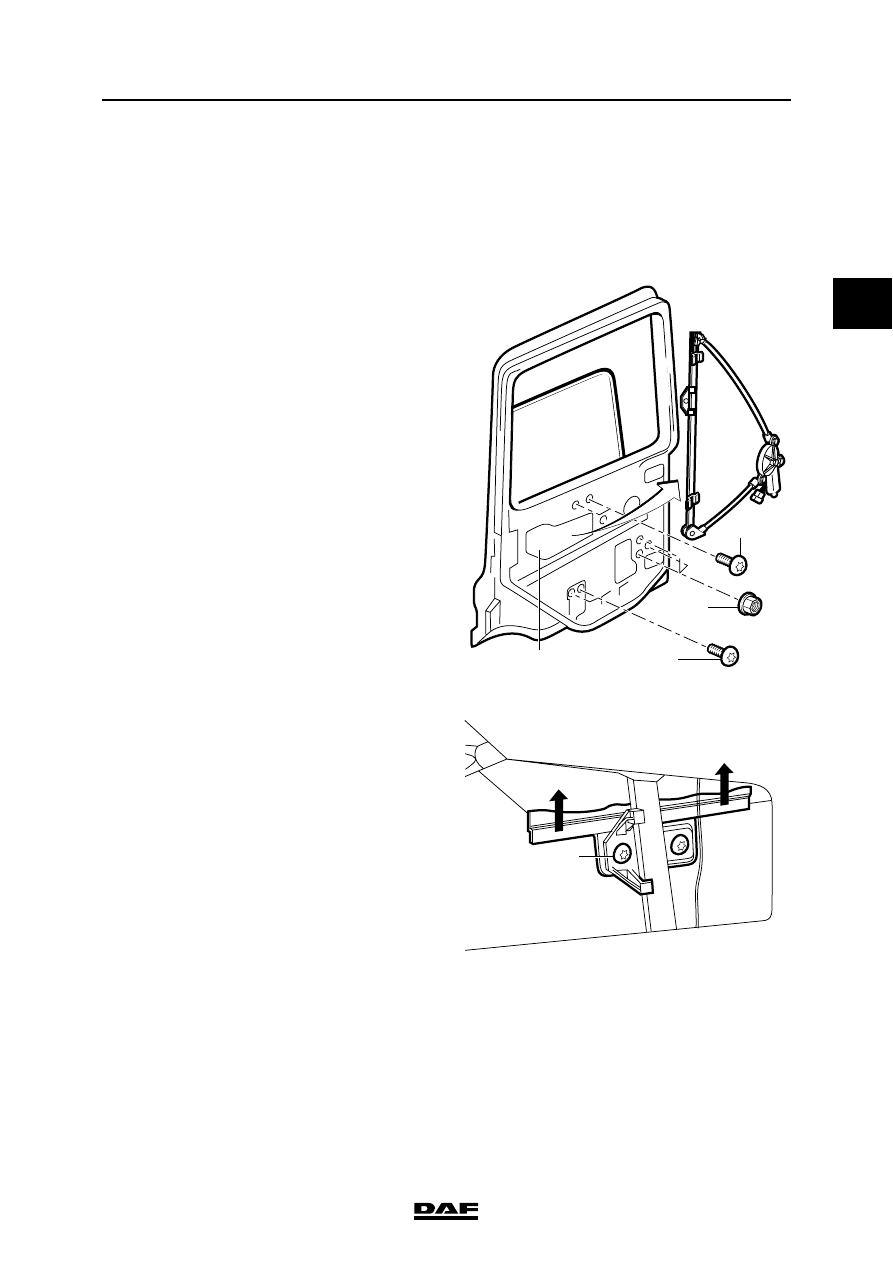

4.15 REMOVAL AND INSTALLATION, ELECTRICALLY OPERATED WINDOW

MECHANISM

Removing electrically operated window
mechanism
1.

Remove the door panel.

2.

Detach the foil at (A).

3.

Lower the glass, remove the attachment
bolts (1) and raise the glass.

4.

Detach the electric motor connector.

5.

Remove the attachment bolts (2) and
attachment nuts (3) and remove the window
mechanism from the door through the
opening.

Installing electrically operated window
mechanism
1.

Fit the window mechanism in the door and
fit the attachment bolts (2) and attachment
nuts (3).

2.

Connect the electric motor connector.

3.

Lower the glass and fit it to the window
mechanism using attachment bolts (1).

4.

Operate the window switch. Close the glass
almost completely. Check whether the top
edge of the drop glass is parallel to the
window frame. Loosen the attachment
bolts (1), if necessary. Move the glass to the
correct position and re-tighten the
attachment bolts.

5.

Use tape to attach the foil at (A).

6.

Install the door panel.

K1 00 909

A

2

3

2

1

K1 01 089

INTERNAL CAB COMPONENTS

4-24

©

 200346

Removal and installation

2

ΧΦ65/75/85 series

1

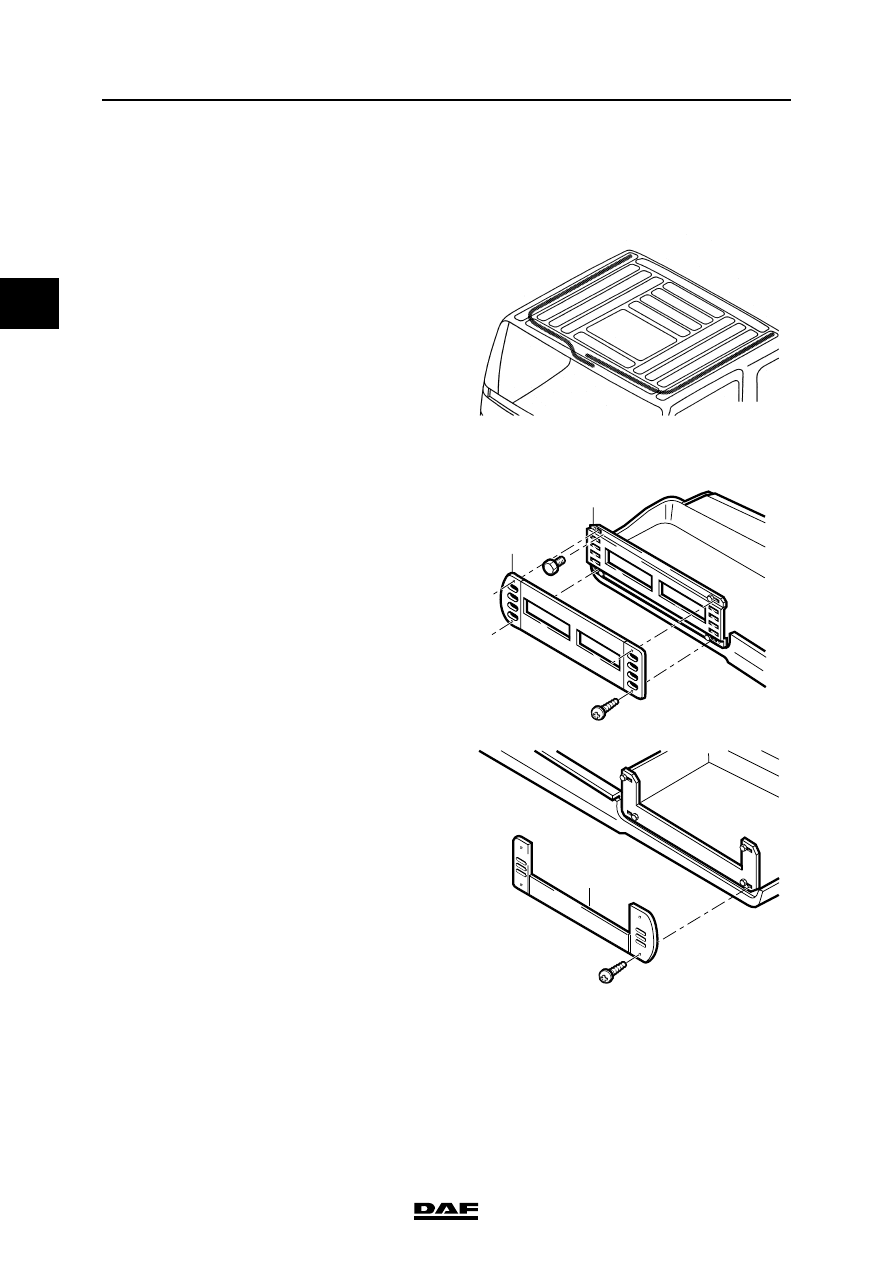

4.16 REMOVAL AND REPLACEMENT, ROOF CONSOLE (DAY/SLEEPER/HIGH

SLEEPER)

Removing roof console
1.

Remove the roof rails from the fixings using
a screwdriver.

2.

Remove the rail fixings.

3.

Remove the covers (1) and (2) on both sides
of the roof console and remove the
connectors if necessary.

K1 01 070

1

3

K1 00 586

2

K1 00 587

©

 200346

4-25

Removal and installation

INTERNAL CAB COMPONENTS

ΧΦ65/75/85 series

1

2

4.

Support the roof console and remove the
attachment bolts (4) at the front of the roof
console.

5.

Support the roof console and remove the
bolts (5) on the window side.

6.

Remove, if necessary, the connectors and
remove the roof console.

Installing roof console
1.

Fit the connectors.

2.

Put the roof console in place and position it
using a few bolts.

3.

Place the attachment bolts at the front of the
roof console and tighten.

4.

Fit the attachment bolts in the window edges.

5.

Fit the front cover panels.

6.

Fit the rail fixings.

7.

Attach the roof rails to the fixings.

4

K1 00 588

5

INTERNAL CAB COMPONENTS

4-26

©

 200346

Removal and installation

2

ΧΦ65/75/85 series

1

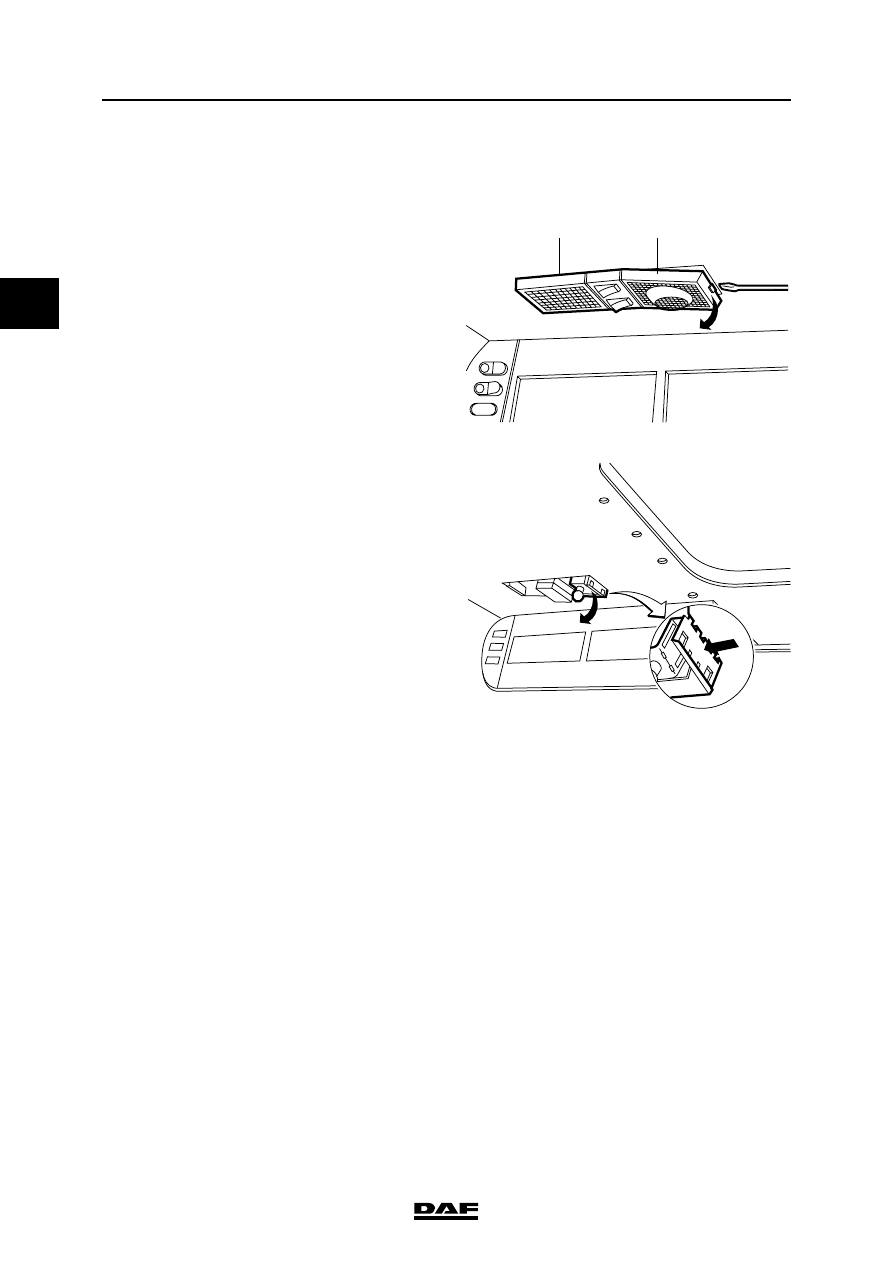

4.17 REMOVAL AND INSTALLATION, INTERIOR LIGHTING

Removing interior lighting
1.

Remove the covers (1) and (2).

2.

Use a screwdriver to push the lug (B) of the
lamp holder.

3.

Take the lamp holder out of the headlining.

4.

Unplug the connectors and remove the lamp
holder.

Installing interior lighting
1.

Bend back the lug (B) of the lamp holder.

2.

Connect the connectors.

3.

Fit the frame in such a way that the directable
spotlight is located on the door side.

4.

Fit the covers (1) and (2).

K1 01 071

1

2

K1 01 643

B
