DAF CF65, CF75, CF85 Series . Manual - part 105

©

 200346

4-19

Removal and installation

INTERNAL CAB COMPONENTS

ΧΦ65/75/85 series

1

2

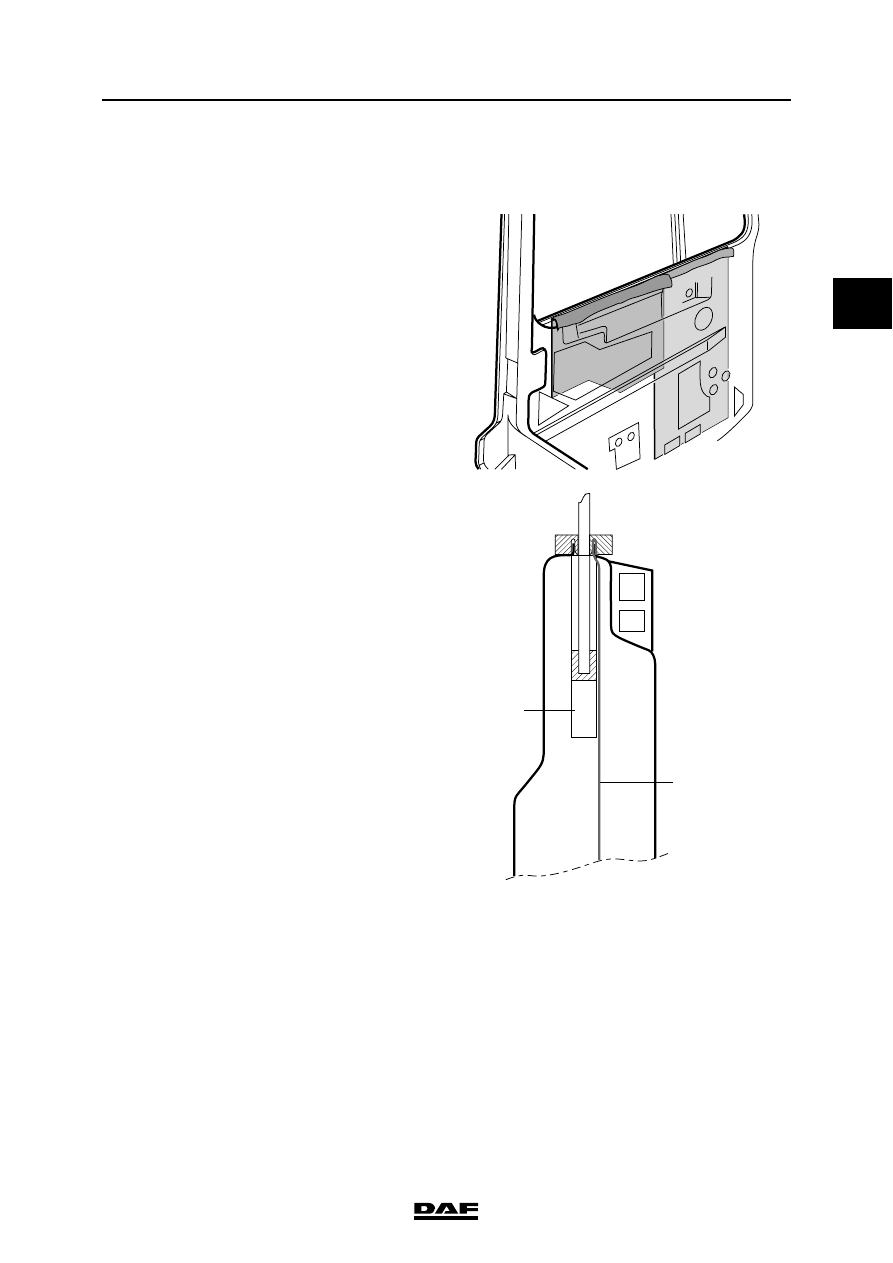

4.13 REMOVAL AND INSTALLATION, INTERIOR DOOR FOILS

Removing front foil
1.

Remove the drop and fixed glass.

2.

Partly remove the inner foil.

3.

Remove the foil (A).

Installing front foil
1.

Fit the foil (A).

2.

Position the foil (2) between the window
guide rail (1) and the inner door panel.

3.

Fit the fixed door window.

4.

Fit the inner window seal.

K1 00 619

B

A

1

2

K1 00 620

INTERNAL CAB COMPONENTS

4-20

©

 200346

Removal and installation

2

ΧΦ65/75/85 series

1

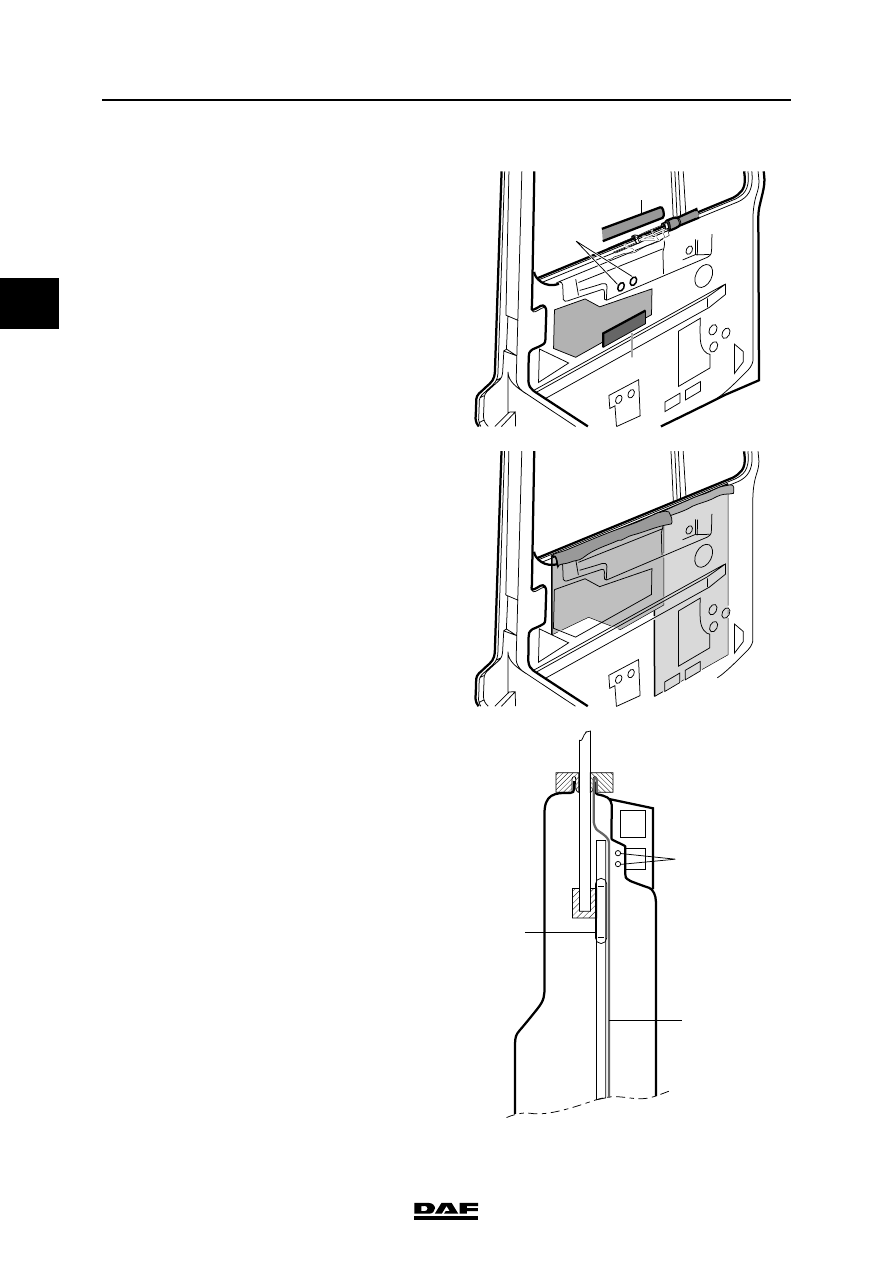

Removing rear foil
1.

Remove the door panel.

2.

Remove the window seal on the inside (7)
and detach the foil (B) at (C).

3.

Remove the upper attachment bolts of the
window mechanism and loosen the lower
attachment bolts.

4.

Remove the foil (B).

Installing rear foil
1.

Fit the foil (B).

2.

Position the foil (3) between the door lock
control rod (1) and the window
mechanism (2).

3.

Pierce the foil in the places where it covers
the upper attachment holes of the window
mechanism. Fit the attachment bolts and
tighten the lower attachment bolts.

K1 00 622

D

C

7

K1 00 619

B

A

2

3

K1 00 621

1

©

 200346

4-21

Removal and installation

INTERNAL CAB COMPONENTS

ΧΦ65/75/85 series

1

2

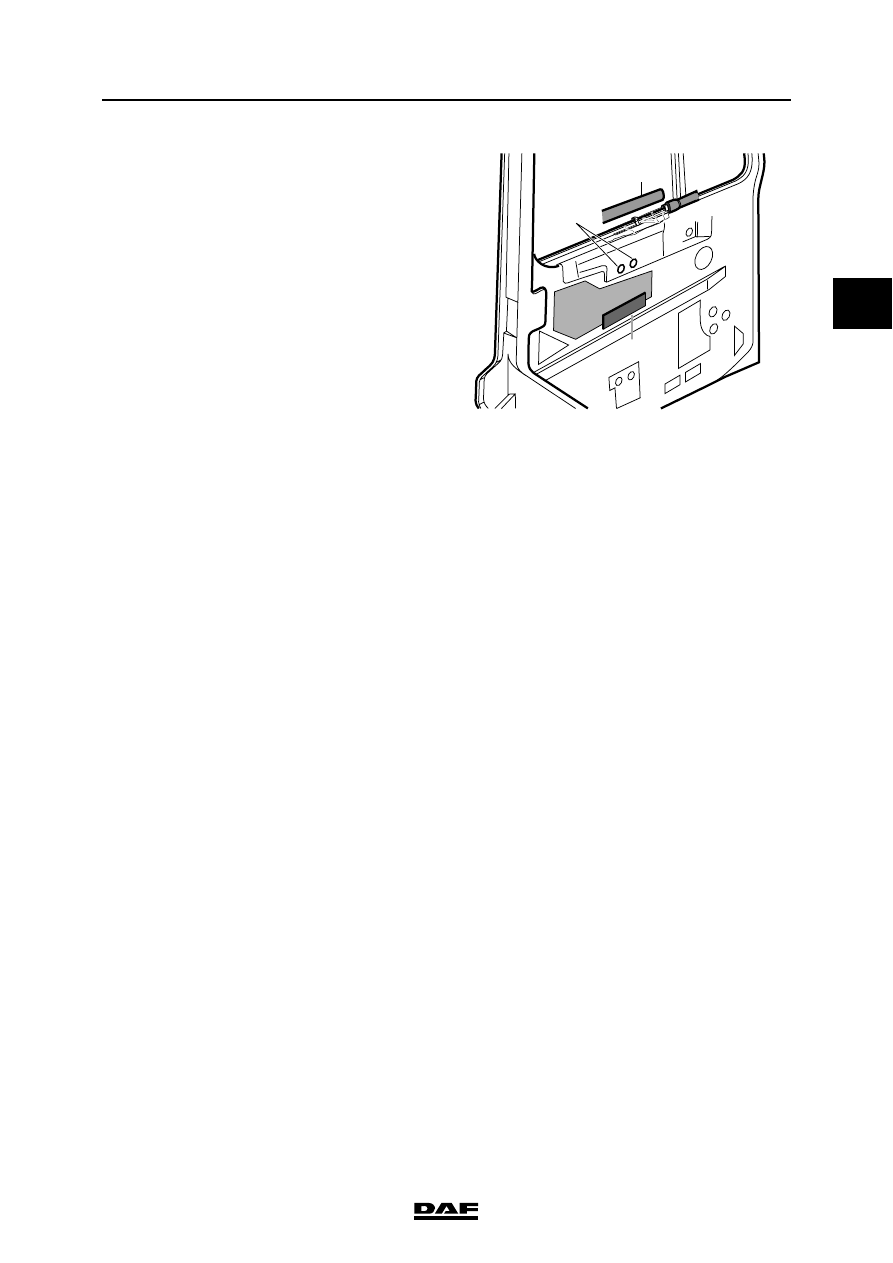

4.

Fit the window seal on the inside (7). Attach
the foil at C, using tape.

5.

Install the door panel.

K1 00 622

D

C

7

INTERNAL CAB COMPONENTS

4-22

©

 200346

Removal and installation

2

ΧΦ65/75/85 series

1

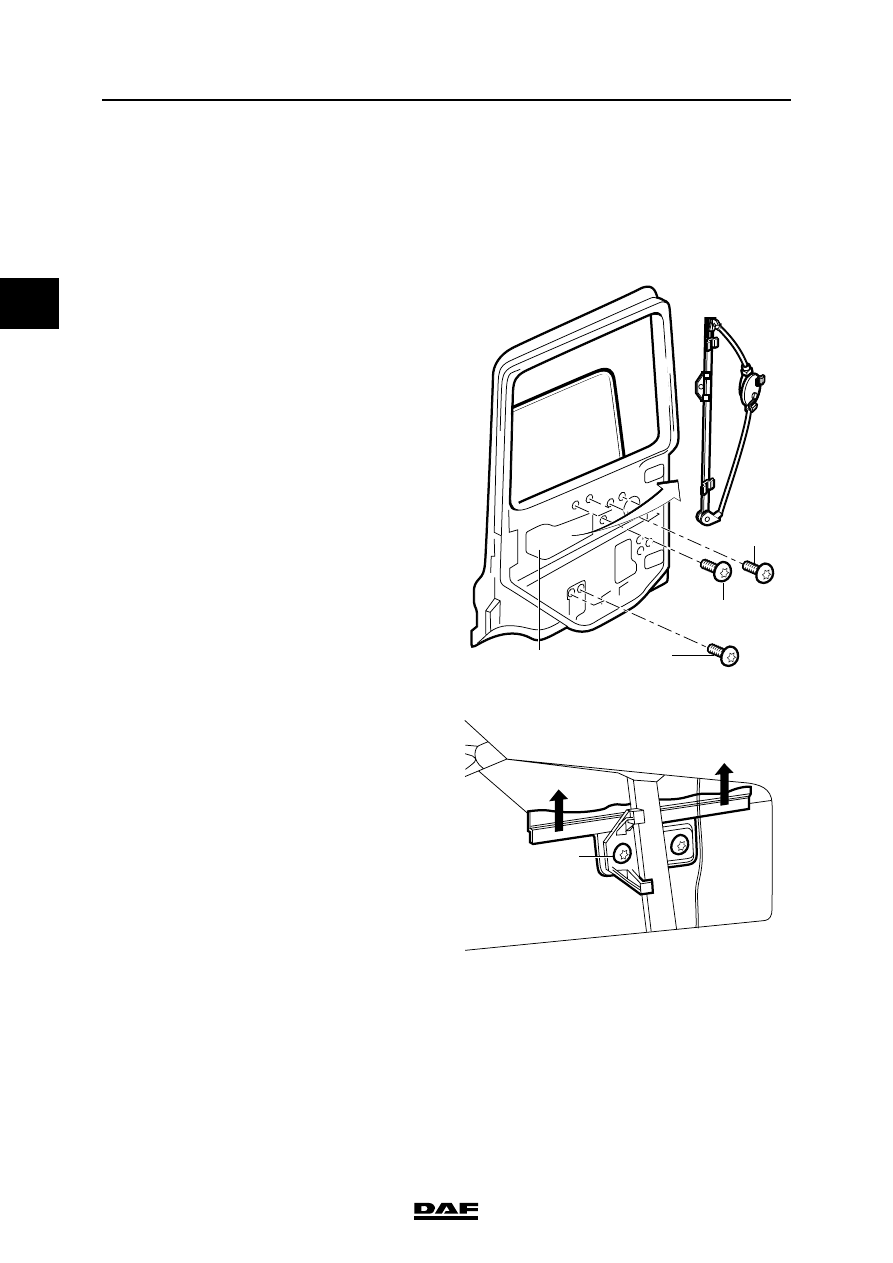

4.14 REMOVAL AND INSTALLATION, MANUALLY OPERATED WINDOW

MECHANISM

Removing manually operated window
mechanism
1.

Remove the door panel.

2.

Detach the foil at (A).

3.

Lower the glass, remove the attachment
bolts (1) and raise the glass.

4.

Remove the attachment bolts (2) and (3) and
remove the window mechanism from the
door through the opening.

Installing manually operated window
mechanism
1.

Fit the window mechanism in the door and fit
the attachment bolts (2) and (3).

2.

Lower the glass and fit it to the window
mechanism using attachment bolts (1).

3.

Raise the glass. Close the glass almost
completely. Check whether the top edge of
the drop glass is parallel to the window
frame. Loosen the attachment bolts (1), if
necessary. Move the glass to the correct
position and re-tighten the attachment bolts.

4.

Use tape to attach the foil at (A).

5.

Install the door panel.

K1 00 908

A

2

2

3

1

K1 01 089
