DAF CF65, CF75, CF85 Series . Manual - part 1079

©

 200448

2-13

Stabilisers, torque rods and leaf suspension

TECHNICAL DATA

ΧΦ65/75/85 series

9

0

(1) Evenly tighten the two U-bolt/tie rod nuts alternately.

(2) Fasten with Loctite 243.

H

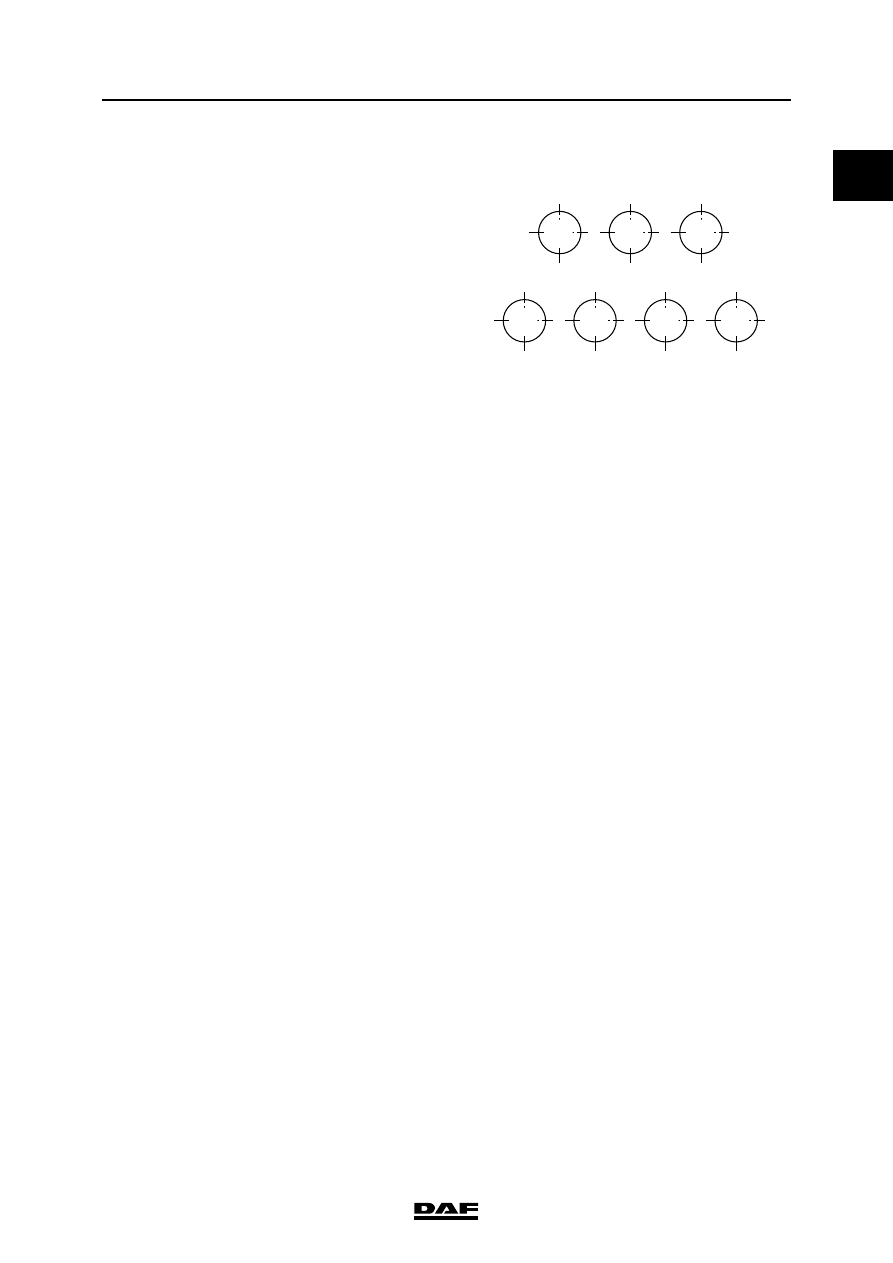

Tighten the bolts according to the standard

tightening torque, in the order shown.

4

1

5

7

2

3

6

C9 00 144

TECHNICAL DATA

2-14

©

 200448

Stabilisers, torque rods and leaf suspension

0

ΧΦ65/75/85 series

9

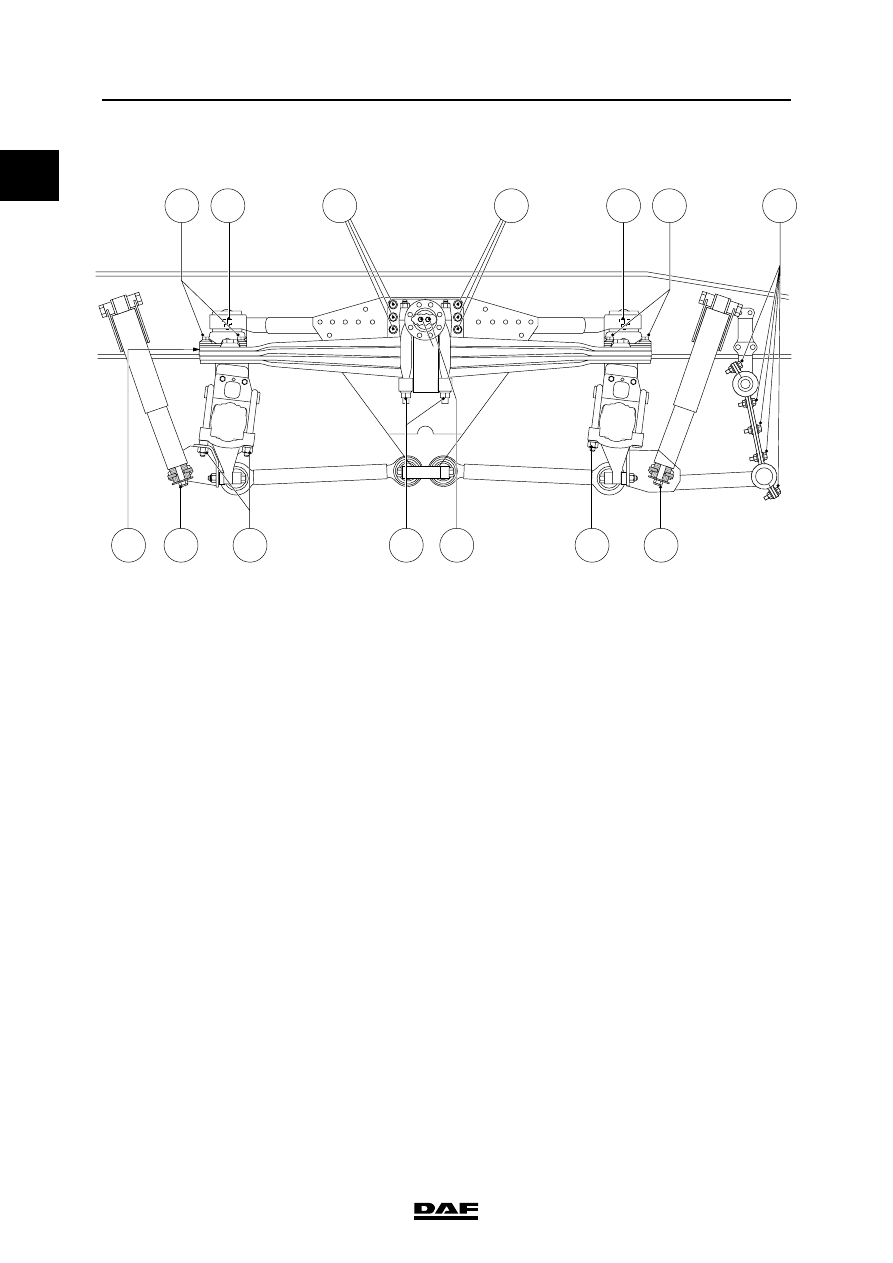

Tandem axle, leaf-sprung, parabolic leaf
spring version

A

Clamping flange bolt M18 for triangular

link, property class 12.9

460

≥ 40 Nm

B

Attachment bolt M14, for triangular link

ball, property class 10.9

135 Nm

C

Self-locking nut M16 for shock absorber

65 Nm

D

U-bolt nut
-

if flanged nut

450

≥ 40 Nm

(1)

-

if yellow zinc-plated hexagonal nut

M20, property class 10, with black

washer

400

≥ 40 Nm

(1)

E

Attachment bolt M14, for bearing bush

plate, property class 10.9

170

≥ 15 Nm

(2)

F

Tie rod nut
-

if flanged nut

650

≥ 50 Nm

(1)

-

if yellow zinc-plated hexagonal nut

M22, property class 10, with black

washer

480

≥ 40 Nm

(1)

G

Attachment bolt M16 for pivot pin flange,

property class 10.9

260

≥ 20 Nm

H

Attachment bolt/nut M14 for stabiliser rod

bracket, property class 10.9/10

170

≥ 15 Nm

C9 00 484

A

B

A

B

C

C

D

F

I

E

H

G

G

D

©

 200448

2-15

Stabilisers, torque rods and leaf suspension

TECHNICAL DATA

ΧΦ65/75/85 series

9

0

(1) Evenly tighten the two U-bolt/tie rod nuts alternately.

(2) Fasten with Loctite 243.

I

Tighten the bolts according to the standard

tightening torque, in the order shown.

4

1

5

7

2

3

6

C9 00 144

TECHNICAL DATA

2-16

©

 200448

Stabilisers, torque rods and leaf suspension

0

ΧΦ65/75/85 series

9

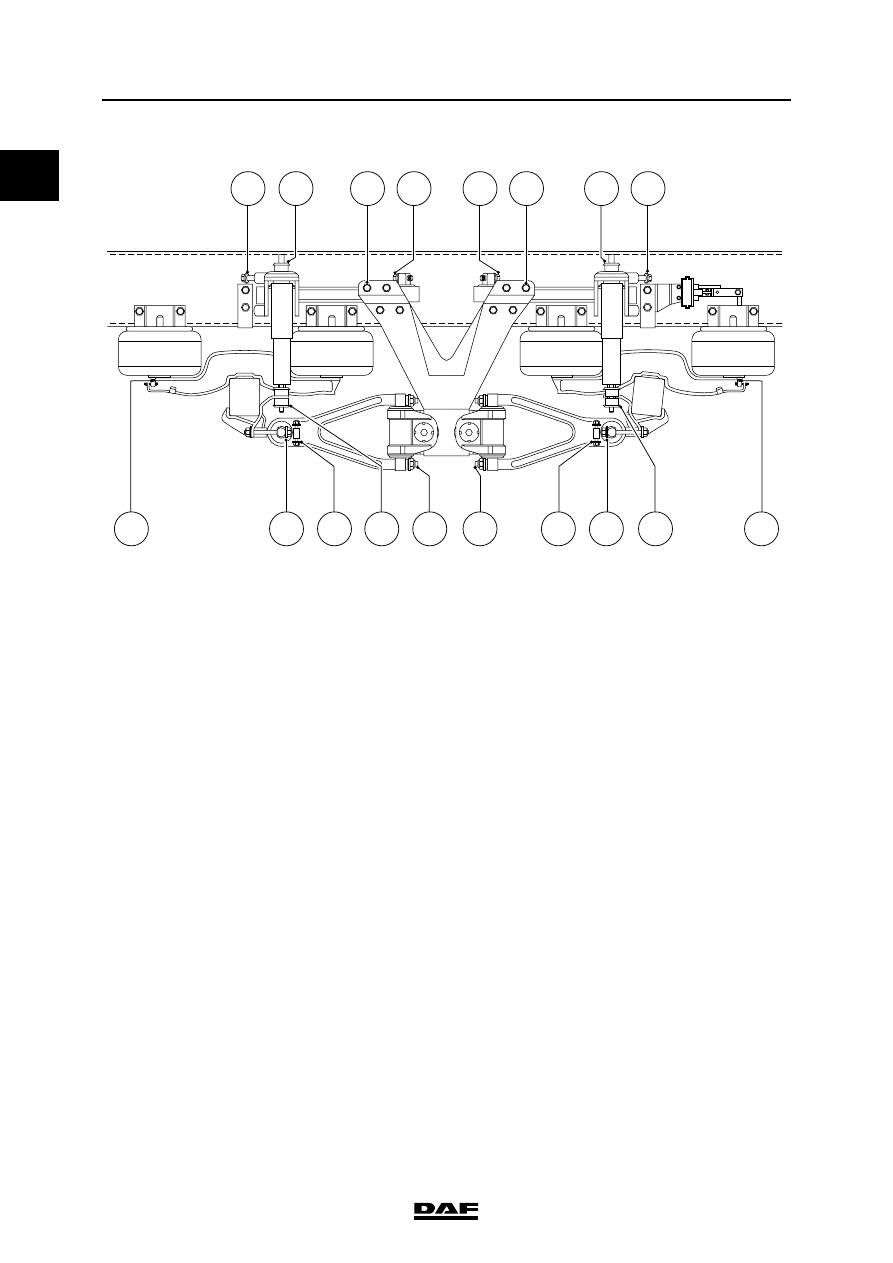

Tandem axle, air-sprung, Meritor version

A

Attachment bolt/nut M16 for torque rod,

property class 10.9/10

260

≥ 60 Nm

B

Tighten shock absorber attachment nut

until the rubber sleeve and the steel ring

have the same diameter.

C

Attachment bolt/nut M22 for yoke, property

class 10.9/10

750 Nm

D

Attachment bolt for bellows 1/2" UNC

34

≥ 7 Nm

E

Attachment bolt/nut M16 for torque rod,

property class 10.9/10

260

≥ 60 Nm

F

Attachment bolt/nut M10 for torque rod,

property class 10.9/10

60

≥ 4 Nm

G

Attachment nut M20 for torque rod,

property class 10.9

520

≥ 40 Nm

C9 00 404

A

B

D

E

F

B

B

G

C

A

A

C

B

A

F

E

D

G
