Rear axle alignment

TECHNICAL DATA

ΧΦ65/75/85 series

9

0

3. REAR AXLE ALIGNMENT

3.1 GENERAL

Rear axle misalignment standard
The angle achieved by the driven rear axle

relative to the vehicle centreline is calculated

from the angle achieved by both wheels of this

axle relative to the vehicle centreline. See "Rear

axle alignment".

Driven axle relative to the vehicle centreline:

-

max. 4 mm/m (angle A in drawing).

This value also applies to the individual

tandem axles and the driven axle of the

trailing axle suspension.

Non-parallelism of the rear tandem axle relative

to the front tandem axle:

-

max. 2 mm/m (angle B in drawing).

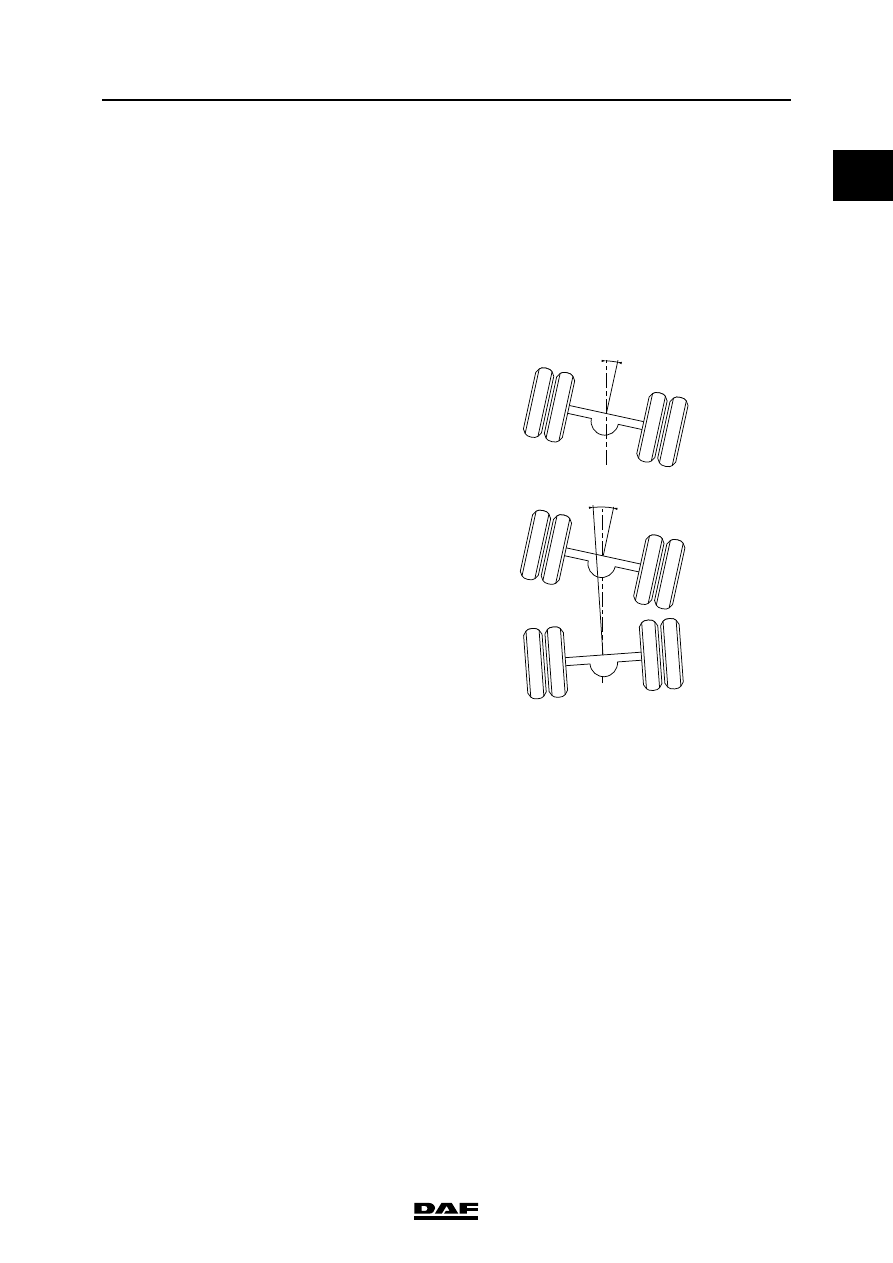

C9 00 123

A

C9 00 124

B

TECHNICAL DATA

3-2

©

 200448

Rear axle alignment

0

ΧΦ65/75/85 series

9

Non-parallelism of the trailing axle relative to the

driven axle:

-

max. 2 mm/m (angle C in drawing).

Non-parallelism of the unsteered leading rear

axle (FTP) relative to the driven axle:

-

max. 2 mm/m (angle D in drawing).

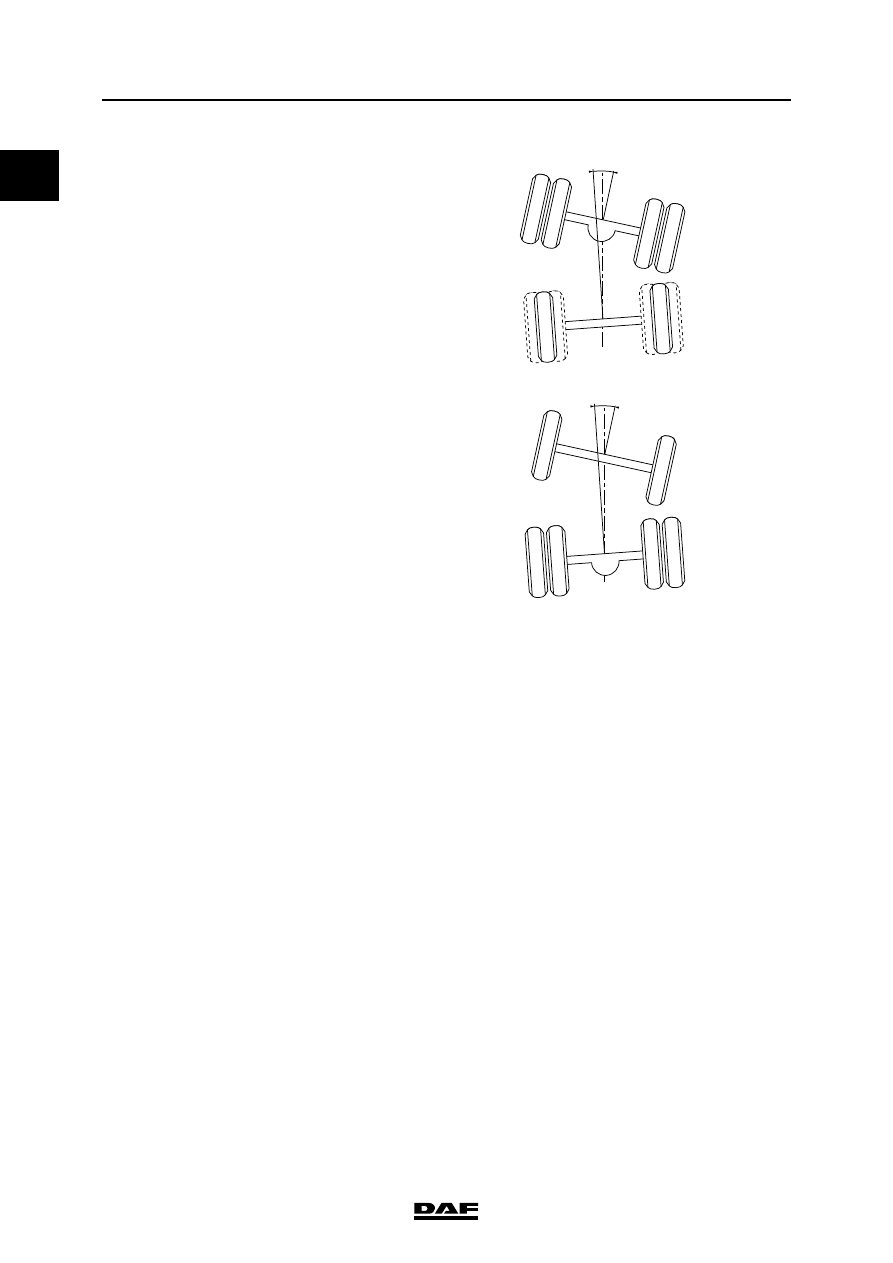

C9 00 235

C

C9 00 519

D

©

 200448

4-1

FAG

TECHNICAL DATA

ΧΦ65/75/85 series

9

0

4. FAG

4.1 GENERAL

Valve adjustment

Control values/adjustment of height-control

valve, axle load ratio 6.0/10.0 and fitted with

leaf spring suspension (DAF no. 1368293)

Pressure-limiting valve

7.0 bar

Pressure-relief valve

0.5 bar

Lever length

60 mm

Joint axle load of leading rear axle/

drive shaft (N)

Bellows pressure (bar)

30,000

0.4

40,000

0.7

50,000

1.1

60,000

1.5

70,000

1.9

80,000

2.2

90,000

2.6

100,000

3.0

110,000

3.4

120,000

3.7

130,000

4.1

140,000

4.5

150,000

4.9

160,000

5.2

170,000

5.6

180,000

6.0

190,000

6.4

200,000

6.7

TECHNICAL DATA

4-2

©

 200448

FAG

0

ΧΦ65/75/85 series

9

Control values/adjustment of height-control

valve, axle load ratio 6.0/10.0 and fitted with

leaf spring suspension (DAF no. 1386990)

Lever length

70 mm

Joint axle load of leading rear axle/

drive shaft (N)

Bellows pressure (bar)

30,000

0.4

40,000

0.7

50,000

1.1

60,000

1.5

70,000

1.9

80,000

2.2

90,000

2.6

100,000

3.0

110,000

3.4

120,000

3.7

130,000

4.1

140,000

4.5

150,000

4.9

160,000

5.2

170,000

5.6

180,000

6.0

190,000

6.4

200,000

6.7
