DAF CF65, CF75, CF85 Series . Manual - part 1078

©

 200448

2-9

Stabilisers, torque rods and leaf suspension

TECHNICAL DATA

ΧΦ65/75/85 series

9

0

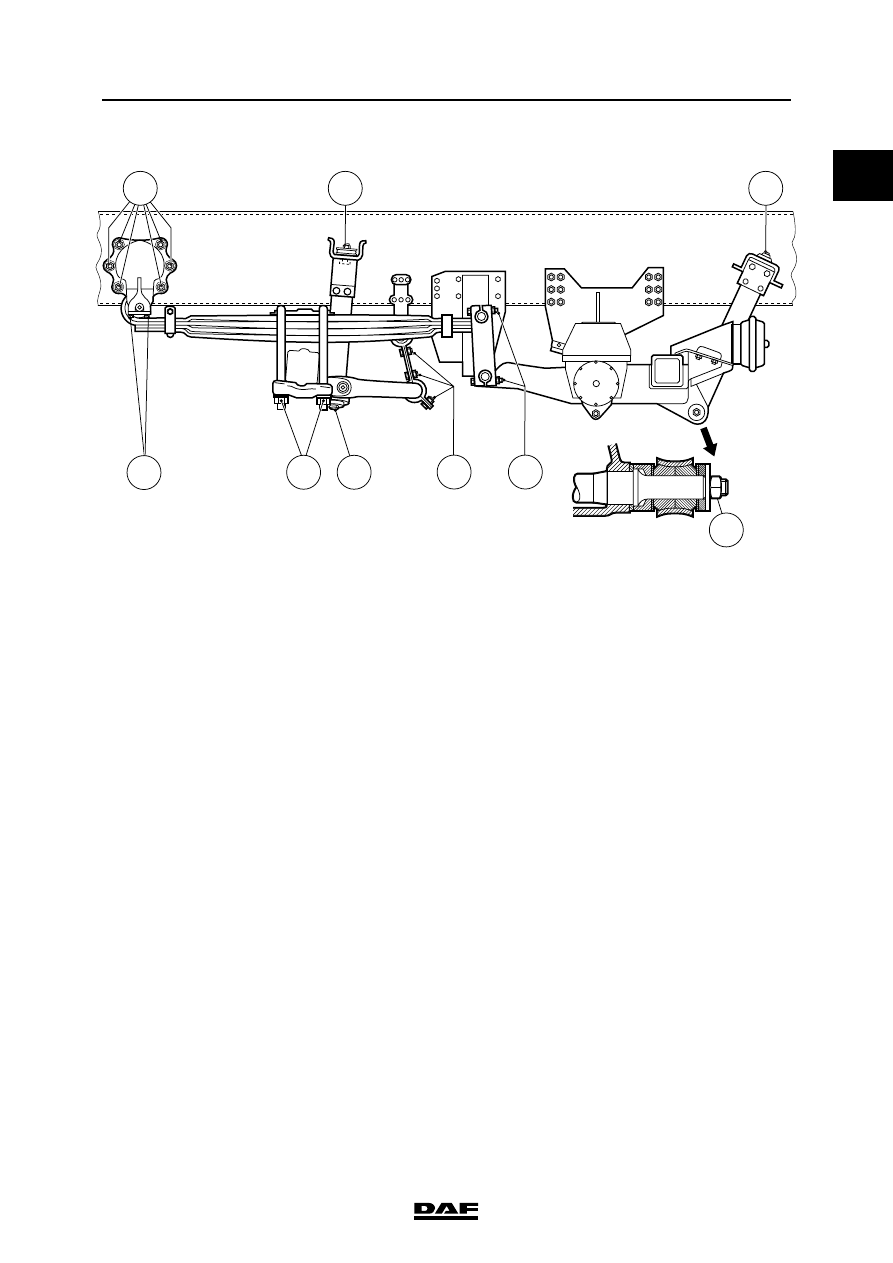

Trailing axle, leaf suspension

(1) Evenly tighten the two U-bolt nuts alternately.

A

U-bolt nut
-

if flange nut M24

750

≥ 50 Nm

(1)

-

if yellow zinc-plated hexagonal nut

M24, property class 10, with black

washer

615

≥ 50 Nm

(1)

B

Self-locking nut M16

65 Nm

C

Shock absorber attachment nut

260

≥ 20 Nm

D

Attachment bolt/nut M16 for spring

bracket, property class 10.9/10

260

≥ 20 Nm

E

Attachment bolt/nut M14 for stabiliser rod

bracket, property class 10.9/10

170

≥ 15 Nm

F

Attachment bolt M10 for pin attachment of

spring assembly, property class 10.9

60

≥ 4 Nm

G

Attachment bolt/nut M12 for spring

shackle, property class 10.9/10

110

≥ 8 Nm

A

B

C9 00 483

B

F

B

C

E

G

D

TECHNICAL DATA

2-10

©

 200448

Stabilisers, torque rods and leaf suspension

0

ΧΦ65/75/85 series

9

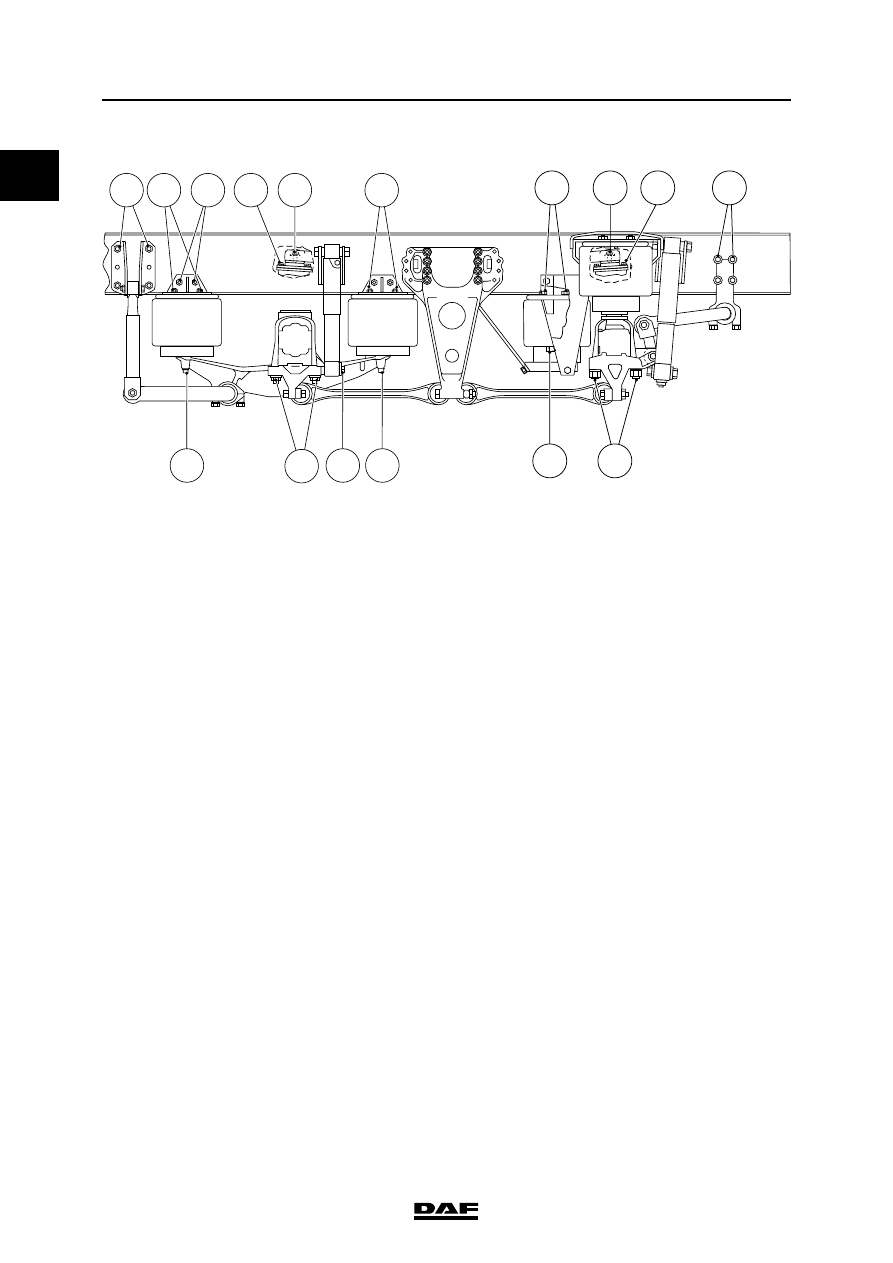

Trailing axle, air-sprung, 6 bellows version

(1) Bellows must first be tightened on the chassis side.

(2) The high hexagonal nut can be recognised by the nut height, which is 1.5 x thread

. Evenly tighten the two U-bolt nuts

alternately.

(3) The yellow zinc-plated hexagonal nut can be recognised by the nut height, which is 1 x thread

. Evenly tighten the two U-bolt

nuts alternately.

A

Attachment nut M10 for bellows, property

class 10

46 Nm

(1)

B

Clamping flange bolt M18 for triangular

link, property class 12.9

460

≥ 40 Nm

C

Attachment bolt M14, for triangular link

ball, property class 10.9

135 Nm

D

U-bolt nut
-

if black high hexagonal nut M24 with

black washer

770

≥ 60 Nm

(2)

-

if yellow zinc-plated hexagonal nut

M24, property class 10, with black

washer

615

≥ 50 Nm

(3)

E

Attachment bolt M16 for bellows, property

class 8.8

195 Nm

(1)

F

Attachment bolt M20 for shock absorber,

property class 10.9

520

≥ 40 Nm

G

Attachment bolt/nut M16 for stabiliser

shackle support, property class 10.9/10

260

≥ 20 Nm

H

Attachment bolt/nut M10 for bellows

support, property class 10.9/10

60

≥ 4 Nm

I

Attachment bolt/nut M16 for stabiliser

shackle support, property class 10.9/10

260

≥ 20 Nm

C900463

D

B

G

E

A

A

B

I

H

A

D

E

F

E

C

C

©

 200448

2-11

Stabilisers, torque rods and leaf suspension

TECHNICAL DATA

ΧΦ65/75/85 series

9

0

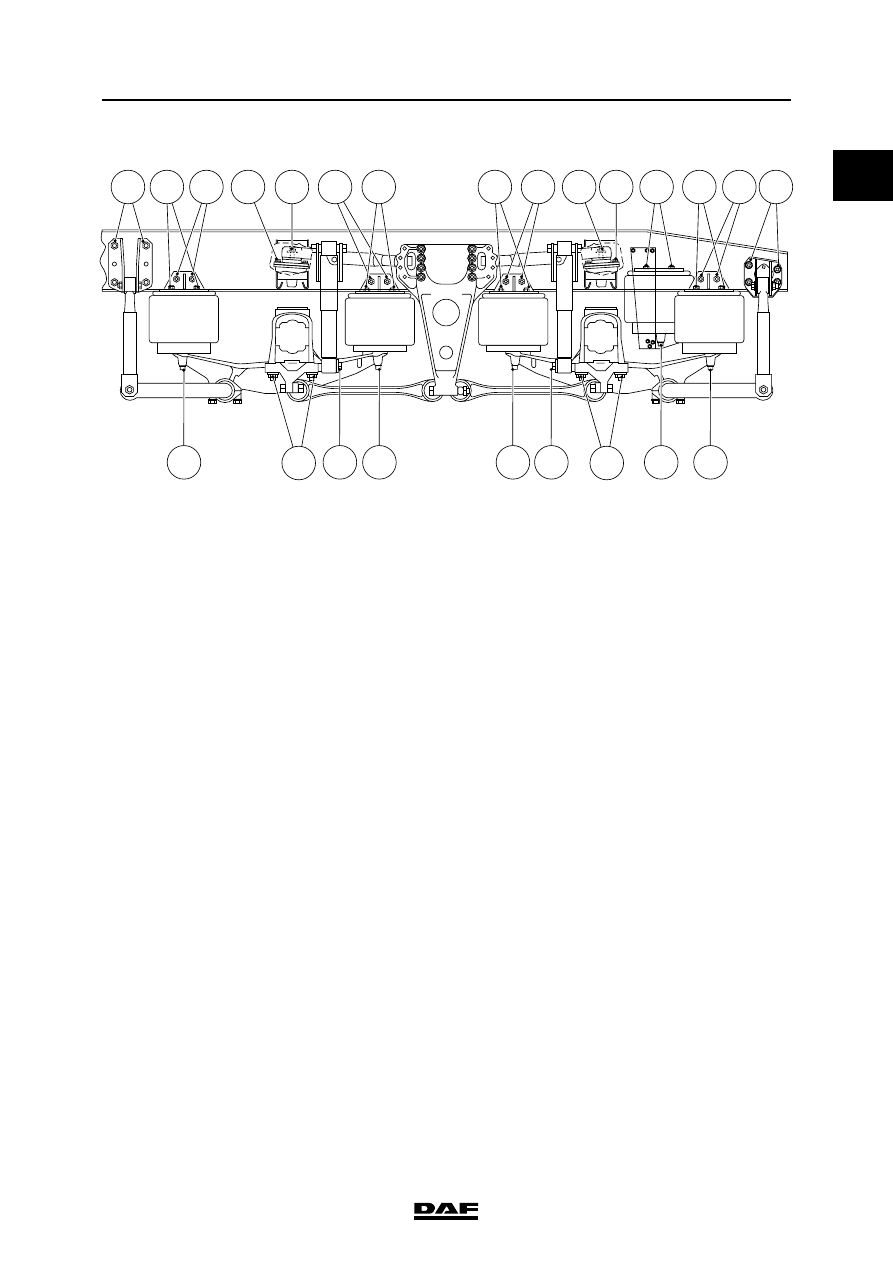

Trailing axle, air-sprung, 8 bellows version

(1) Bellows must first be tightened on the chassis side.

(2) The high hexagonal nut can be recognised by the nut height, which is 1.5 x thread

. Evenly tighten the two U-bolt nuts

alternately.

(3) The yellow zinc-plated hexagonal nut can be recognised by the nut height, which is 1 x thread

. Evenly tighten the two U-bolt

nuts alternately.

A

Attachment nut M10 for bellows, property

class 10

46 Nm

(1)

B

Clamping flange bolt M18 for triangular

link, property class 12.9

460

≥ 40 Nm

C

Attachment bolt M14, for triangular link

ball, property class 10.9

135 Nm

D

Attachment bolt M16 for bellows, property

class 8.8

195 Nm

(1)

E

U-bolt nut
-

if black high hexagonal nut M24 with

black washer

770

≥ 60 Nm

(2)

-

if yellow zinc-plated hexagonal nut

M24, property class 10, with black

washer

615

≥ 50 Nm

(3)

F

Attachment bolt M20 for shock absorber,

property class 10.9

520

≥ 40 Nm

G

Attachment bolt/nut M16 for stabiliser

shackle support, property class 10.9/10

260

≥ 20 Nm

H

Attachment bolt/nut M10 for bellows

support, property class 10.9/10

60

≥ 4 Nm

C9 00 482

A

B

C

B

C

G

H

G

A

E

E

A

A

A

D

D

D

F

F

D

D

H

H

H

TECHNICAL DATA

2-12

©

 200448

Stabilisers, torque rods and leaf suspension

0

ΧΦ65/75/85 series

9

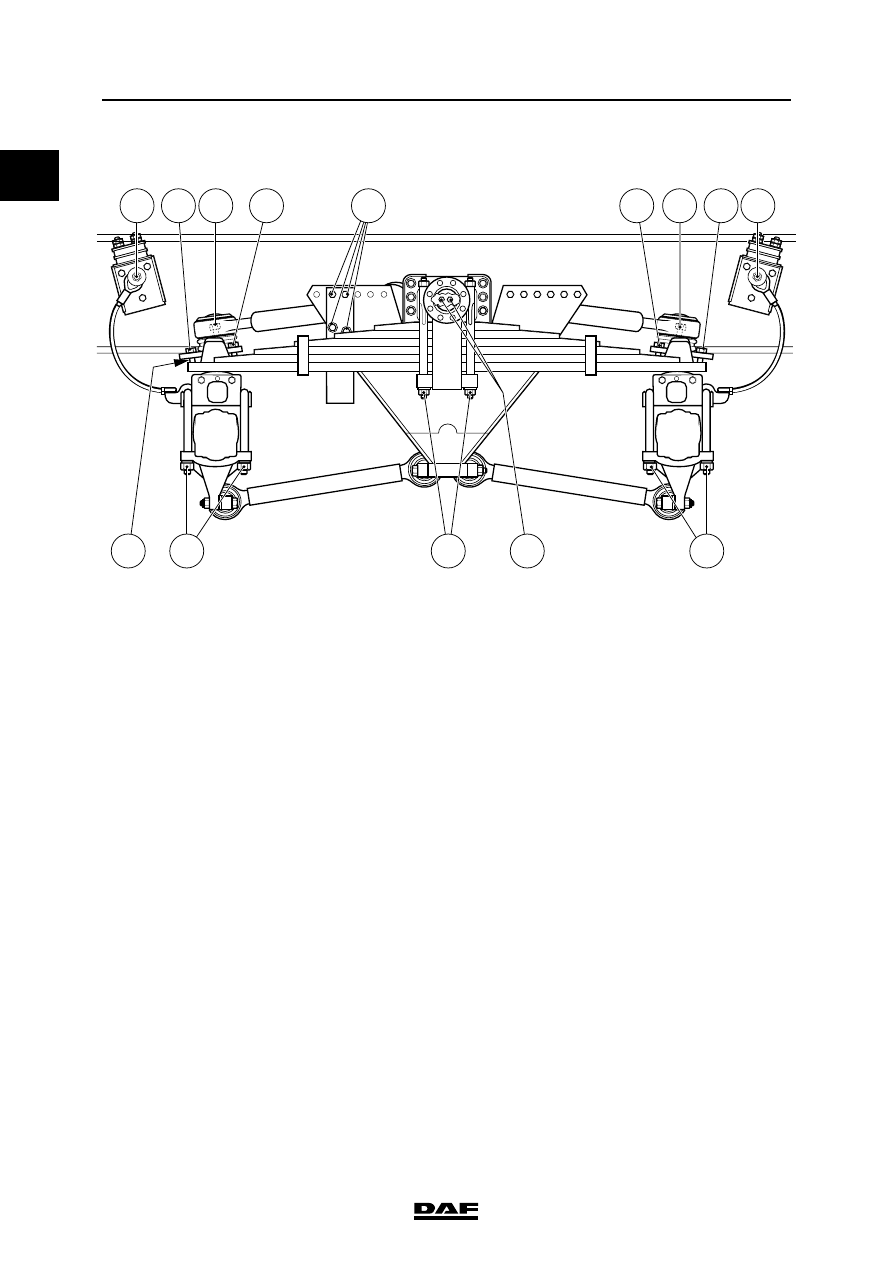

Tandem axle, leaf-sprung, trapezoidal leaf
spring version

A

Attachment bolt/nut M16 for arresting

cable

150

≥ 20 Nm

B

Attachment bolt M14, for triangular link

ball, property class 10.9

135 Nm

C

Clamping flange bolt M18 for triangular

link, property class 12.9

460

≥ 40 Nm

D

U-bolt nut
-

if flange nut M20

450

≥ 40 Nm

(1)

-

if yellow zinc-plated hexagonal nut

M20, property class 10, with black

washer

400

≥ 40 Nm

(1)

E

Attachment bolt M14, for bearing bush

plate, property class 10.9

170

≥ 15 Nm

(2)

F

Tie rod nut
if flange nut M22

650

≥ 50 Nm

(1)

if yellow zinc-plated hexagonal nut M22,

property class 10, with black washer

480

≥ 40 Nm

(1)

G

Attachment bolt/nut M12 for alignment

plate, property class 10.9/10

110

≥ 8 Nm

A

C

F

H

C9 00 485

C

B

E

A

B

C

C

G

D

D
