DAF CF65, CF75, CF85 Series . Manual - part 1076

©

 200448

2-1

Stabilisers, torque rods and leaf suspension

TECHNICAL DATA

ΧΦ65/75/85 series

9

0

2. STABILISERS, TORQUE RODS AND LEAF SUSPENSION

2.1 GENERAL

Minimum dimensions of wearing plates
If one of the dimensions of the wearing plates, on

which the spring assembly rests, is smaller than

indicated by the dotted line in the opposite

drawing, the wearing plates must be replaced.

Alignment plate/tandem axle spring clearance
If applicable, the clearance between the align-

ment plate and the tandem axle is: 1.5 - 2.5 mm.

2.2 TIGHTENING TORQUES

The tightening torques stated in this section are

different from the standard tightening torques

stated in the overview of the standard tightening

torques. The other threaded connections not

specified must therefore be tightened to the

torque stated in the overview of standard

tightening torques.

When attachment bolts and nuts are replaced, it

is important that - unless stated otherwise - these

bolts and nuts are of exactly the same length and

property class as those removed.

3

15

W9 00 013

TECHNICAL DATA

2-2

©

 200448

Stabilisers, torque rods and leaf suspension

0

ΧΦ65/75/85 series

9

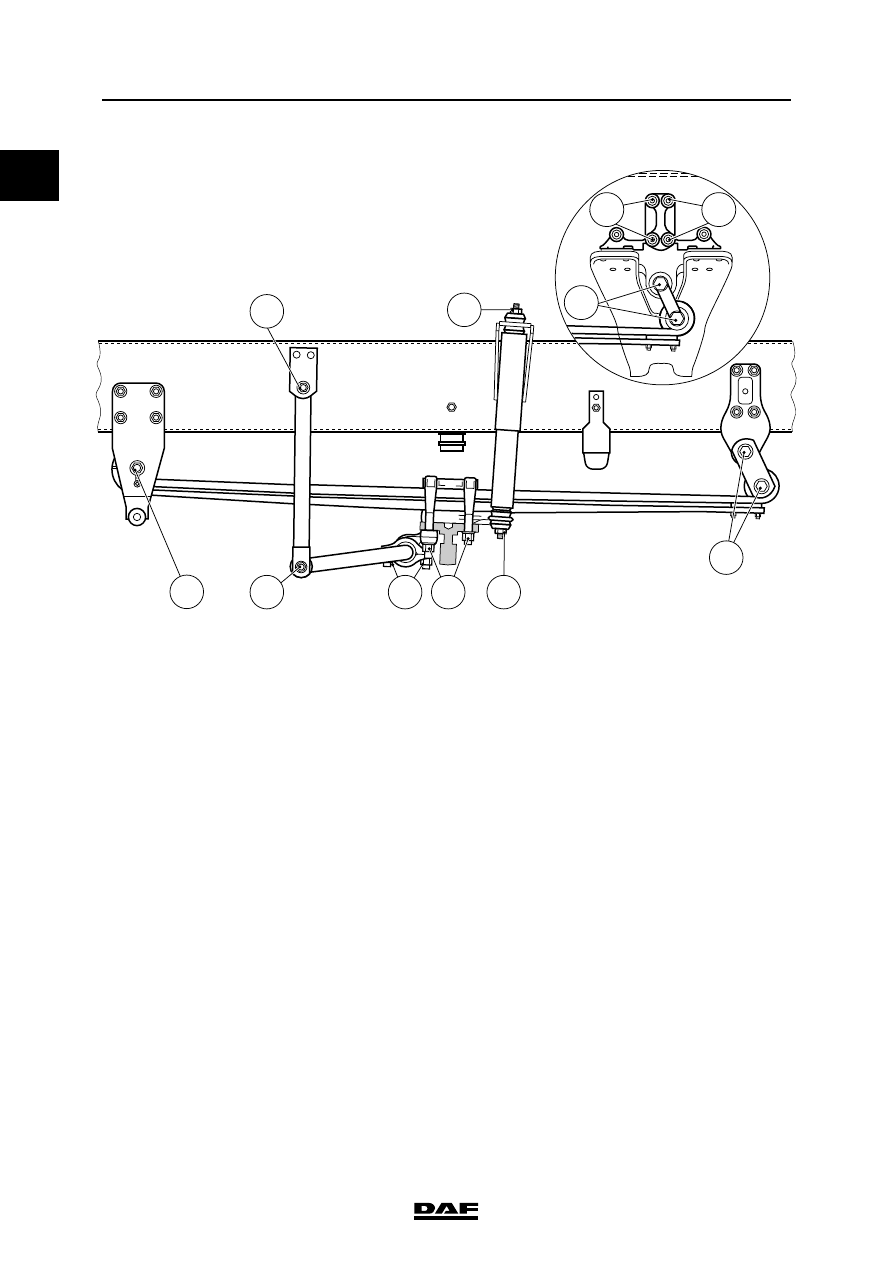

Front axle, leaf-sprung

(1) Evenly tighten the two U-bolt nuts alternately.

(2) Only applies in case of tandem axle/trailing axle

A

Attachment bolt M24 for spring assembly,

property class 10.9

880 Nm

B

U-bolt nut
-

if flange nut M20, with yellow washer

450

≥ 40 Nm

(1)

-

if yellow zinc-plated hexagonal nut

M20, property class 10, with black

washer

400

≥ 40 Nm

(1)

C

Self-locking nut M16 for shock absorber

65 Nm

D

Attachment bolt/nut M16 for stabiliser rod

shackle, property class 10.9/10

260

≥ 20 Nm

E

Attachment bolt/nut M12 for stabiliser rod

bearing bush cover, property class 10.9/10

110

≥ 8 Nm

F

Attachment bolt/nut M14 for spring

bracket, property class 10.9/10

170

≥ 15 Nm

(2)

C9 00 477

A

B

C

C

D

D

A

F

F

A

E

©

 200448

2-3

Stabilisers, torque rods and leaf suspension

TECHNICAL DATA

ΧΦ65/75/85 series

9

0

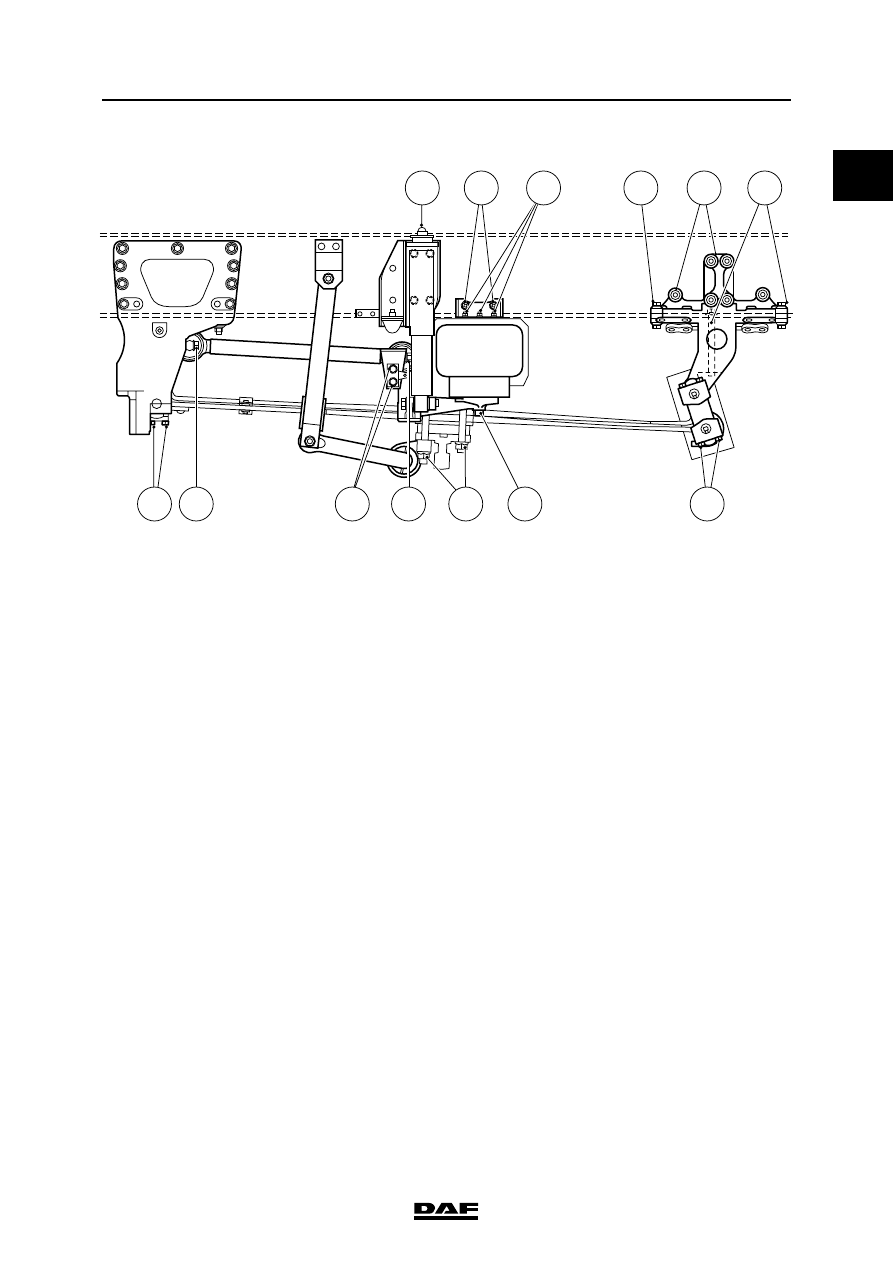

Front axle, air-sprung

(1) Evenly tighten the two U-bolt nuts alternately.

(2) Bellows must first be tightened on the chassis side.

A

Attachment bolt M16 for torque rod,

property class 10.9

260

≥ 20 Nm

B

U-bolt nut
-

if flange nut M22

700

≥ 50 Nm

(1)

-

if yellow zinc-plated hexagonal nut

M22, property class 10, with black

washer

530

≥ 40 Nm

(1)

C

Attachment bolt M16 for bellows, property

class 8.8

195 Nm

(2)

D

Attachment nut M10 for bellows, property

class 10

46 Nm

(2)

E

Attachment bolt/nut M16 for spring

bracket, property class 10.9/10

260

≥ 20 Nm

F

Attachment bolt/nut M14 for spring

bracket, property class 10.9/10

170

≥ 15 Nm

G

Self-locking nut M16 for shock absorber

65 Nm

H

Attachment bolt/nut M12 for bellows

support, property class 10.9/10

110

≥ 8 Nm

I

Attachment bolt M10 for pin attachment of

spring assembly, property class 10.9

60

≥ 4 Nm

J

Attachment bolt M12 for torque rod

support, property class 10.9

110

≥ 8 Nm

C9 00 479

A

A

J

B

C

I

F

H

D

G

E

E

I

TECHNICAL DATA

2-4

©

 200448

Stabilisers, torque rods and leaf suspension

0

ΧΦ65/75/85 series

9

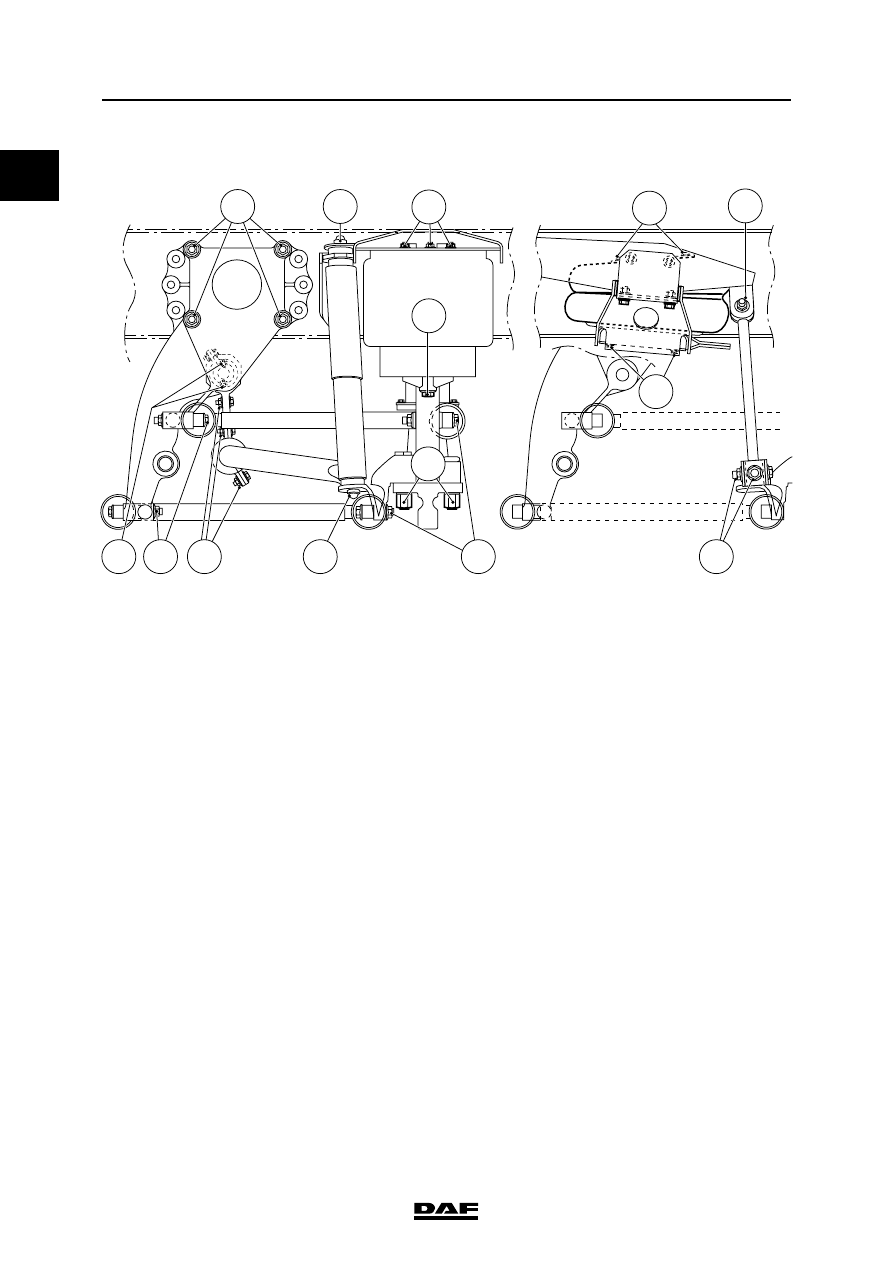

Leading rear axle, vehicle in FTG, FAG
version

(1) Bellows must first be tightened on the chassis side.

(2) Evenly tighten the two U-bolt nuts alternately.

A

Attachment bolt/nut M16 for torque rod

(support), property class 10.9/10

260

≥ 20 Nm

B

Self-locking nut M16 for shock absorber

65 Nm

C

Attachment nut M10 for bellows, property

class 10

46 Nm

(1)

D

Attachment bolt M16 for bellows, property

class 10.9

195 Nm

(1)

E

U-bolt nut
-

if flange nut M22

700

≥ 50 Nm

(2)

-

if yellow zinc-plated hexagonal nut

M22, property class 10, with black

washer

530

≥ 40 Nm

(2)

F

Attachment bolt M8 for lifting bellows,

property class 10.9

20 Nm

G

Attachment bolt/nut for stabiliser bar

bracket
-

if M14, property class 10.9/10

170

≥ 15 Nm

-

if M16, property class 10.9/10

260

≥ 20 Nm

H

Attachment bolts M8 for locking plate,

property class 10.9

30 Nm

C9 00 486

F

A

B

F

E

B

A

A

D

G

H

A

A

C
