DAF CF65, CF75, CF85 Series . Manual - part 1039

©

 200424

3-15

Removal and installation

SINGLE REAR AXLE 1354

ΧΦ65/75/85 series

8

5

3.

Remove the split pin (4), ring (3) and yoke

pin (2) and remove the yoke (6) from the axle

housing.

4.

Remove the floating blocks (7) from the yoke

(6).

5.

Turn the pneumatic cylinder (1) out of the

housing.

6.

Check the toothing of the selector sleeve (9)

and the right satellite-gear housing flange for

signs of damage and wear.

7.

Check whether the selector sleeve moves

smoothly over the axle shaft.

8.

Check whether the yoke (6) moves smoothly

over the axle (5).

9.

If the toothing of the satellite-gear housing

flange appears to be damaged, you must not

only replace this flange but also the entire

satellite-gear housing. You cannot replace

these two components separately.

10. If necessary, remove the engaging cylinder

and check the various parts for signs of

damage.

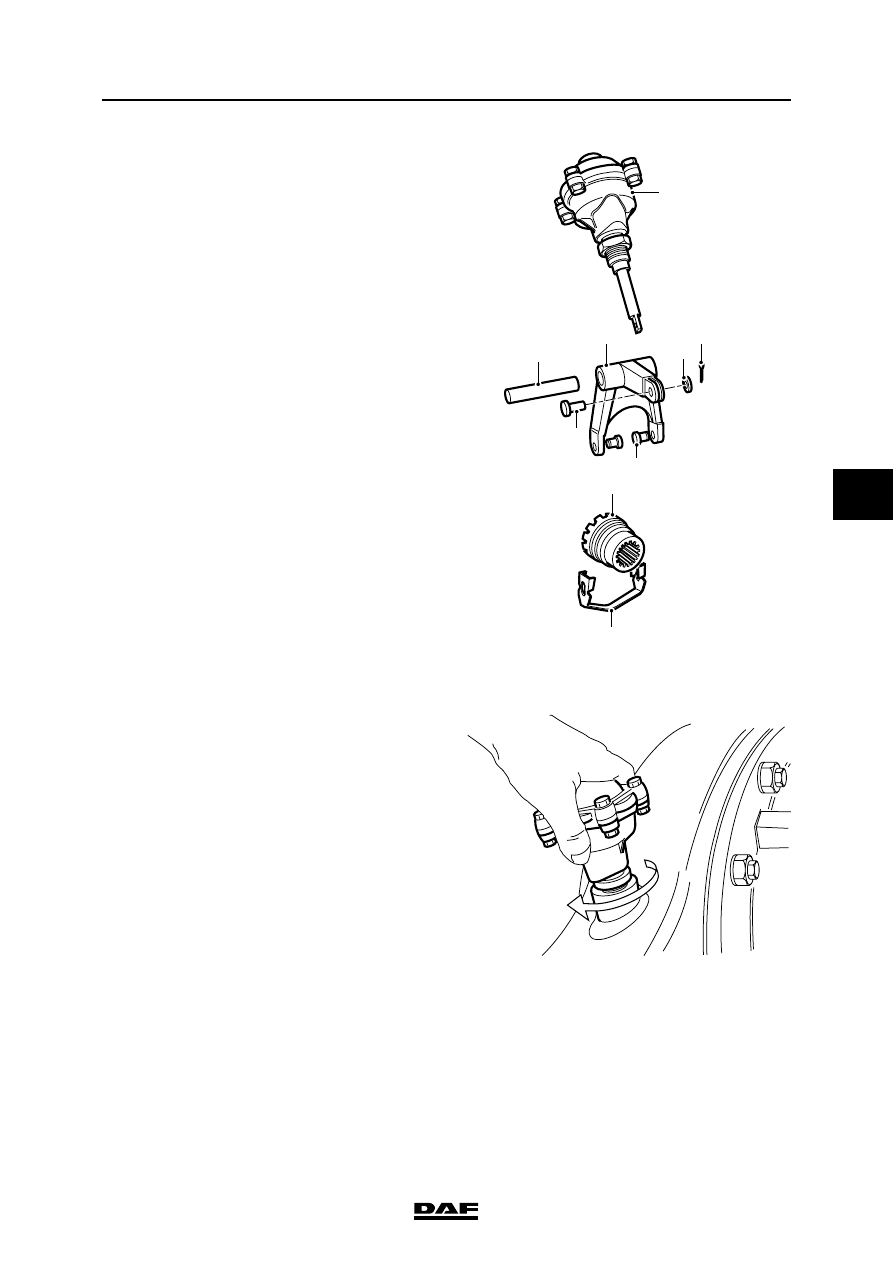

Installing the differential lock
1.

Turn the engaging cylinder (1) with lock nut

entirely into the axle housing.

1

5

2

7

8

A800021

6

9

3

4

A800028

SINGLE REAR AXLE 1354

3-16

©

 200424

Removal and installation

5

ΧΦ65/75/85 series

8

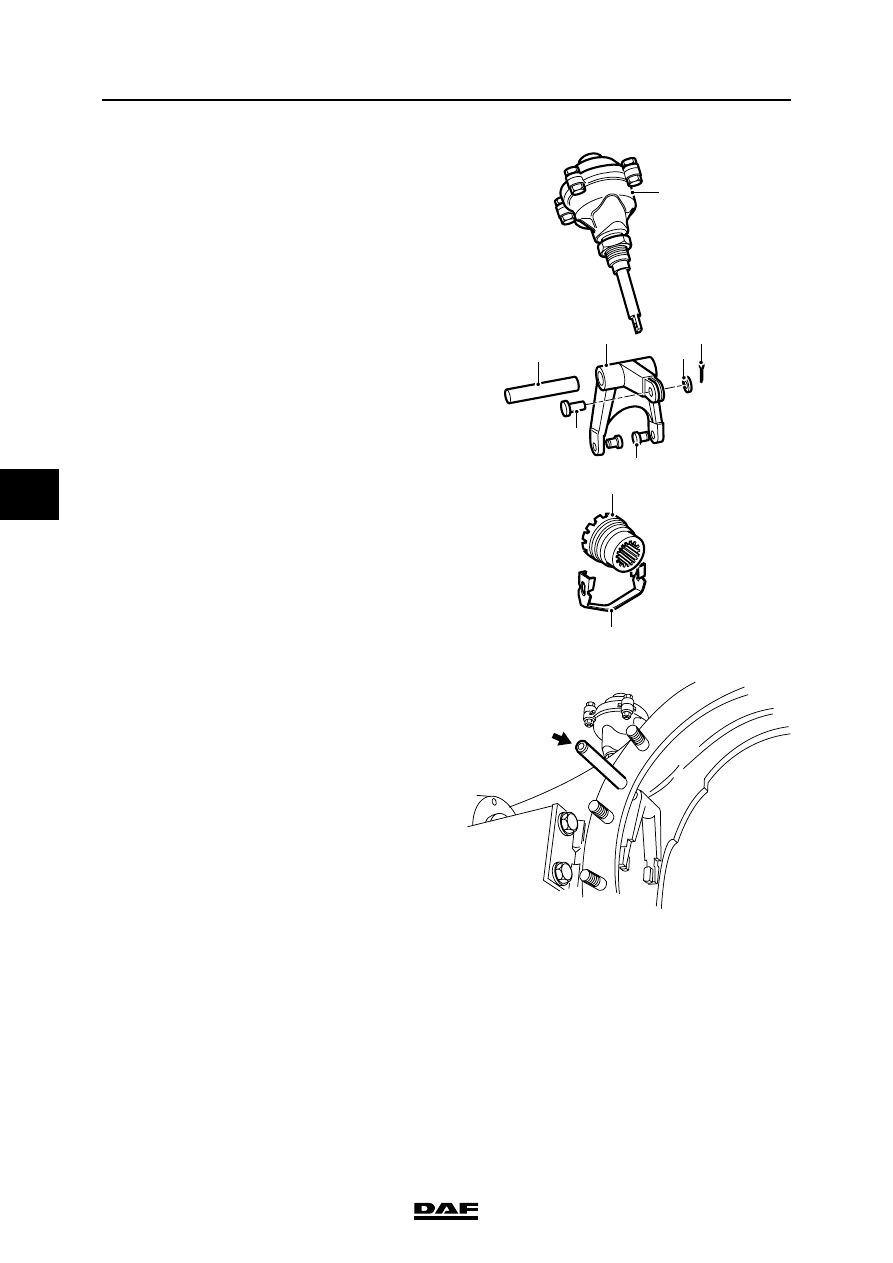

2.

Fit the yoke (6) with yoke pin (2), ring (3) and

split pin (4) to the cylinder control rod.

3.

Install the yoke with axle into the differential

housing, making sure that the threaded hole

of the axle points outward (see arrow).

4.

Use a nylon or copper hammer to tap the

axle into the axle housing until the axle

journal is positioned flush with or slightly

lower than the mating surface of axle

housing and differential.

1

5

2

7

8

A800021

6

9

3

4

A800030

©

 200424

3-17

Removal and installation

SINGLE REAR AXLE 1354

ΧΦ65/75/85 series

8

5

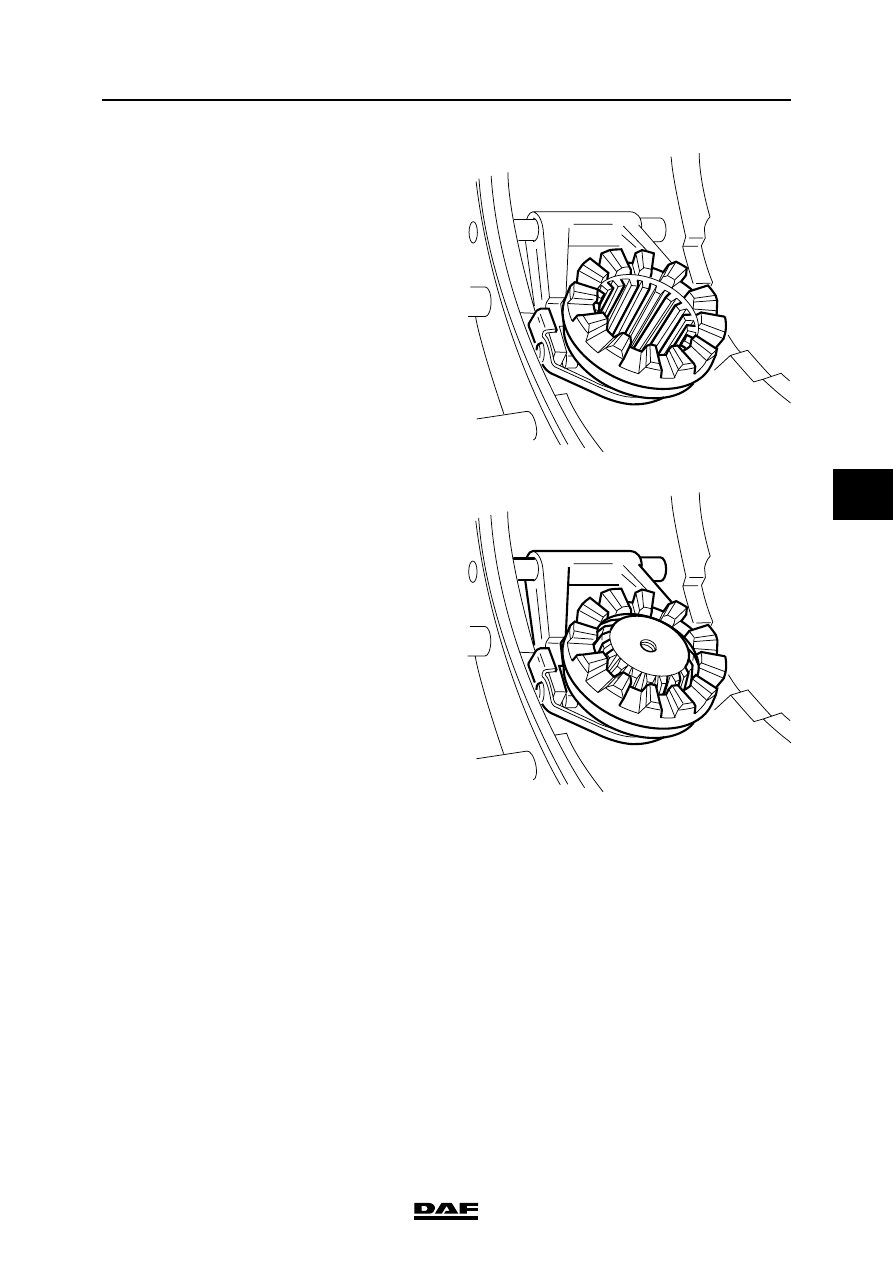

5.

Fit the floating blocks (7) into the yoke (6). Fit

the selector sleeve (9) with the spring clip (8)

into the yoke. Pull the spring clip (8)

downward on both sides, so that the

narrowest part of the semicircular holes is

positioned behind the edges of the floating

blocks.

6.

Install the right axle shaft and slide it into the

selector sleeve.

7.

Slacken the engaging cylinder until the

selector sleeve is positioned inside the edge

of the axle housing. Make sure that the axle

shaft end is flush with the top of the selector

sleeve toothing.

8.

Install the differential.

A800031

A800032

SINGLE REAR AXLE 1354

3-18

©

 200424

Removal and installation

5

ΧΦ65/75/85 series

8
