Draining and filling

SINGLE REAR AXLE 1354

ΧΦ65/75/85 series

8

5

4. DRAINING AND FILLING

4.1 DRAINING AND FILLING, HUB

To prevent skin injury, avoid

unnecessary contact with the

drained oil.

Draining the hub
1.

Position the vehicle on a level surface.

2.

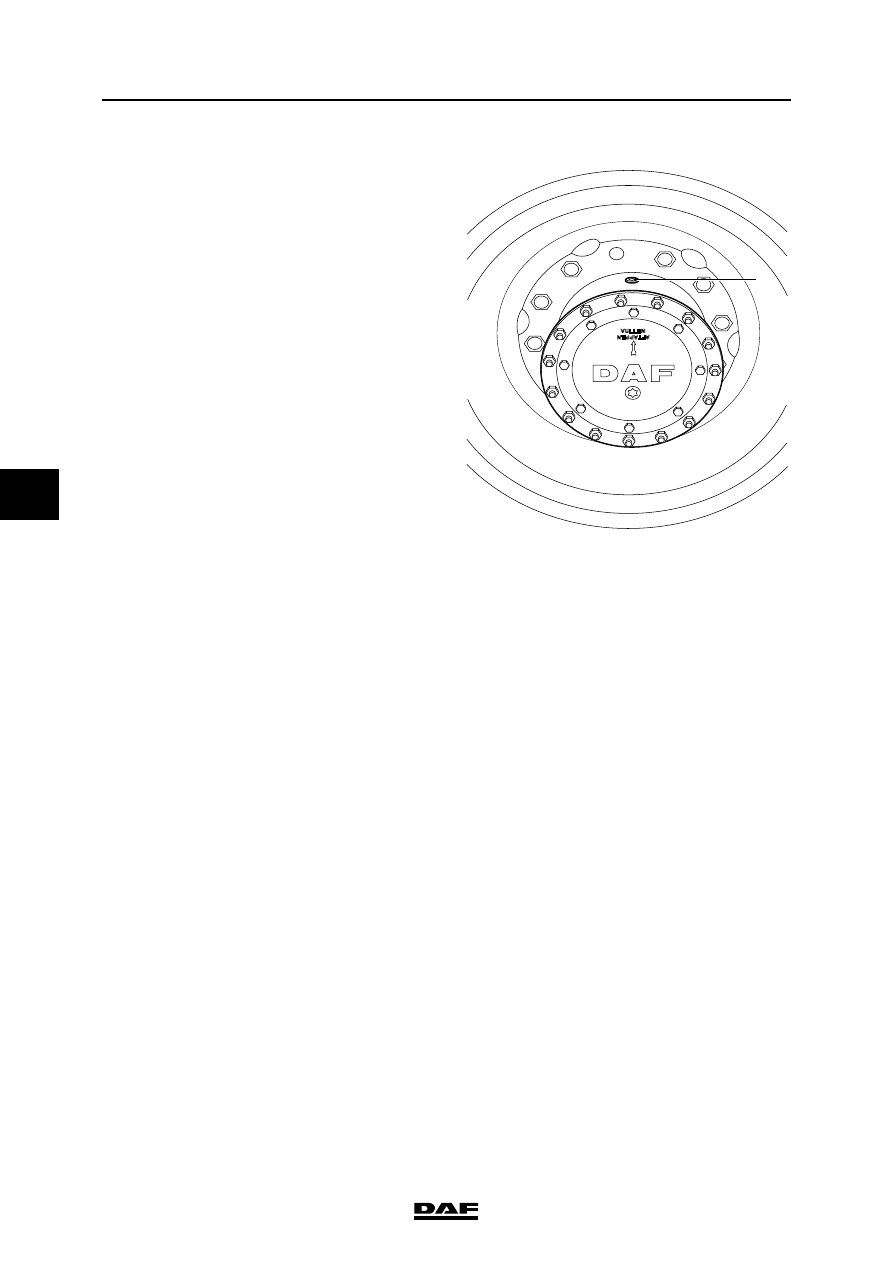

Position the wheels in such a way that the oil

drain/filler plug (A) is on the underside.

3.

Remove the oil level check plug (B) and oil

drain/filler plug (A).

4.

Drain the oil and let the oil leak out of the

hub.

}

B

A

A8 00 363

SINGLE REAR AXLE 1354

4-2

©

 200424

Draining and filling

5

ΧΦ65/75/85 series

8

Filling the hub
1.

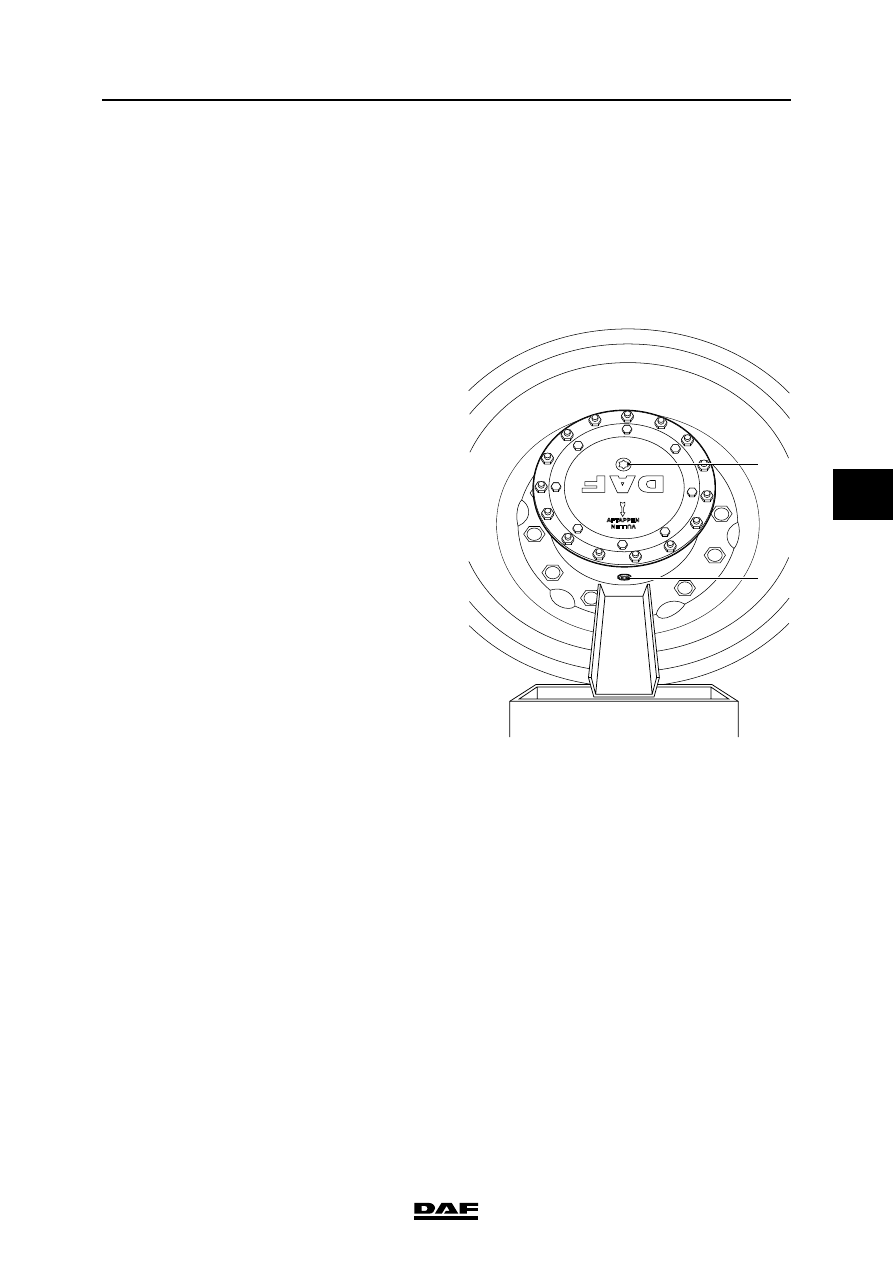

Position the wheels in such a way that the oil

drain/filler plug (A) is at the top.

2.

Fill the hub with the specified quantity of oil.

See "Technical data".

3.

Check the oil level after approximately

5 minutes. See "Inspection and adjustment".

4.

Fit the plugs using the special Torx wrench

(DAF no. 1329493) and tighten to the

specified torque; see "Technical data".

A

A8 00 364

©

 200424

4-3

Draining and filling

SINGLE REAR AXLE 1354

ΧΦ65/75/85 series

8

5

4.2 DRAINING AND FILLING, DIFFERENTIAL

To prevent skin injury, avoid

unnecessary contact with the

drained oil.

Draining the differential
1.

Position the vehicle on a level surface.

2.

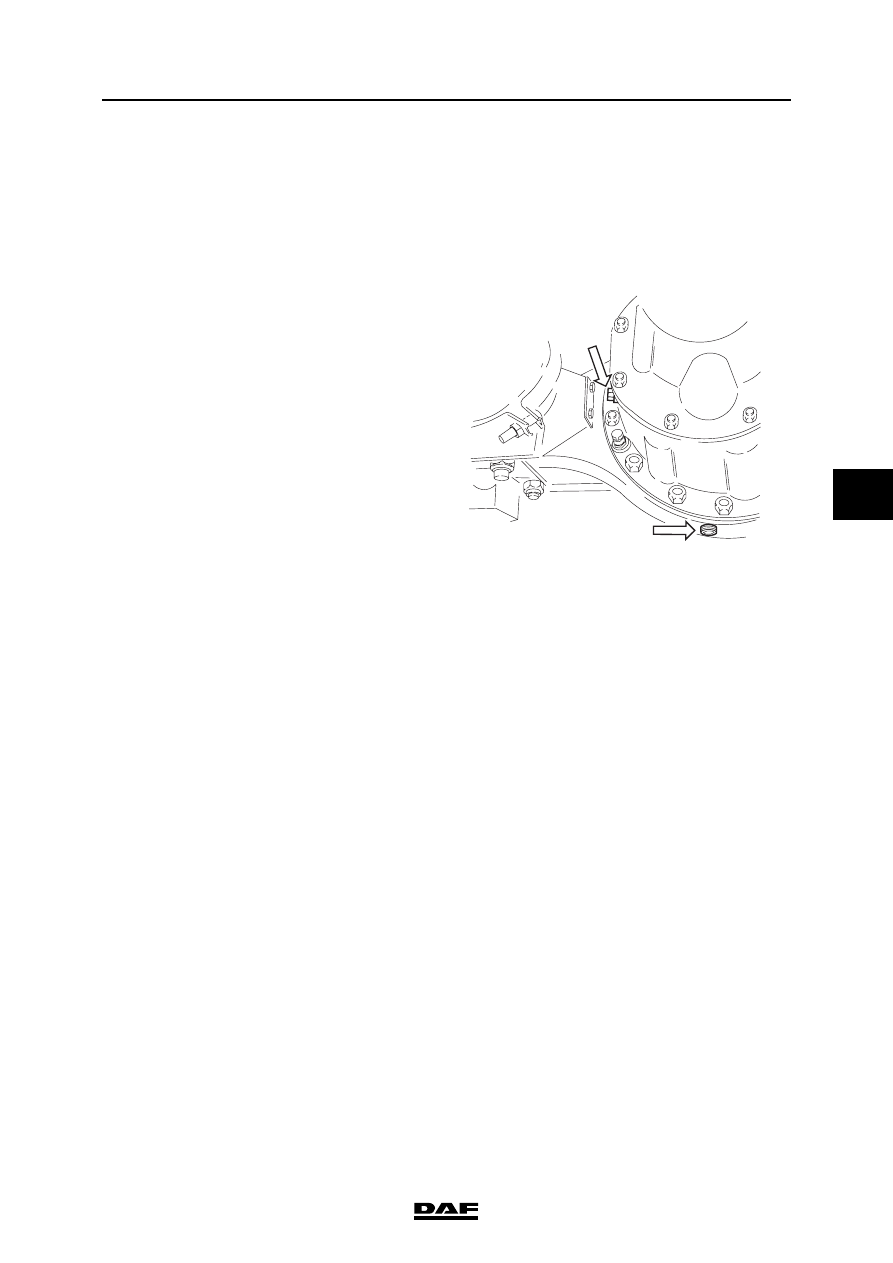

Remove the level check/filler plug (A) and

drain plug (B). Drain the oil.

3.

Fit the drain plug (B) using the special Torx

wrench (DAF no. 1329493) and tighten to

the specified torque; see "Technical data".

Filling the differential
1.

Fill the differential via the level check/filler

plug (A) with the specified quantity of oil, see

"Technical data".

2.

Check the oil level after approx. 5 minutes.

The oil level should now have reached the

level check/filler opening. See 'Inspection

and adjustment".

3.

Fit the level check/filler plug (A) using the

special Torx wrench (DAF no. 1329493) and

tighten to the specified torque; see

"Technical data".

}

B

A

M8048

SINGLE REAR AXLE 1354

4-4

©

 200424

Draining and filling

5

ΧΦ65/75/85 series

8
