DAF CF65, CF75, CF85 Series . Manual - part 1037





©

 200424

3-7

Removal and installation

SINGLE REAR AXLE 1354

ΧΦ65/75/85 series

8

5

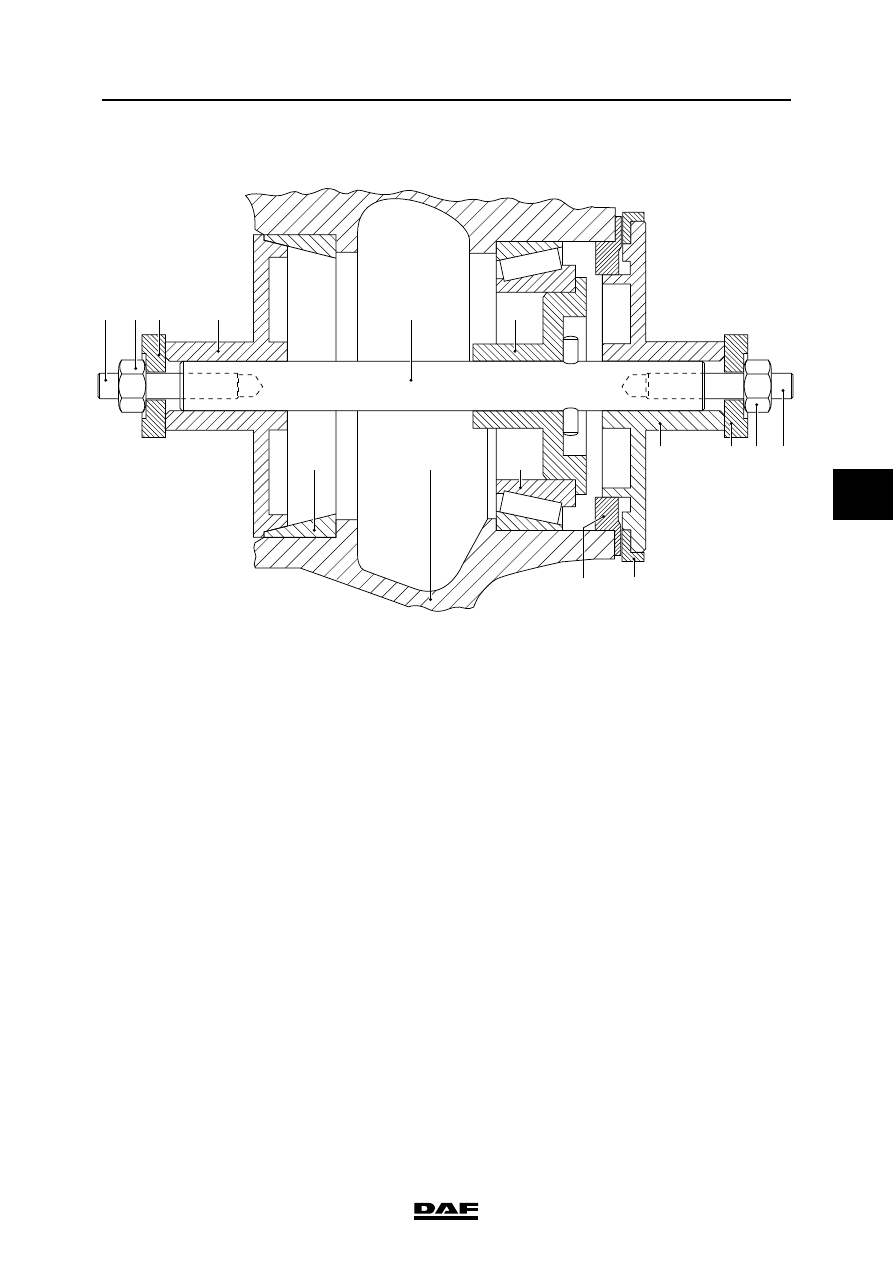

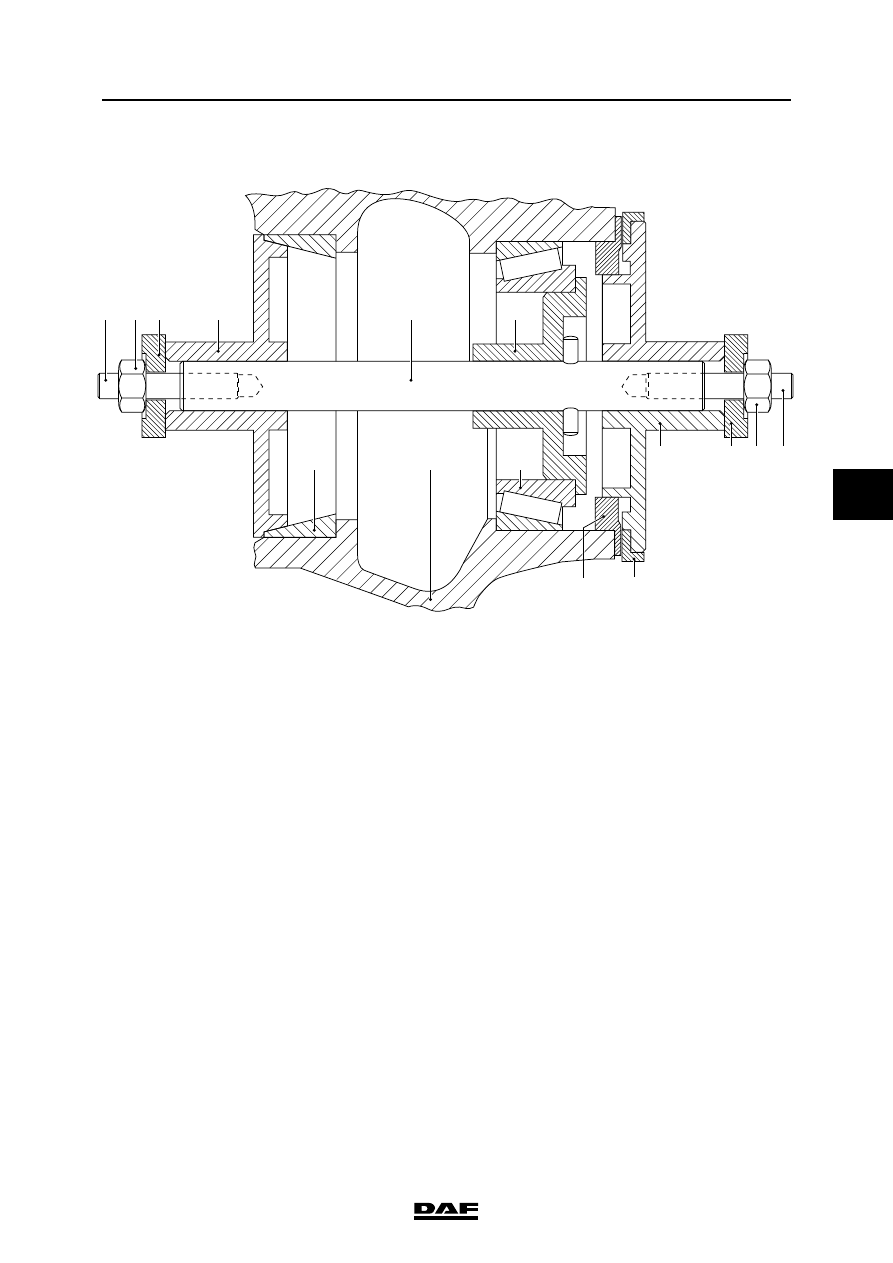

Installing the hub seal/wheel speed sensor
ring

1.

Check the recess for the seal/sensor ring (4)

in the hub (2) for damage.

2.

Use the special tool (DAF no. 1240036) to

install the seal/sensor ring (4).

A

B C

D

E

1

2

3

F

H

G

4

I

K L

S7 00 405

SINGLE REAR AXLE 1354

3-8

©

 200424

Removal and installation

5

ΧΦ65/75/85 series

8

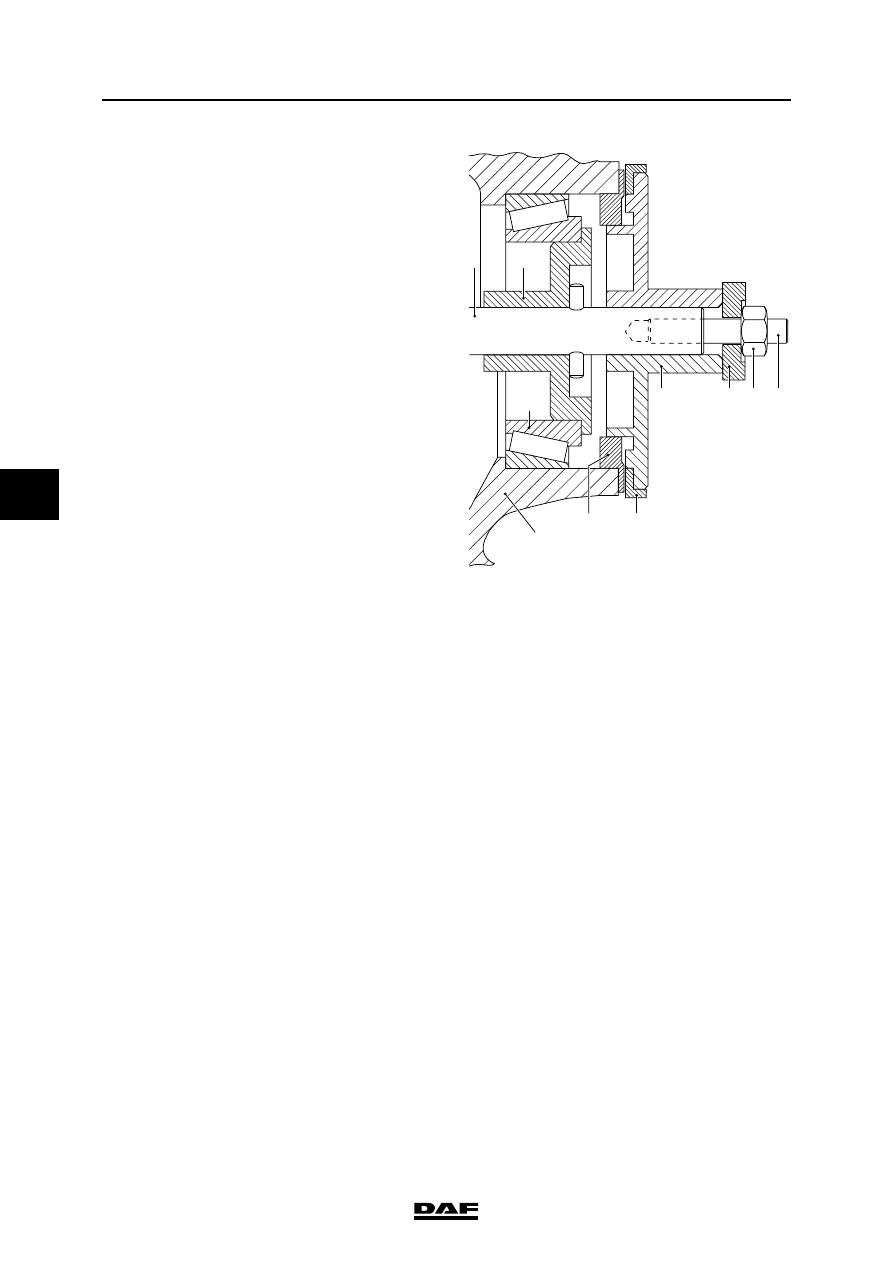

3.

Assemble the special tool: turn the threaded

ends (A) and (L) into the centring spindle (E).

Assemble the short stud (L) on the side

where the pin has been fitted into the

centring spindle (E).

4.

Slide the appropriate centring flange (F) over

the centring spindle (E).

5.

Install the inner wheel bearing (3).

Insert the centring spindle (E) together with

the centring flange (F) into the hub (2).

6.

Press the centring flange (F) into the inner

wheel bearing (3).

7.

Slide the appropriate centring flange (D) on

the centring spindle (E).

8.

Fit the retaining plate (C) and the nut (B) on

the centring spindle (E).

9.

Align the centring flange (D) on the outer

race of the outer wheel bearing and hand-

tighten nut (B) (max. 20 Nm). The centring

spindle (E) must be installed in the hub (2)

free of play.

10. Fit the ring (G) on the draw-in flange (H).

11. Position the seal/sensor ring (4) in front of

the hub (2).

Slide the draw-in flange (H) with the washer

(G) over the centring spindle (E) against the

seal/sensor ring (4).

12. Fit the retaining plate (I) and the nut (K).

13. Press the seal/sensor ring (4) evenly into the

hub (2) using nut (K), until the sensor ring

abuts the hub (2).

14. Remove the special tool.

15. Apply grease to the sealing lips of the seal/

sensor ring (4).

16. Fit the hub on the axle journal.

3

F

E

H

G

4

I

K L

2

S7 00 411

©

 200424

3-9

Removal and installation

SINGLE REAR AXLE 1354

ΧΦ65/75/85 series

8

5

3.5 REMOVAL AND INSTALLATION, WHEEL BEARINGS

Removing wheel bearings
1.

Remove the wheel hub.

2.

Remove the hub seal.

3.

Remove the inner bearing.

4.

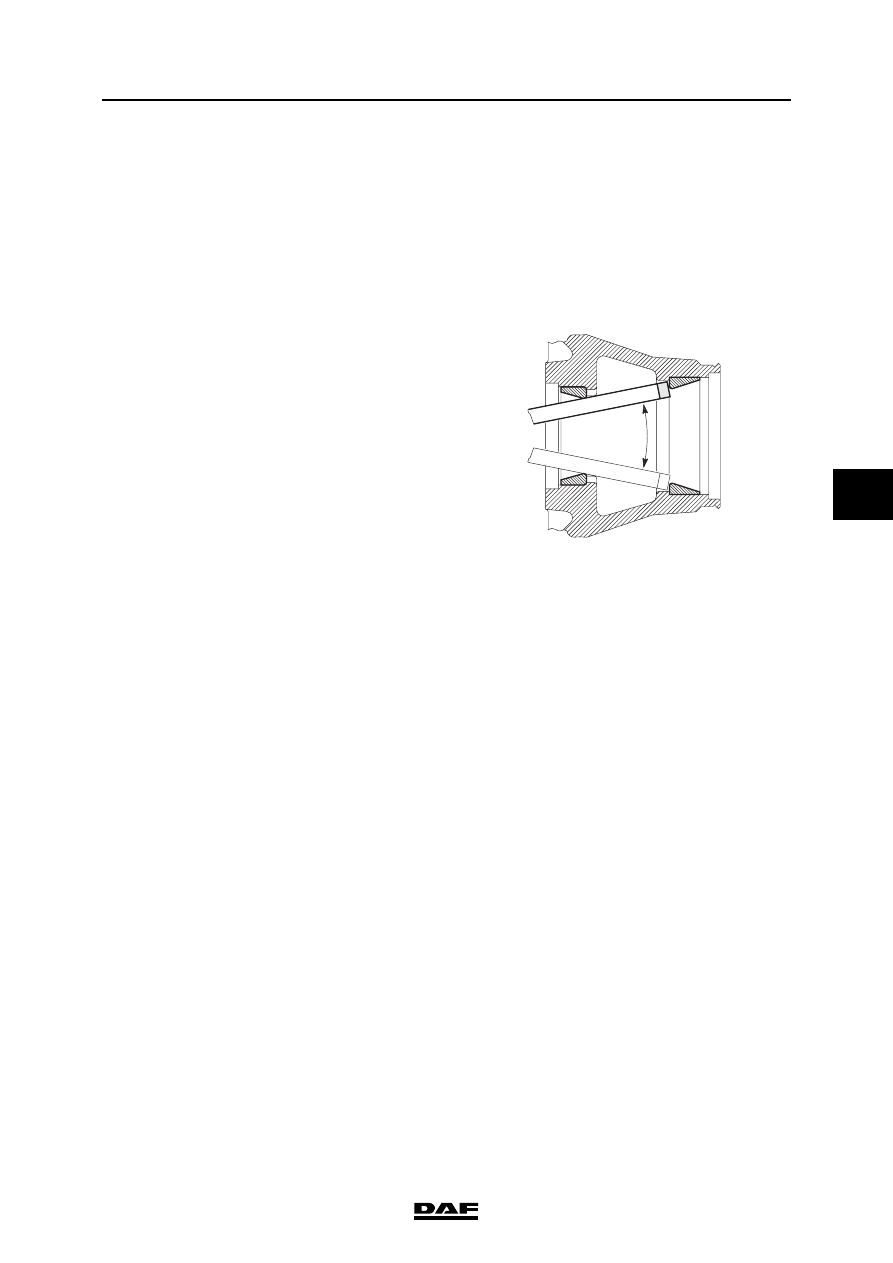

Use a driver to tap the bearing outer races

from the hub if the wheel bearings need to be

replaced. For this purpose, the hub has been

fitted with two recesses (A) and (B).

Installing wheel bearings
1.

Clean the bearings and check them for signs

of damage.

2.

Use a driving tool and a hydraulic press to

install the outer races into the hub. You can

also tap the outer races evenly into the hub

using a driver.

3.

Fit the wheel hub.

4.

Adjust the wheel bearing play until correct.

B

A

M8120

SINGLE REAR AXLE 1354

3-10

©

 200424

Removal and installation

5

ΧΦ65/75/85 series

8

3.6 REMOVAL AND INSTALLATION, DRIVE FLANGE

Removing the drive flange
1.

Remove the prop shaft from the drive flange.

2.

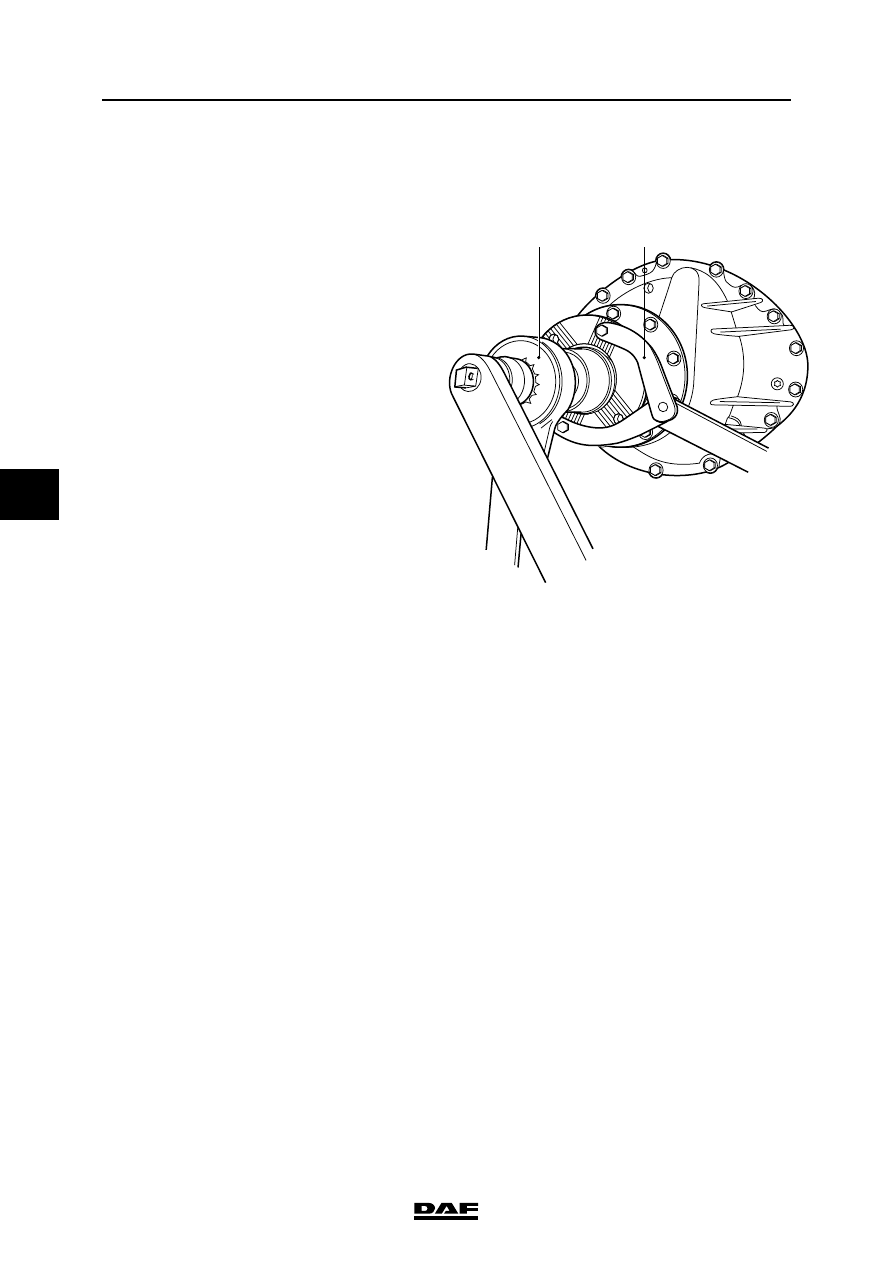

Fit the special tool (B) (DAF no. 0484977) on

the drive flange to prevent the flange from

rotating. Remove the drive-flange nut using a

torque amplifier (A).

3.

Remove the drive flange. If necessary, use a

puller.

Installing the drive flange
1.

Before installation check the drive flange

along the oil-seal running surface for

grooves and/or sharp edges. If required,

replace the drive flange.

2.

Fit the drive flange.

3.

Apply a small amount of grease to the first

turn of the drive-flange nut.

4.

Apply locking compound to the screw thread.

See "Technical data".

5.

Fit the special tool (B) (DAF no. 0484977) on

the drive flange to prevent the flange from

rotating. Fit the drive-flange nut. Use a

torque amplifier (A) to tighten the drive-

flange nut to the specified tightening torque,

see "Technical data".

6.

Fit the prop shaft to the drive flange.

A

B

A8 00 357
