Removal and installation

INTERNAL CAB COMPONENTS

ΧΦ65/75/85 series

1

2

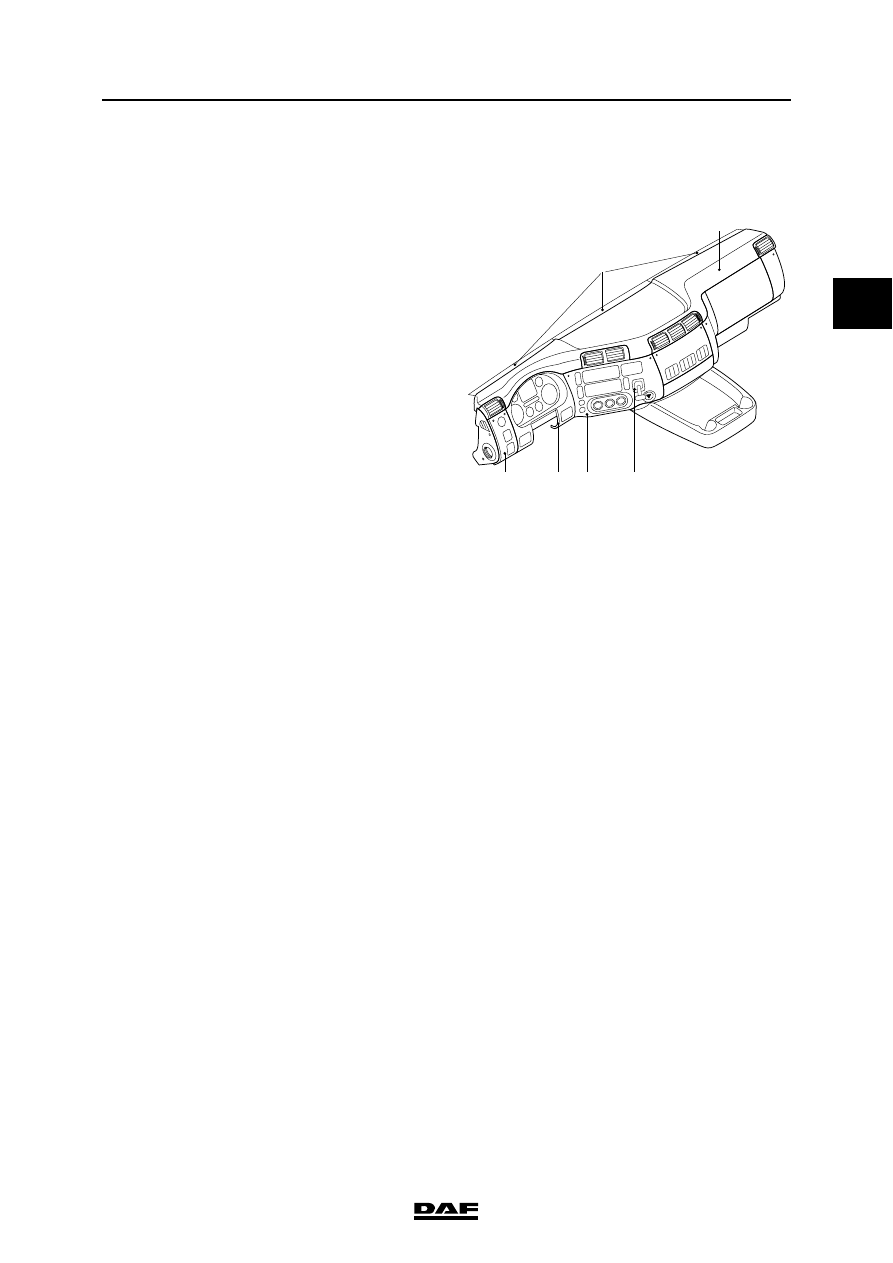

4.3 REMOVAL AND INSTALLATION, INSTRUMENT PANEL

Removing instrument panel
1.

Remove the ventilation grilles (1) from the
window edges.

2.

Remove the dashboard panel (2) at the top.

3.

Remove the grommet (3) from the parking
brake and remove the radio panel (4).

4.

Remove the dashboard panel (6).

5.

Remove the flywheel housing attachment
bolts. Remove the connectors from the
instrument panel and remove the instrument
panel (5).

Installing instrument panel
1.

Fit the connectors.

2.

Fit the instrument panel (5).

3.

Fit the radio panel (4) and the dashboard
panel (6).

4.

Fit the grommet (3) around the hand brake
valve.

5.

Fit the dashboard panel (2) at the top

6.

Fit the ventilation grilles (1) in the window
edges.

2

1

6

5

4

3

K1 00 914

INTERNAL CAB COMPONENTS

4-4

©

 200346

Removal and installation

2

ΧΦ65/75/85 series

1

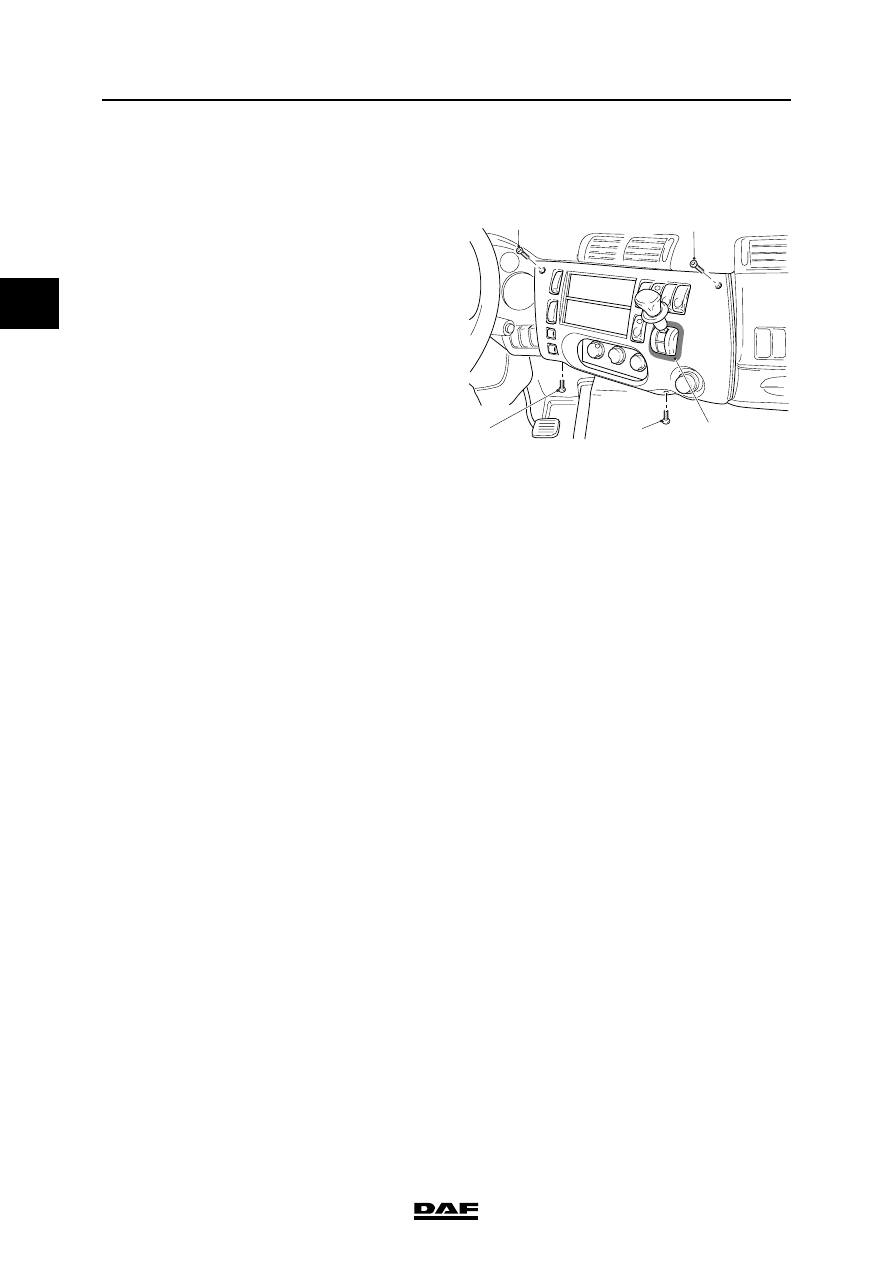

4.4 REMOVAL AND INSTALLATION, RADIO PANEL

Removing radio panel
1.

Remove the central console panel.

2.

Remove the rubber grommet (1) around the
parking brake valve.

3.

Remove the attachment bolts (2) and
remove the radio panel. If necessary, mark
the location of the connectors.

Installing radio panel
1.

Fit the connectors.

2.

Put the radio panel in place and fix with the
attachment bolts (2).

3.

Fit the rubber grommet (1) around the
parking brake valve.

4.

Fit the central console panel.

K1 00 934

2

2

2

2

1

©

 200346

4-5

Removal and installation

INTERNAL CAB COMPONENTS

ΧΦ65/75/85 series

1

2

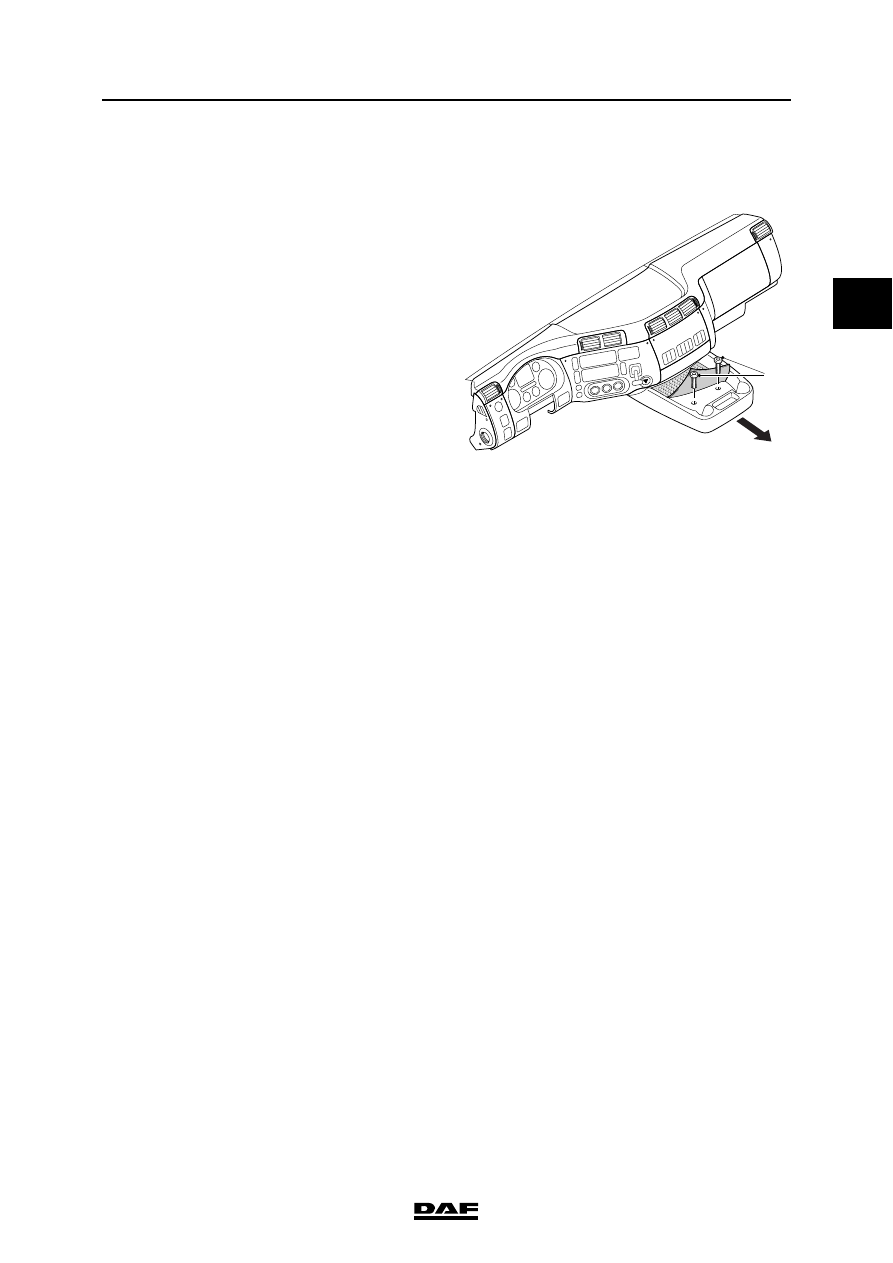

4.5 REMOVAL AND INSTALLATION, ENGINE TUNNEL STORAGE TRAY

Removing storage tray
1.

Remove the rubber inset mat and remove
the attachment bolts (1) from the storage
tray.

2.

Remove the storage tray

Installing storage tray
1.

Put the storage tray in place and secure it
using the attachment bolts (1).

2.

Fit the rubber mat.

K1 00 916

1

INTERNAL CAB COMPONENTS

4-6

©

 200346

Removal and installation

2

ΧΦ65/75/85 series

1

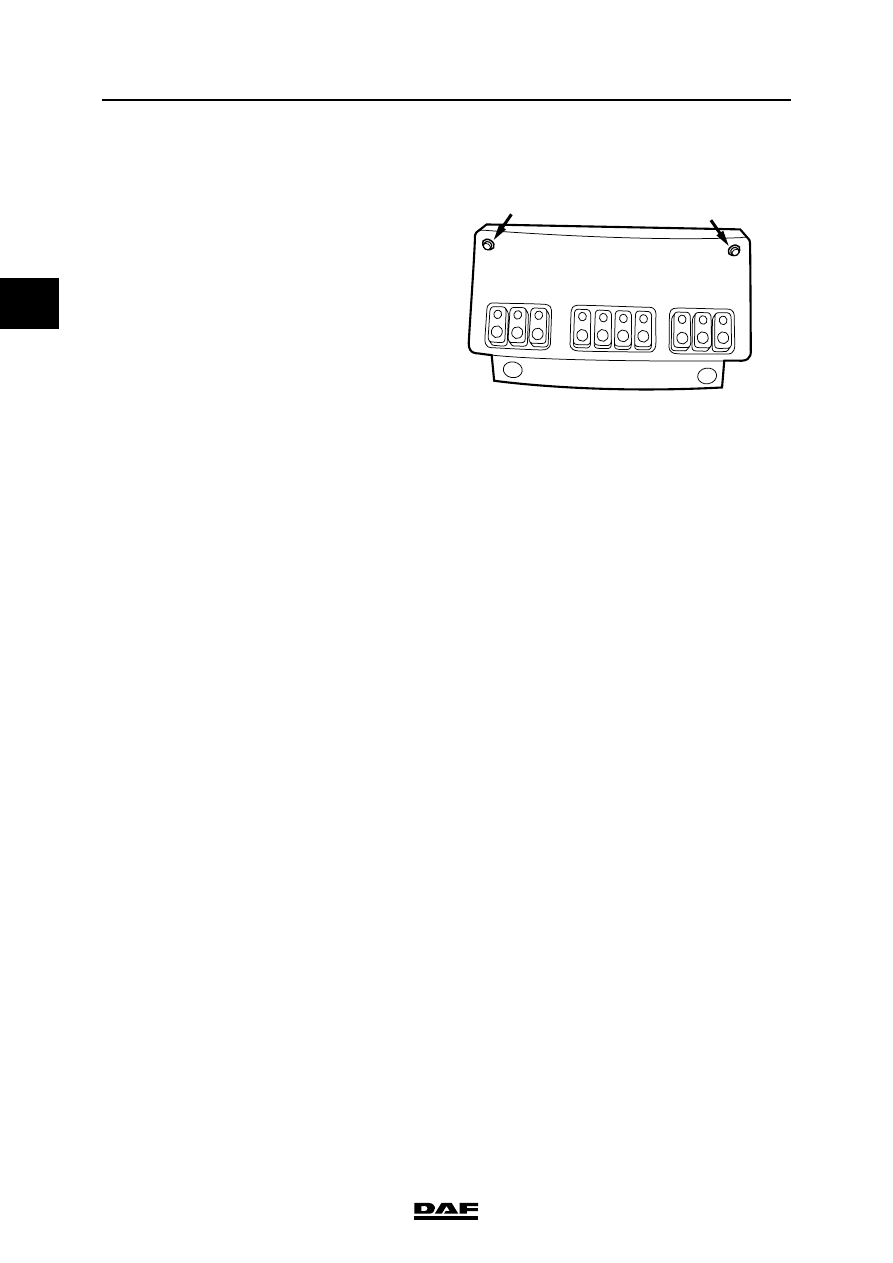

4.6 REMOVAL AND INSTALLATION, CENTRAL CONSOLE CONTROL PANEL

Removing central console control panel
1.

Remove the panel underneath the ashtray.

2.

Remove the ashtray and the ashtray holder

3.

Remove the attachment bolts from the top
and put the control panel to one side.

4.

Remove the connectors from the control
panel and remove the control panel.

Installing central console control panel
1.

Fit the connectors in the control panel.

2.

Put the control panel in place and fasten it
with the attachment bolts.

3.

Fit the ashtray and the ashtray holder.

4.

Fit the panel underneath the ashtray.

K1 00 927
