 200346

3-1

Inspection and adjustment

INTERNAL CAB COMPONENTS

ΧΦ65/75/85 series

1

2

3. INSPECTION AND ADJUSTMENT

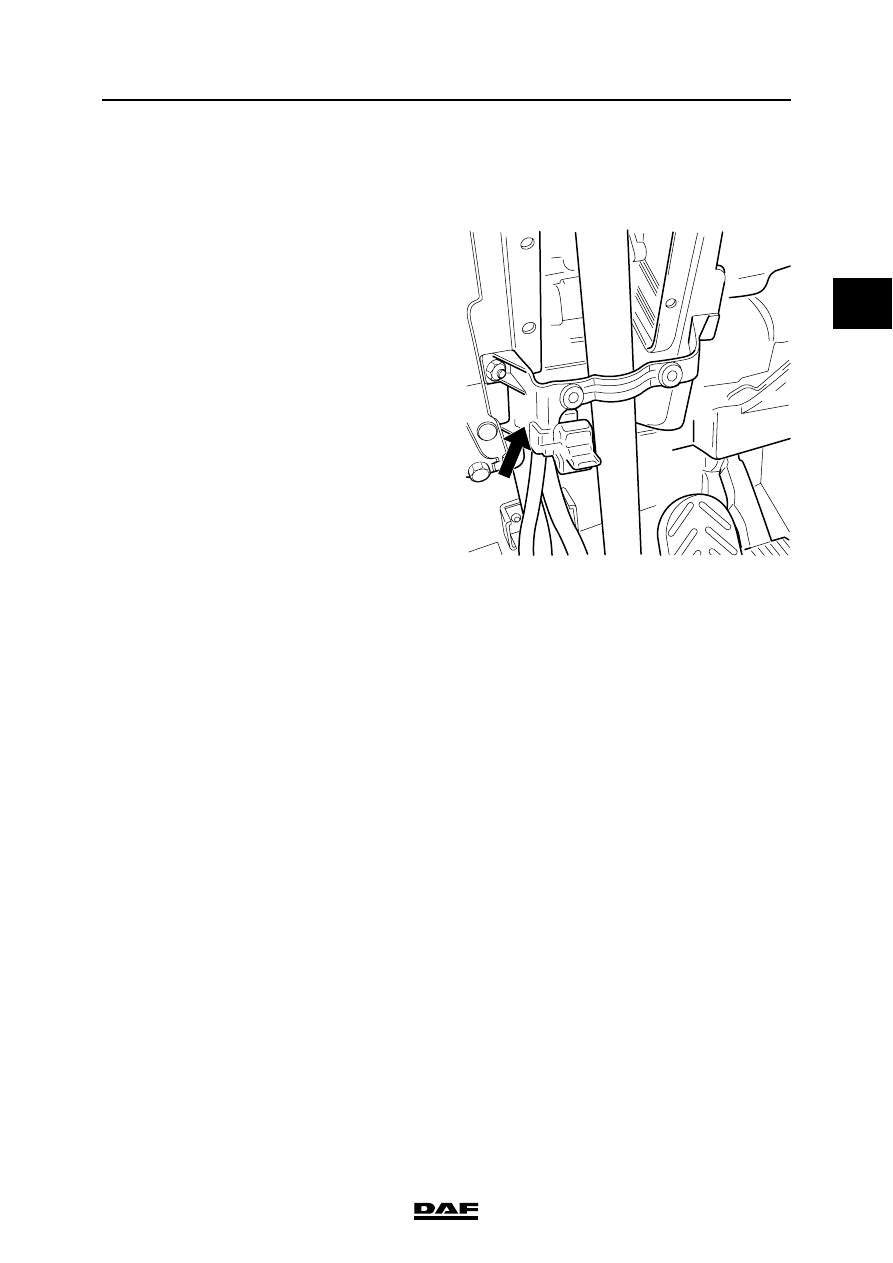

3.1 INSPECTING STEERING COLUMN SETTING VALVE

1.

Check if the height and the angle of the
steering column can be adjusted after the
switch (convex top) is pressed.

2.

Check whether the adjustment mechanism is
securely locked again when operating the
bottom of the switch.

3.

Check whether the operating valve is bled
after the s has been operated. Press the
convex side of the switch and wait until the
adjustment mechanism is blocked again
(approx. 10 seconds).

4.

If this is not the case, check that no air pipe
is trapped. If not, replace the valve (switch).

5.

Check whether the air pipe is attached to the
cross member.

K1 01 559

INTERNAL CAB COMPONENTS

3-2

©

 200346

Inspection and adjustment

2

ΧΦ65/75/85 series

1

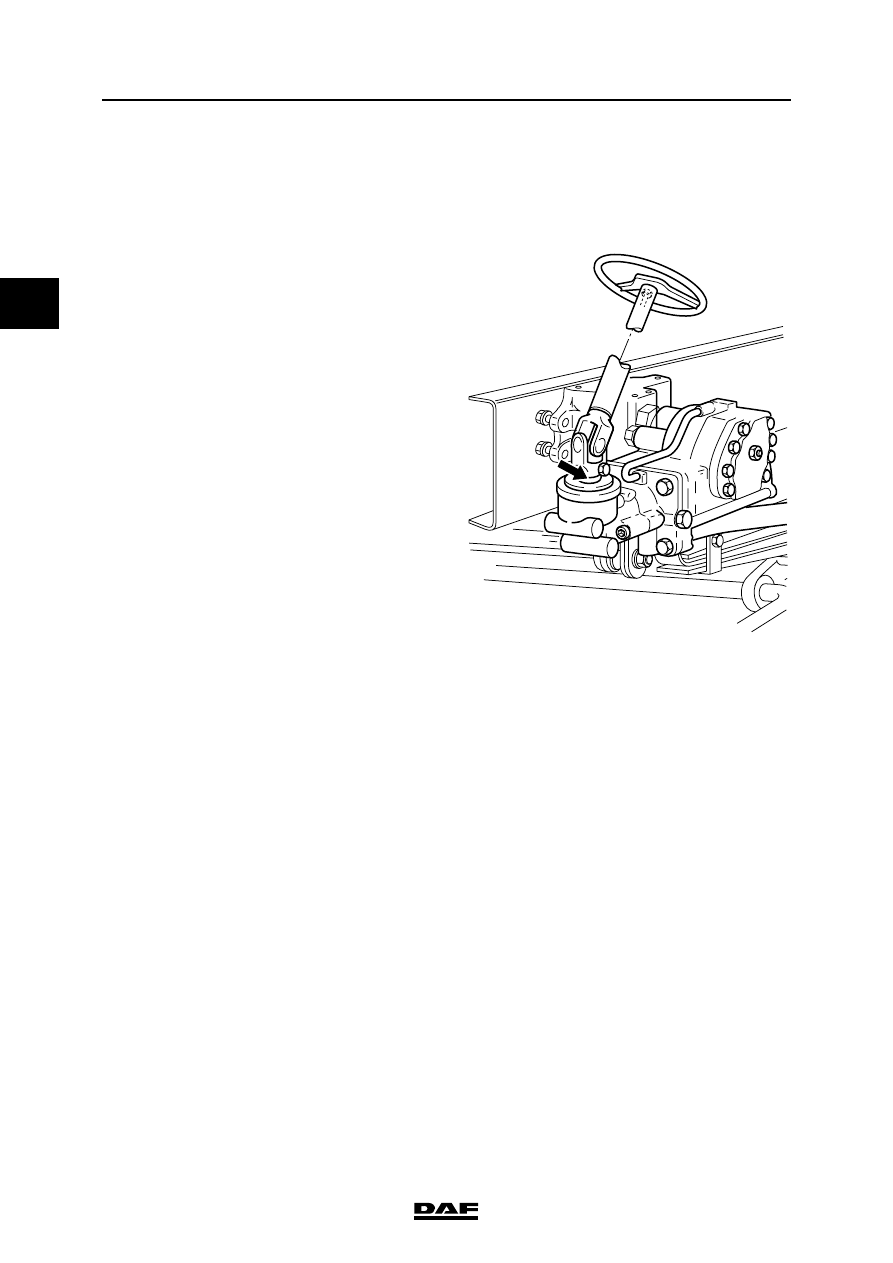

3.2 CHECKING FASTENING OF UNIVERSAL JOINT TO STEERING BOX INPUT

SHAFT

Checking fastening of universal joint to
steering box input shaft
1.

Check the universal joint for perceptible play.
If perceptible play is detected, the affected
part must be replaced.

2.

Check whether there is any perceptible play
between the spline connection of the
universal joint and the steering box input
shaft. If perceptible play is detected, the
splines on the universal joint and those on
the input shaft must be checked for wear. If
wear is detected, the affected part must be
replaced.
If there is noticeable play but the parts are
not worn, the attachment bolt and nut must
be replaced. Tighten the attachment bolt and
nut to the specified torque, see "Technical
data".

S7 00 639

©

 200346

4-1

Removal and installation

INTERNAL CAB COMPONENTS

ΧΦ65/75/85 series

1

2

4. REMOVAL AND INSTALLATION

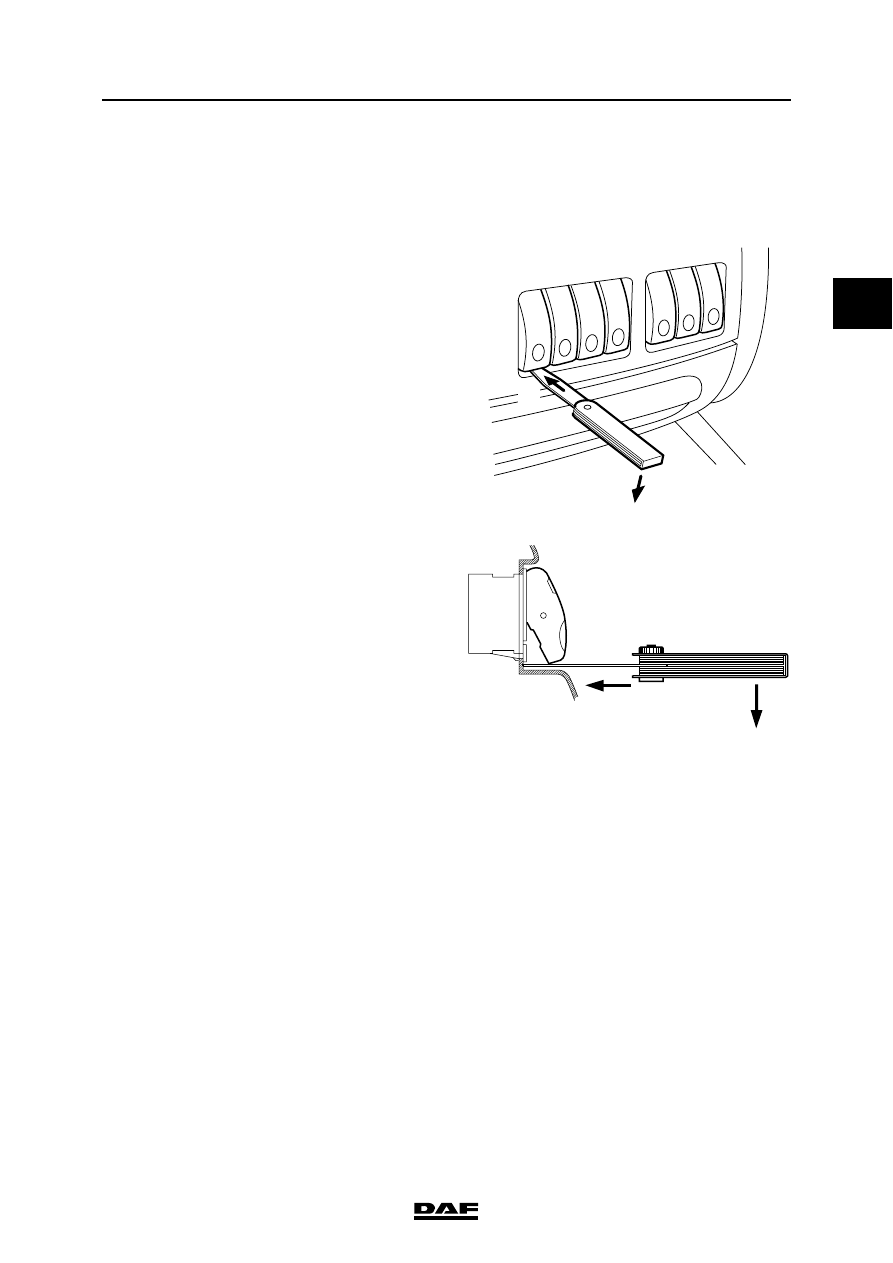

4.1 REMOVAL AND INSTALLATION, SWITCHES

Removing switches
1.

Insert a feeler gauge of approx. 1 mm
thickness between the switch and the panel
at the side of the finger-sized depression (A),
until it touches the inside of the panel.

2.

Remove the switch from its locked position
by carefully moving the feeler gauge in the
direction of the arrow (B).

3.

Carefully remove the switch from the panel.
In doing so, ensure that the connector lock
does not catch behind the panel, causing the
connector to fall behind the panel.

4.

If necessary, remove the switch from the
connector.

Installing switches
1.

Fit the connector.

2.

Insert the switch into the opening in the panel
and press until you can feel it lock.

A

B

K1 01 334

A

B

K1 01 335

INTERNAL CAB COMPONENTS

4-2

©

 200346

Removal and installation

2

ΧΦ65/75/85 series

1

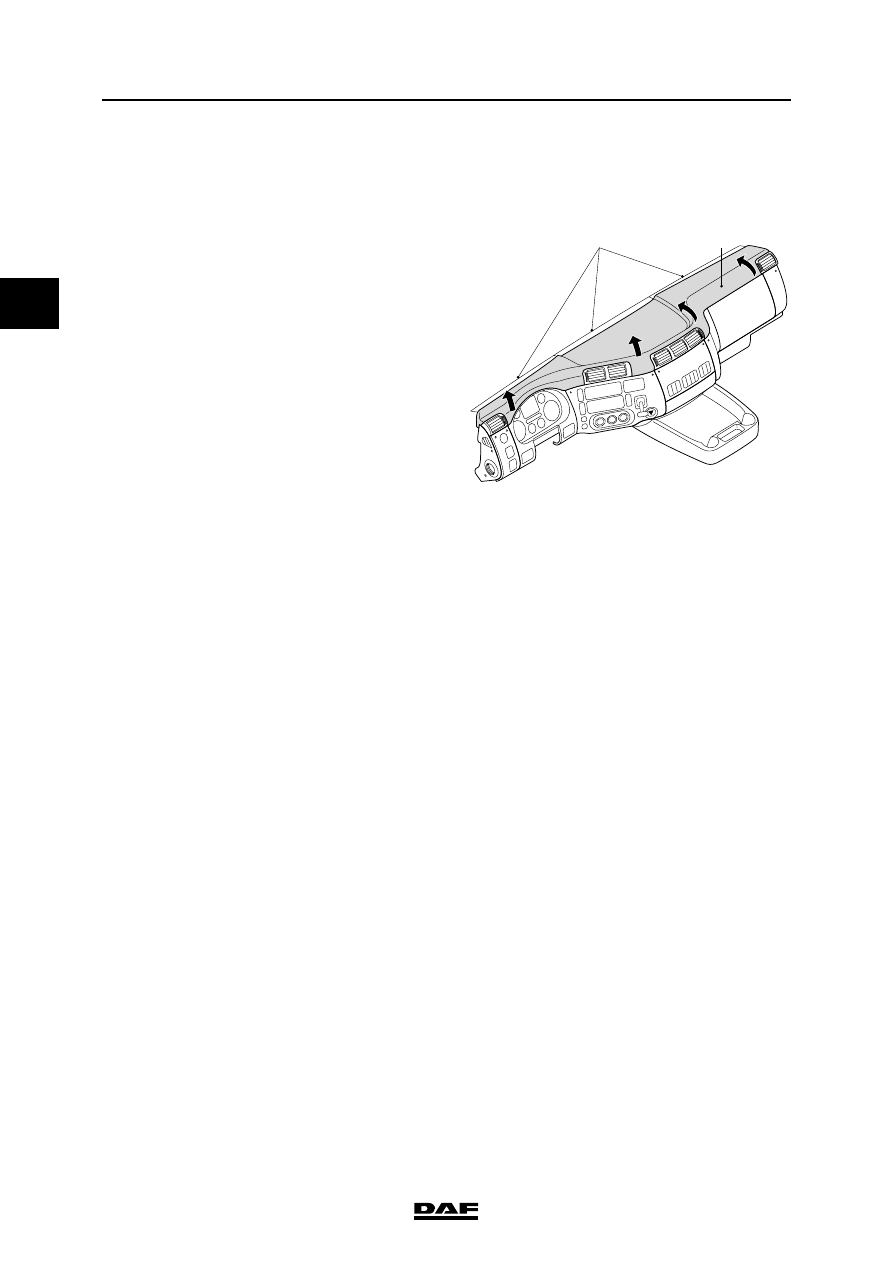

4.2 REMOVAL AND INSTALLATION, DASHBOARD PANEL, TOP

Removing dashboard panel, top

Note:
Do not pull the dashboard panel away from the
Velcro at the top before the ventilation grilles in
the window edges have been removed.

1.

Remove the ventilation grilles (1) from the
window edges.

2.

Carefully pull (push) the dashboard panel (2)
up at the front (Velcro fixings).

3.

Tip the panel (2) towards the window and
remove it.

Installing dashboard panel, top
1.

Check that the Velcro is still glued to the
cover and the frame.

2.

Put the cover in place and press firmly onto
the Velcro.

3.

Install the ventilation grilles and secure them
using the attachment bolts.

K1 01 030

2

1
