DAF CF65, CF75, CF85 Series . Manual - part 102





©

 200346

4-7

Removal and installation

INTERNAL CAB COMPONENTS

ΧΦ65/75/85 series

1

2

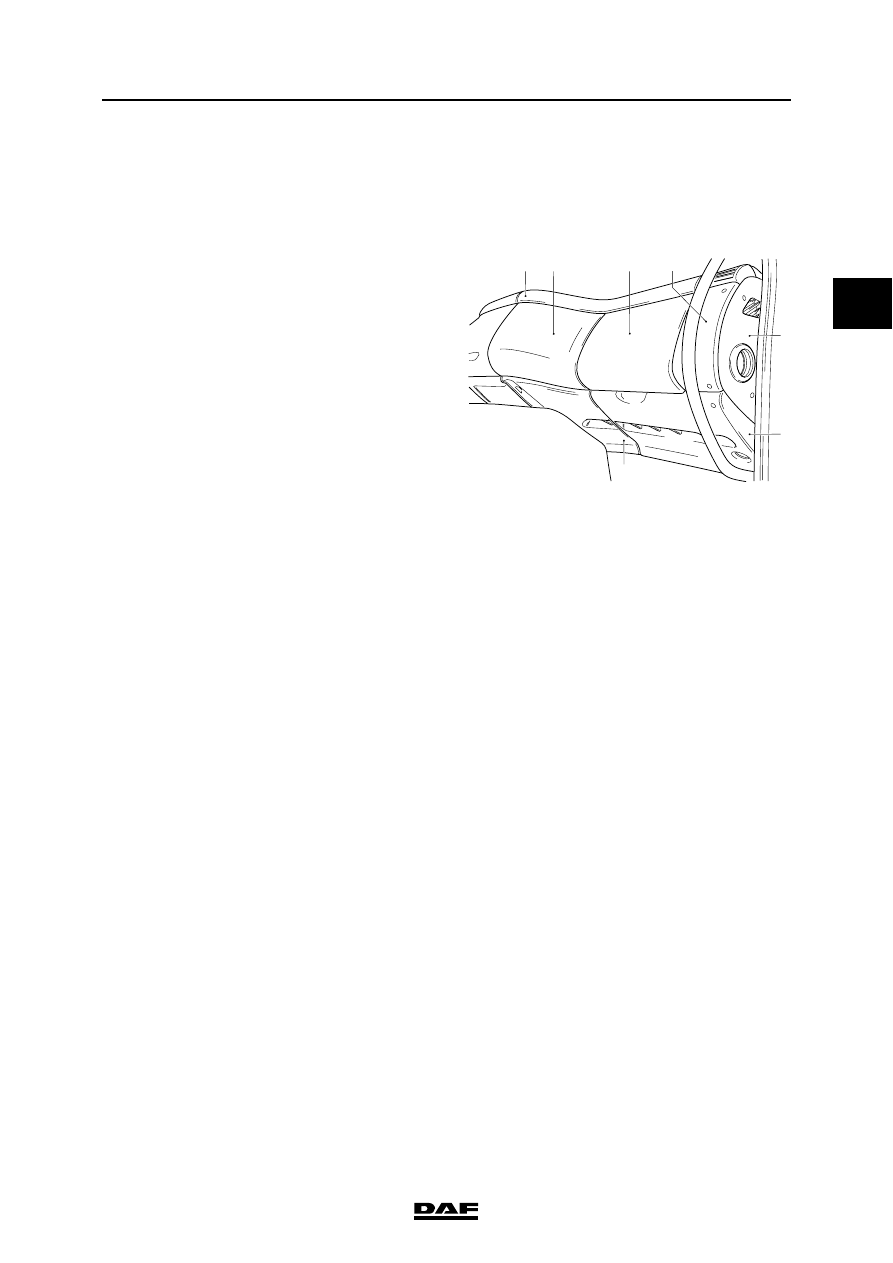

4.7 REMOVAL AND INSTALLATION, DASHBOARD PANELS ON CO-DRIVER

SIDE

Removing dashboard panels on co-driver
side
1.

Remove the ventilation grille from the
window edge.

2.

Carefully pull (push) the dashboard panel (2)
up at the front (Velcro fixings).

3.

Remove the dashboard panel (1) at the top.

4.

Remove the cover from the central box (3).

5.

Remove the attachment bolts from the
dashboard panels (2, 4, 5, 6 and 7) and
remove these panels.

6.

Put the floor mat to one side and remove the
plastic panel that rests on the floor plate.

Installing dashboard panel on co-driver side
1.

Fit the plastic panel that rests on the floor
plate and reposition the floor mat.

2.

Fit the dashboard panels (2, 4, 5, 6 and 7)
and tighten them with the attachment bolts.

3.

Fit the cover of the central box (3).

4.

Fit the dashboard panel (1) at the top. Press
the dashboard panel well onto the Velcro.

5.

Fit the ventilation grilles in the window
edges.

2

5

6

7

1

3

4

K1 01 068

INTERNAL CAB COMPONENTS

4-8

©

 200346

Removal and installation

2

ΧΦ65/75/85 series

1

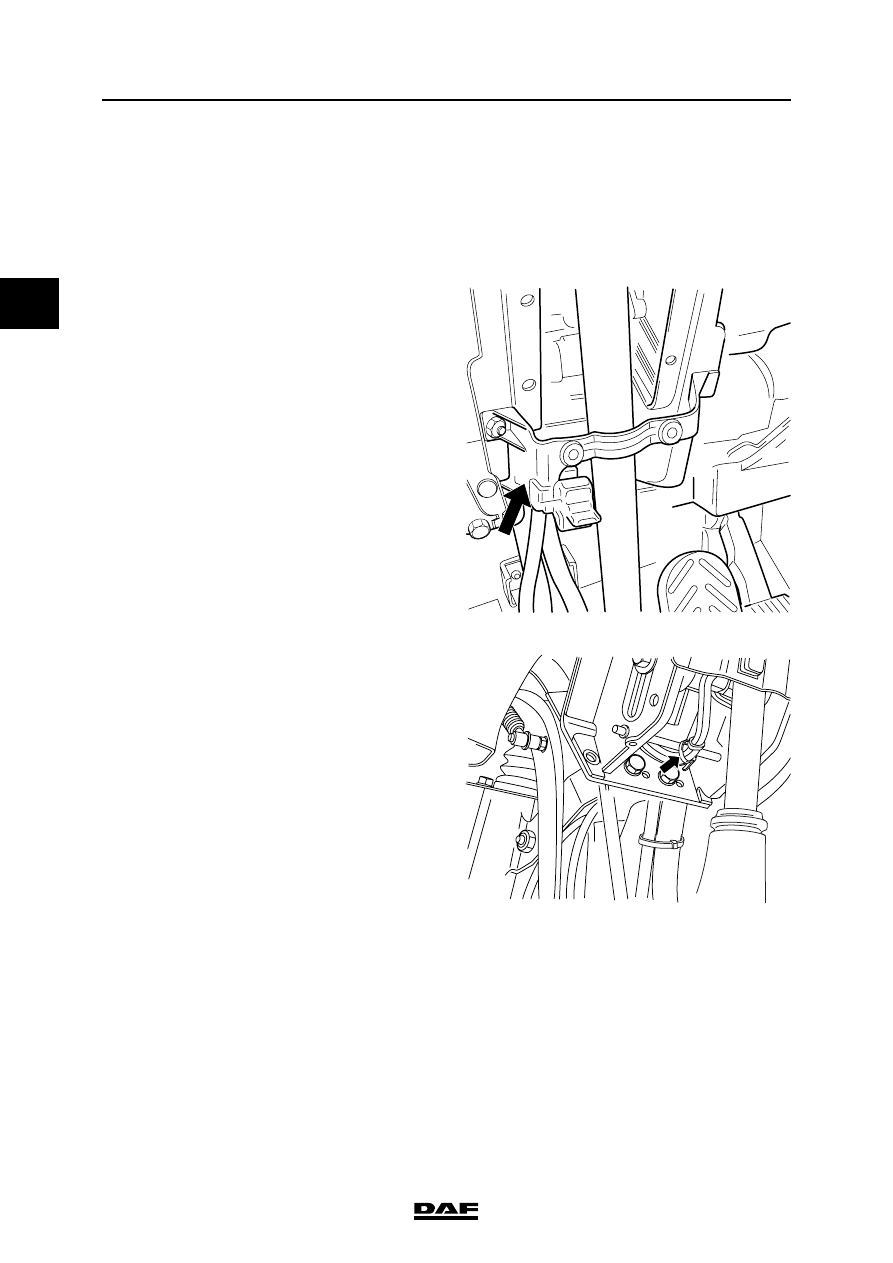

4.8 REMOVAL AND INSTALLATION, PNEUMATIC STEERING COLUMN SETTING

SWITCH/VALVE

Removing pneumatic steering column setting
switch/valve
1.

Remove the steering column panels.

2.

Remove the bracket with the steering
column switch, disconnect the air pipes and
push the switch from the bracket.

Installing pneumatic steering column setting
switch/valve
1.

Connect the air pipes to the switch.

2.

Press the switch into the bracket and fit the
bracket to the steering column.

3.

Tie the air pipe to the cross member.

4.

Install the steering column panels.

K1 01 559

K1 01 007

©

 200346

4-9

Removal and installation

INTERNAL CAB COMPONENTS

ΧΦ65/75/85 series

1

2

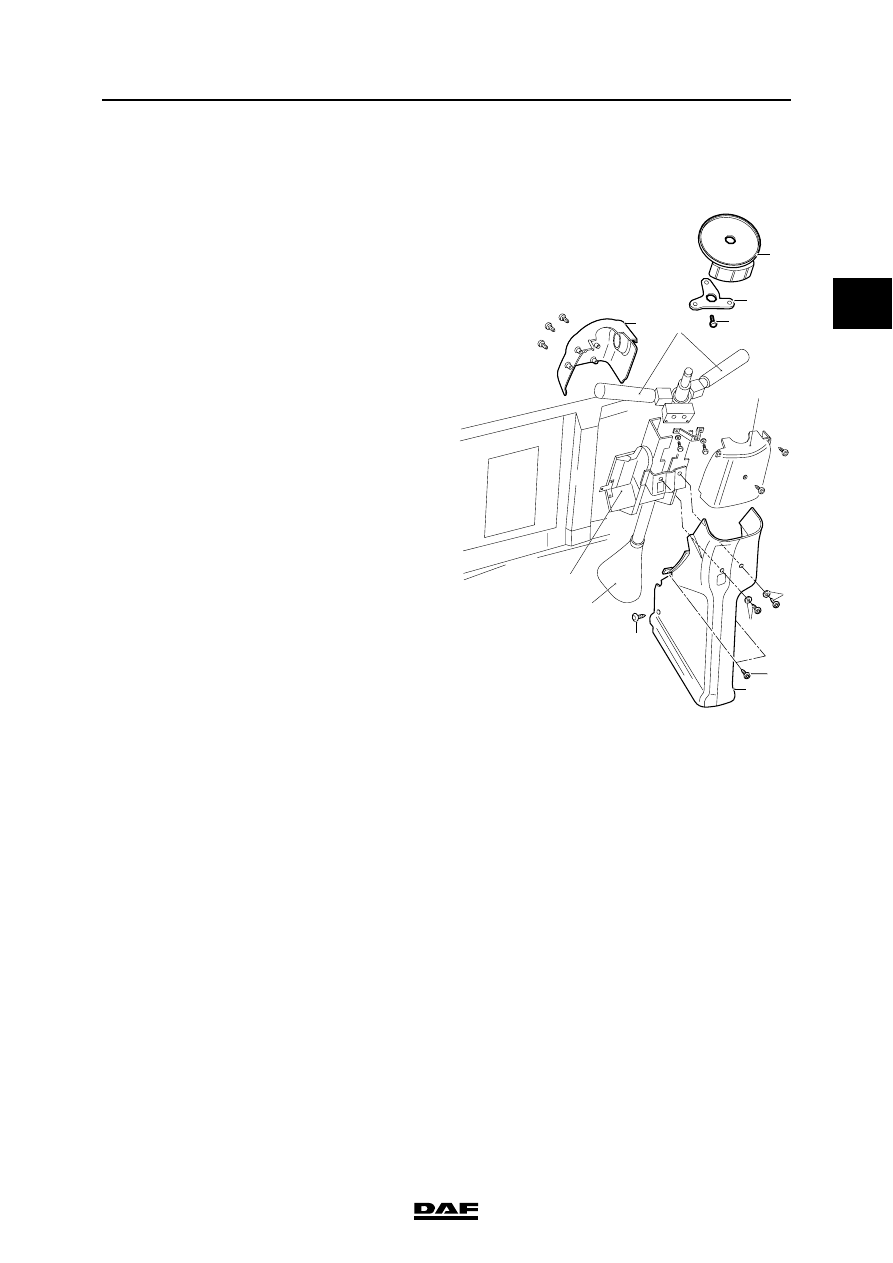

4.9 REMOVAL AND INSTALLATION, STEERING COLUMN PANELS

Removing steering column panels
1.

If necessary, remove the floor mat.

2.

Using the steering column setting, move the
steering wheel to its highest possible
position.

3.

Remove the two halves of the cover (A)
under the steering wheel. The right-hand
side of the upper cover (A) (ignition lock side)
must be released by lifting and sliding it
across the left handle (direction indicator/
windscreen wiper side).

4.

Remove the storage tray from the engine
tunnel.

5.

Remove at the bottom the dashboard panels
to the left and right of the steering column.

6.

Remove the panel from the underside of the
steering column (G) by removing the
attachment bolts (F) and (K) and the panel
clamp (H).

K1 01 636

F

F

G

H

I

J

A

A

B

K

C

D

E

INTERNAL CAB COMPONENTS

4-10

©

 200346

Removal and installation

2

ΧΦ65/75/85 series

1

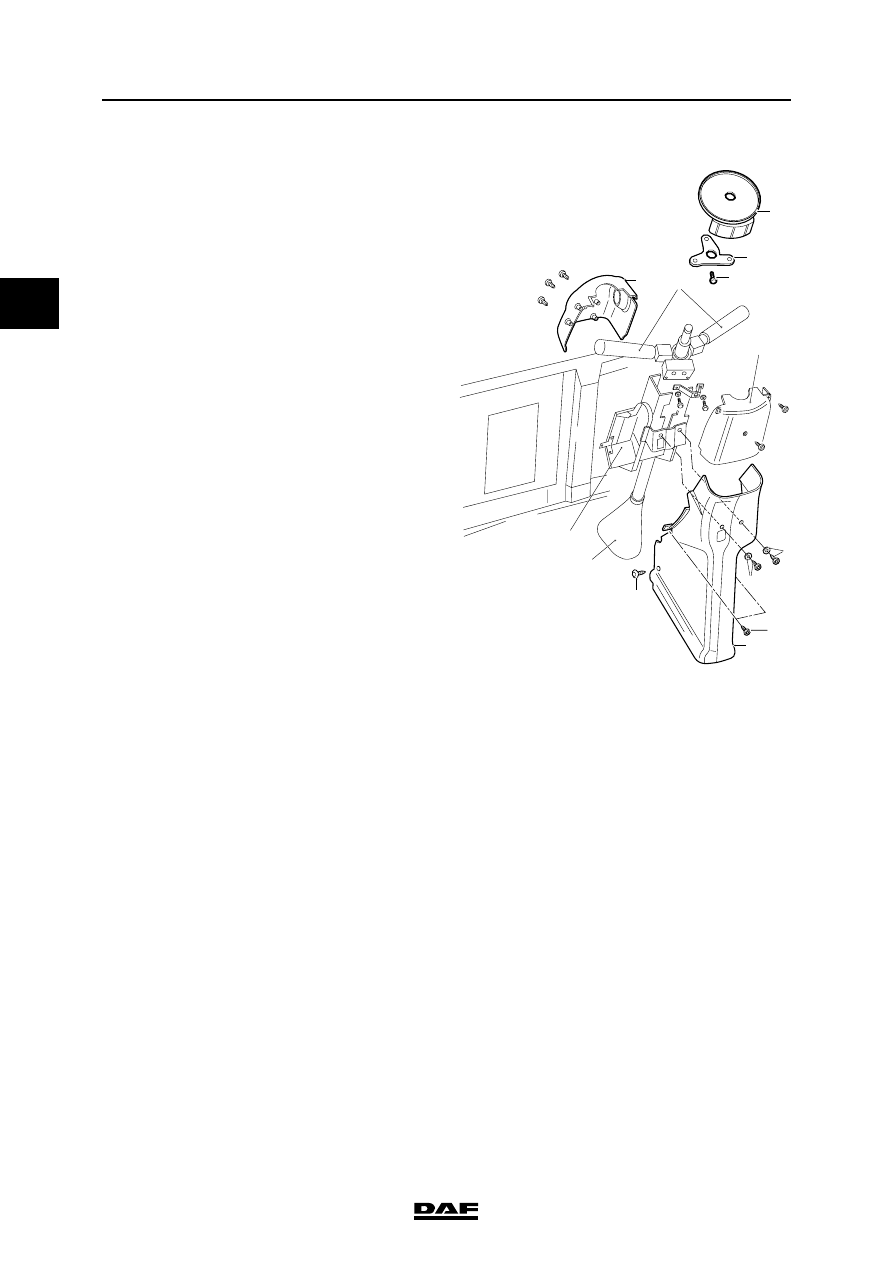

Installing steering column panels
1.

Check if the air pipe is attached to the cross
member.

2.

Fit the panel (G) on the steering column and
fix it with the panel clamp (H) and the
attachment bolts (F) and (K).

3.

Fit the dashboard panels underneath the
steering column (left and right).

4.

Fit the storage tray on the engine tunnel.

5.

Fit the two halves of the cover (A) beneath
the steering wheel.

6.

If applicable, position the floor mat.

K1 01 636

F

F

G

H

I

J

A

A

B

K

C

D

E
