Description of components

DMCI ENGINE MANAGEMENT SYSTEM

XF105 series

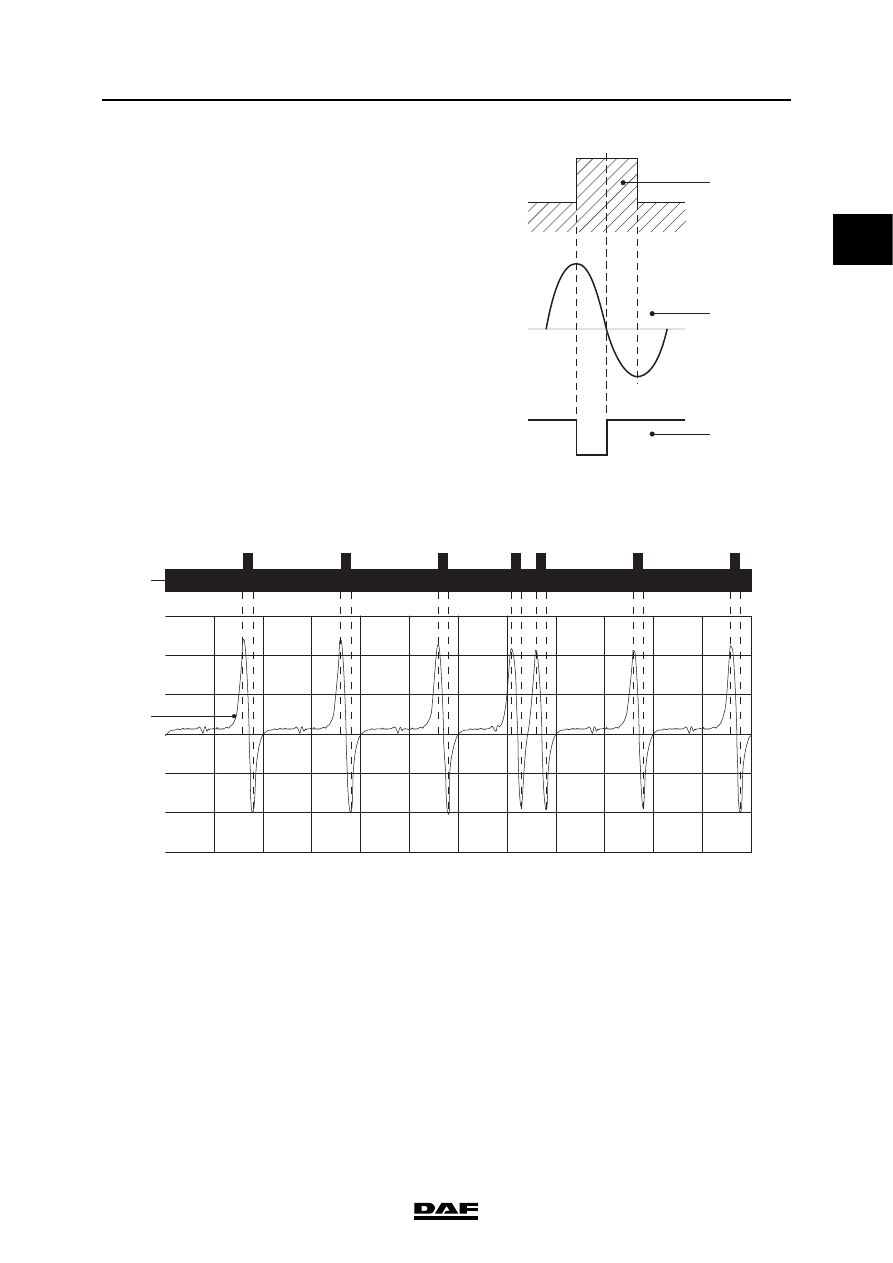

The most powerful changes in the magnetic field

of the sensor take place when the tooth pattern

(1) on the pulse wheel changes from a tooth to a

hole and vice versa. A sine-wave alternating

voltage (2) is generated as a result of this

changing magnetic field. As a tooth approaches,

the camshaft sensor signal must be at the

maximum positive value and then drop to the

maximum negative value as the end of the tooth

approaches. This is determined by the sensor

connections to the electronic unit! The electronic

unit converts this sine-wave alternating voltage

signal to a digital signal (3) which it uses to carry

out calculations.

i400839

1

2

3

6

2

4

s 1

5

3

0

a

b

I400762

1

DMCI ENGINE MANAGEMENT SYSTEM

2-14

©

 200528

Description of components

XF105 series

Sine-wave signals (2) can be measured using an

oscilloscope with the engine running using the

tooth pattern on the pulse wheel (1). Each tooth,

and therefore pulse, corresponds to a specific

cylinder. The additional tooth before the

cylinder -1 tooth is the synchronisation tooth (S).

The pulse this generates is required to realise the

synchronisation procedure together with the

crankshaft sensor signal.

Effect of output signal on the system:
-

synchronisation during starting;

-

cylinder detection;

-

calculation of injection timing if crankshaft

sensor is defective;

-

registration of engine speed if crankshaft

sensor is defective.

-

CAN message engine speed to other vehicle

systems if the crank shaft sensor is faulty via

V-CAN1 (AS Tronic, EAS) and V-CAN2

(VIC-2, ZF intarder EST-42, ABS-D, EBS-2,

DIP-4, ECAS-4, builder module)

-

output signal engine speed if crankshaft

sensor is faulty (EMAS, cab lead-through

connector).

1

©

 200528

2-15

Description of components

DMCI ENGINE MANAGEMENT SYSTEM

XF105 series

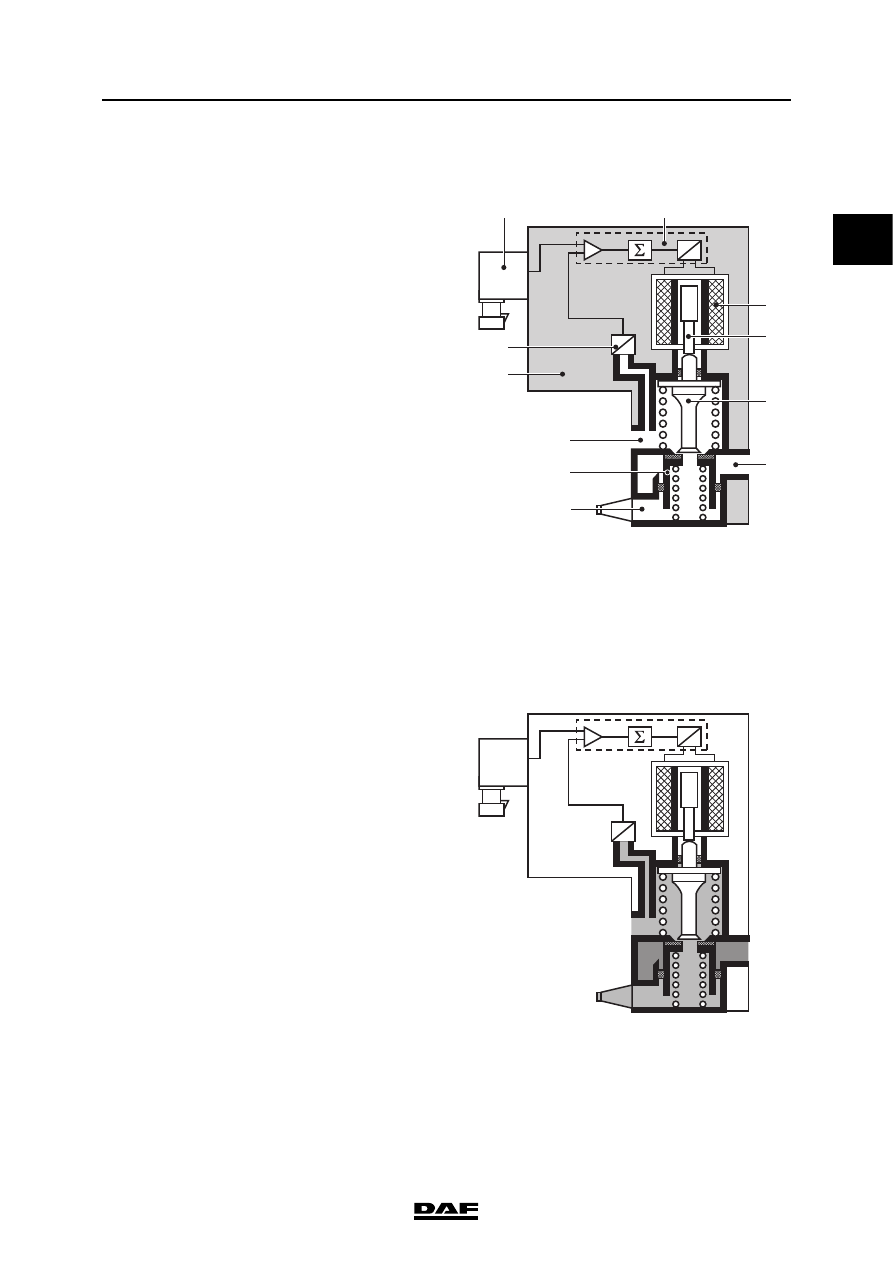

2.10 WASTE GATE VALVE

The waste gate valve controls opening and

closing of the waste gate on the turbocharger.

The waste gate valve air supply (6) comes

directly from the air supply unit circuit 4 (approx.

10 bar) and is adjusted in the valve to a control

pressure (9) for the diaphragm housing of the

waste gate. The waste gate valve checks the

output pressure using an internal pressure

sensor (11). The signal issued by the internal

pressure sensor is compared by the internal

electronics (2) to the signal from the electronic

unit. The internal electronics energises the coil

(3) with a duty cycle (PWM) signal. If the required

pressure differs from the actual pressure, the

internal electronics modifies the duty cycle.

Rest position/bleeding
In the rest position or during bleeding, the coil (3)

is not energised. The piston (8) and valve (5) are

pushed up by the force of the spring. This also

pushes up the metal core (4). The outlet (9) is

now connected to the air bleed vent (7).

U

P

U

I

3

1

11

10

2

4

5

6

9

7

8

i400741

1

Electrical connection

2

Internal electronics

3

Coil

4

Core

5

valve

6

Air connection, supply(1)

7

Vent  (3)

8

Piston

9

Air connection, waste gate (2) control

pressure

10

Accommodation

11

Internal pressure sensor

U

P

U

I

i400745

1

DMCI ENGINE MANAGEMENT SYSTEM

2-16

©

 200528

Description of components

XF105 series

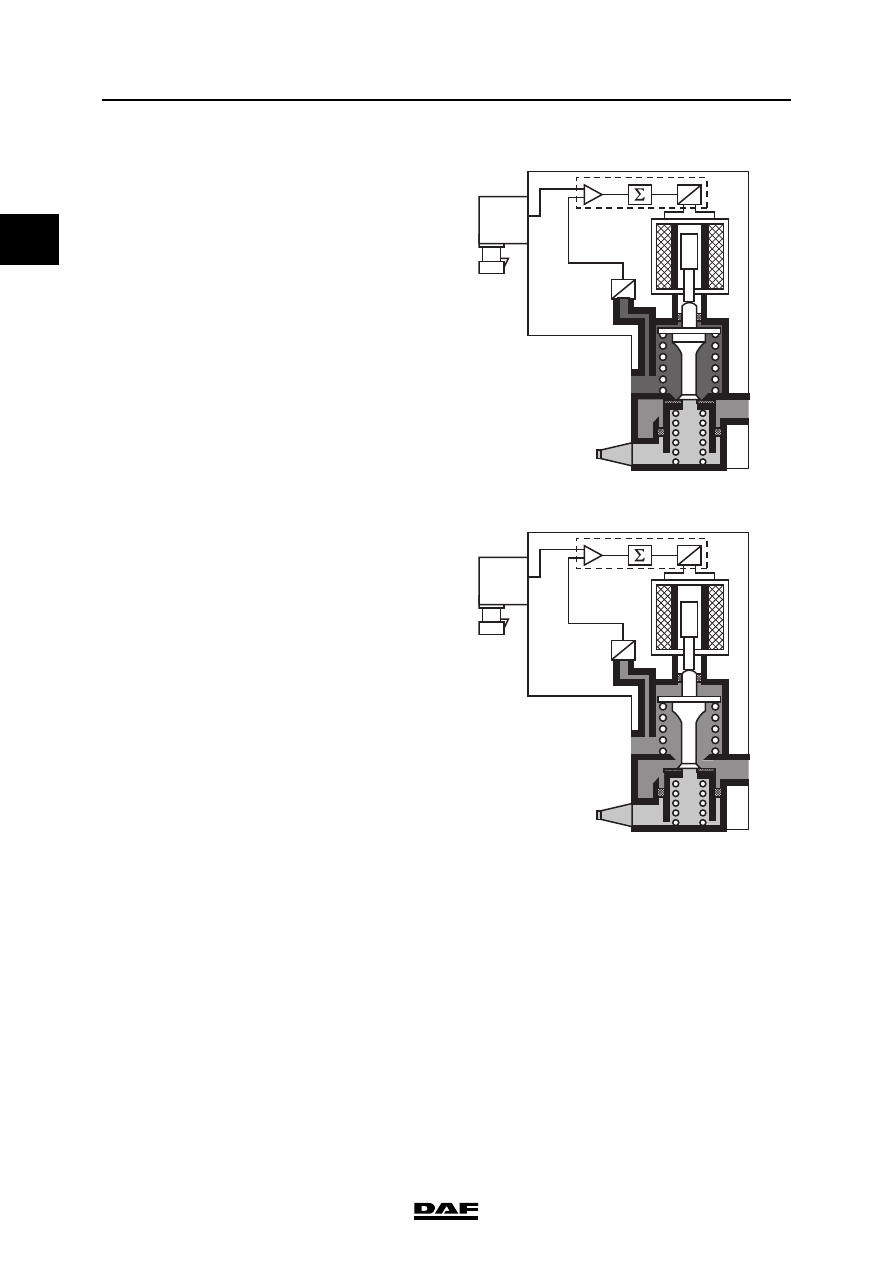

Constant pressure
When the coil (3) is energised, the metal core (4)

is pushed down. The valve (5) closes off the

opening to the air bleed vent on the piston (8).

The pressure present in the outlet (9) now stays

constant.

Pressure increase
If the coil (3) remains activated for longer, the

valve (5) will push the piston (8) further down and

the air supply opening (6) to the outlet (9) is

released. This increases the output pressure.

U

P

U

I

i400746

U

P
