(11) Remove side gear thrust washer (Fig. 110).

ASSEMBLY

(1) Install side gear thrust washer (Fig. 111).

(2) Install differential side gear (Fig. 112).

(3) Install four (4) pinion gears and thrust washers

(Fig. 113).

Fig. 110 Side Gear Thrust Washer

1 - SIDE GEAR THRUST WASHER

Fig. 111 Side Gear Thrust Washer

1 - SIDE GEAR THRUST WASHER

Fig. 112 Differential Side Gear

1 - DIFFERENTIAL SIDE GEAR

Fig. 113 Pinion Gear and Thrust Washer

1 - THRUST WASHER (4)
2 - PINION GEAR (4)

21 - 66

T850 MANUAL TRANSAXLE

RS

DIFFERENTIAL (Continued)

(4) Install pinion shaft retaining ring (Fig. 114).

(5) Install two (2) short pinion shafts (Fig. 115).

(6) Install one (1) long pinion shaft (Fig. 116).

(7) Install differential side gear.
(8) Install side gear thrust washer (Fig. 117).

Fig. 114 Pinion Shaft Retaining Ring

1 - RETAINING RING

Fig. 115 Short Pinion Shaft (2)

1 - PINION SHAFT (SHORT (2))

Fig. 116 Long Pinion Shaft

1 - PINION SHAFT (LONG)

Fig. 117 Side Gear Thrust Washer

1 - SIDE GEAR THRUST WASHER
2 - DIFFERENTIAL SIDE GEAR

RS

T850 MANUAL TRANSAXLE

21 - 67

DIFFERENTIAL (Continued)

(9) Install differential support plate. Align support

plate to differential case with alignment pins 8470
(Fig. 118).

(10) Install thrust buttons 8491 to both bearing

journals and press halves together using an arbor
press (Fig. 119).

(11) Install ring gear into position, start three ring

gear-to-differential case bolts by hand (120° apart),
and install alignment pins 8470 (Fig. 120).

(12) Torque three ring gear bolts to draw ring gear

into position. Remove alignment pins, install remain-
ing ring gear-to-differential case bolts and torque to
95 N·m (70 ft. lbs.) (Fig. 121).

Fig. 118 Align Differential Support to Case

1 - ALIGNMENT PIN 8470
2 - DIFFERENTIAL SUPPORT PLATE
3 - DIFFERENTIAL CASE

Fig. 119 Installing Differential Support

1 - ARBOR PRESS
2 - BUTTON 8491
3 - DIFFERENTIAL SUPPORT PLATE
4 - ALIGNMENT PIN 8470
5 - DIFFERENTIAL CASE

Fig. 120 Ring Gear Alignment/Installation

1 - ALIGNMENT PIN 8470
2 - BOLT

Fig. 121 Ring Gear-to-Differential Case Bolts

1 - BOLT (12)
2 - DIFFERENTIAL SUPPORT
3 - RING GEAR

21 - 68

T850 MANUAL TRANSAXLE

RS

DIFFERENTIAL (Continued)

(13) Install tapered roller bearings using installer

8473 and an arbor press (Fig. 122). Insert button
8491 on opposite journal to protect journal and/or
bearing during press operation. Repeat the same
operation on opposite side.

(14) Measure and verify differential side gear end

play. (Refer to 21 - TRANSMISSION/TRANSAXLE/
MANUAL/DIFFERENTIAL - ADJUSTMENTS).

ADJUSTMENTS

ADJUSTMENT - DIFFERENTIAL TURNING
TORQUE

NOTE: Differential turning torque should only be
measured with the geartrain out of the transaxle. If
measurement is taken with transaxle assembled, an
inaccurate measurement will result.

NOTE: All differential cover-to-case bolts and exten-
sion housing-to-case bolts must be installed and
torqued to obtain accurate measurement.

(1) If transaxle is assembled, remove geartrain

and leave differential in place. (Refer to 21 - TRANS-
MISSION/TRANSAXLE/MANUAL - DISASSEMBLY)

(2) Install differential cover and torque differential

cover-to-case bolts to 54 N·m (40 ft. lbs.).

(3) Install extension housing and torque extension

housing-to-case bolts to 28 N·m (250 in. lbs.).

(4) Place transaxle on work bench so axle center-

line is parallel to the ground.

(5) Install turning torque tool C-4995 to differen-

tial at side opposite extension housing.

(6) Using in. lb./N·m dial indicator, rotate differen-

tial case multiple times and record measurement
(Fig. 123). Differential turning torque should be
within 2.3-3.4 N·m (20-30 in. lbs.). Refer to shim
chart for proper shim selection. If turning torque
measured is less than 2.3 N·m (20 in. lbs.), install a
thicker shim. If turning torque measured is greater
than 3.4 N·m (30 in. lbs.), install a thinner shim.

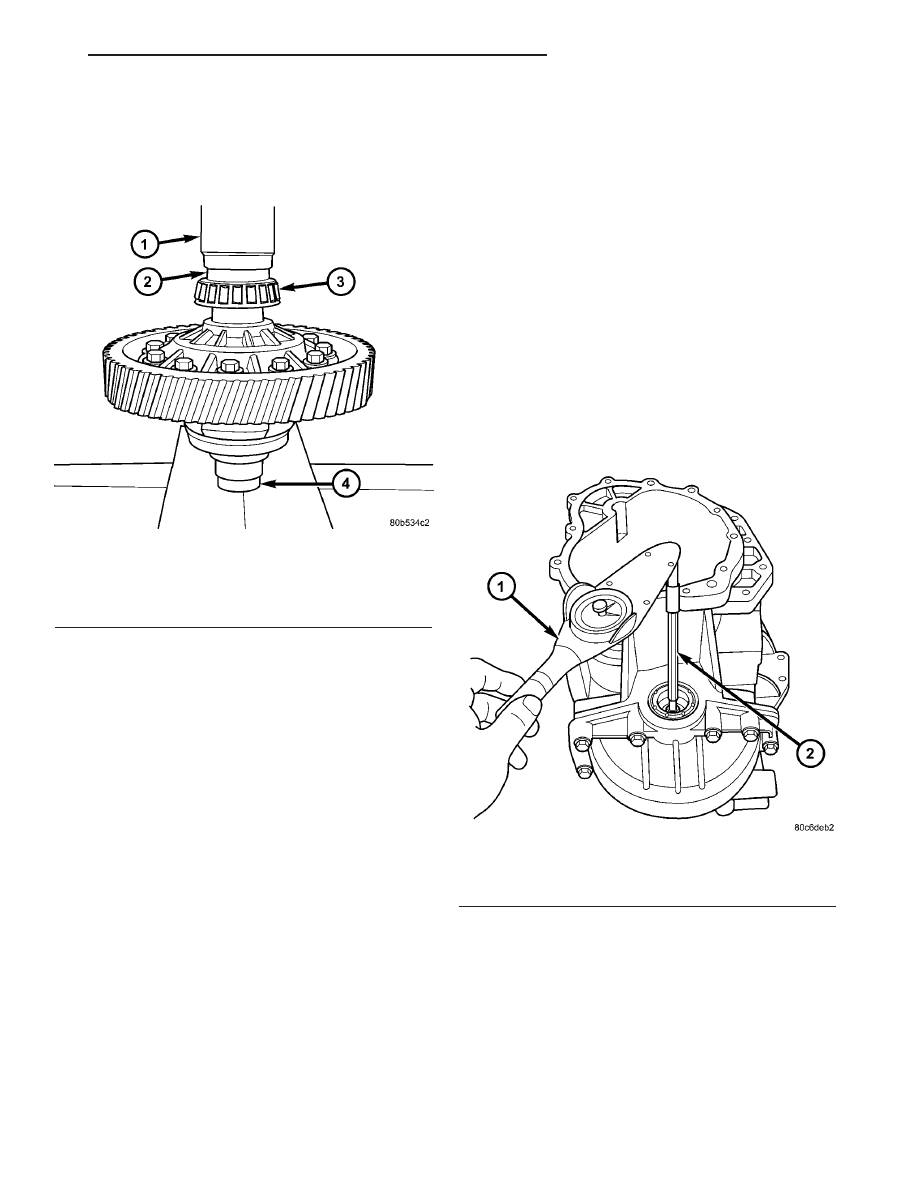

Fig. 122 Differential Side Bearing Installation

1 - ARBOR PRESS
2 - INSTALLER 8473
3 - BEARING
4 - BUTTON 8491

Fig. 123 Differential Turning Torque Measurement

1 - DIAL TORQUE WRENCH
2 - TOOL C-4995

RS

T850 MANUAL TRANSAXLE

21 - 69

DIFFERENTIAL (Continued)
