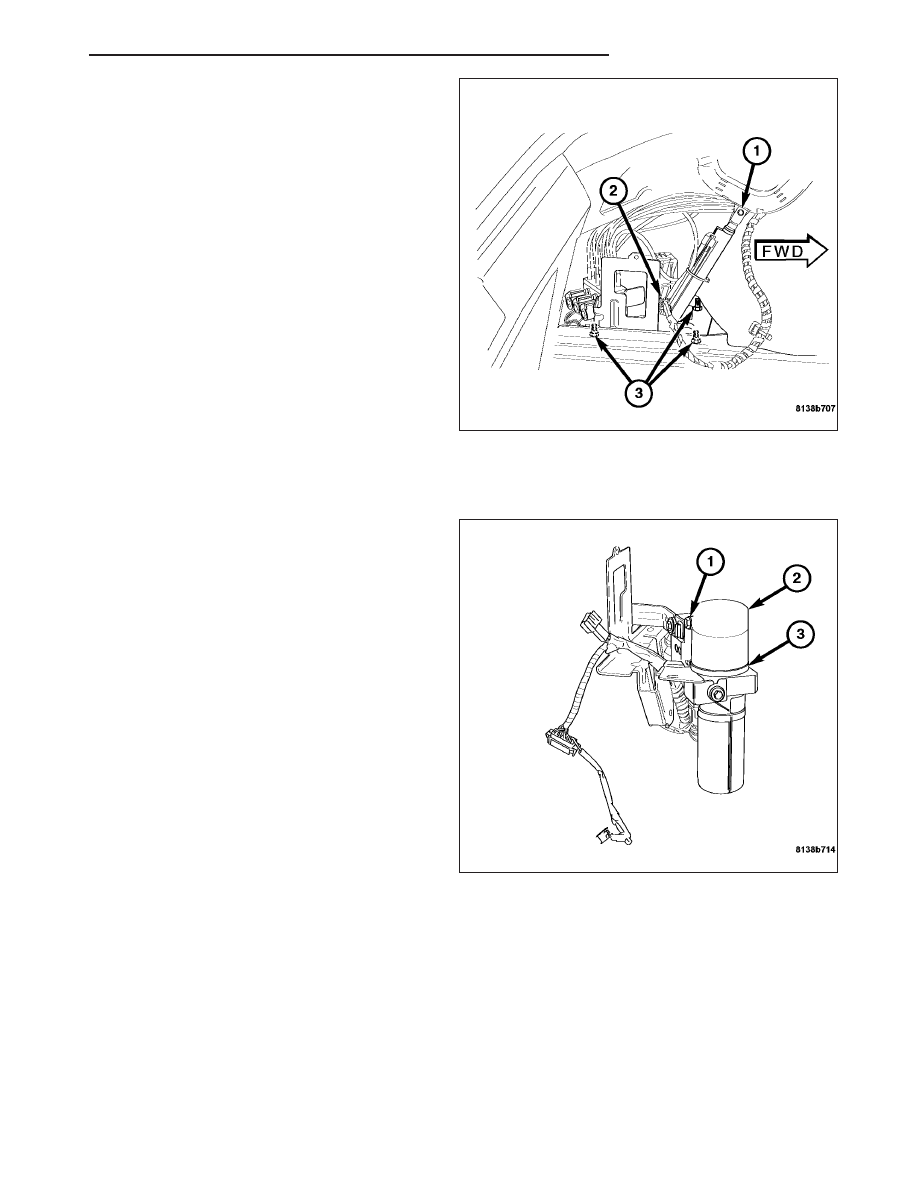

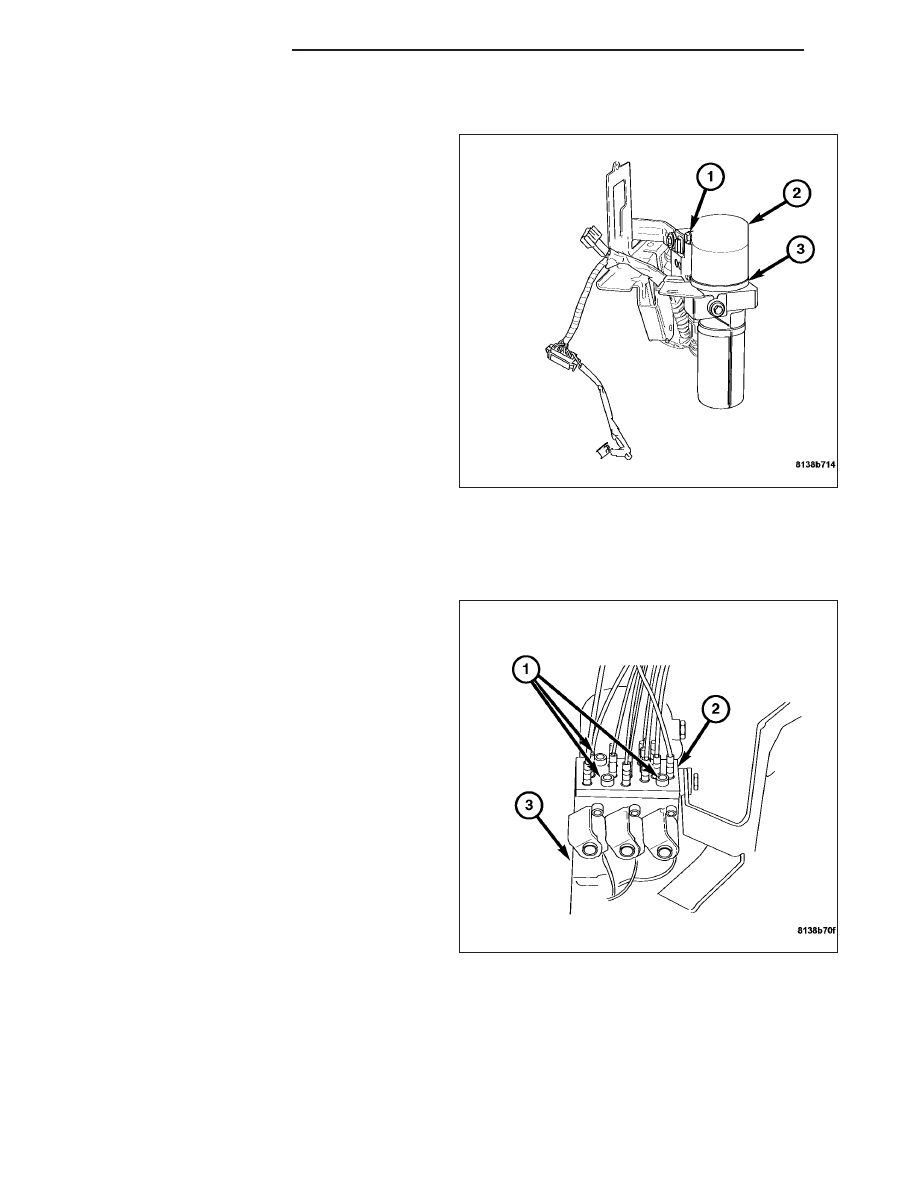

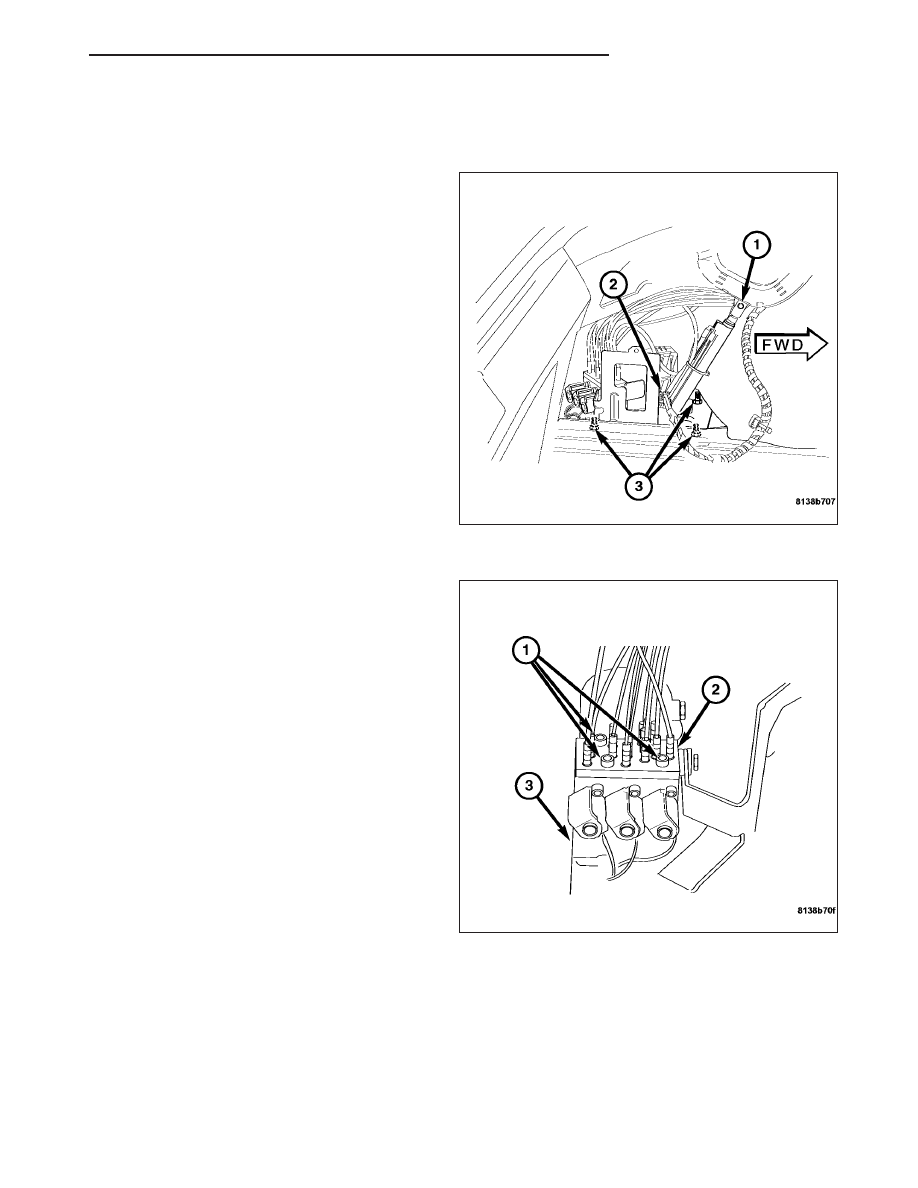

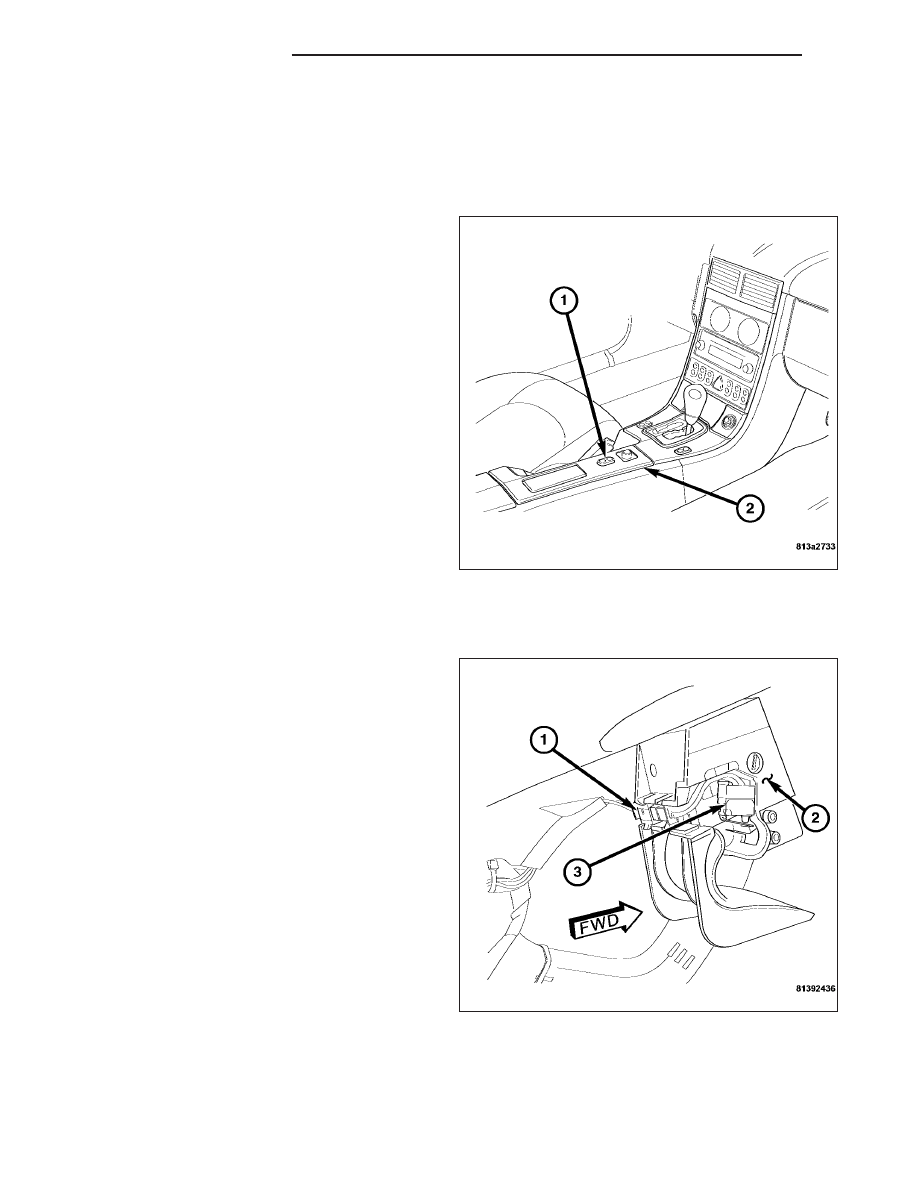

REMOVAL REMOVAL - HYDRAULIC PUMP MOTOR 1. Disconnect the negative battery cable. 2. Remove the left trunk trim panel. 3. Remove the power top control module (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MOD- ULES/POWER TOP CONTROL MODULE - REMOVAL). 4. Disconnect the tonneau cover hydraulic cylinder at the tonneau cover hinge (1). 5. Disconnect the power top hydraulic assembly har- ness connector (2). 6. Remove the power top hydraulic assembly retain- ing nuts (3) and lift the pump assembly out of the 7. Remove the three bolts (1) from the hydraulic line retaining plate. 8. Separate the hydraulic line retaining plate from the power top hydraulic assembly. 9. Remove the power top hydraulic assembly from the vehicle. ZH CONVERTIBLE TOP 23 - 515 |
