INCORRECT CAN MESSAGE FROM ABS (CONTINUED)
POSSIBLE CAUSES
CONTROLLER ANTILOCK BRAKE MODULE
SHIFT LEVER ASSEMBLY

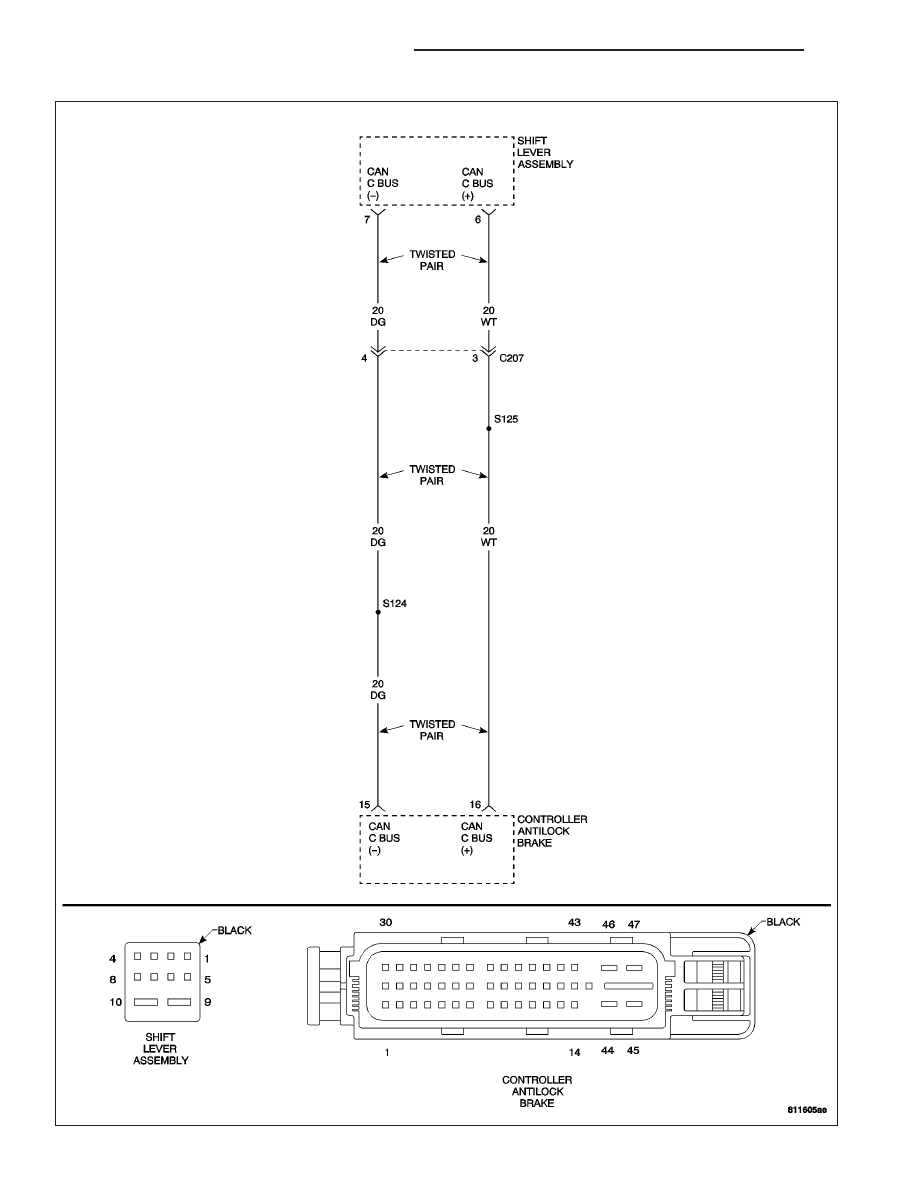

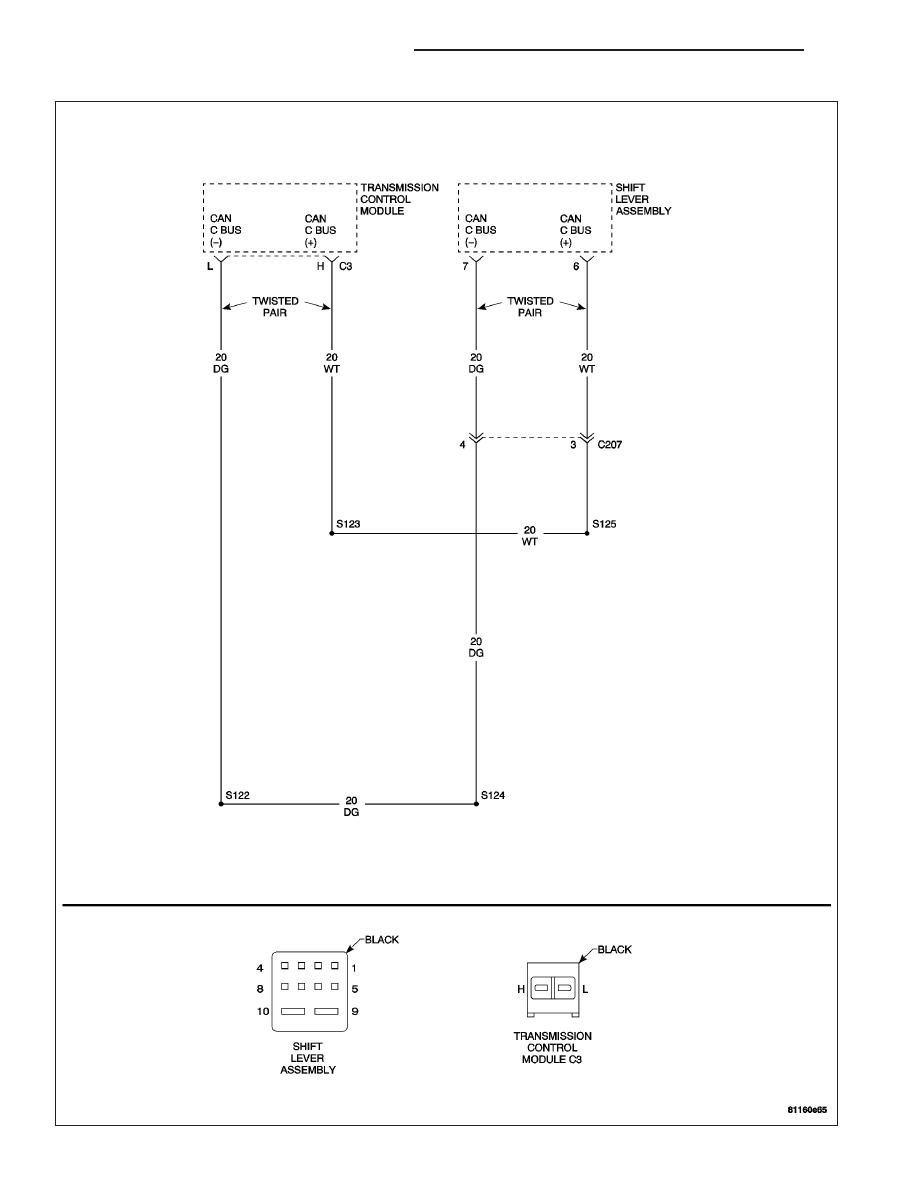

For a complete Shift Lever Assembly Circuit Diagram, (Refer to 21 - TRANSMISSION/TRANSAXLE/AUTOMATIC -
NAG1 - SCHEMATICS AND DIAGRAMS).
Diagnostic Test
1.
CAB - INTERNAL
Turn the ignition off.
Replace the Controller Antilock Brake Module. (Refer to 8 - ELECTRI-
CAL/ELECTRONIC CONTROL MODULES/CONTROLLER ANTILOCK
BRAKE - REMOVAL).
Turn the ignition on.
With the DRB III
T
, erase SLA DTCs.
Start the engine.
With the brakes firmly applied, place the shift lever into Drive.
With the DRB III
T
, read SLA DTCs.
Did DTC INCORRECT CAN MESSAGE FROM ABS set again?
Yes
>> Replace the Shift Lever Assembly. (Refer to 21 - TRANS-
MISSION/TRANSAXLE/AUTOMATIC
-
NAG1/SHIFT
MECHANISM - REMOVAL).
Perform NAG1 TRANSMISSION VERIFICATION TEST.
No
>> Test Complete.
