Chrysler Crossfire. Manual - part 760
LR WHEEL SPIN CAN MESSAGE NOT VALID (CONTINUED)
POSSIBLE CAUSES
ABS WHEEL SPEED SENSOR DTC PRESENT
CONTROLLER ANTILOCK BRAKE MODULE
SHIFT LEVER ASSEMBLY

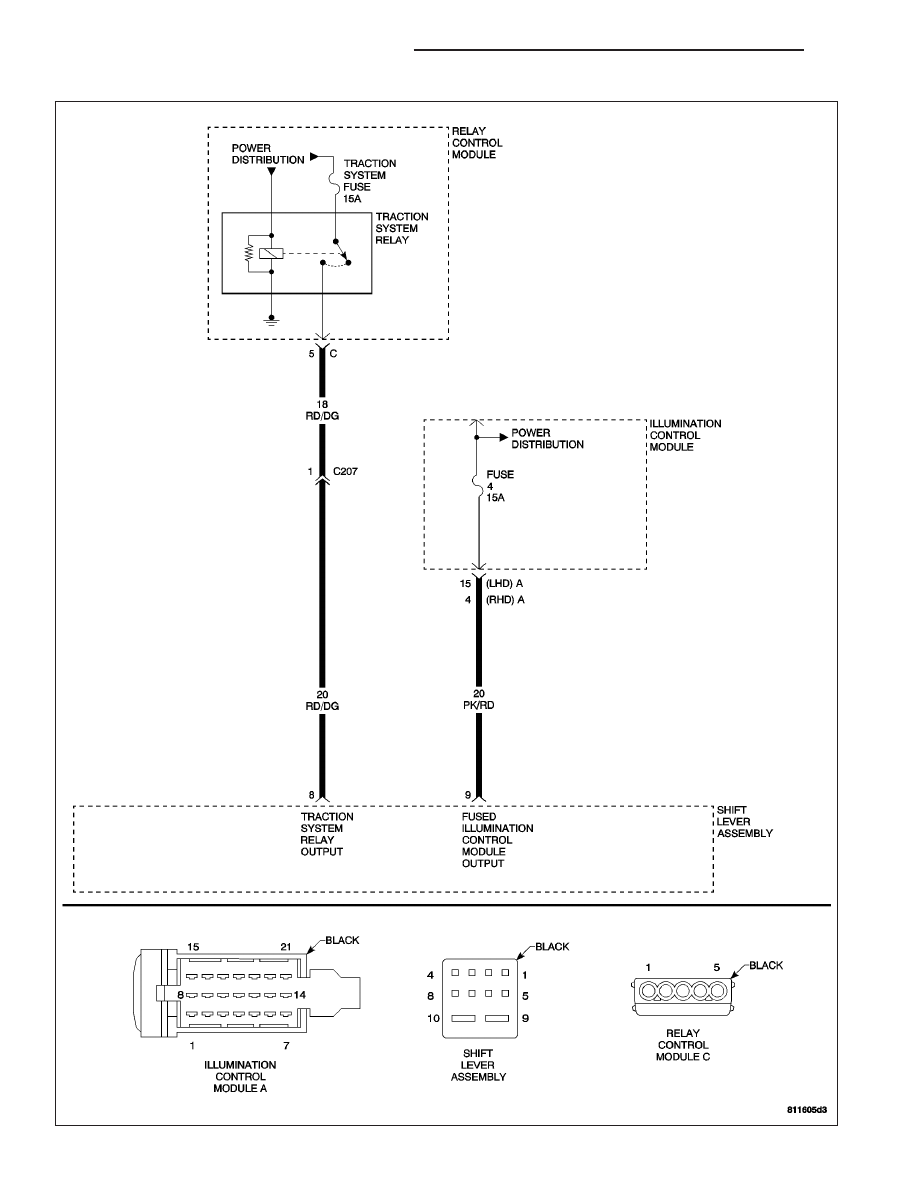

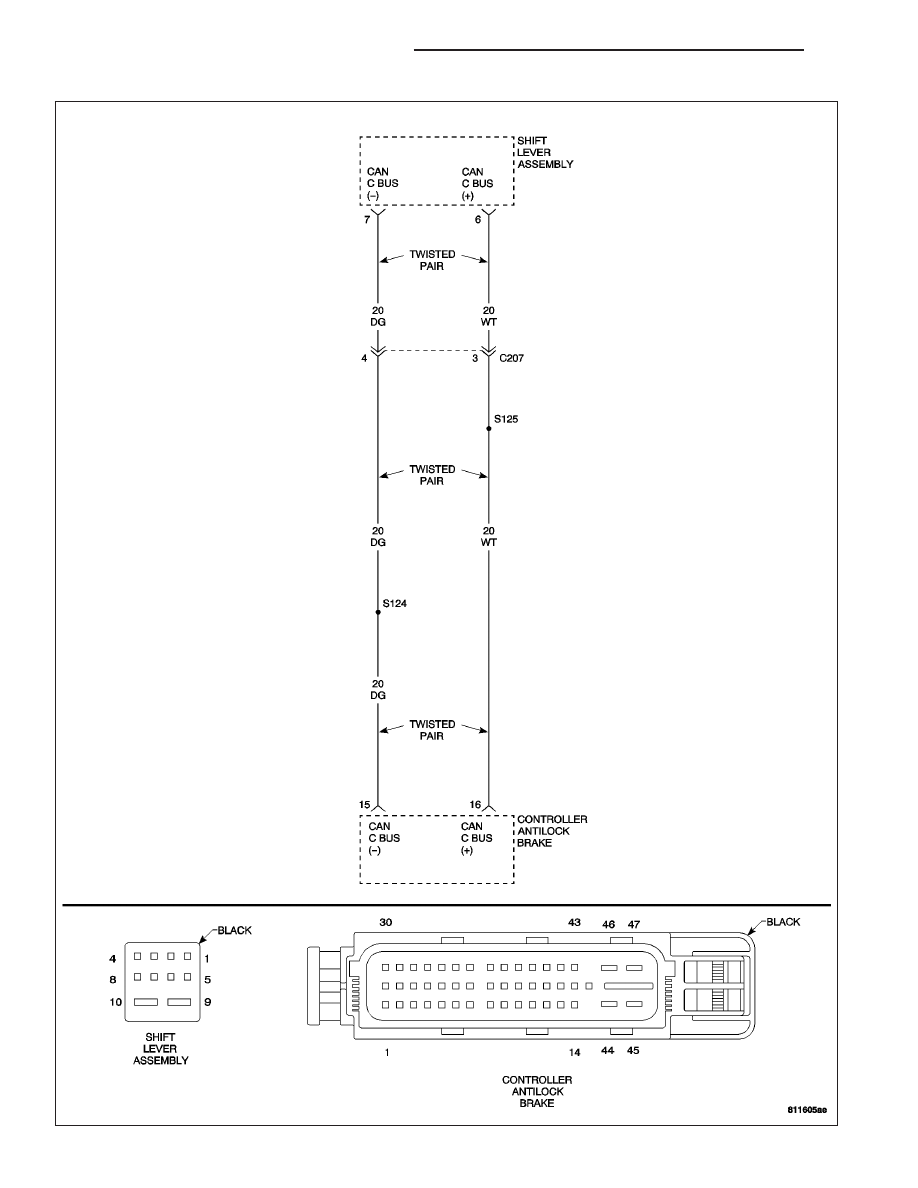

For a complete Shift Lever Assembly Circuit Diagram, (Refer to 21 - TRANSMISSION/TRANSAXLE/AUTOMATIC -
NAG1 - SCHEMATICS AND DIAGRAMS).
Diagnostic Test
1.
CAN BUS OR ABS DTC PRESENT
Turn the ignition on.

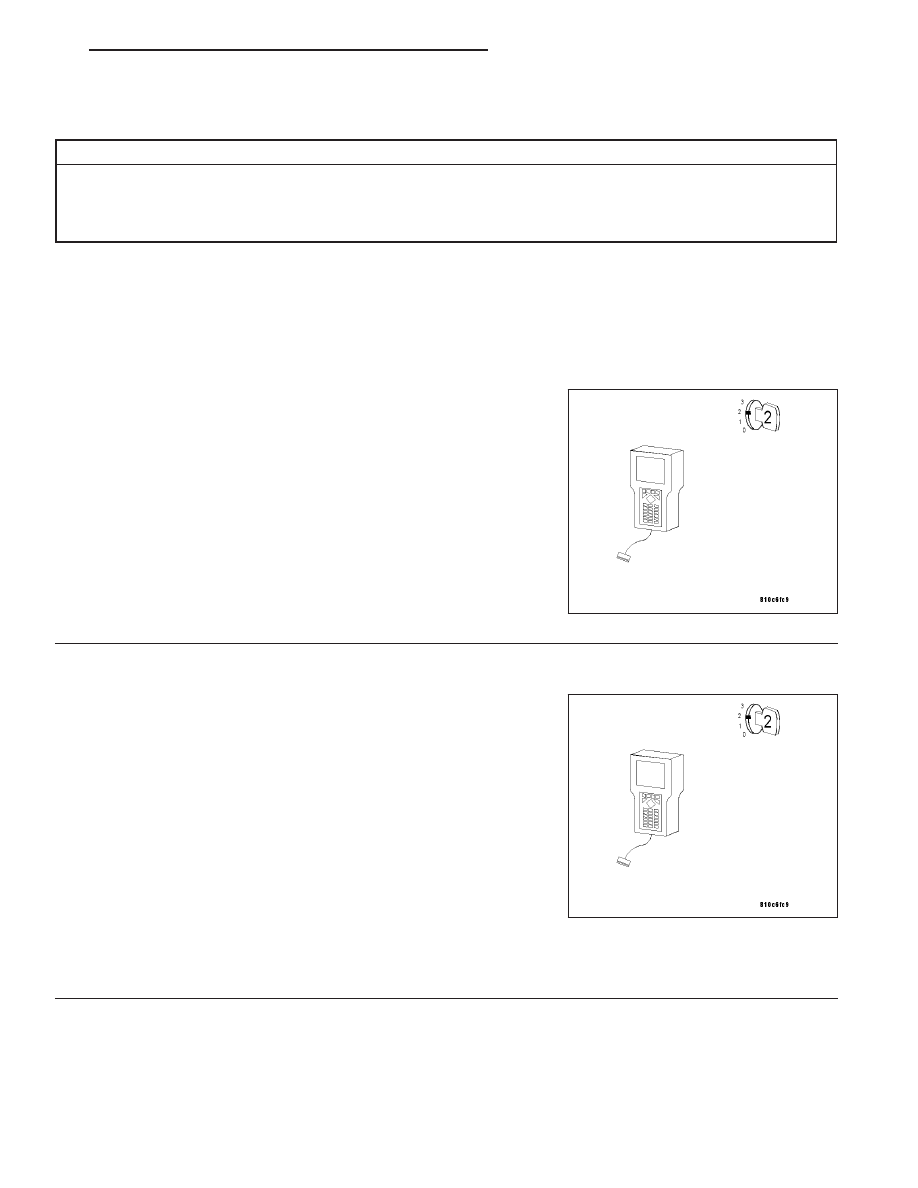

With the DRB III
T
, read the ABS DTCs.
Are any CAN BUS or Wheel Speed Sensor DTCs present?
Yes
>> Refer to the Brakes - ABS Electrical Diagnostics category
and perform the appropriate symptom.
No
>>
Go To 2
2.
CAB – ABS LR SENSOR MESSAGE
Turn the ignition off.
Replace the Controller Antilock Brake Module. (Refer to 8 - ELECTRI-
CAL/ELECTRONIC CONTROL MODULES/CONTROLLER ANTILOCK
BRAKE - REMOVAL).
Start the engine.
Road test the vehicle.
With the DRB III
T
, read ABS DTCs.
Did DTC LR WHEEL SPIN CAN MESSAGE NOT VALID set
again?
Yes
>> Replace the Shift Lever Assembly. (Refer to 21 - TRANS-
MISSION/TRANSAXLE/AUTOMATIC
-
NAG1/SHIFT
MECHANISM - REMOVAL).
Perform NAG1 TRANSMISSION VERIFICATION TEST.
No
>>
Test Complete.
ZH
NAG1 - ELECTRICAL DIAGNOSTICS
21 - 189
