(P0748) MODULATING PRESSURE SOLENOID CIRCUIT (CONTINUED)

4.

MODULATING PRESSURE SOLENOID CONTROL CIRCUIT SHORT TO GROUND

With the ignition off.

Measure the resistance between ground and the Modulating Pressure
Solenoid Control circuit.

Is the resistance above 100 kohms?

Yes

>> Go To 5

No

>> Repair the Modulating Pressure Solenoid Control circuit for

a short to ground.

Perform NAG1 TRANSMISSION VERIFICATION TEST.

5.

MODULATING PRESSURE SOLENOID CONTROL CIRCUIT SHORT TO OTHER CIRCUITS

With the ignition off.

Measure the resistance between the Modulating Pressure Solenoid
Control circuit and all other circuits in the Transmission Solenoid
Assembly harness connector.

Is the resistance above 100 kohms for all measurements?

Yes

>> Go To 6

No

>> Repair the Modulating Pressure Solenoid Control circuit for

a short to other circuits.

Perform NAG1 TRANSMISSION VERIFICATION TEST.

6.

MODULATING PRESSURE SOLENOID RESISTANCE OUT OF TOLERANCE

With the ignition off.

Reconnect the Transmission Solenoid Assembly harness connector.

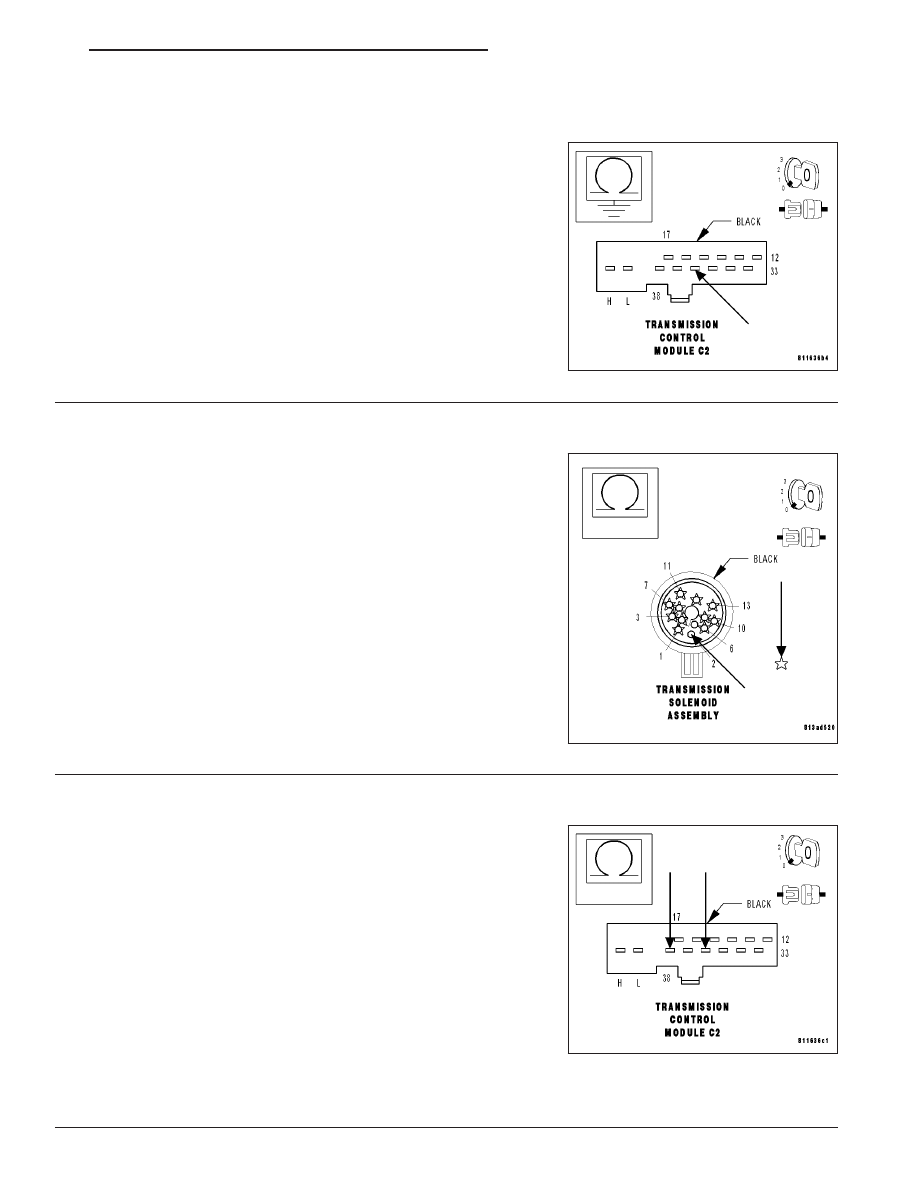

Measure the resistance between the Modulating Pressure Solenoid
Control circuit and the Solenoid Supply Voltage circuit at the Transmis-
sion Control Module C2 harness connector.

Is the resistance between 2.5 and 6.5 ohms?

Yes

>> Replace the Transmission Control Module. (Refer to 8 -

ELECTRICAL/ELECTRONIC

CONTROL

MODULES/

TRANSMISSION CONTROL MODULE - REMOVAL).

Perform NAG1 TRANSMISSION VERIFICATION TEST.

No

>> Replace the Modulating Pressure Solenoid. (Refer to 21 -

TRANSMISSION/TRANSAXLE/AUTOMATIC

-

NAG1/

ELECTROHYDRAULIC UNIT - REMOVAL).

Perform NAG1 TRANSMISSION VERIFICATION TEST.

ZH

NAG1 - ELECTRICAL DIAGNOSTICS

21 - 137

(P0748) MODULATING PRESSURE SOLENOID CIRCUIT (CONTINUED)

7.

INTERMITTENT WIRING AND CONNECTORS

The condition that caused this DTC to set is currently not present. Inspect the related wiring harness for a possible
intermittent condition.

Using the schematics as a guide, inspect the wiring and connectors specific to this circuit.

Wiggle the wires while checking for shorts and open circuits.

Note: Check for any Technical Service Bulletins that may apply.

Were any problems found?

Yes

>> Repair as necessary

Perform NAG1 TRANSMISSION VERIFICATION TEST.

No

>>

Test Complete.

21 - 138

NAG1 - ELECTRICAL DIAGNOSTICS

ZH

(P0753) 1-2/4-5 SOLENOID CIRCUIT

ZH

NAG1 - ELECTRICAL DIAGNOSTICS

21 - 139

(P0753) 1-2/4-5 SOLENOID CIRCUIT (CONTINUED)

When Monitored and Set Condition

When Monitored: Always monitored with system active at each ignition cycle.

Set Condition: If the TCM detects a short to battery on the solenoid control circuit, shorted solenoid, open
solenoid, or an open or shorted solenoid control circuit in the TCM.

POSSIBLE CAUSES

1-2/4-5 SOLENOID CONTROL CIRCUIT OPEN

1-2/4-5 SOLENOID CONTROL CIRCUIT SHORT TO GROUND

1-2/4-5 SOLENOID CONTROL CIRCUIT SHORT TO ANOTHER CIRCUIT

1-2/4-5 SOLENOID

TRANSMISSION CONTROL MODULE

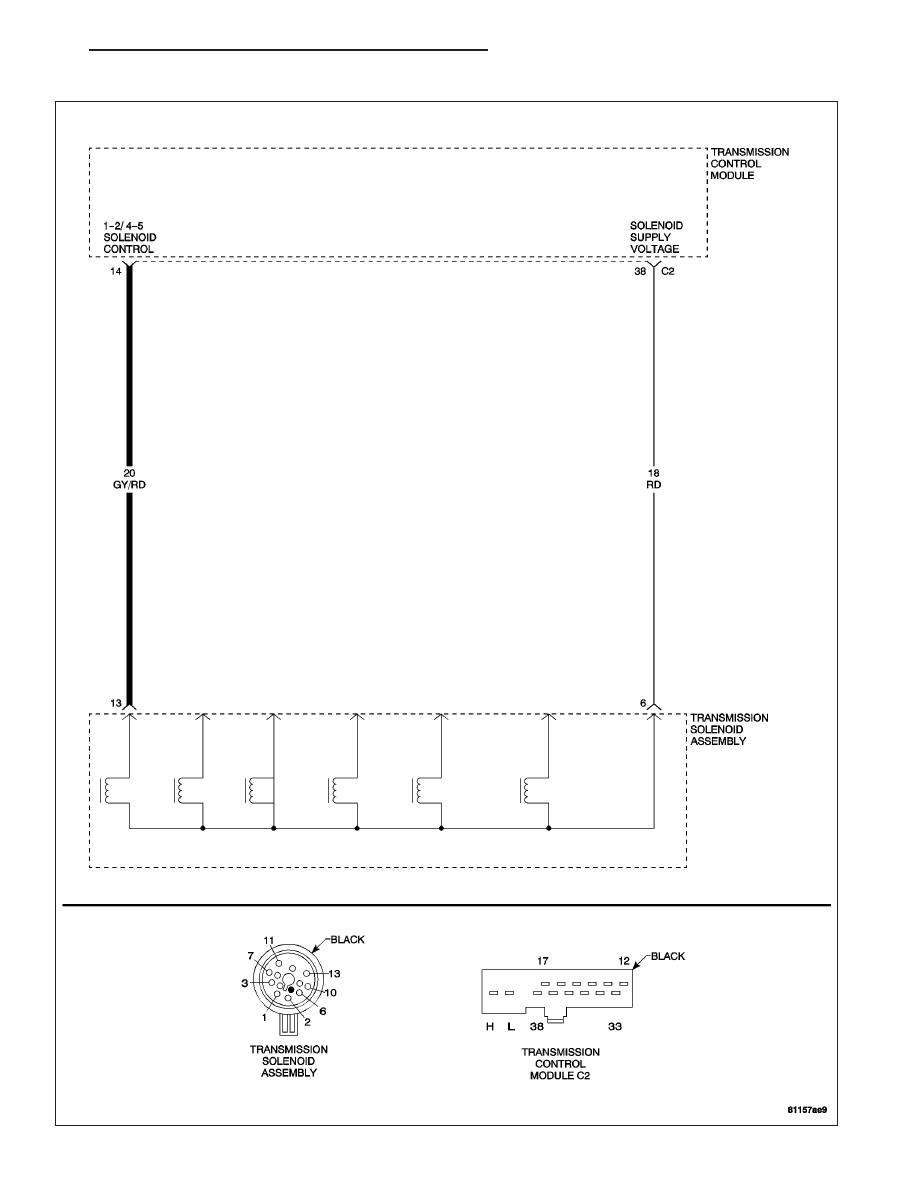

For a complete Transmission Control Module Circuit Diagram, (Refer to 21 - TRANSMISSION/TRANSAXLE/AUTO-
MATIC - NAG1 - SCHEMATICS AND DIAGRAMS).

Diagnostic Test

1.

PRE-DIAGNOSTIC CHECK OUT

Note: Low fluid level can be the cause of many transmission
problems. If the fluid level is low, locate and repair the leak then
check and adjust the fluid level in accordance with the Service
Information.

Note: Always perform diagnostics with a fully charged battery to
avoid false symptoms.
With the DRB III

T

, read Engine DTCs. Check and repair all engine

DTCs prior to performing transmission symptom diagnostics.

With the DRB III

T

, read and record all Transmission DTCs.

Note: Check connectors - Clean/repair as necessary. Poor pin to
terminal connections can set DTCs.
Using the wiring diagram/schematic as a guide, inspect the wiring and
connectors. Repair as necessary.

Most DTCs set on start up but some must be set by driving the vehicle such that all diagnostic monitors have run.

Note: Check for any Technical Service Bulletins that may apply.

Perform this procedure prior to Symptom diagnosis.

Continue

Go To 2

21 - 140

NAG1 - ELECTRICAL DIAGNOSTICS

ZH
