Chrysler Crossfire. Manual - part 467





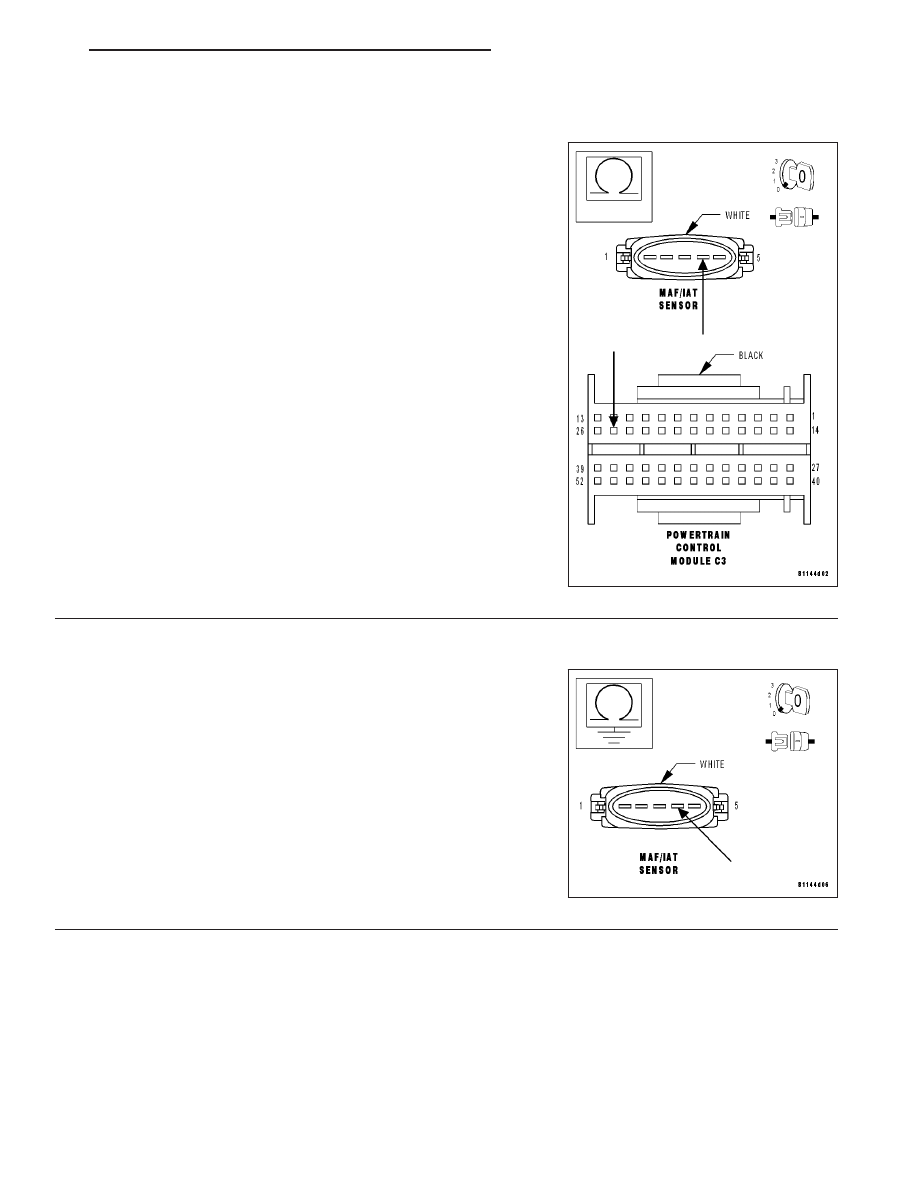

(P0102) MASS AIR FLOW CIRCUIT (CONTINUED)

5.

5-VOLT SUPPLY CIRCUIT OPEN

Turn the ignition off.

Disconnect the PCM C3 harness connector.

Note: Check connectors — Clean/repair as necessary.
Measure the resistance of the 5-Volt Supply circuit from the PCM C3
harness connector to the MAF Sensor harness connector.

Is the resistance below 5.0 ohms?

Yes

>> Go To 6

No

>> Repair the 5-Volt Supply circuit for an open.

Perform POWERTRAIN VERIFICATION TEST - VER 2.

6.

5-VOLT SUPPLY CIRCUIT SHORT TO GROUND

With the ignition off.

Measure the resistance between ground and the 5-Volt Supply circuit.

Is the resistance above 100 kohms?

Yes

>> Go To 7

No

>> Repair the 5-Volt Supply circuit for a short to ground.

Perform POWERTRAIN VERIFICATION TEST - VER 2.

ZH

ENGINE - ELECTRICAL DIAGNOSTICS

9 - 13

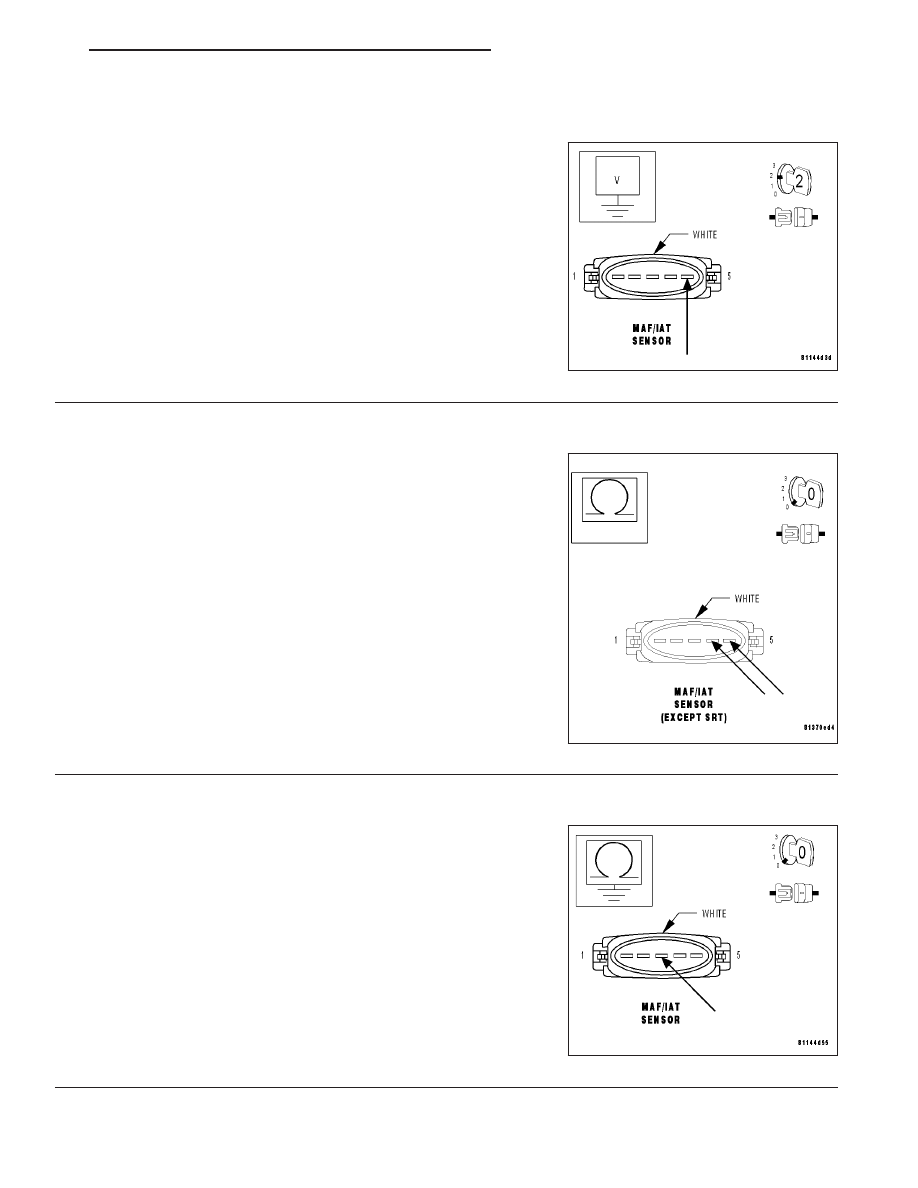

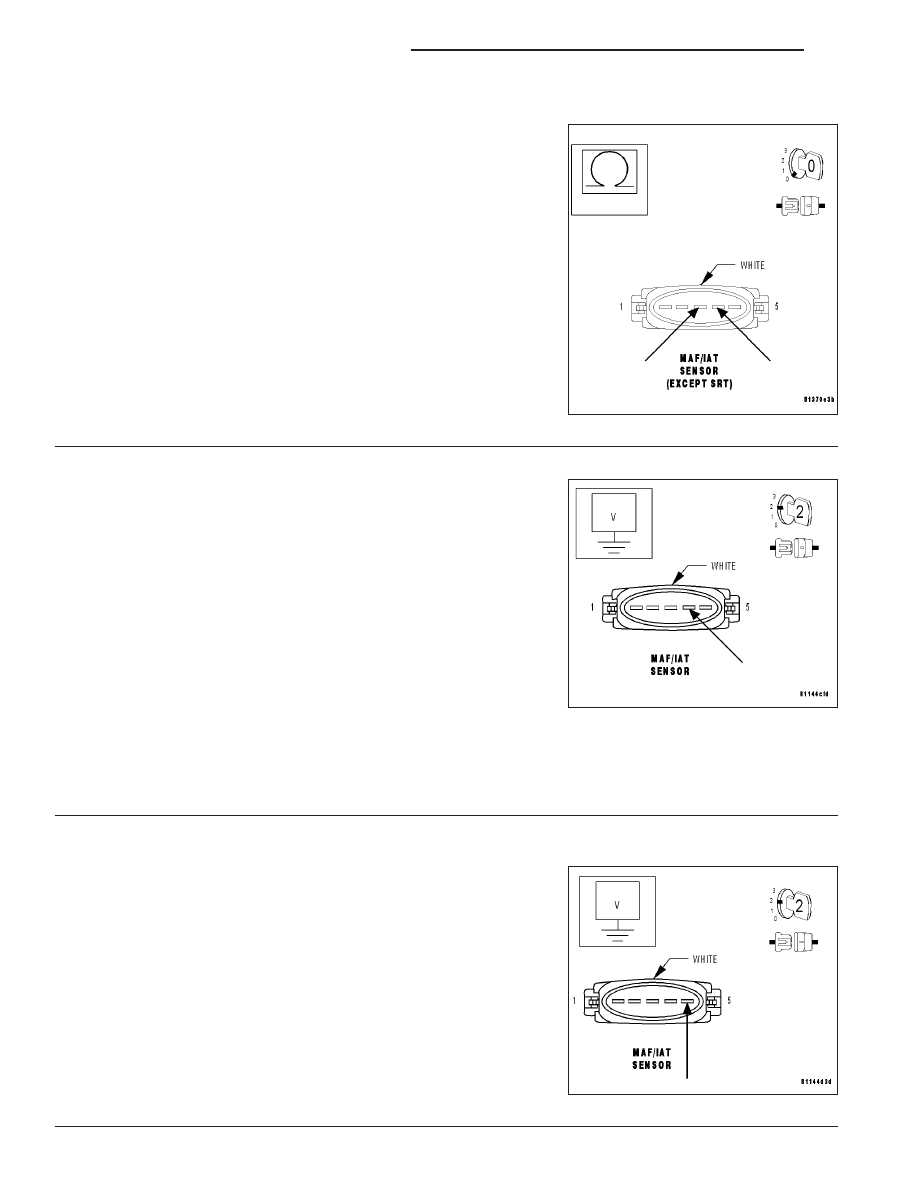

(P0102) MASS AIR FLOW CIRCUIT (CONTINUED)

7.

5-VOLT SUPPLY CIRCUIT SHORT TO SENSOR GROUND CIRCUIT

With the ignition off.

Measure the resistance between the 5-Volt Supply circuit and the Sen-
sor Ground circuit at the MAF Sensor harness connector.

Is the resistance above 100 kohms?

Yes

>> Replace and program the Powertrain Control Module.

(Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL
MODULES/POWERTRAIN

CONTROL

MODULE

-

REMOVAL).

Perform POWERTRAIN VERIFICATION TEST - VER 2.

No

>> Repair the 5-Volt Supply circuit for a short to ground.

Perform POWERTRAIN VERIFICATION TEST - VER 2.

8.

5-VOLT SUPPLY CIRCUIT SHORT TO VOLTAGE

Turn the ignition off.

Disconnect the PCM C3 harness connector.

Note: Check connectors — Clean/repair as necessary.
Turn the ignition on.

Measure the voltage of the 5-Volt Supply circuit at the MAF Sensor
harness connector.

Is the voltage below 1.0 volt?

Yes

>> Replace and program the Powertrain Control Module.

(Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL
MODULES/POWERTRAIN

CONTROL

MODULE

-

REMOVAL).

Perform POWERTRAIN VERIFICATION TEST - VER 2.

No

>> Repair the 5-Volt Supply circuit for a short to voltage.

Perform POWERTRAIN VERIFICATION TEST - VER 2.

9.

CHECK THE MAF SENSOR SIGNAL CIRCUIT VOLTAGE

With the ignition on.

Measure the voltage of the MAF Sensor Signal circuit at the MAF Sen-
sor harness connector.

Is the voltage below 1.0 volt?

Yes

>> Go To 12

No

>> Go To 10

9 - 14

ENGINE - ELECTRICAL DIAGNOSTICS

ZH

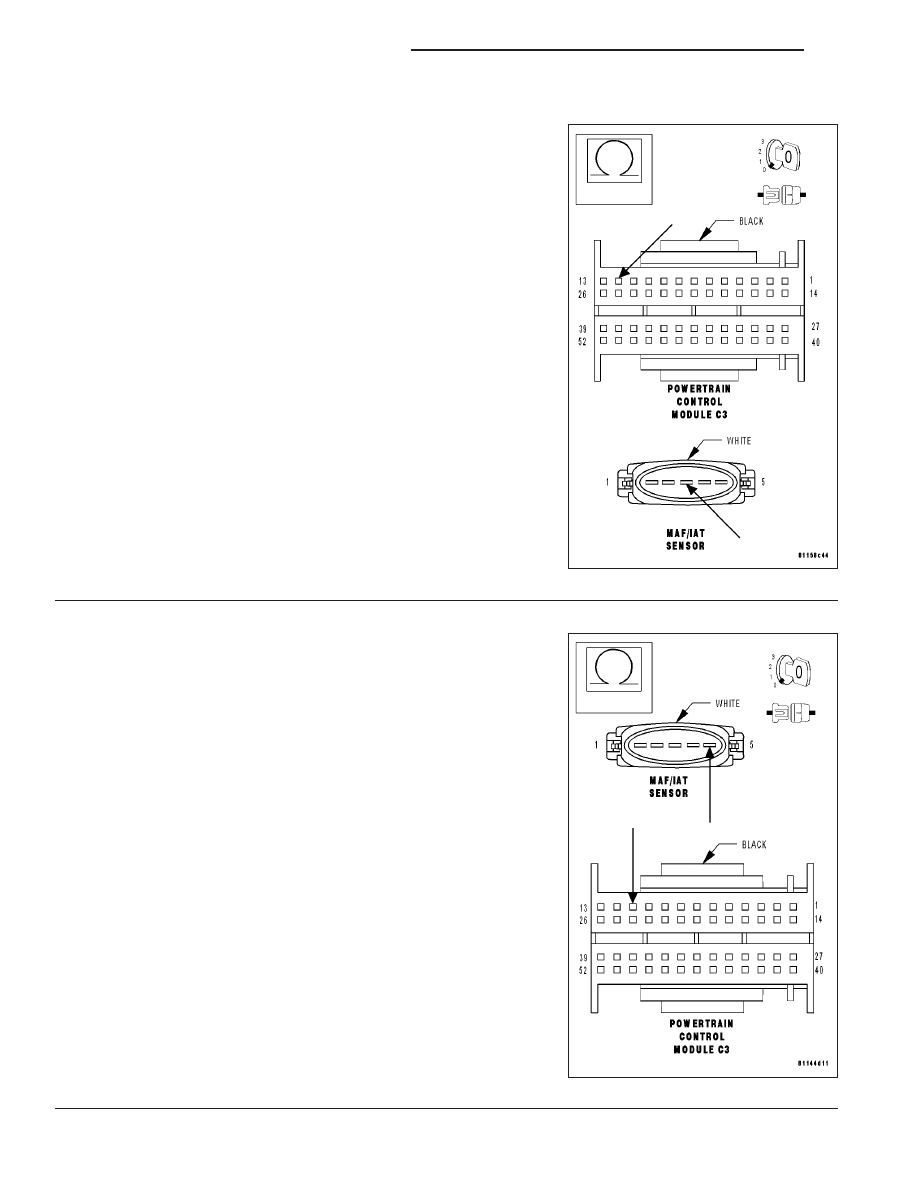

(P0102) MASS AIR FLOW CIRCUIT (CONTINUED)

10.

MAF SENSOR SIGNAL CIRCUIT SHORT TO VOLTAGE

Turn the ignition off.

Disconnect the PCM C3 harness connector.

Note: Check connectors — Clean/repair as necessary.
Turn the ignition on.

Measure the voltage of the MAF Sensor Signal circuit at the MAF Sen-
sor harness connector.

Is the voltage below 1.0 volt?

Yes

>> Go To 11

No

>> Repair the MAF Sensor Signal circuit for a short to volt-

age.

Perform POWERTRAIN VERIFICATION TEST - VER 2.

11.

MAF SENSOR SIGNAL CIRCUIT SHORT TO 5-VOLT SUPPLY CIRCUIT

Turn the ignition off.

Measure the resistance between the MAF Sensor Signal circuit and
the 5-Volt Supply circuit at the MAF Sensor harness connector.

Is the resistance above 100 kohms?

Yes

>> Replace and program the Powertrain Control Module.

(Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL
MODULES/POWERTRAIN

CONTROL

MODULE

-

REMOVAL).

Perform POWERTRAIN VERIFICATION TEST - VER 2.

No

>> Repair the MAF Sensor Signal circuit for a short to the

5-Volt Supply circuit.

Perform POWERTRAIN VERIFICATION TEST - VER 2.

12.

CHECK THE SENSOR GROUND CIRCUIT

Turn the ignition off.

Measure the resistance between ground and the Sensor Ground cir-
cuit.

Is the resistance below 5.0 ohms?

Yes

>> Go To 14

No

>> Go To 13

ZH

ENGINE - ELECTRICAL DIAGNOSTICS

9 - 15

(P0102) MASS AIR FLOW CIRCUIT (CONTINUED)

13.

SENSOR GROUND CIRCUIT OPEN

With the ignition off.

Disconnect the PCM C3 harness connector.

Note: Check connectors - Clean/repair as necessary.
Measure the resistance of the Sensor Ground circuit.

Is the resistance below 5.0 ohms?

Yes

>> Replace and program the Powertrain Control Module.

(Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL
MODULES/POWERTRAIN

CONTROL

MODULE

-

REMOVAL).

Perform POWERTRAIN VERIFICATION TEST - VER 2.

No

>> Repair the Sensor Ground circuit for an open.

Perform POWERTRAIN VERIFICATION TEST - VER 2.

14.

MAF SENSOR SIGNAL CIRCUIT OPEN

Turn the ignition off.

Disconnect the PCM C3 harness connector.

Note: Check connectors - Clean/repair as necessary.
Measure the resistance of the MAF Sensor Signal circuit from the
MAF Sensor harness connector to the PCM C3 harness connector.

Is the resistance below 5.0 ohms?

Yes

>> Go To 15

No

>> Repair the MAF Sensor Signal circuit for an open.

Perform POWERTRAIN VERIFICATION TEST - VER 2.

9 - 16

ENGINE - ELECTRICAL DIAGNOSTICS

ZH
