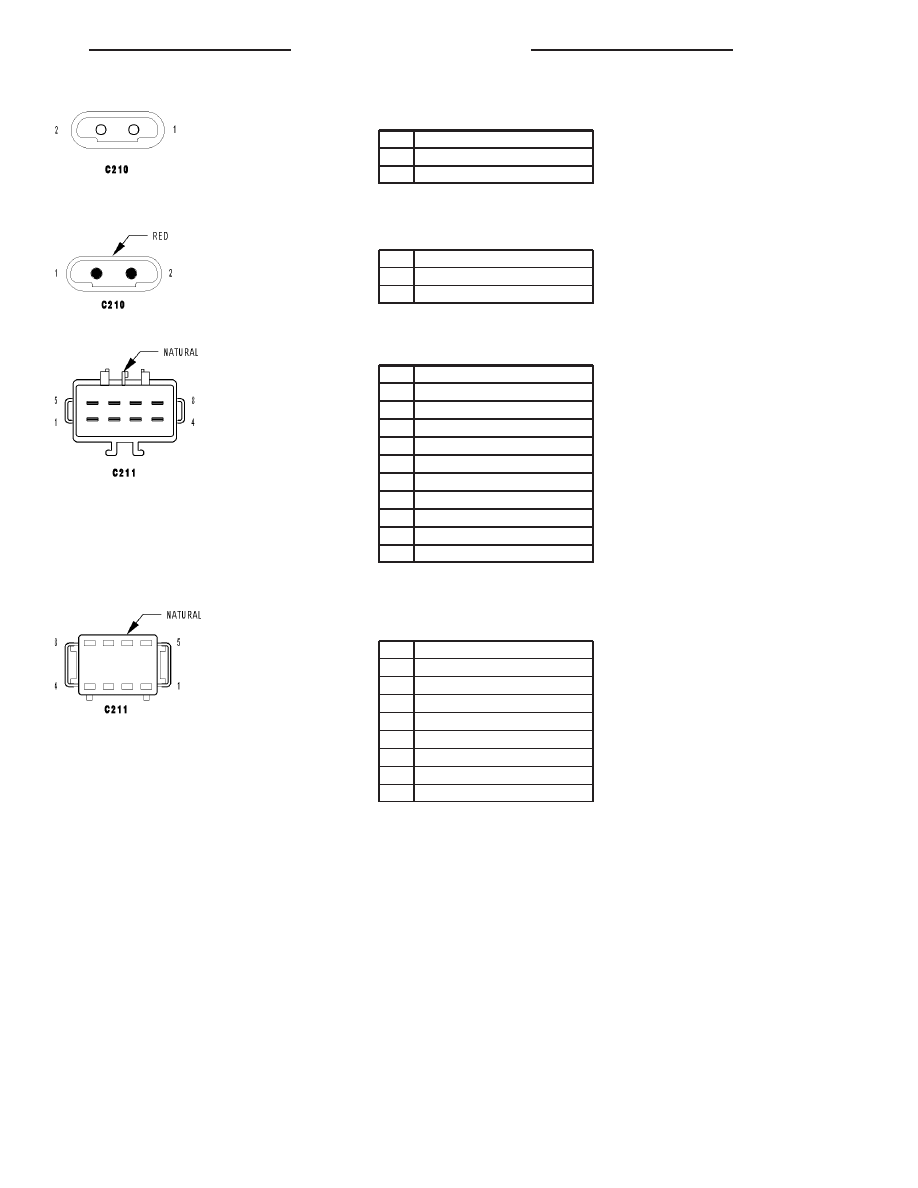

C210 - (BODY SIDE)

CAV

CIRCUIT

1

20BL/DG

2

20BR/DG

C210 - RED (COCKPIT SIDE)

CAV

CIRCUIT

1

20BL/DG

2

20BR/DG

C211 - NATURAL (BODY SIDE)

CAV

CIRCUIT

1

20DG/WT

2

18BR/DG

3

14RD/WT

4

18BR/WT

5

20BR

5

20BR

6

20YL/BK

7

20YL/DG

8

18RD/DG

8

18RD/DG

C211 - NATURAL (ENGINE COMPARTMENT

SIDE)

CAV

CIRCUIT

1

20DG/WT

2

18BR/DG

3

16RD/WT

4

18BR/WT

5

18BR

6

20YL/BK

7

20YL/DG

8

16RD/DG

ZH

8W-80 CONNECTOR PIN-OUTS

8W - 80 - 17

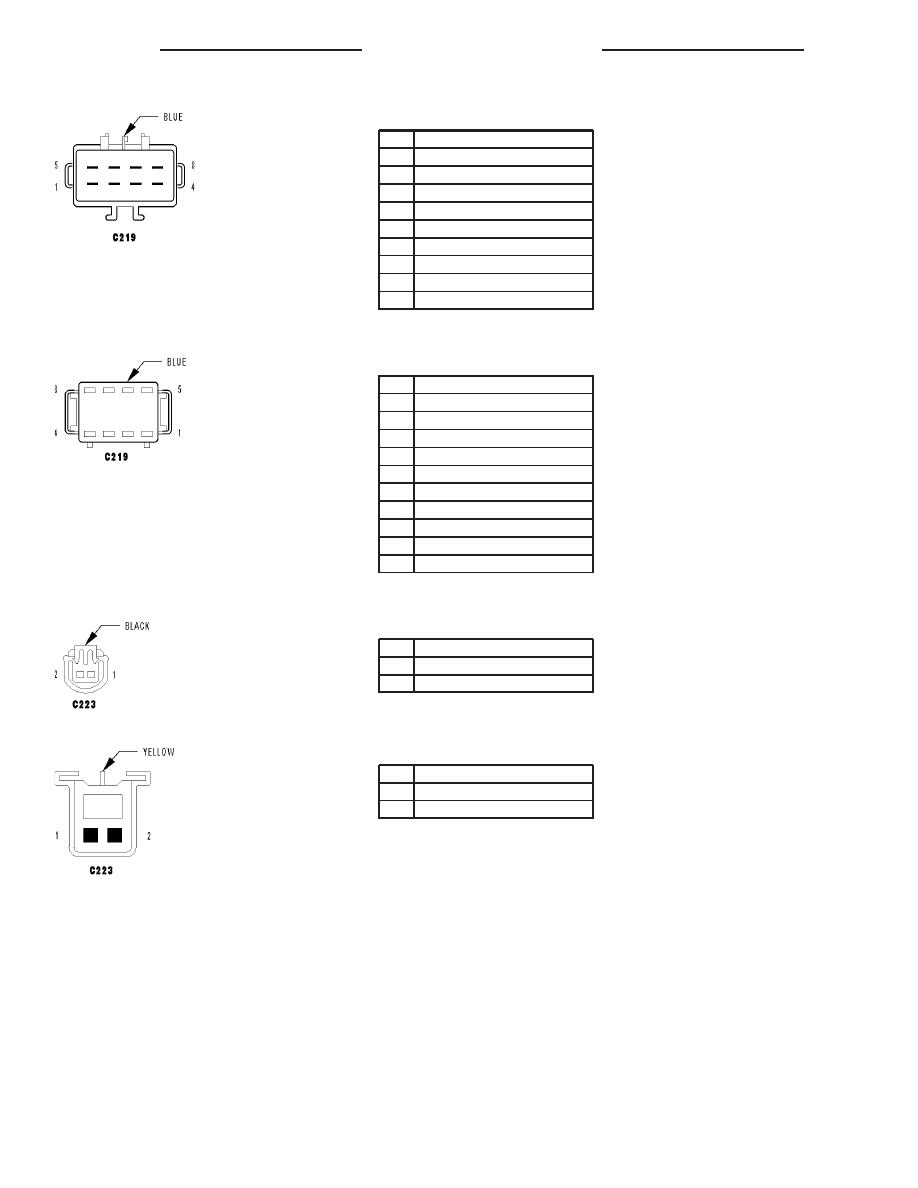

C219 - BLUE (BODY SIDE)

CAV

CIRCUIT

1

20BK/RD (EXCEPT EXPORT)

2

20BR/YL (EXCEPT EXPORT)

3

20DG (EXCEPT EXPORT)

3

18DG/WT (EXPORT)

4

18RD/DG (EXCEPT EXPORT)

5

18BR/BL (EXCEPT EXPORT)

6

20DG/VT (M/T EXCEPT EXPORT)

7

-

8

20BK/BL (ZH27)

C219 - BLUE (ENGINE COMPARTMENT SIDE)

CAV

CIRCUIT

1

20BK/RD (EXCEPT EXPORT)

2

20BR/YL (EXCEPT EXPORT)

2

20BR/YL (EXCEPT EXPORT)

3

20DG (EXCEPT EXPORT)

3

18DG/WT (EXPORT)

4

18RD/DG (EXCEPT EXPORT)

5

18BR/BL (EXCEPT EXPORT)

6

20DG/VT (M/T EXCEPT EXPORT)

7

-

8

20BK/BL

C223 - BLACK (BODY SIDE)

CAV

CIRCUIT

1

20BL/RD

2

20BL/GY

C223 - YELLOW (DOOR SIDE)

CAV

CIRCUIT

1

20BL/RD

2

20BL/GY

8W - 80 - 18

8W-80 CONNECTOR PIN-OUTS

ZH

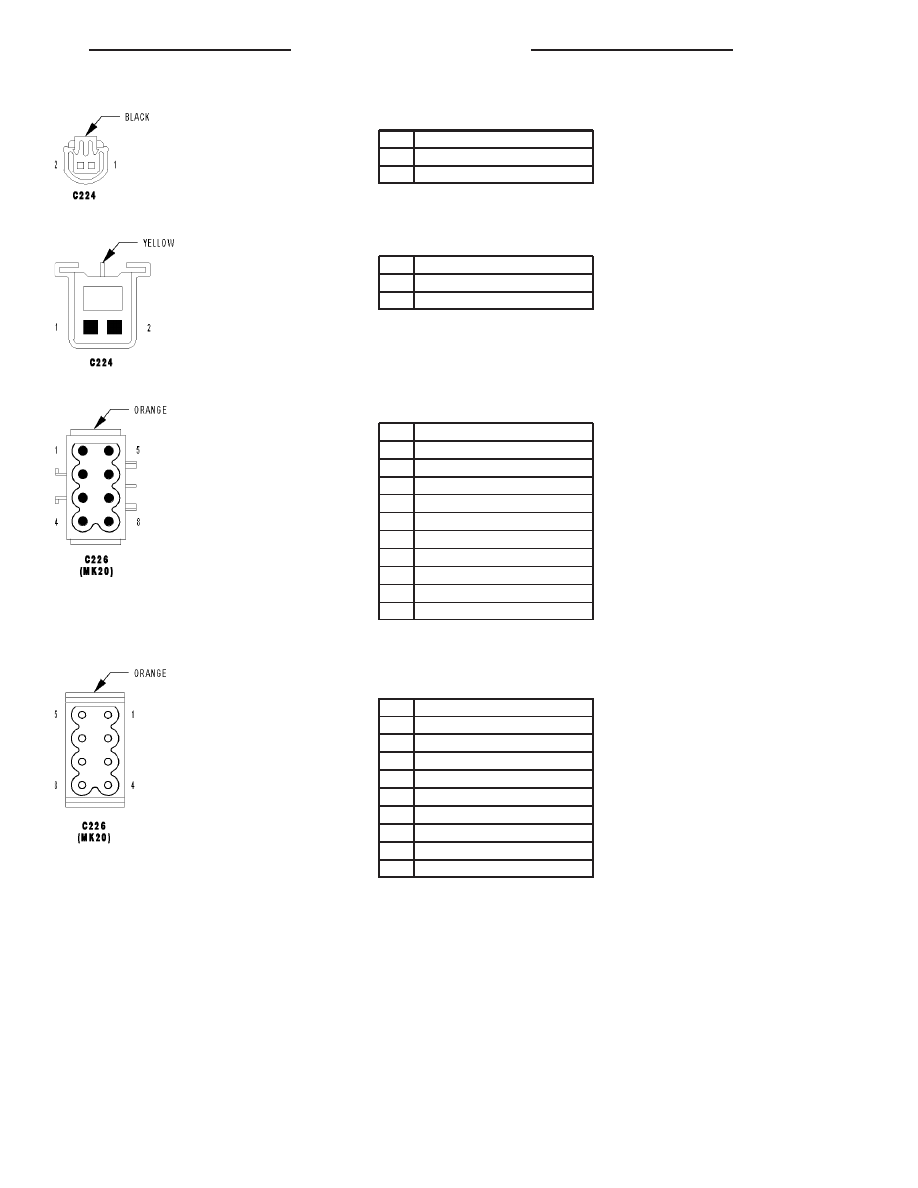

C224 - BLACK (BODY SIDE)

CAV

CIRCUIT

1

20BL/BK

2

20BL/WT

C224 - YELLOW (DOOR SIDE)

CAV

CIRCUIT

1

20BL/RD

2

20BL/GY

C226 (MK20) - ORANGE (COCKPIT SIDE)

CAV

CIRCUIT

1

22BK/BL

1

22BK/BL

2

18BL/DG

3

22BR/YL

4

22RD/WT

5

22BL/RD

6

-

7

22BL

8

18RD/DG

8

18RD/DG

C226 (MK20) - ORANGE (ENGINE COMPART-

MENT SIDE)

CAV

CIRCUIT

1

22BK/BL

1

20BK/BL

2

18BL/DG

3

18BR/YL

4

18RD/WT

5

18BL/RD

6

-

7

22BL

8

18RD/DG

ZH

8W-80 CONNECTOR PIN-OUTS

8W - 80 - 19

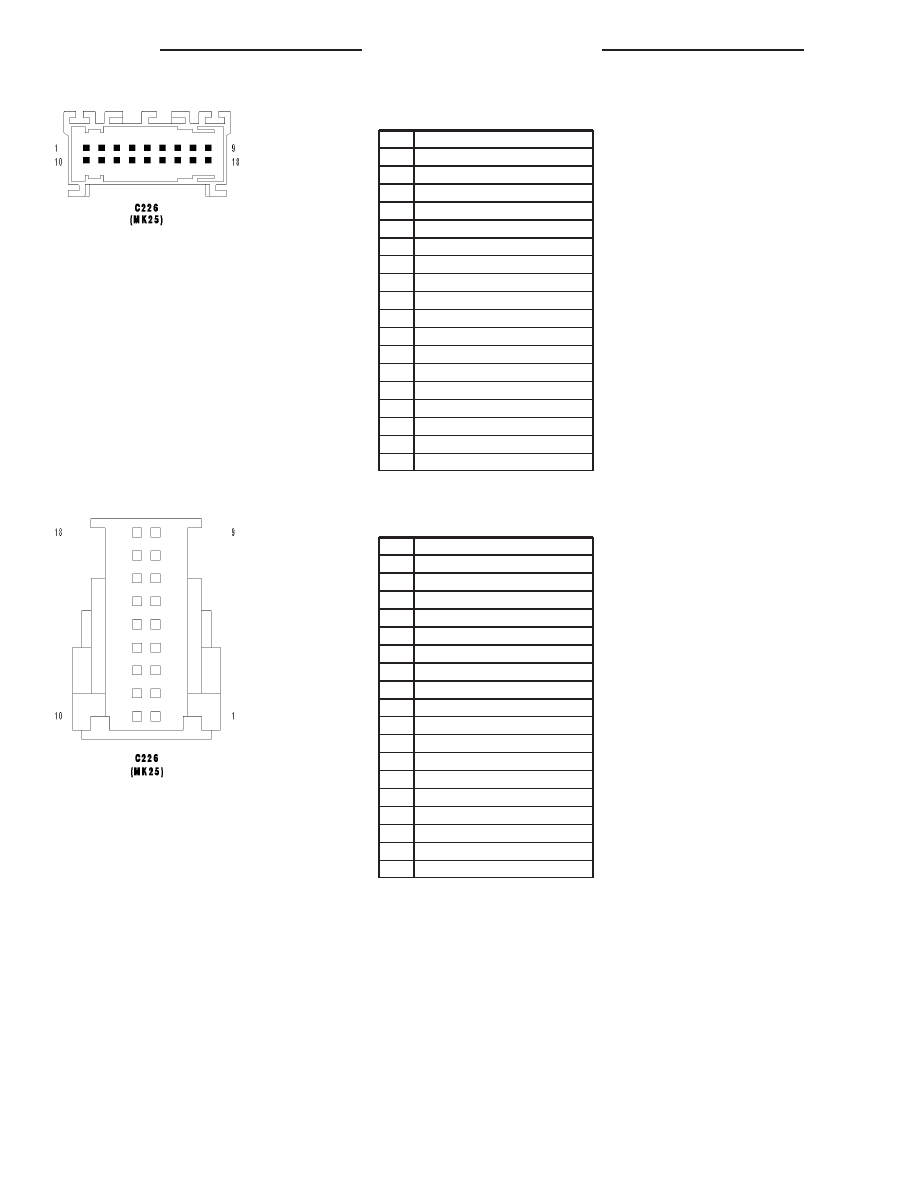

C226 (MK25) - (COCKPIT SIDE)

CAV

CIRCUIT

1

18GY

2

20BR/VT

3

20BR/RD

4

20BR/DG

5

22BL

6

22RD/WT

7

18BL/DG

8

22BR/YL

9

22BL/RD

10

20DG/YL

11

20BL/YL

12

22YL

13

20RD/WT

14

20BR/YL

15

-

16

-

17

-

18

-

C226 (MK25) - (ENGINE COMPARTMENT SIDE)

CAV

CIRCUIT

1

18GY

2

20BR/VT

3

20BR/RD

4

20BR/DG

5

22BL

6

18RD/WT

7

18BL/DG

8

18BR/YL

9

18BL/RD

10

20DG/YL

11

20BL/YL

12

22YL

13

20RD/WT

14

20BR/YL

15

-

16

-

17

-

18

-

8W - 80 - 20

8W-80 CONNECTOR PIN-OUTS
