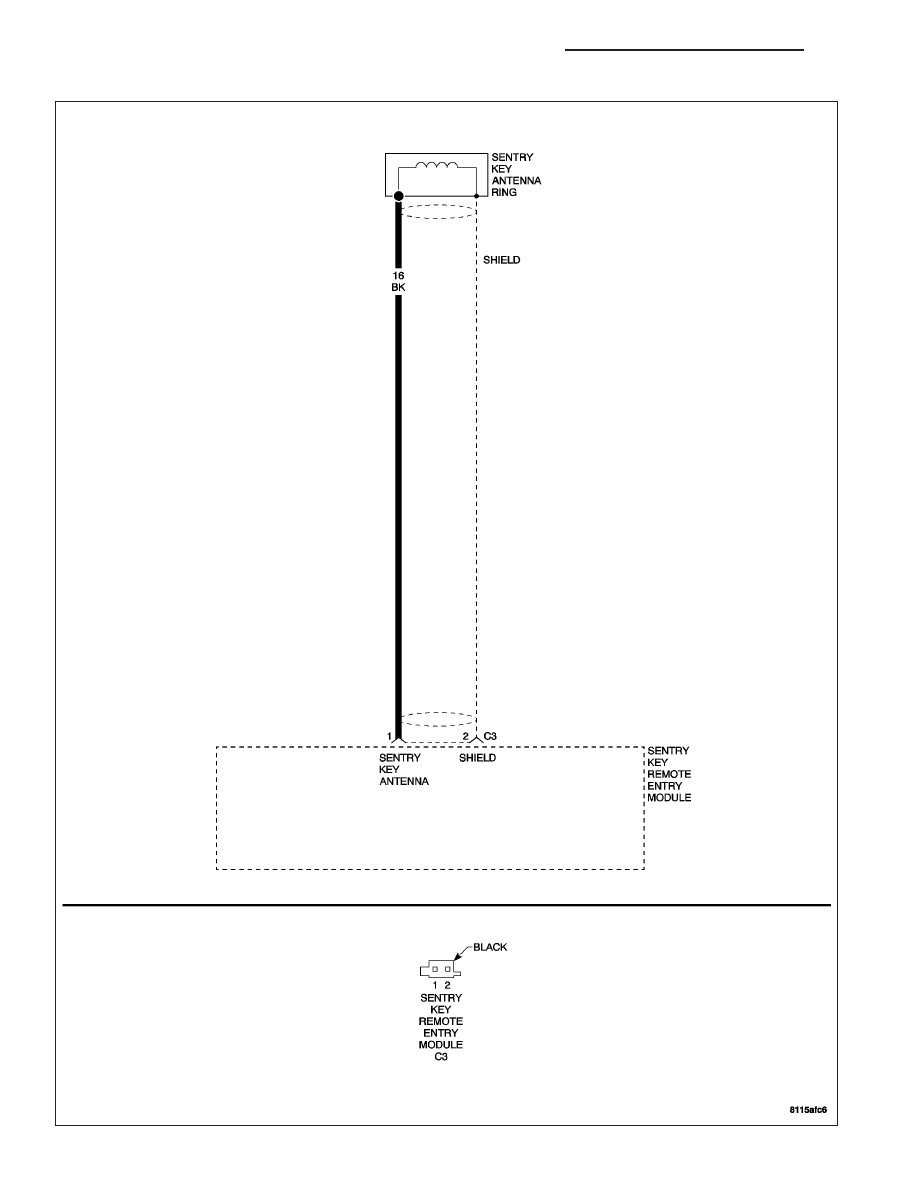

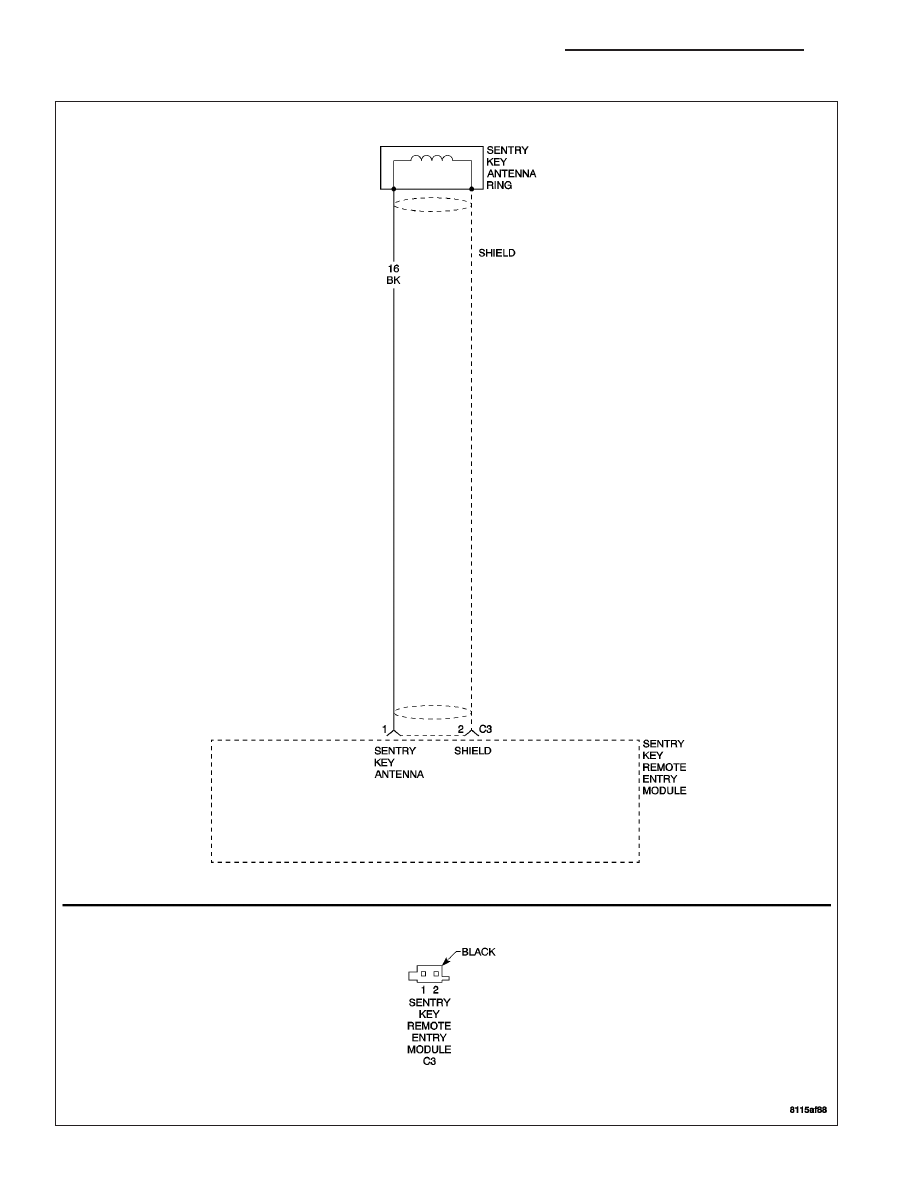

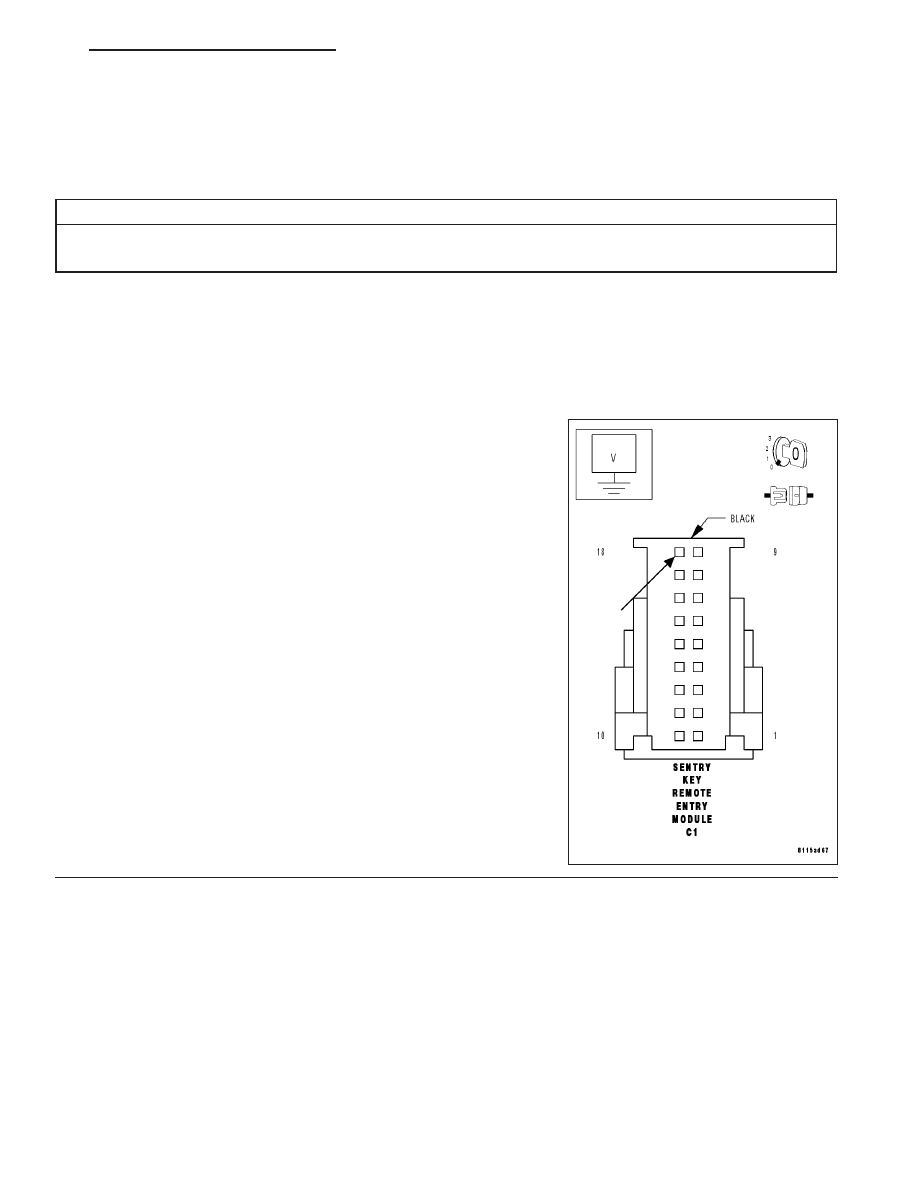

SENTRY KEY REMOTE ENTRY MODULE INTERNAL FAILURE (CONTINUED) When Monitored and Set Condition • When Monitored: Continuous. • Set Condition: If the Sentry Key Remote Entry Module (SKREEM) detects an internal malfunction, the DTC is POSSIBLE CAUSES NO POWER TO SENTRY KEY REMOTE ENTRY MODULE SENTRY KEY REMOTE ENTRY MODULE For a complete Sentry Key Remote Entry (SKREEM) Circuit Diagram, (Refer to 8 - ELECTRICAL/VEHICLE THEFT Diagnostic Test 1. MEASURE THE VOLTAGE OF THE SKREEM POWER CIRCUIT Turn the ignition off. Disconnect the SKREEM harness connector. Note: Check connectors - Clean/repair as necessary. Is the voltage between 12 and 16 volts? Yes >> Replace the Sentry Key Remote Entry Module. Perform SENTRY KEY VERIFICATION TEST. No >> System voltage must be between 12 and 16 volts. Repair the voltage concern as necessary. Perform SENTRY KEY VERIFICATION TEST. ZH VEHICLE THEFT SECURITY - ELECTRICAL DIAGNOSTICS 8Q - 37 |
