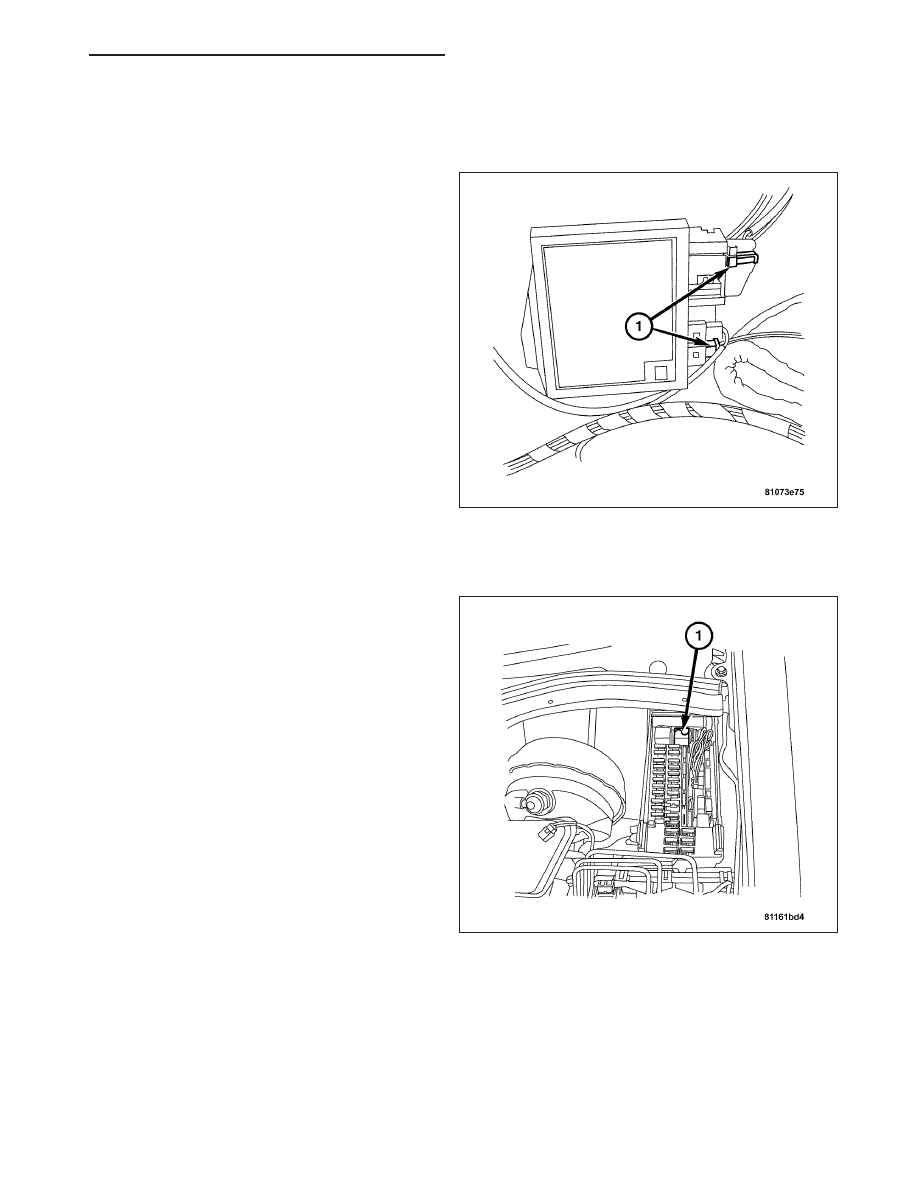

INSTALLATION INSTALLATION 1. Install the SKREEM module to the base plate. 2. Connect the 18-pin harness connector and the 2-pin CAN BUS harness connector (1) to the 3. Connect the 2-pin harness connector for the sentry key antenna ring. 4. Install the Instrument Cluster. (Refer to 8 - ELEC- TRICAL/INSTRUMENT CLUSTER - INSTALLA- TION). 5. Connect the negative battery cable. INSTALLATION - REMOTE KEYLESS ENTRY RELAY 1. Install the remote keyless entry relay (1). ZH POWER LOCKS - SERVICE INFORMATION 8N - 49 |
