Chrysler Crossfire. Manual - part 275

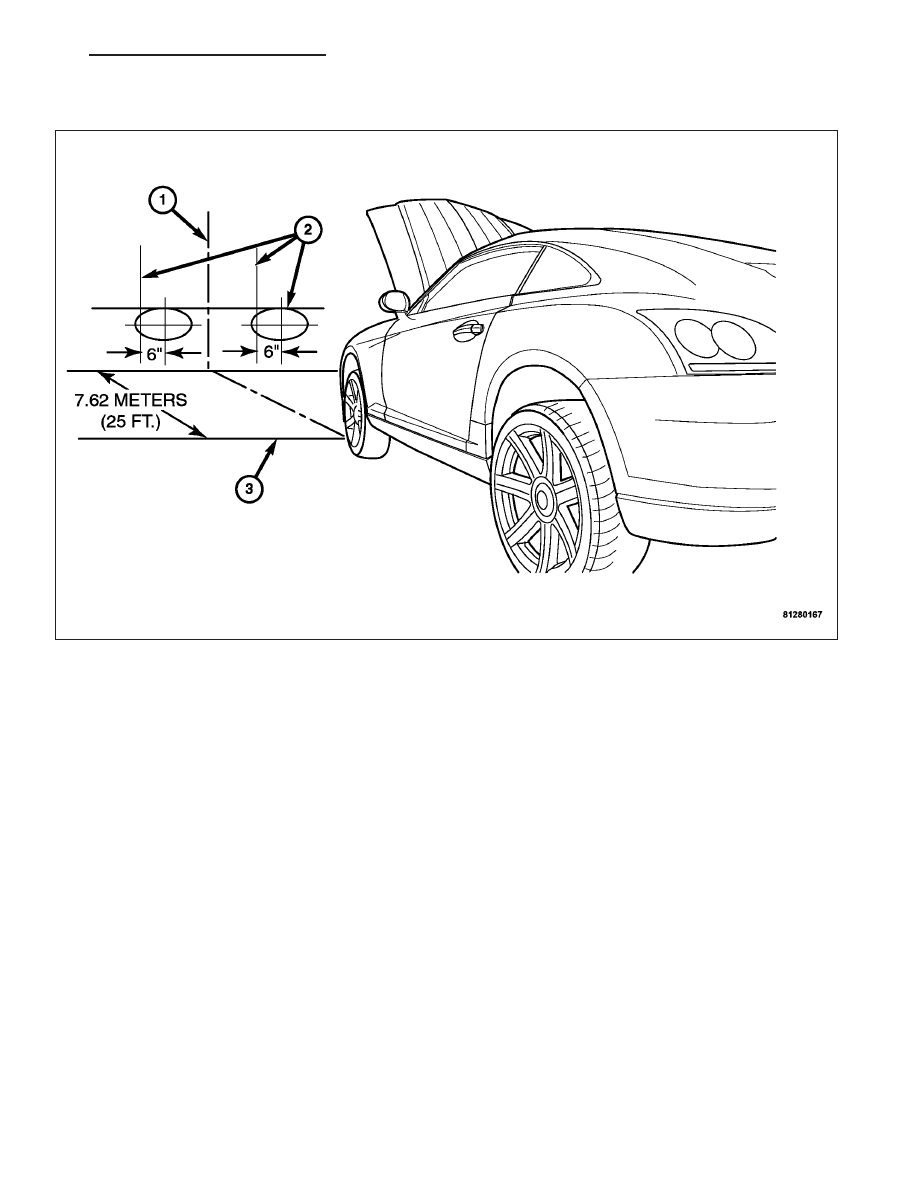

ALIGNMENT SCREEN PREPARATION

1. Position the vehicle on a level surface perpendicular to a flat wall 7.62 meters (25 ft.) away from the front of

headlamp lens (Note: If necessary, tape a line on the floor 7.62 meters (25 ft.) away from, and parallel to the
wall).

2. From the base of the wall, measure up 1.27 meters (5 ft.), and tape a line on the wall at the center line of the

vehicle. Sight along the center line of the vehicle (from rear of vehicle forward) to verify accuracy of the line
placement.

3. Rock vehicle side-to-side three times to allow suspension to stabilize.

4. Jounce front suspension three times by pushing downward on front bumper and releasing.

5. Measure the distance from the center of headlamp lens to the ground. Transfer measurement to the alignment

screen (with tape). Use this line for up/down adjustment reference.

6. Measure distance from the center line of the vehicle to the center of each headlamp being aligned. Transfer

measurements to screen (with tape) to each side of vehicle center line.

HEADLAMP ADJUSTMENT

A properly aimed left and right low beam headlamp will project the center of the low beam hot spot on the alignment
screen below the horizontal center line and 152 mm (6 in.) to the right of headlamp center line. The high beam
headlamps cannot be aligned. The high beam pattern should be correct when the low beams are aligned properly.

To adjust headlamp alignment, rotate alignment screw to achieve the specified low beam hot spot pattern.

STANDARD PROCEDURE - HEADLAMP UNIT ALIGNMENT

HEADLAMP ALIGNMENT PREPARATION

1. Verify headlamp dimmer switch and high beam indicator operation.

2. Inspect and correct damaged or defective components that could interfere with proper headlamp alignment.

3. Verify proper tire inflation.

ZH

LAMPS/LIGHTING - EXTERIOR - SERVICE INFORMATION

8L - 113

4. Clean headlamp lenses.

5. Verify that luggage area is not heavily loaded.

6. Fuel tank should be FULL. Add 2.94 kg (6.5 lbs.) of weight over the fuel tank for each estimated gallon of miss-

ing fuel.

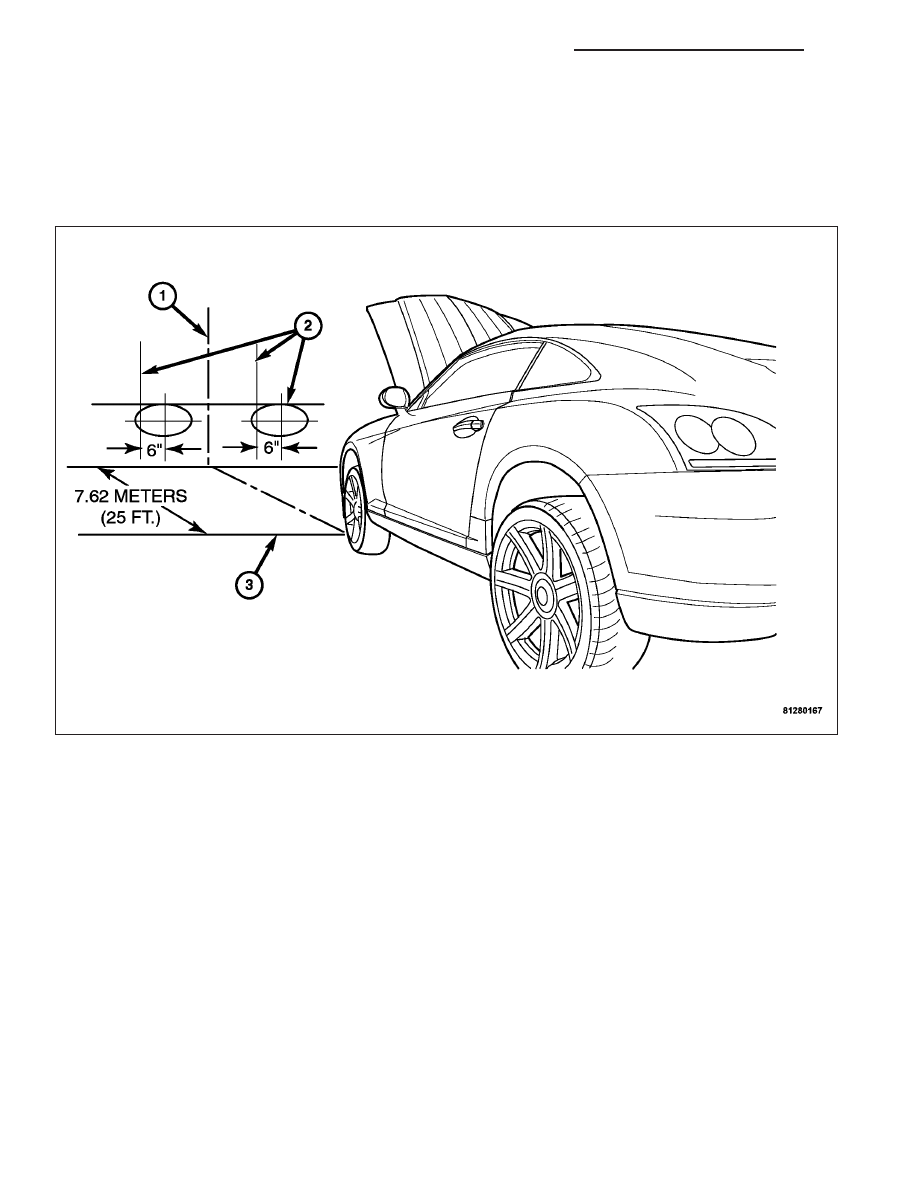

ALIGNMENT SCREEN PREPARATION

1. Position vehicle on a level surface perpendicular to a flat wall 7.62 meters (25 ft.) away from front of headlamp

lens (Note: If necessary, tape a line on the floor 7.62 meters (25 ft.) away from and parallel to the wall).

2. From the base of the wall, measure up 1.27 meters (5 ft.), and tape a line on the wall at the center line of the

vehicle. Sight along the center line of the vehicle (from rear of vehicle forward) to verify accuracy of the line
placement.

3. Rock vehicle side-to-side three times to allow suspension to stabilize.

4. Jounce front suspension three times by pushing downward on front bumper and releasing.

5. Measure the distance from the center of headlamp lens to the ground. Transfer measurement to the alignment

screen (with tape). Use this line for up/down adjustment reference.

6. Measure distance from the center line of the vehicle to the center of each headlamp being aligned. Transfer

measurements to screen (with tape) to each side of vehicle center line.

HEADLAMP ADJUSTMENT

A properly aimed left and right low beam headlamp will project the center of the low beam hot spot on the alignment
screen below the horizontal center line and 152 mm (6 in.) to the right of the headlamp center line. The high beam
headlamps cannot be aligned. The high beam pattern should be correct when the low beams are aligned properly.

To adjust headlamp alignment, rotate alignment screw to achieve the specified low beam hot spot pattern.

8L - 114

LAMPS/LIGHTING - EXTERIOR - SERVICE INFORMATION

ZH

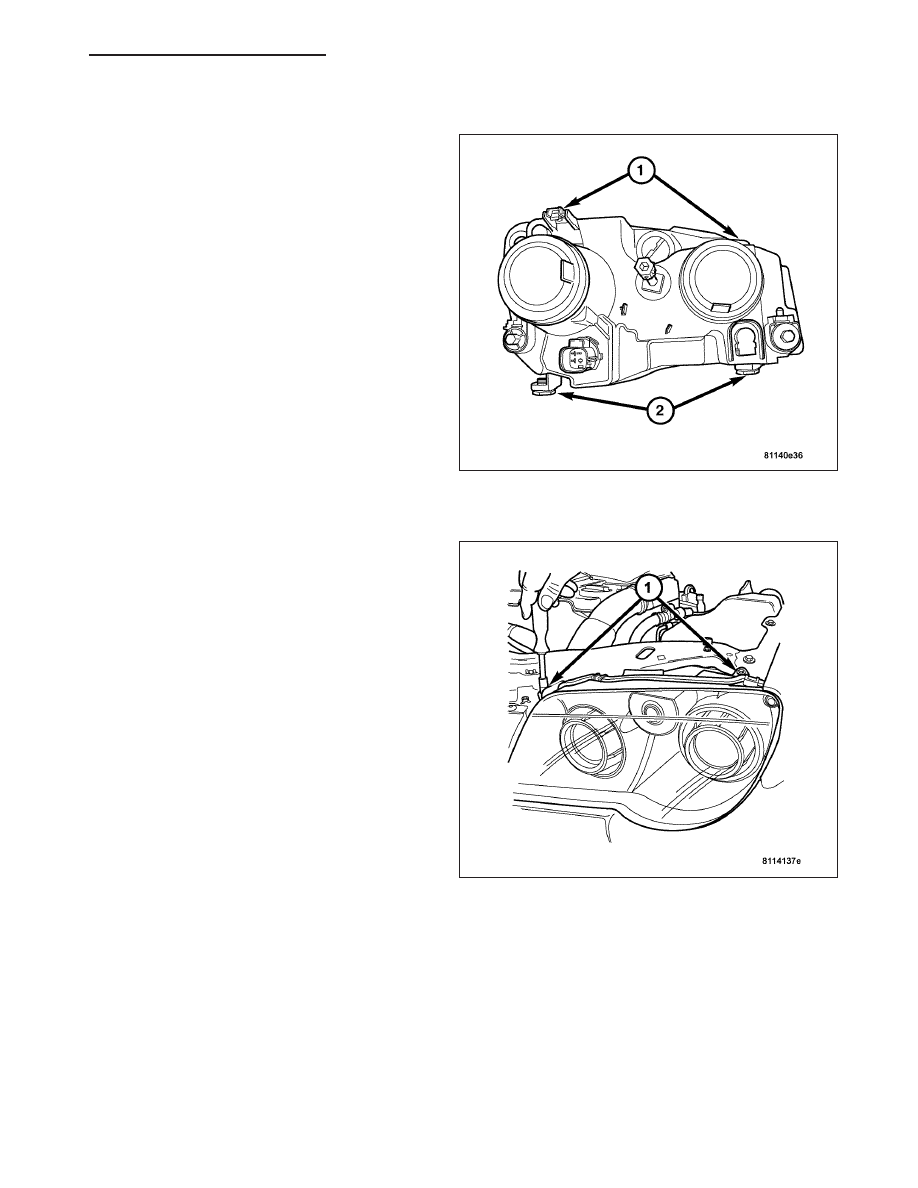

REMOVAL

1. Disconnect the negative battery cable.

2. Remove the headlamp unit upper retaining bolts

(1).

3. Open the access panel in the inner fender well.

4. Remove the lower headlamp unit retaining bolts

(2).

5. Lift the headlamp unit from the front fascia and dis-

connect the harness connector and the front posi-
tion lamp socket.

INSTALLATION

1. Install the front position lamp socket and the head-

lamp unit harness connector.

2. Position the headlamp unit into the fascia area.

3. Install the upper retaining bolts (1) finger tight.

4. Install the lower retaining bolts finger tight.

5. Tighten all retaining bolts to torque specification.

6. Close the access panel in the inner fender well.

7. Connect the negative battery cable.

ZH

LAMPS/LIGHTING - EXTERIOR - SERVICE INFORMATION

8L - 115

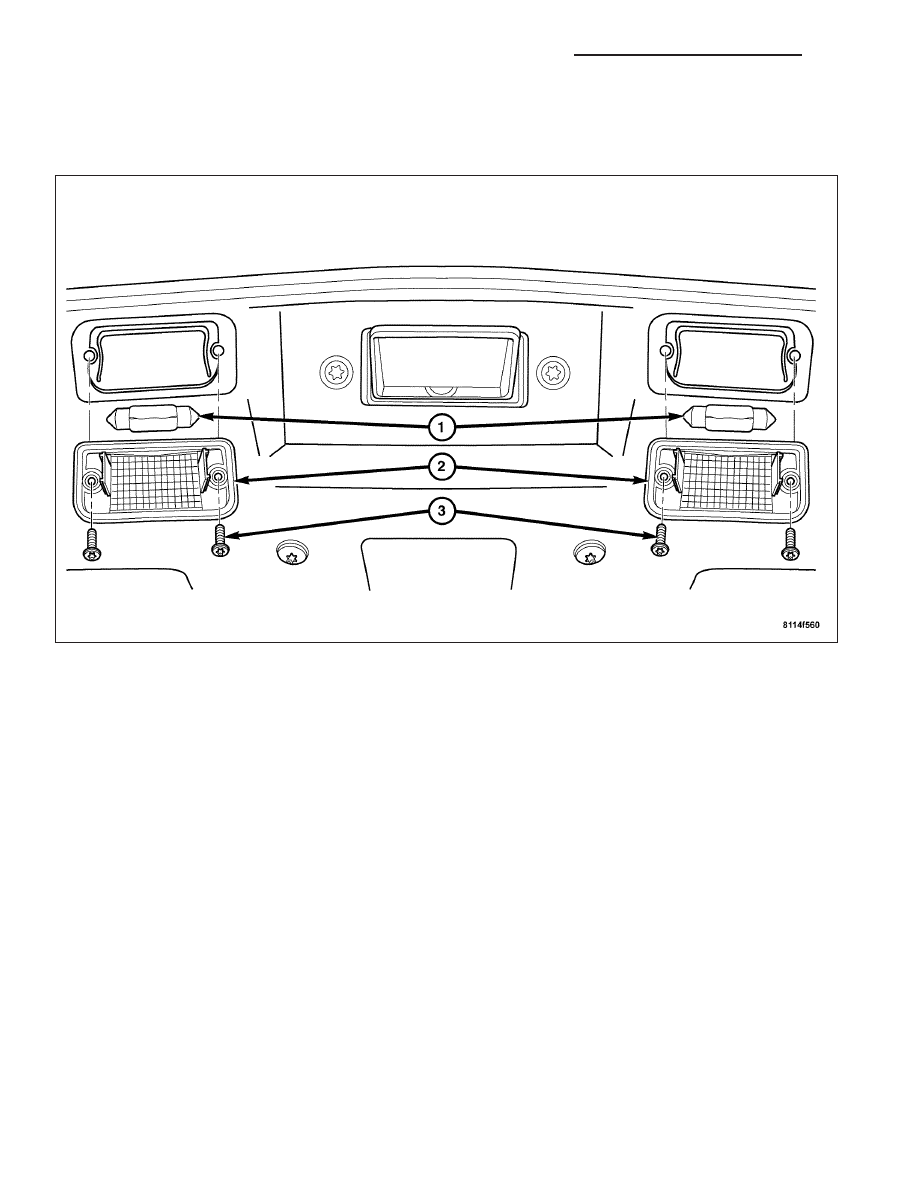

LICENSE PLATE LAMP

REMOVAL

1. Disconnect the negative battery cable.

2. Open the liftgate and remove the license plate lamp lens attachment screws (3).

3. Remove the license plate lamp lens (2) and pull the bulb (1) outward from the lamp socket.

8L - 116

LAMPS/LIGHTING - EXTERIOR - SERVICE INFORMATION

ZH
