*NO RESPONSE FROM A/C HEATER CONTROL MODULE (CONTINUED)

7.

DISCONNECT MODULES

Note: The Instrument Cluster, Universal Garage Door Opener/Tire
Pressure Monitor, A/C Heater Control Module, and Power Top
Control Module (if equipped) all use the SCI Transmit circuit at
DLC cavity 15 to communicate with the DRB III

T

. If one of these

modules keeps the SCI Transmit circuit artificially high or low, the
DRB III

T

will not be able to communicate with any of the four

modules.

Note: Perform the following steps for each of the modules until
communication is restored with the other modules or until each
of the modules has been eliminated as the cause of the fault.
Turn the ignition off.

Disconnect each of the modules noted above, one at a time.

Turn the ignition on.

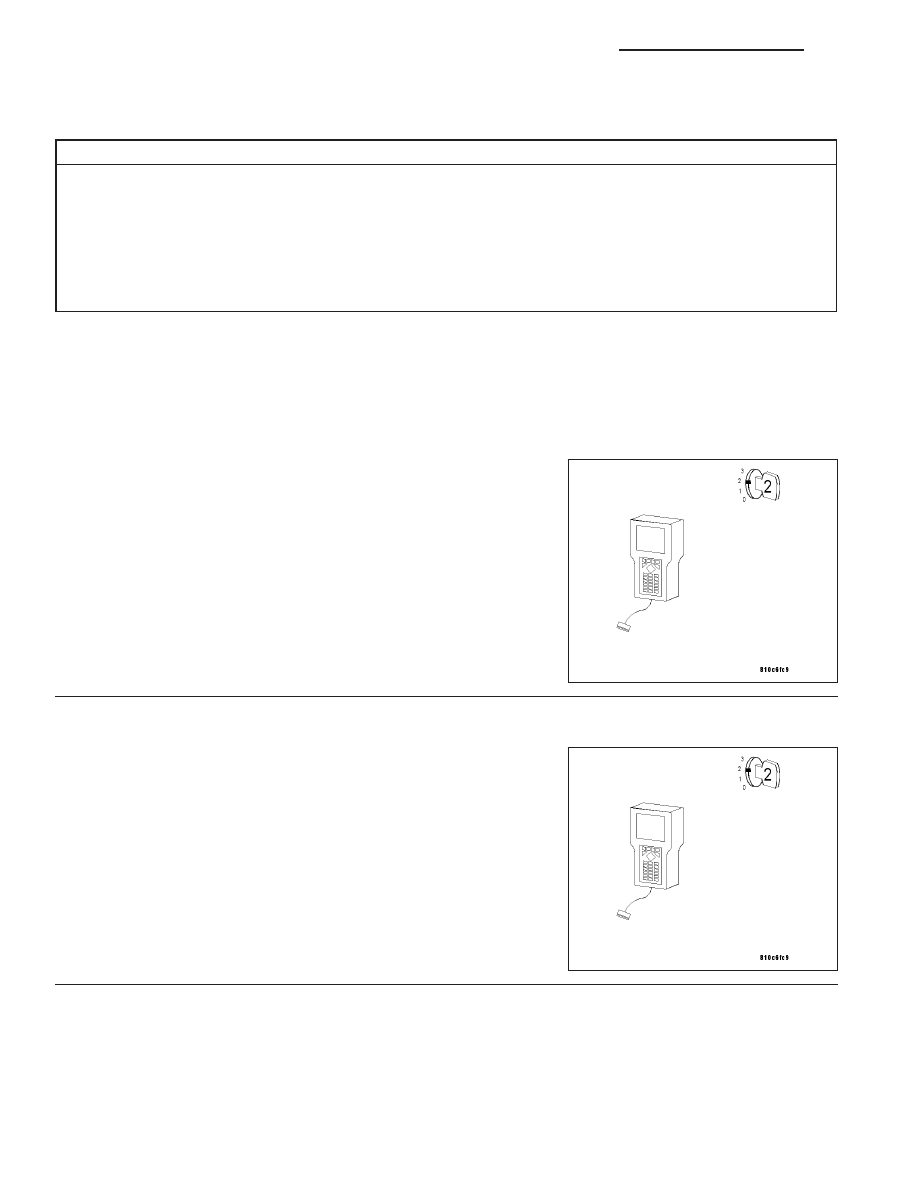

Using the DRB III

T

, attempt to communicate with any of the three modules still connected.

Is the DRB III

T

able to communicate with the module selected?

Yes

>> Replace the module that was disconnected when communication was restored to the other two mod-

ules.

Perform BODY VERIFICATION TEST.

No

>> Go to 8

8.

SCI TRANSMIT CIRCUIT SHORTED TO VOLTAGE

Turn the ignition off.

Disconnect the harness connectors for the IC, UGDO/TPM, A/C
Heater Control Module, and Power Top Control Module (if equipped).

Turn the ignition on.

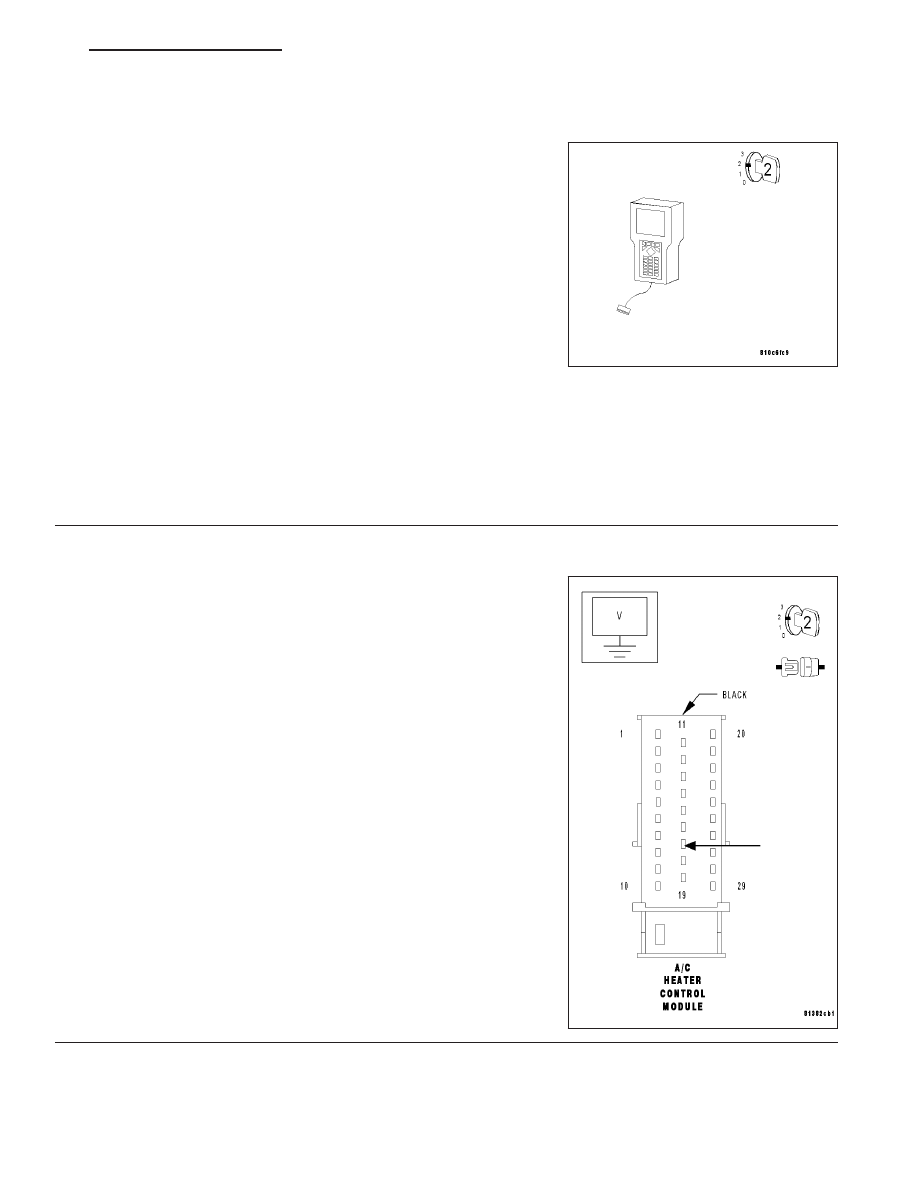

Measure the voltage of the SCI Transmit circuit at the A/C Heater Con-
trol Module harness connector.

Is the voltage below 0.5 volt?

Yes

>>

Go to 9

No

>> Repair the SCI Transmit circuit for a short to voltage.

Perform BODY VERIFICATION TEST.

ZH

ELECTRONIC CONTROL MODULES - ELECTRICAL DIAGNOSTICS

8E - 33

*NO RESPONSE FROM A/C HEATER CONTROL MODULE (CONTINUED)

9.

SCI TRANSMIT CIRCUIT SHORTED TO GROUND OR OPEN

Turn the ignition off.

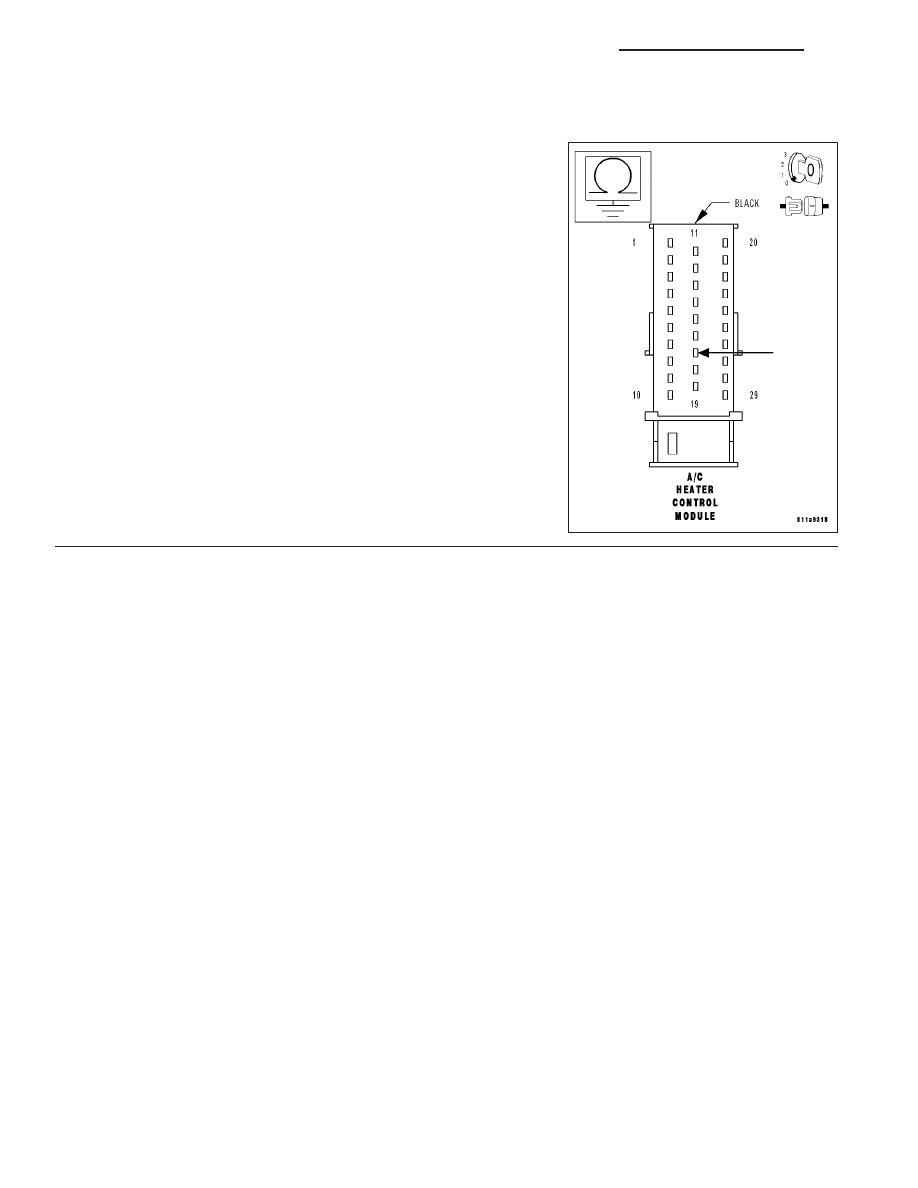

Measure the resistance between ground and the SCI Transmit circuit.

Is the resistance above 100 kohms?

Yes

>> Repair the SCI Transmit circuit for an open.

Perform BODY VERIFICATION TEST.

No

>> Repair the SCI Transmit circuit for a short to ground.

Perform BODY VERIFICATION TEST.

8E - 34

ELECTRONIC CONTROL MODULES - ELECTRICAL DIAGNOSTICS

ZH

*NO RESPONSE FROM POWER TOP CONTROL MODULE

ZH

ELECTRONIC CONTROL MODULES - ELECTRICAL DIAGNOSTICS

8E - 35

*NO RESPONSE FROM POWER TOP CONTROL MODULE (CONTINUED)

POSSIBLE CAUSES

FUSED IGNITION SWITCH OUTPUT CIRCUIT OPEN

GROUND CIRCUIT OPEN

SCI TRANSMIT CIRCUIT OPEN

SCI TRANSMIT CIRCUIT SHORTED TO GROUND

SCI TRANSMIT CIRCUIT SHORTED TO VOLTAGE

POWER TOP CONTROL MODULE

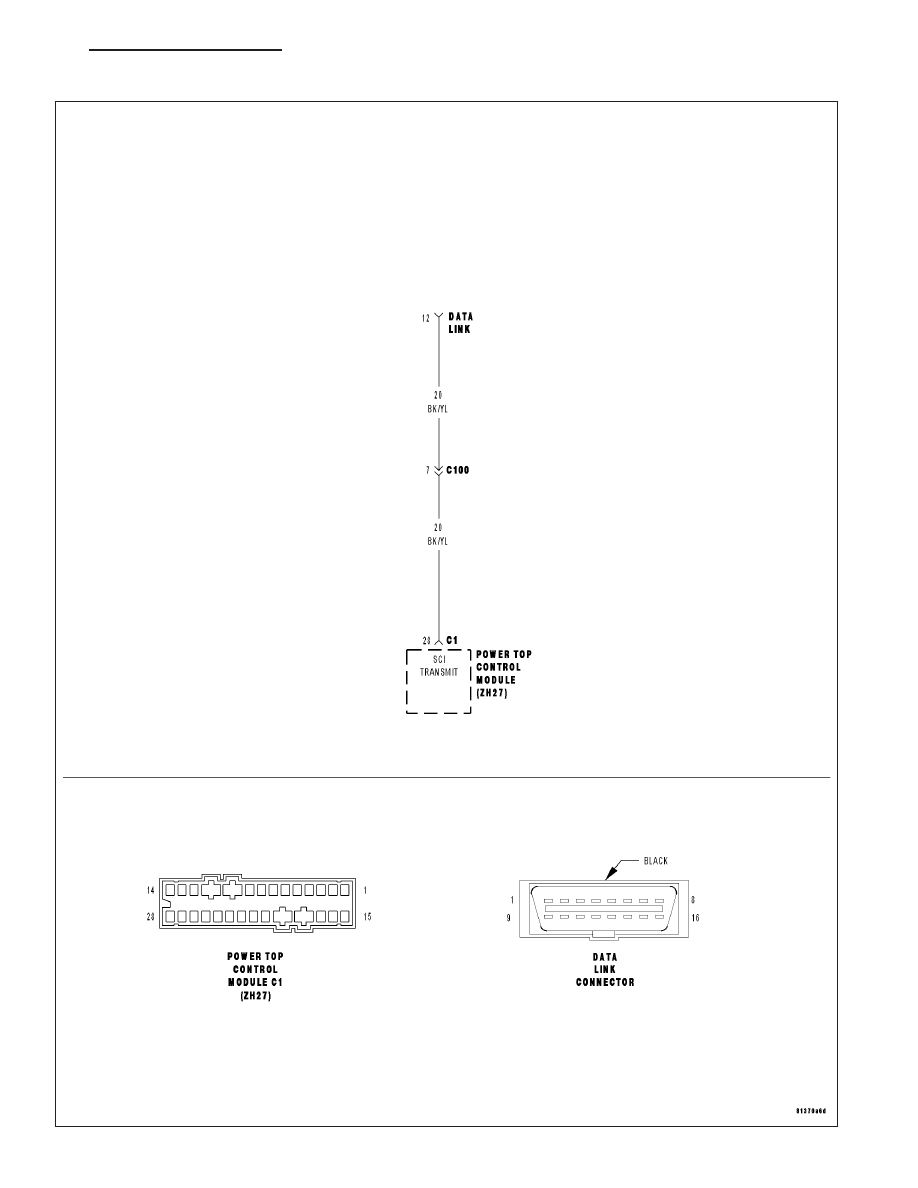

For a complete Data Link Connector Circuit Diagram, (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MOD-
ULES - SCHEMATICS AND DIAGRAMS).

Diagnostic Test

1.

CHECK COMMUNICATION WITH OTHER MODULES

Turn the ignition on.

Using the DRB III

T

, attempt to communicate with the PCM.

Is the DRB III

T

able to communicate with the PCM?

Yes

>> Go to 2

No

>> Perform Symptom *No Response From All Modules.

2.

CHECK COMMUNICATION WITH OTHER MODULES ON SCI TRANSMIT CIRCUIT

With the ignition on.

Using the DRB III

T

, attempt to communicate with either the Instrument

Cluster, A/C Heater Control Module, or Universal Garage Door Open-
er/Tire Pressure Monitor.

Is the DRB III

T

able to communicate with the module selected?

Yes

>> Go to 3

No

>> Go to 6

8E - 36

ELECTRONIC CONTROL MODULES - ELECTRICAL DIAGNOSTICS

ZH
