This vehicle is equipped with an Air Pump that injects air into the exhaust to reduce the emissions during engine
warm-up. The air injected into the exhaust will cause the catalytic converters to heat up more quickly. This will

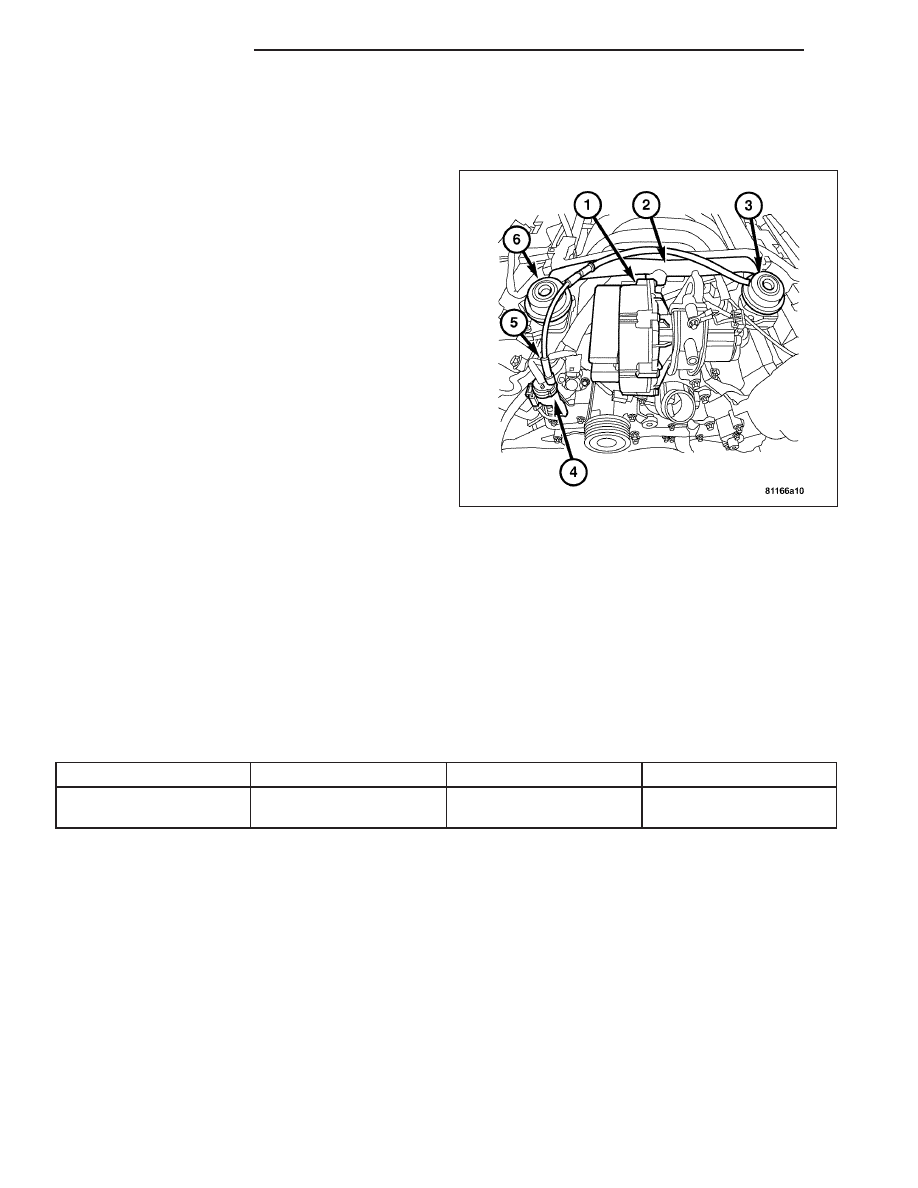

improve the emission levels during a cold start. The Air Pump Switchover System incorporates an Air Pump (4) with
two Air Pump Switchover Valves (1 and 6), an Air Pump Switchover Solenoid (3), an Air Pump Relay, a Vacuum
Check Valve (5) and the PCM.

The Air Pump Relay is located in the Relay Control Module and can be easily identified by referring to the relay
control module label. The Air Pump is mounted to the top center of the engine timing cover. The Air Pump Switcho-
ver valves (1 and 6) are located at the front, top of the engine, mounted just in front of the left and right cylinder

AIR INJECTION

25 - 29

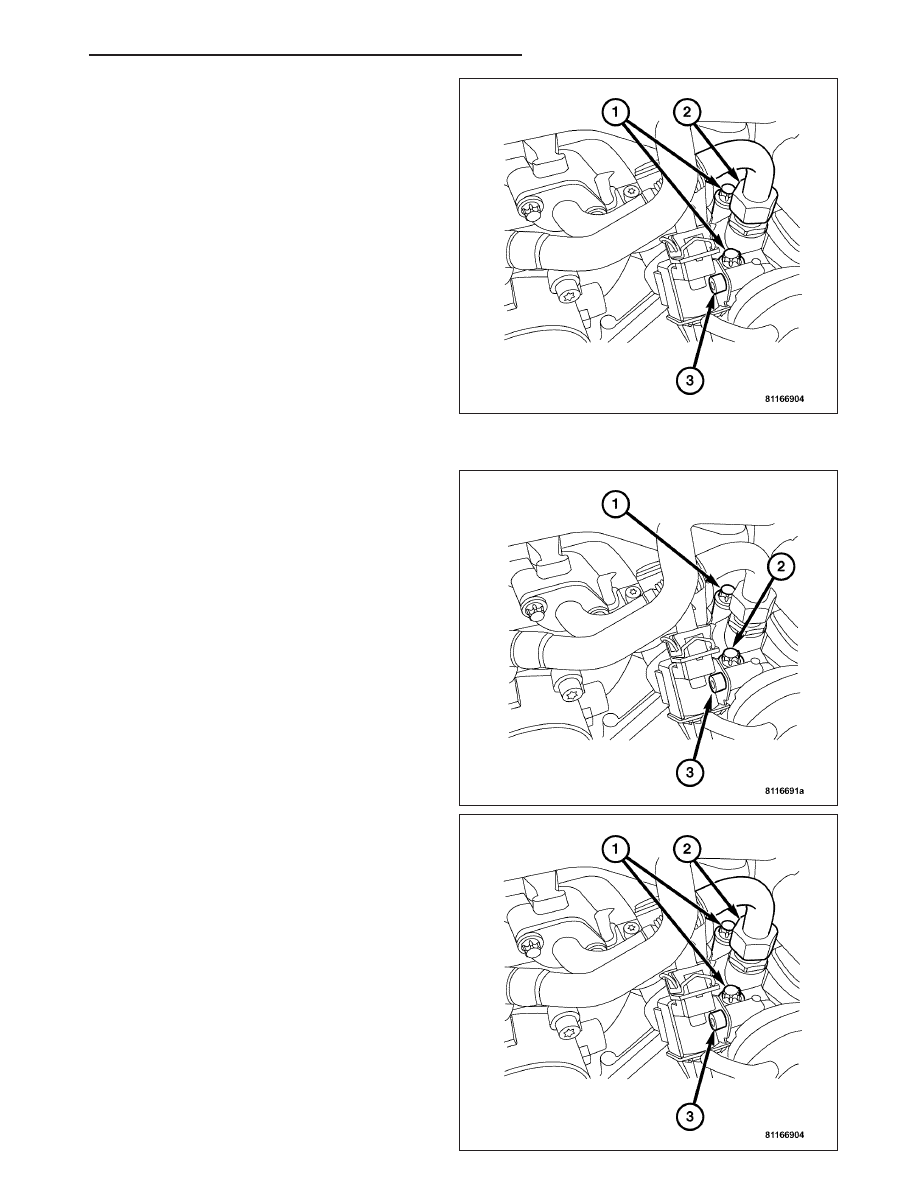

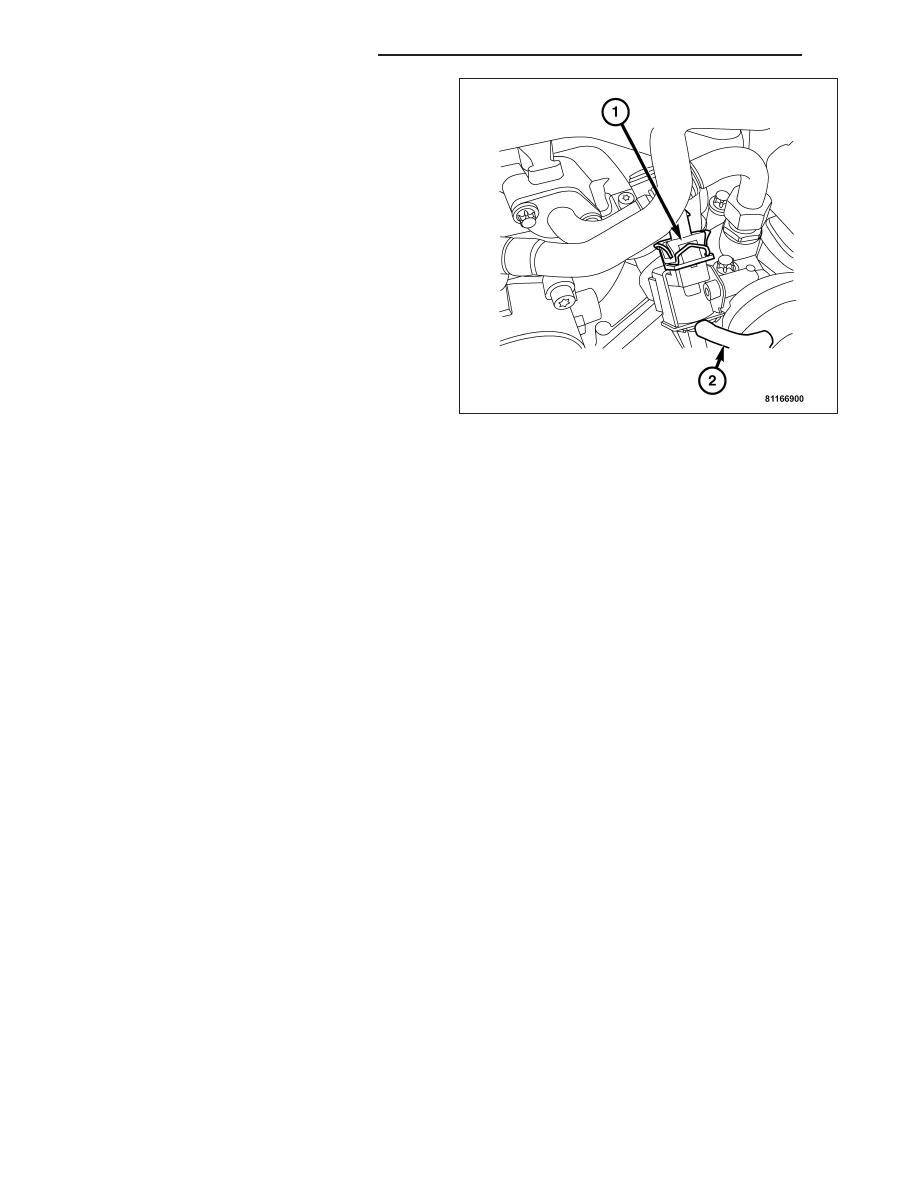

covers. The Air Pump Switchover Solenoid (3) is mounted on the right front of the engine, just below the Air Pump
Switchover Valve RH (6).

OPERATION

Air is allowed to enter the exhaust when the PCM
simultaneously actuates the Air Pump Relay, Air Pump
(1), and Air Pump Switchover Solenoid (4) after
engine start-up for up to 2 1/2 minutes. The following
conditions must also be met in order for the system to
become active:

•

Coolant Temperature >10°C (50°F) but <60°C
(140°F)

•

Engine Speed <3000 RPM

•

Throttle Valve Not Wide Open

After an actuation, the air injection system will remain
deactivated until the coolant temperature drops from
>60°C (140°F) to <40°C (104°F).

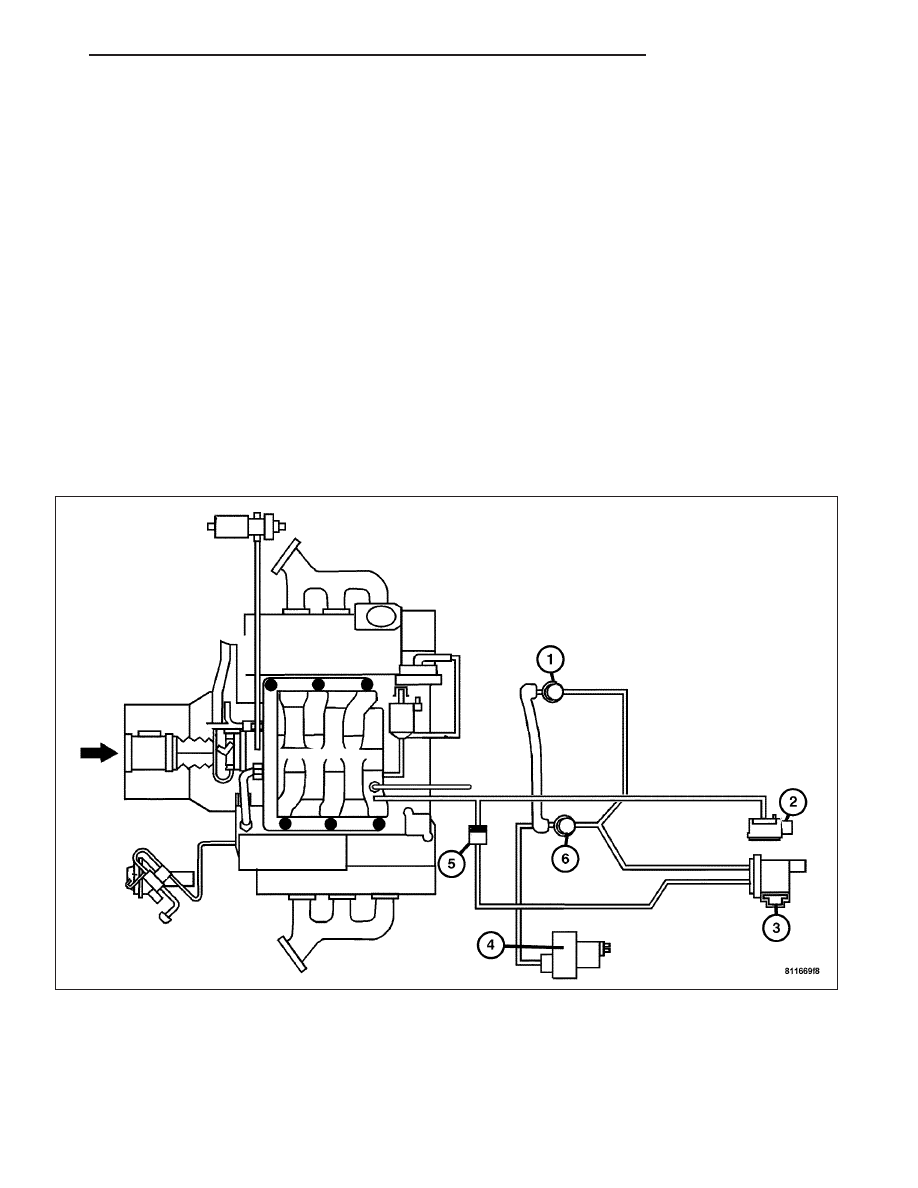

The Air Pump (1) draws in air through a maintenance-free filter and pumps it to the Air Pump Switchover Valves (3
and 6). The Air Pump Switchover Valves (3 and 6) prevent exhaust gases from flowing back into the Air Pump (1).

The Air Pump Switchover Solenoid (4) is supplied with vacuum from the intake manifold through a check valve (5).
When the Air Pump Switchover Solenoid (4) is activated, it passes engine vacuum to the Air Pump Switchover
Valves (3 and 6). The air which is delivered via the Air Pump Switchover Tube (2) is forced through the valves into
the cylinder head openings to the exhaust. The injected air reacts with the hot exhaust gases in the outlet port. An
oxidation of carbon monoxides (CO) and hydrocarbons (HC) takes place and results in an additional increase in the
exhaust temperature.

SPECIFICATIONS

TORQUE

DESCRIPTION

N·m

Ft. Lbs.

In. Lbs.

AIR PUMP RETAINING

BRACKET

—

177

25 - 30
