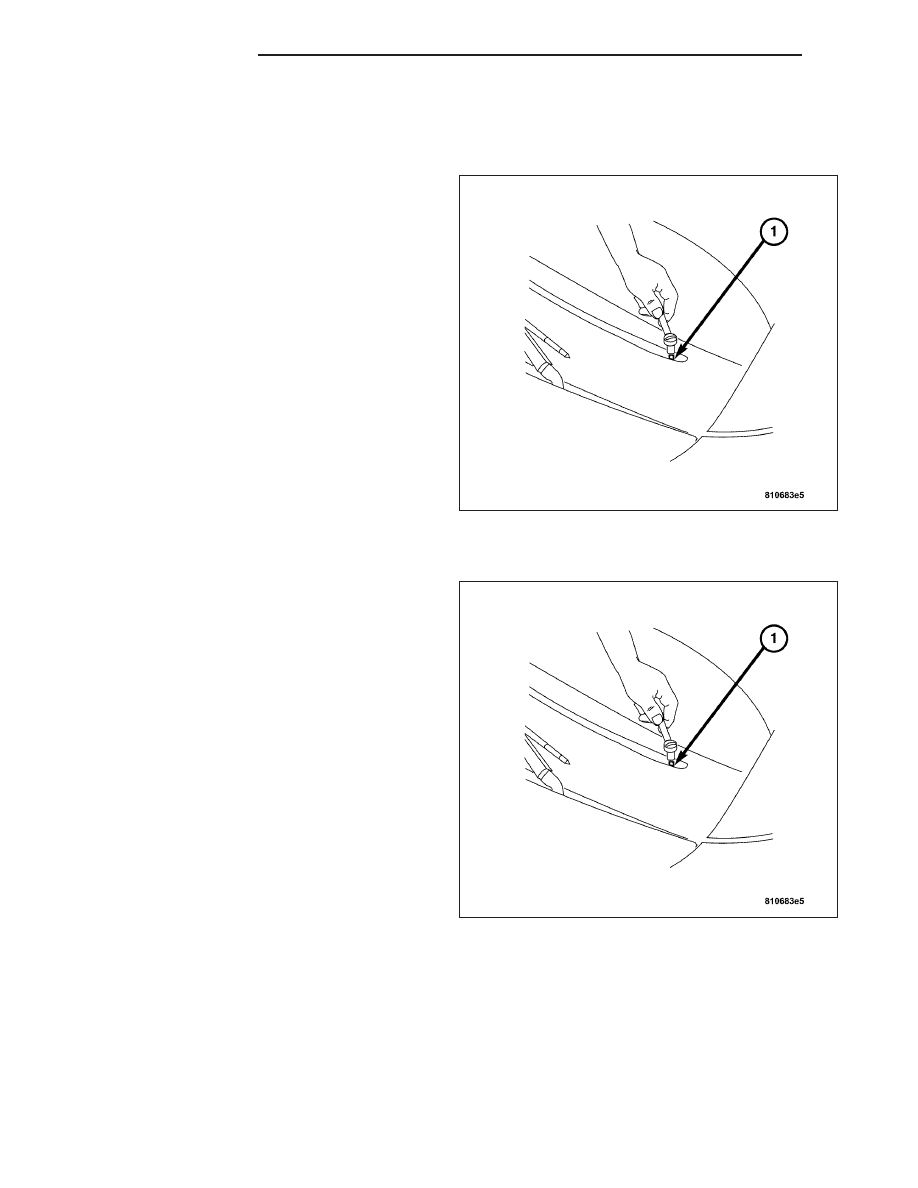

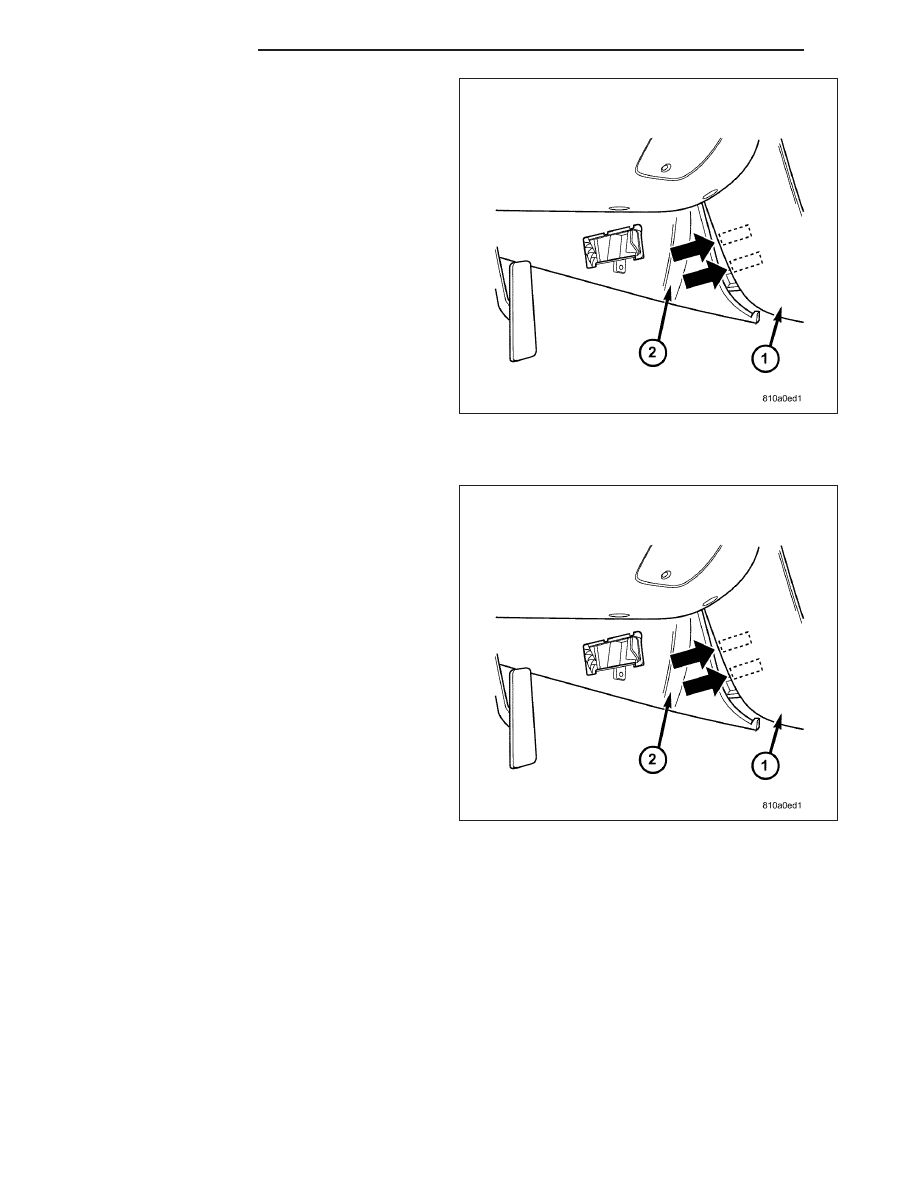

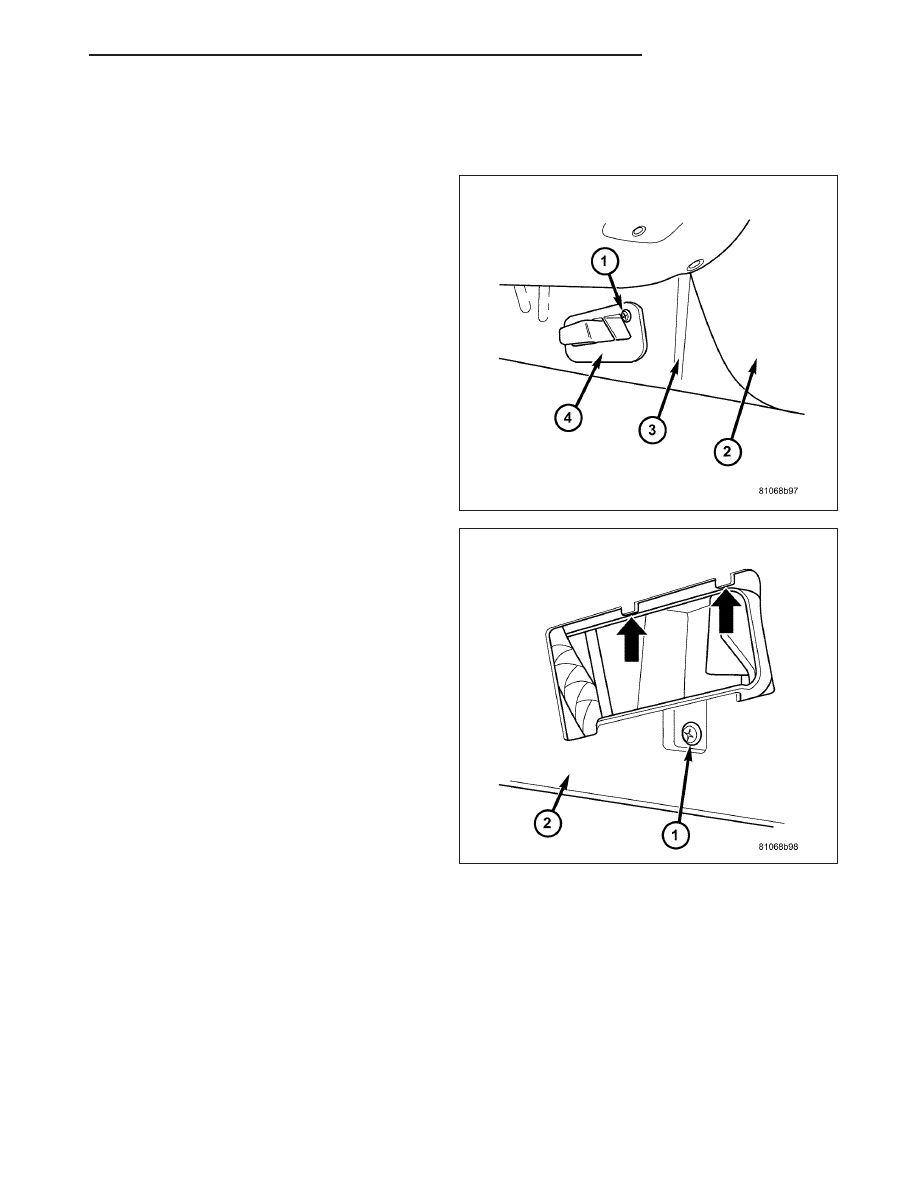

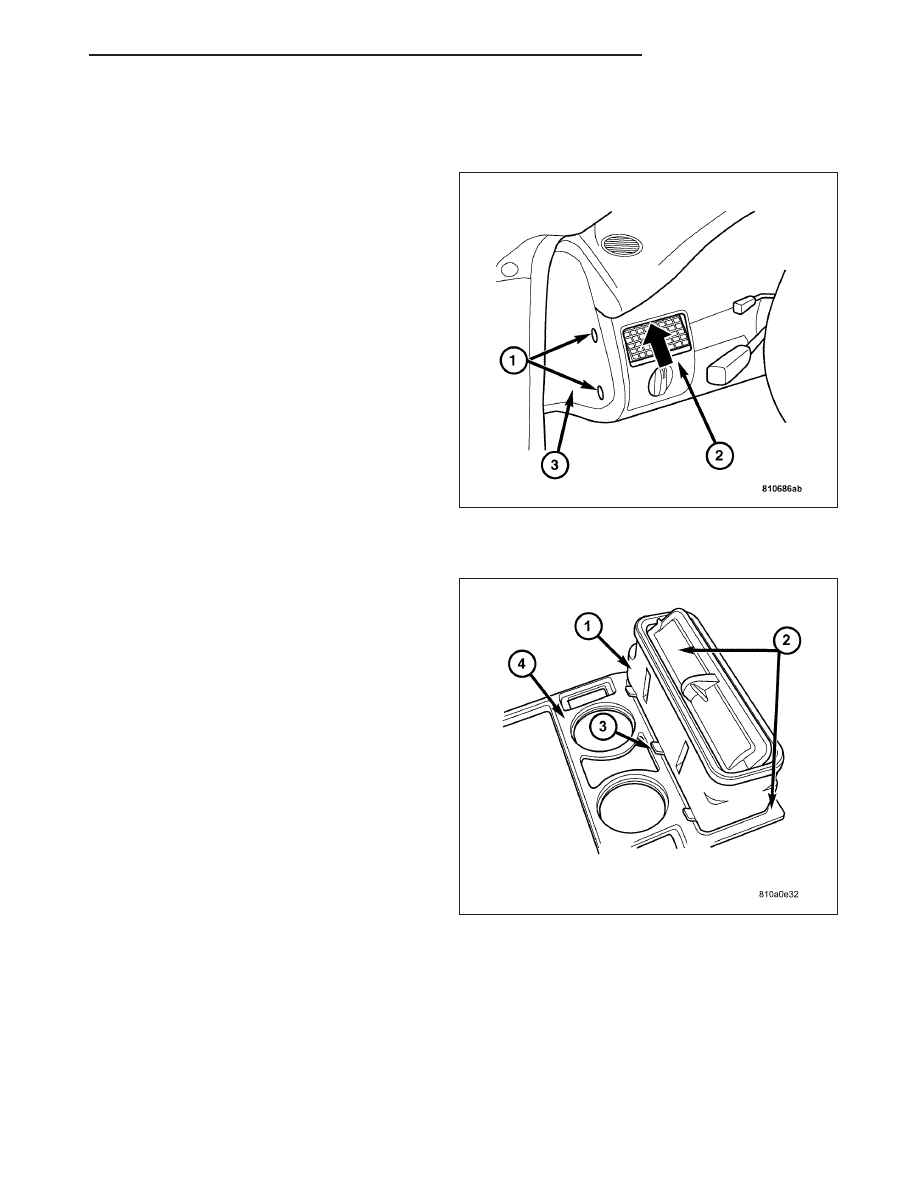

INSTALLATION SIDE AIR NOZZLE Note: When installing connect the air nozzle to the 1. Install the side air nozzle to the vehicle. 2. Install the screw located in the upper bezel of the air nozzle (2), tilt the deflector up to reveal the 3. Turn the plugs (1) 90° to the right to install the fuse cover. INSTALLATION - CENTER AIR NOZZLE 1. Connect the air nozzles catch clips (3). 2. Install the screws (2) attaching the center air noz- zle (1) to the center console cover (4). 3. Install the cover on the center console.(Refer to 23 - BODY/INTERIOR/CENTER CONSOLE - INSTALLATION). ZH DISTRIBUTION 24 - 123 |
