Chrysler Crossfire. Manual - part 1004





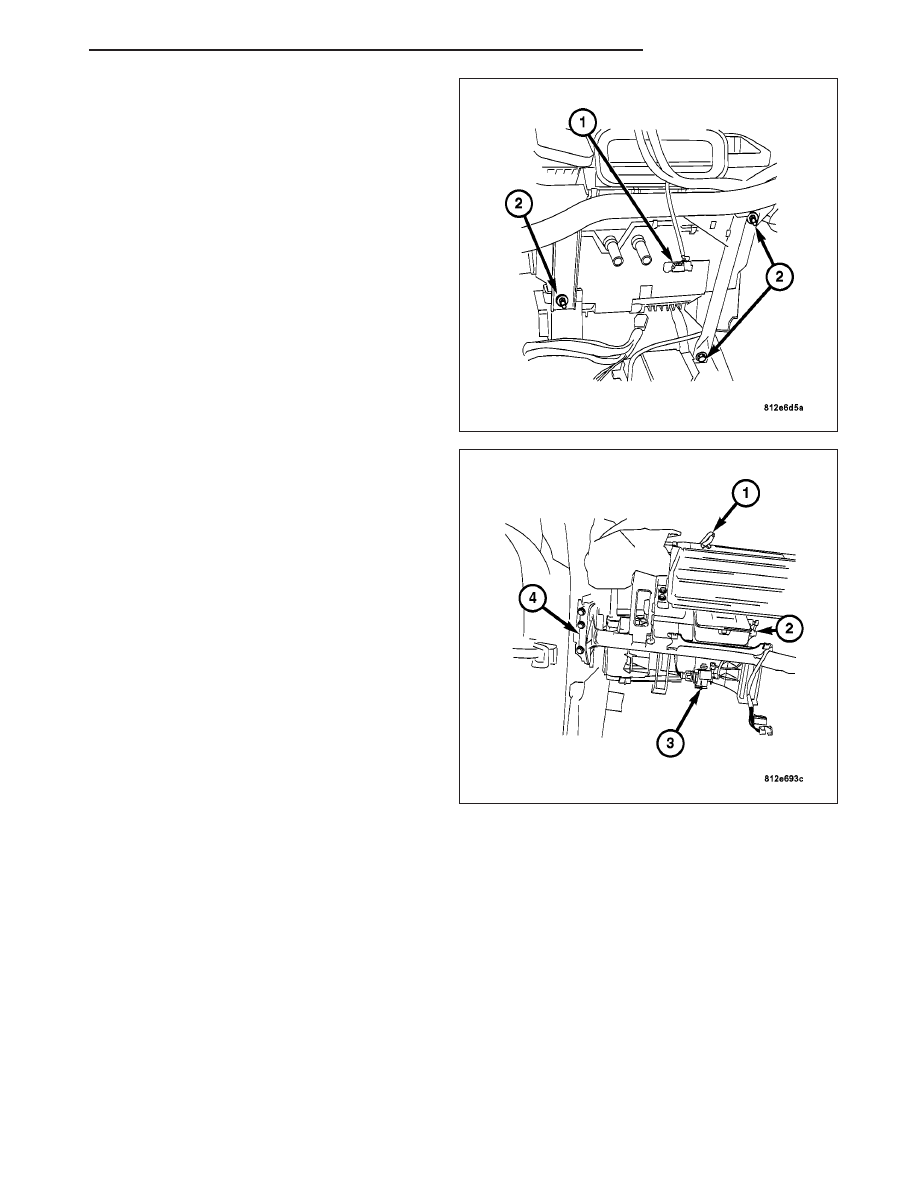

6. Connect the heater core temperature sensor (1).

7. Install the center I/P support bar to bulkhead bolts

and nuts (2).

8. Connect the recirculated air switchover valve con-

nector (3).

9. Install the vacuum reservoir then connect the vac-

uum reservoir solenoid connector and vacuum
hose (2).

10. Connect the passenger side air bag harness con-

nector (1).

11. Install the glove box assembly.(Refer to 23 -

BODY/INSTRUMENT

PANEL/INSTRUMENT

PANEL ASSEMBLY - INSTALLATION).

12. Install

the

SKREEM

module

and

mounting

bracket. Then connect the SKREEM harness con-
nectors.(Refer

to

8

-

ELECTRICAL/VEHICLE

THEFT

SECURITY/SENTRY

KEY

REMOTE

ENTRY MODULE - INSTALLATION).

13. Install the instrument cluster and bracket assem-

bly. (Refer to 23 - BODY/INSTRUMENT PANEL/
INSTRUMENT

PANEL

ASSEMBLY

-

INSTALLATION).

14. Install the I/P top cover. (Refer to 23 - BODY/IN-

STRUMENT PANEL/INSTRUMENT PANEL ASSEMBLY - INSTALLATION).

15. Install the front and rear center consoles.(Refer to 23 - BODY/INTERIOR/CENTER CONSOLE - INSTALLA-

TION) and (Refer to 23 - BODY/INTERIOR/CENTER CONSOLE - INSTALLATION).

ZH

DISTRIBUTION

24 - 119

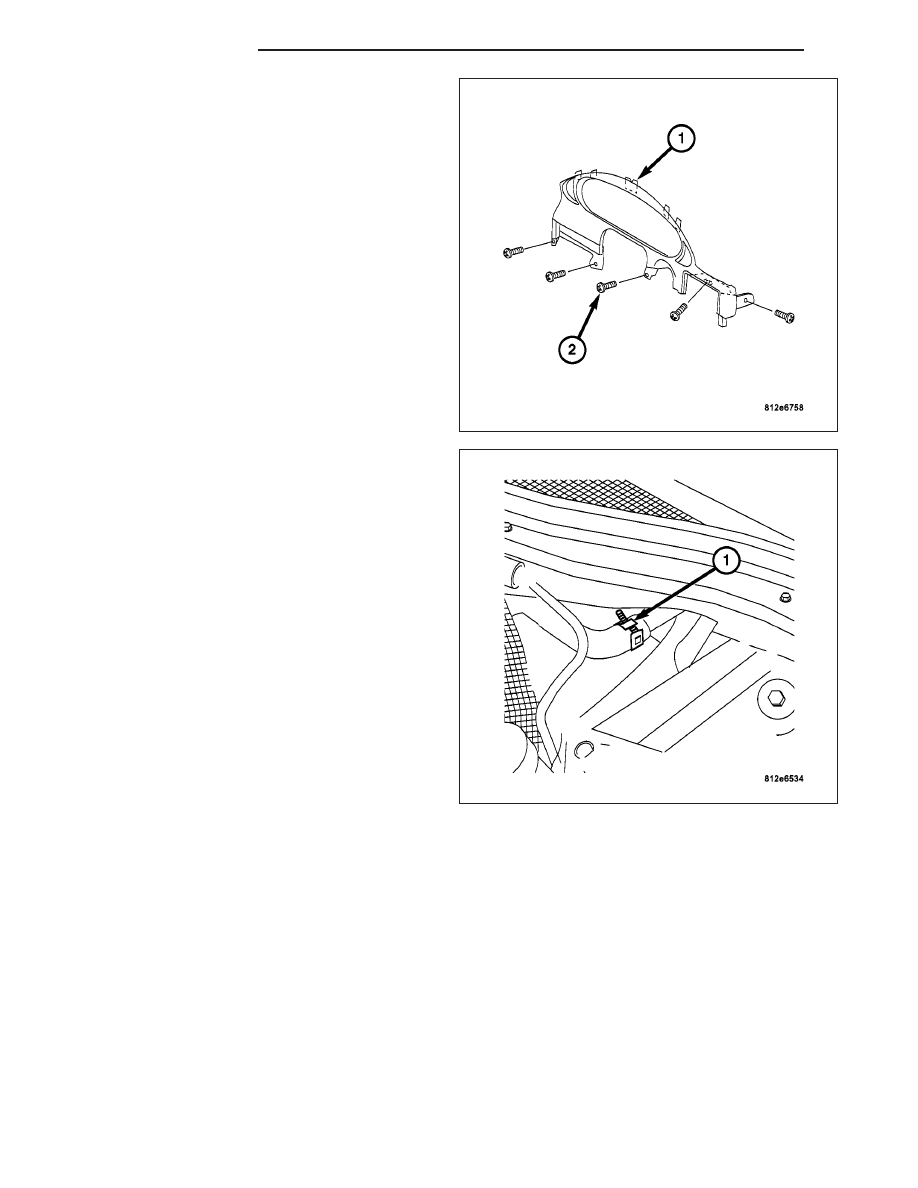

16. Install the instrument cluster bezel (1). (Refer to

23 - BODY/INSTRUMENT PANEL/INSTRUMENT
PANEL ASSEMBLY - INSTALLATION).

17. Install the right and left lower instrument panel

covers.

18. Install the steering column and wheel. (Refer to

19 - STEERING/COLUMN - INSTALLATION).

19. Connect the heater hose (1) behind the battery.

24 - 120

DISTRIBUTION

ZH

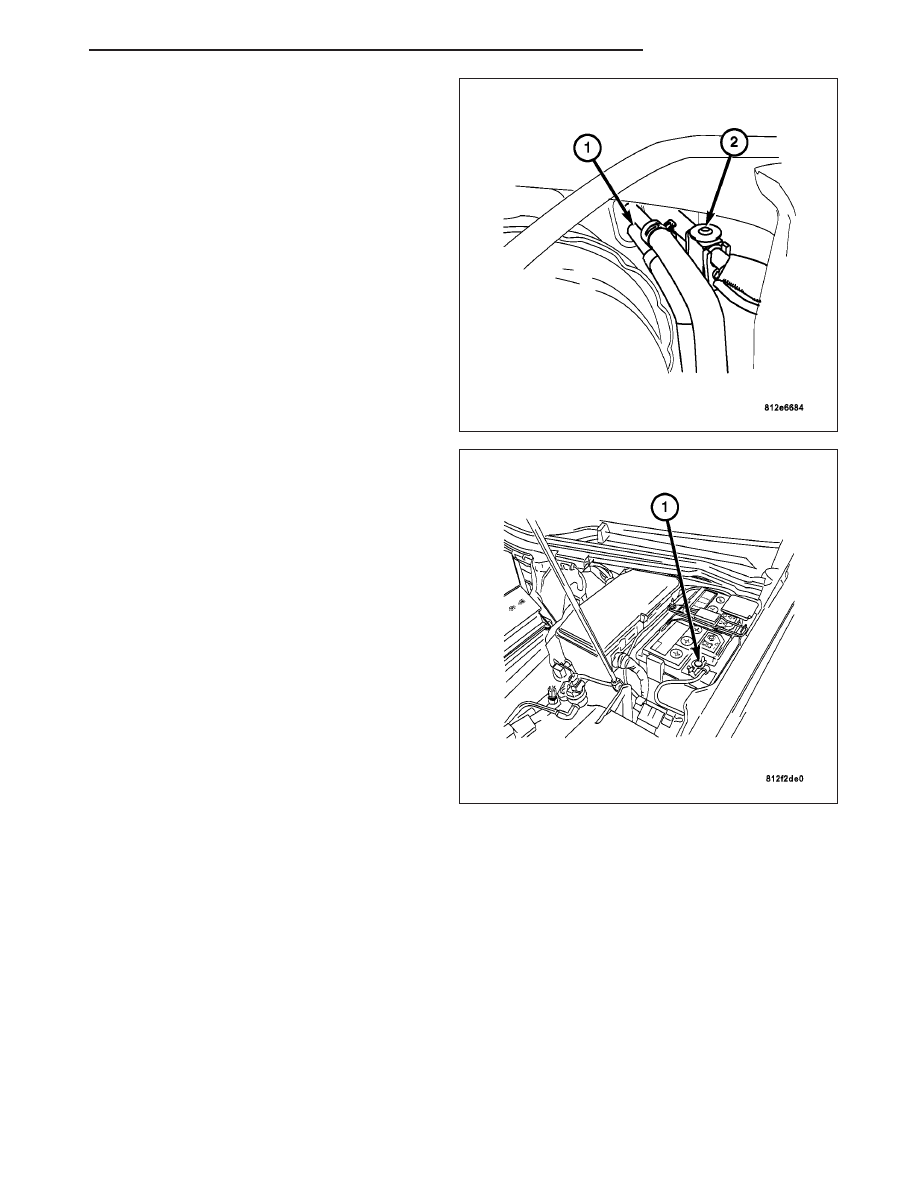

20. Connect the A/C lines to the A/C expansion valve

(2). Then connect the two heater hoses (1) to the
HVAC case.

21. Connect the negative battery cable (1).

22. Charge the A/C system. (Refer to 24 - HEATING

& AIR CONDITIONING/PLUMBING - STANDARD
PROCEDURE).

23. Fill the cooling system. (Refer to 7 - COOLING/

ENGINE/COOLANT

-

STANDARD

PROCEDURE).

ZH

DISTRIBUTION

24 - 121

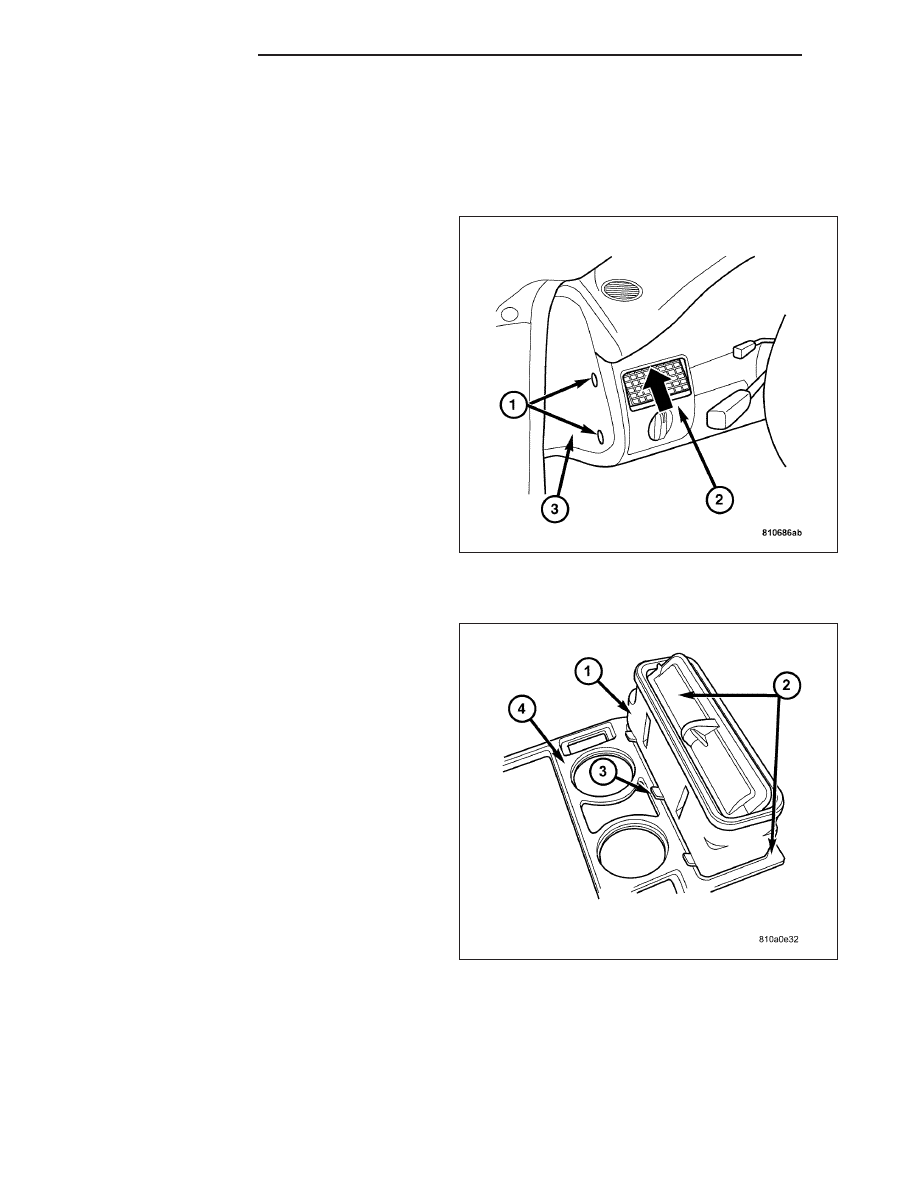

AIR OUTLETS

REMOVAL

SIDE AIR NOZZLE

Note: Open and close catches with a plastic
wedge or a suitable coin.

1. Turn the plugs (1) 90° to the left and remove the

fuse cover (3).

2. Remove the screw located in the upper bezel of

the air nozzle (2), tilt the deflector up to reveal the
screw (arrow).

3. Pull the air nozzle out toward the rear.

REMOVAL - CENTER AIR NOZZLE

1. Remove the cover on the center console. (Refer to

23

-

BODY/INTERIOR/CENTER

CONSOLE

-

REMOVAL).

2. Remove the screws attaching the center air nozzle

to the center console cover (2).

3. Disconnect the air nozzle catch clips (3).

4. Remove the air nozzle from the center console

cover (4).

24 - 122

DISTRIBUTION

ZH
