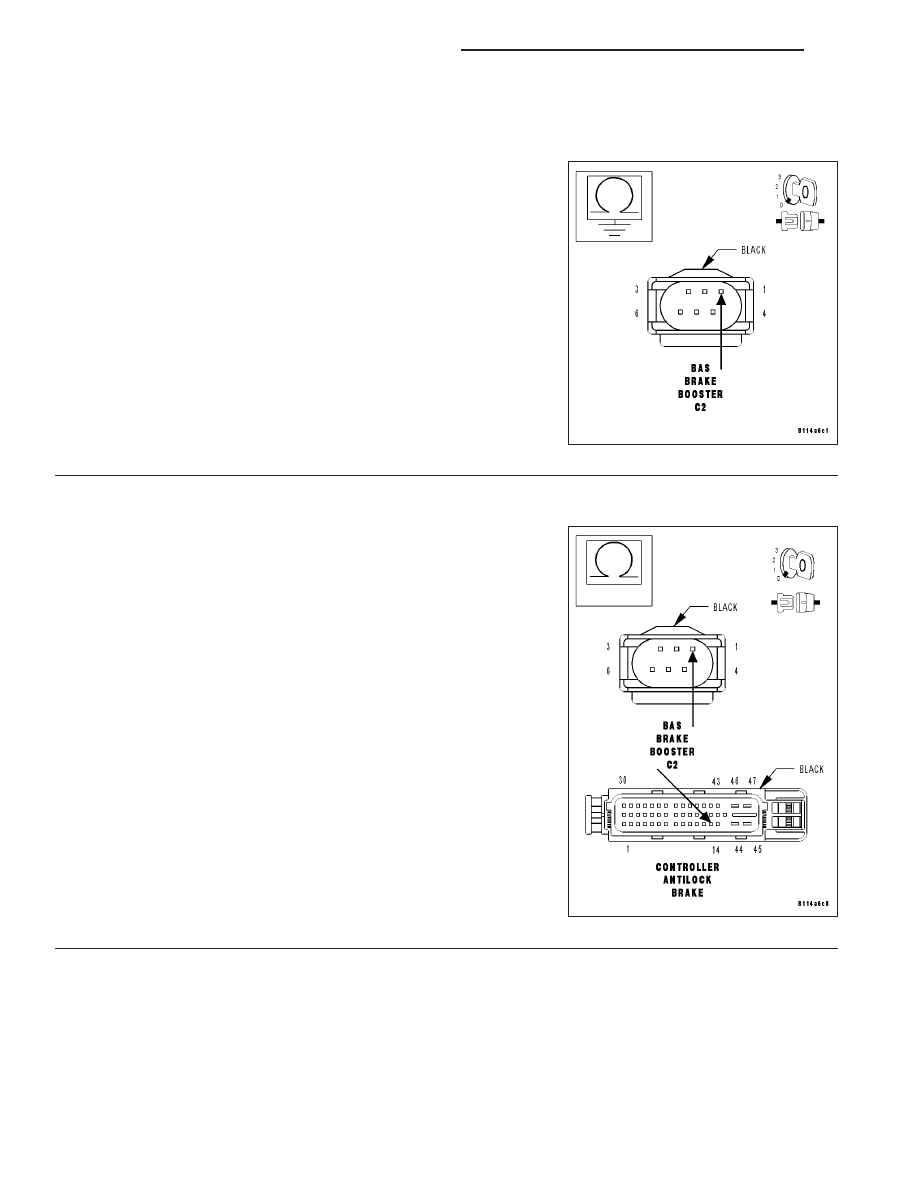

BAS RELEASE SWITCH CIRCUIT (CONTINUED)
2.

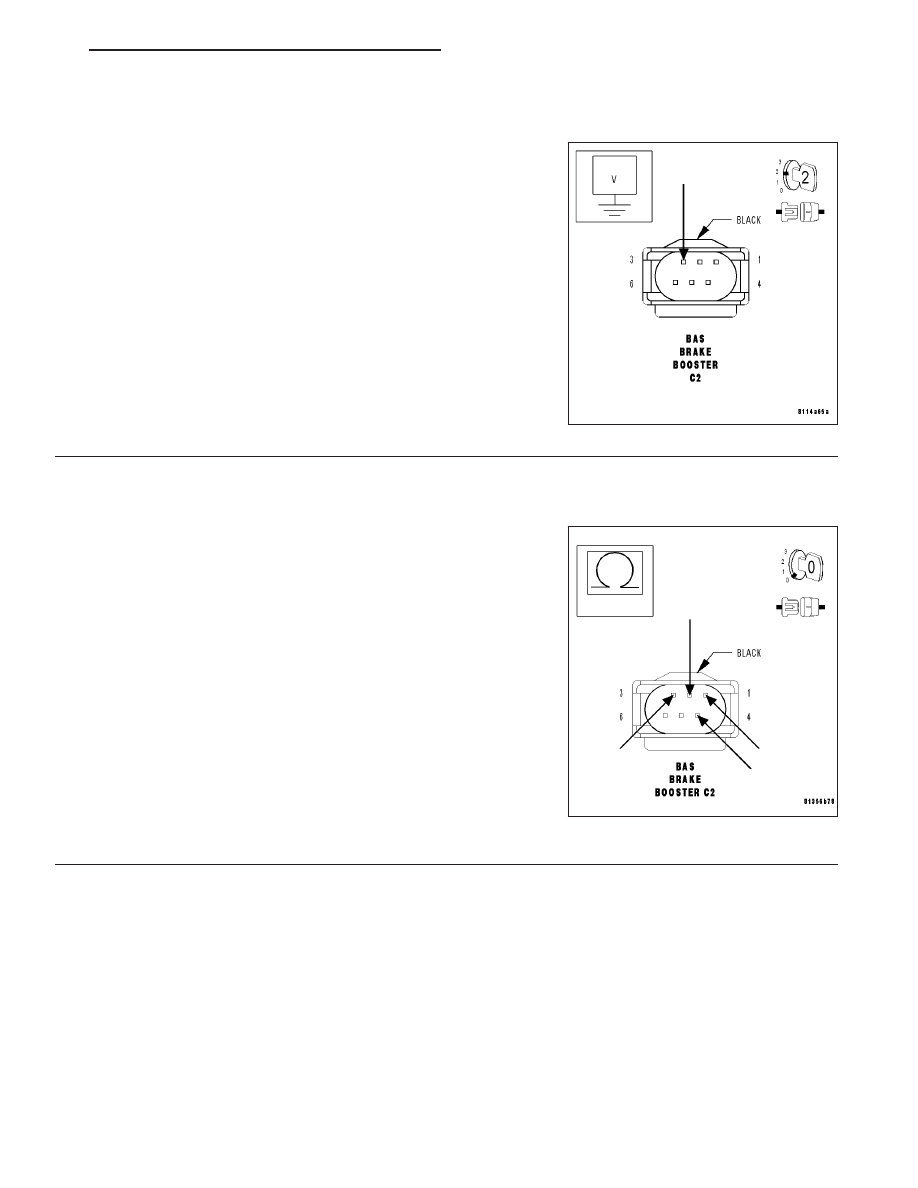

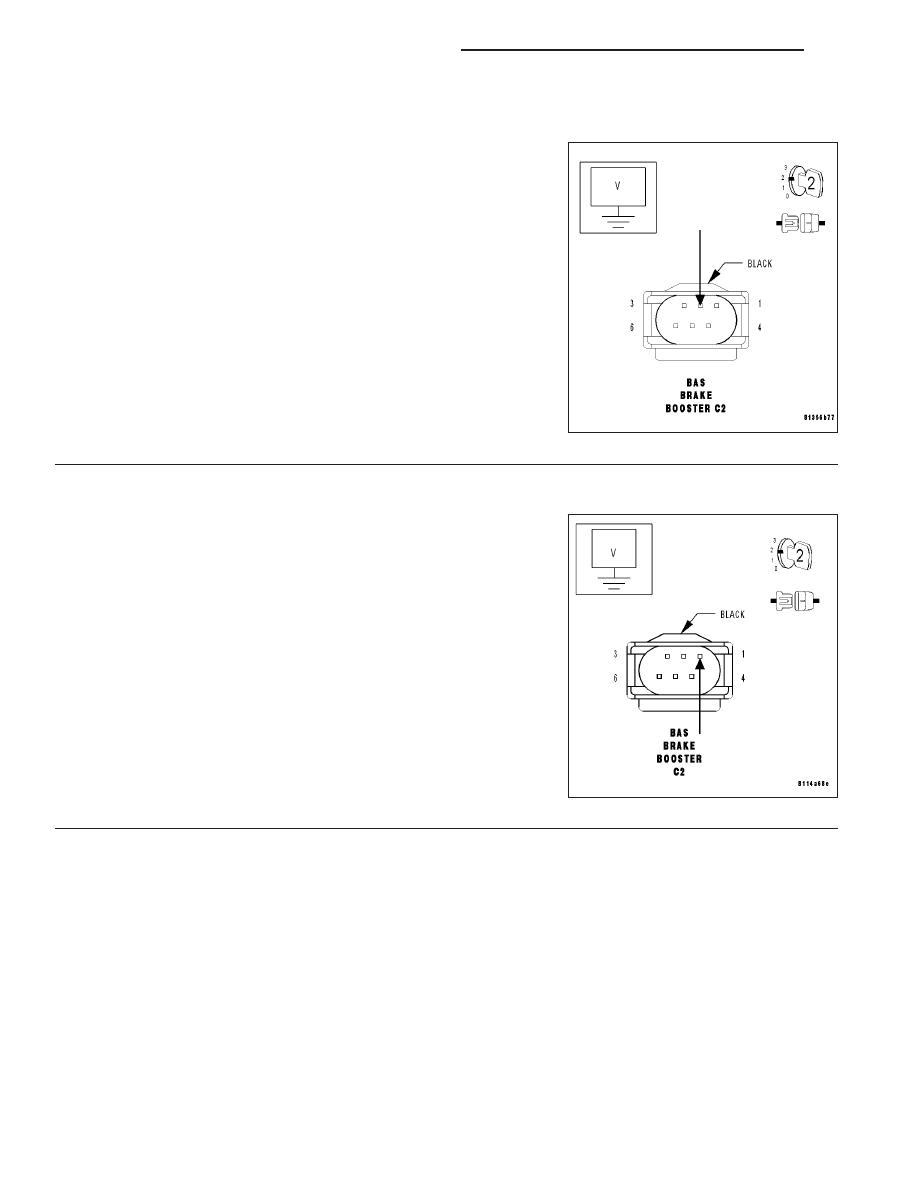

MEASURE THE VOLTAGE OF THE SENSOR (APPLIED) CIRCUIT
Turn the ignition off.
Disconnect the CAB harness connector.
Note: Check connectors - Clean/repair as necessary.
Turn the ignition on.
Measure the voltage of the BAS Release Switch Sensor (Applied) cir-
cuit at the BAS Brake Booster C2 harness connector.
Is the voltage below 1.0 volt?
Yes
>> Go to 3
No
>> Repair the BAS Release Switch Sensor (Applied) circuit
for a short to voltage.
Perform ABS VERIFICATION TEST.
3.

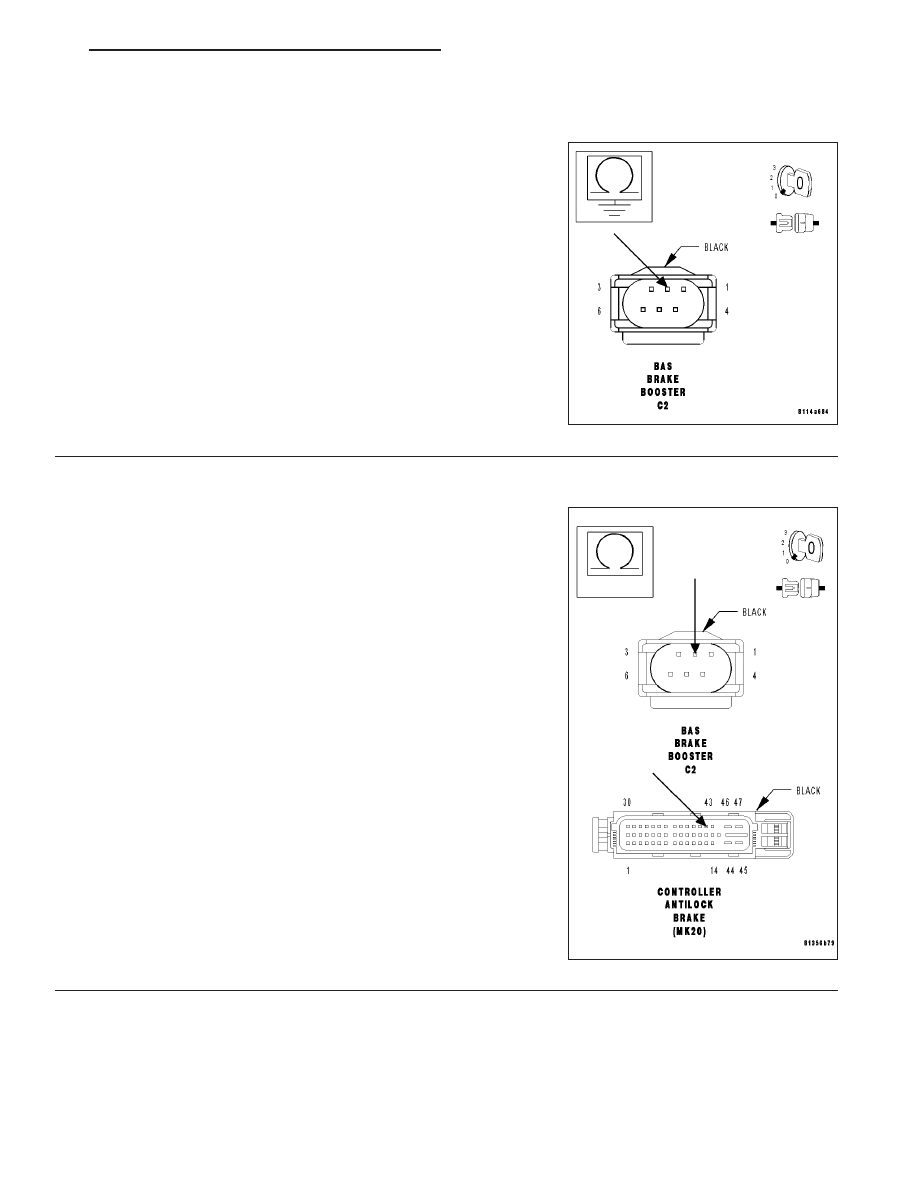

MEASURE THE RESISTANCE BETWEEN THE BAS RELEASE SWITCH SENSOR (APPLIED) CIRCUIT AND
ALL OTHER CAB VOLTAGE CIRCUITS
Turn the ignition off.
Measure the resistance between the BAS Release Switch Sensor
(Applied) circuit and the Sensor (Released) circuit in the BAS Brake
Booster C2 harness connector.
Measure the resistance between the BAS Release Switch Sensor
(Applied) circuit and all 5 and 12 volt circuits in the CAB harness con-
nector.
Is the resistance for all measurements above 100 kohms?
Yes
>> Replace the Controller Antilock Brake. (Refer to 8 - ELEC-
TRICAL/ELECTRONIC CONTROL MODULES/CONTROL-
LER ANTILOCK BRAKE - REMOVAL).
Perform ABS VERIFICATION TEST.
No
>> Repair the BAS Release Switch Sensor (Applied) circuit
for a short to the circuit(s) that measured less than 100
kohms.
Perform ABS VERIFICATION TEST.
ZH
BRAKES - ABS ELECTRICAL DIAGNOSTICS
5 - 209
