ESP LATERAL ACCELERATION SENSOR CIRCUIT (CONTINUED)

6.

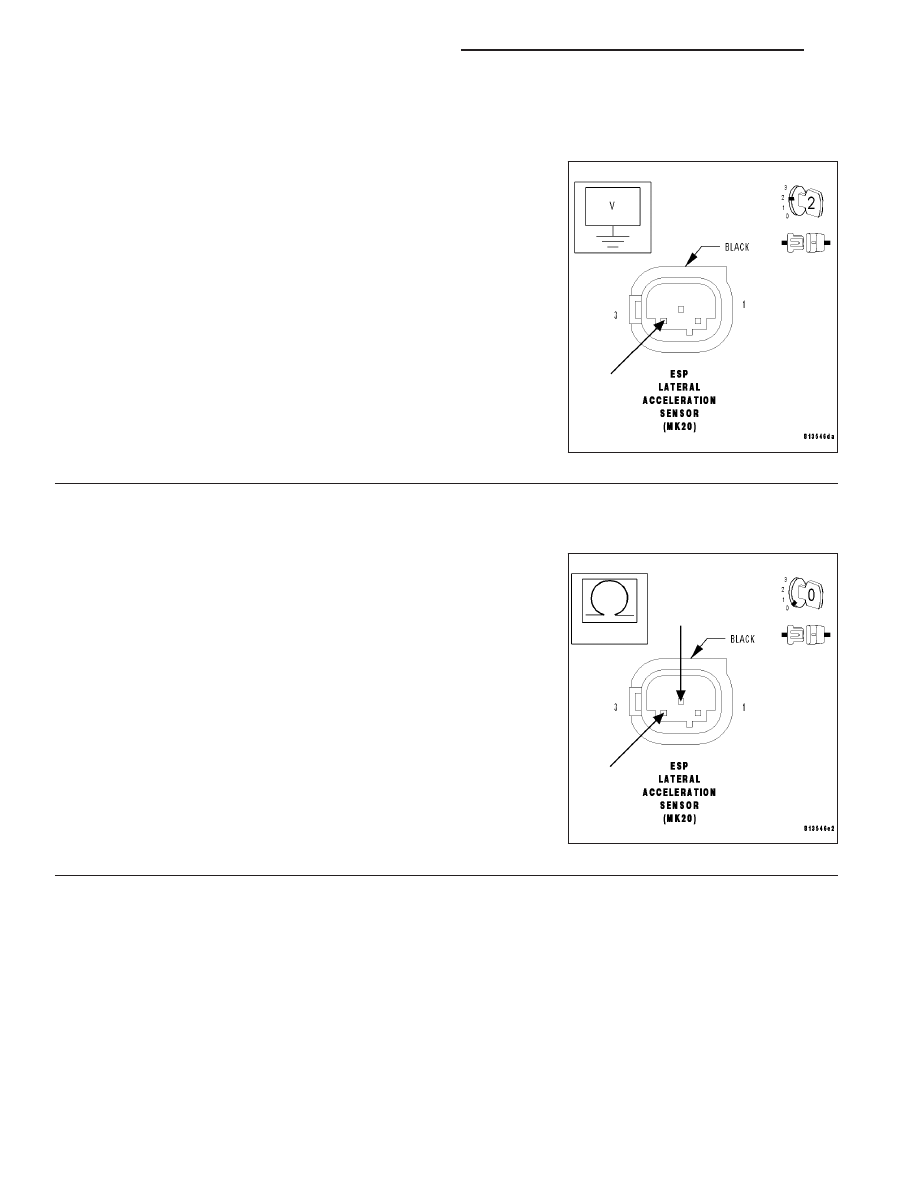

MEASURE THE RESISTANCE BETWEEN GROUND AND THE ESP LATERAL ACCELERATION SENSOR
SIGNAL CIRCUIT

Turn the ignition off.

Disconnect the CAB harness connector.

Note: Check connectors - Clean/repair as necessary.
Measure the resistance between ground and the ESP Lateral Acceler-
ation Sensor Signal circuit.

Is the resistance below 100 kohms?

Yes

>> Repair the ESP Lateral Acceleration Sensor Signal circuit

for a short to ground.

Perform ABS VERIFICATION TEST.

No

>> Go to 7

7.

MEASURE THE RESISTANCE BETWEEN THE ESP LATERAL ACCELERATION SENSOR SIGNAL CIRCUIT
AND THE SENSOR GROUND CIRCUIT

With the ignition off.

Measure the resistance between the ESP Lateral Acceleration Sensor
Signal circuit and the Sensor Ground circuit in the ESP Lateral Accel-
eration Sensor harness connector.

Is the resistance below 100 kohms?

Yes

>> Repair the ESP Lateral Acceleration Sensor Signal circuit

for a short to the Sensor Ground circuit.

Perform ABS VERIFICATION TEST.

No

>> Replace the ESP Lateral Acceleration Sensor. (Refer to 5 -

BRAKES/ELECTRICAL/LATERAL ACCELERATION SEN-
SOR - REMOVAL).

Perform ABS VERIFICATION TEST.

ZH

BRAKES - ABS ELECTRICAL DIAGNOSTICS

5 - 169

ESP LATERAL ACCELERATION SENSOR CIRCUIT (CONTINUED)

8.

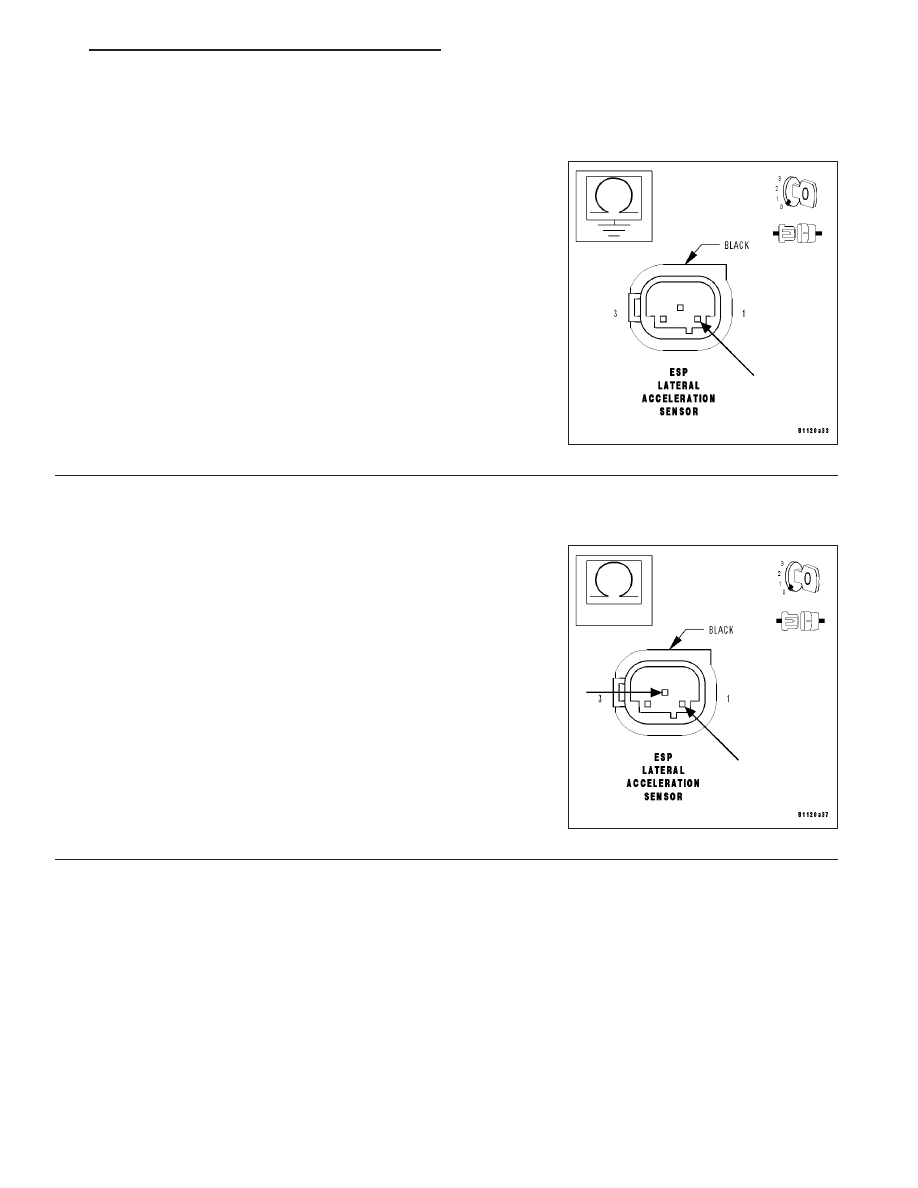

CHECK THE ESP LATERAL ACCELERATION SENSOR 5-VOLT SUPPLY CIRCUIT FOR A SHORT TO
VOLTAGE

Turn the ignition off.

Disconnect the CAB harness connector.

Note: Check connectors - Clean/repair as necessary.
Turn the ignition on.

Measure the voltage of the 5-Volt Supply circuit at the ESP Lateral
Acceleration Sensor harness connector.

Is the voltage below 1.0 volt?

Yes

>> Go to 9

No

>> Repair the 5-Volt Supply circuit for a short to voltage.

Perform ABS VERIFICATION TEST.

9.

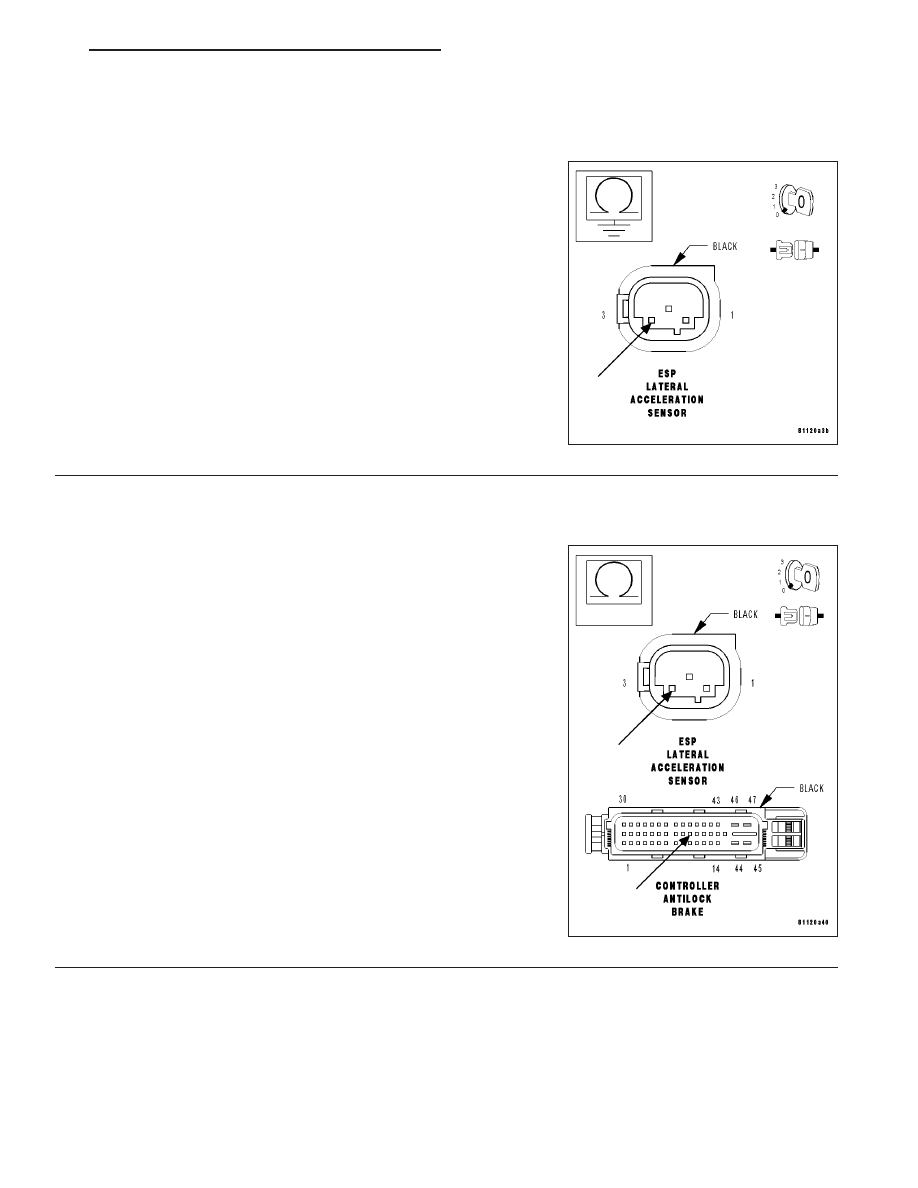

MEASURE THE RESISTANCE BETWEEN THE ESP LATERAL ACCELERATION SENSOR 5-VOLT SUPPLY
CIRCUIT AND THE SENSOR GROUND CIRCUIT

Turn the ignition off.

Measure the resistance between the 5-Volt Supply circuit and the Sen-
sor Ground circuit.

Is the resistance below 100 kohms?

Yes

>> Repair the 5-Volt Supply circuit for a short to the Sensor

Ground circuit.

Perform ABS VERIFICATION TEST.

No

>> Go to 10

5 - 170

BRAKES - ABS ELECTRICAL DIAGNOSTICS

ZH

ESP LATERAL ACCELERATION SENSOR CIRCUIT (CONTINUED)

10.

MEASURE THE RESISTANCE BETWEEN GROUND AND THE ESP LATERAL ACCELERATION SENSOR
5-VOLT SUPPLY CIRCUIT

With the ignition off.

Measure the resistance between ground and the 5-Volt Supply circuit.

Is the resistance below 100 kohms?

Yes

>> Repair the 5-Volt Supply circuit for a short to ground.

Perform ABS VERIFICATION TEST.

No

>> Go to 11

11.

MEASURE THE RESISTANCE OF THE ESP LATERAL ACCELERATION SENSOR 5-VOLT SUPPLY
CIRCUIT

With the ignition off.

Measure the resistance of the 5-Volt Supply circuit from the ESP Lat-
eral Acceleration Sensor harness connector to the CAB harness con-
nector.

Is the resistance below 5.0 ohms?

Yes

>> Replace the Controller Antilock Brake. (Refer to 8 - ELEC-

TRICAL/ELECTRONIC CONTROL MODULES/CONTROL-
LER ANTILOCK BRAKE - REMOVAL).

Perform ABS VERIFICATION TEST.

No

>> Repair the ESP Lateral Acceleration Sensor 5-Volt Supply

circuit for an open.

Perform ABS VERIFICATION TEST.

ZH

BRAKES - ABS ELECTRICAL DIAGNOSTICS

5 - 171
