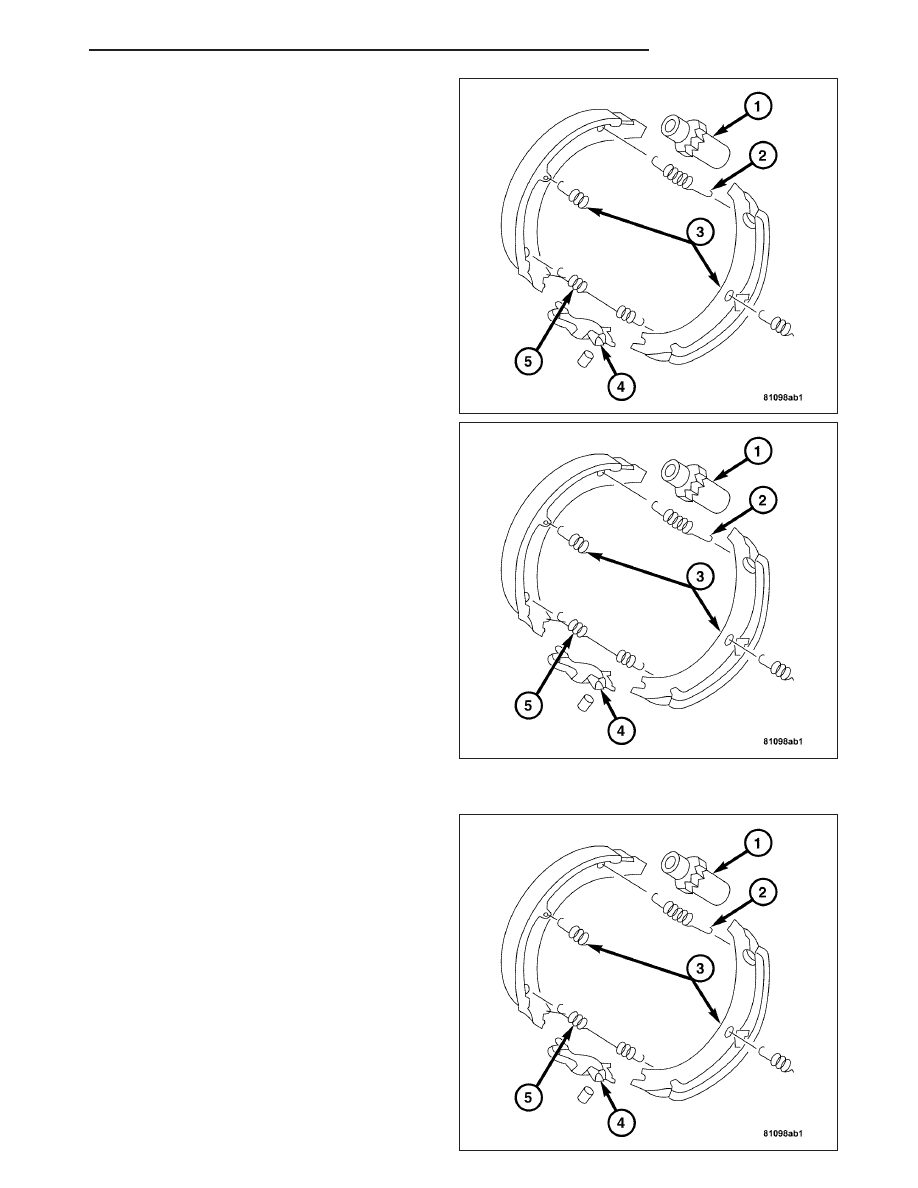

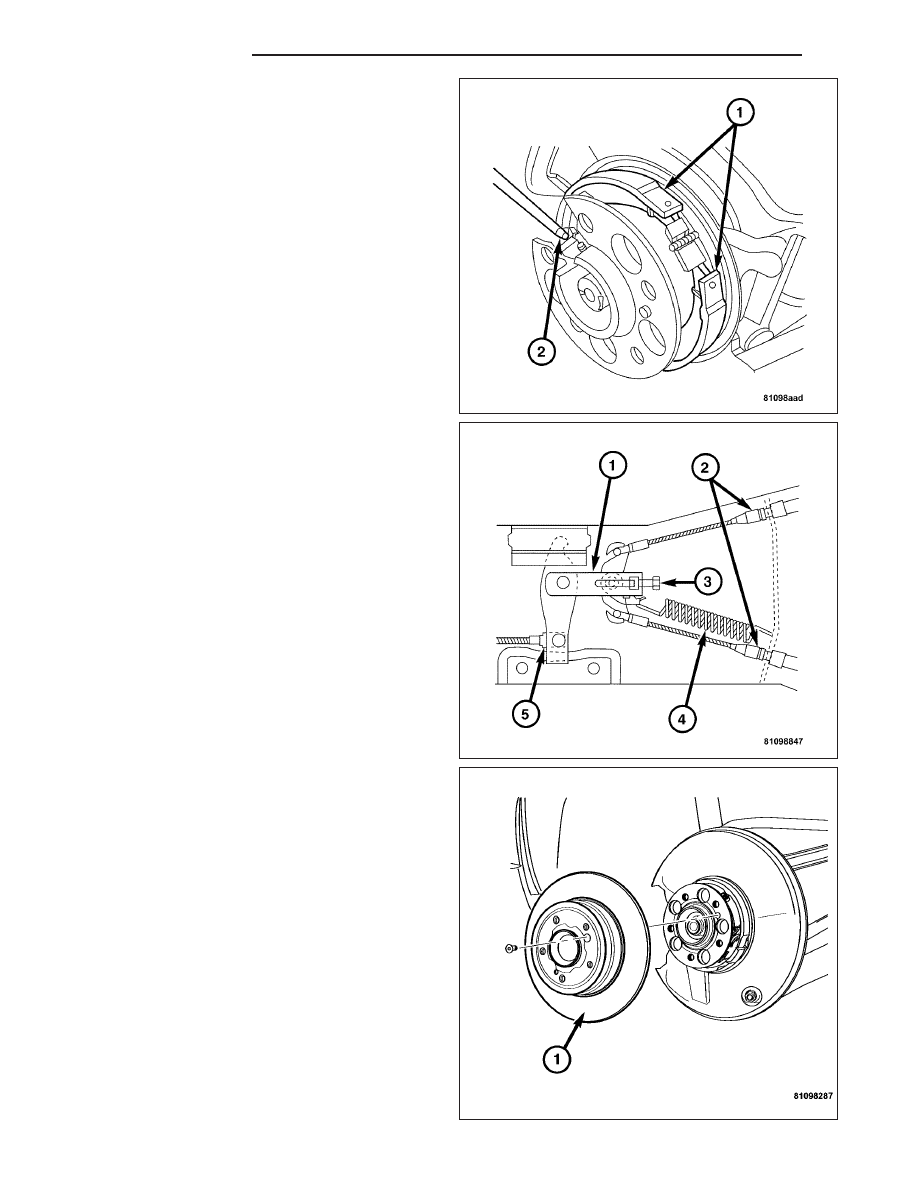

9. Remove the upper parking brake shoe return spring (2). 10. Remove the expanding lock (4). 11. The parking brake shoe assembly consists of the following components: • (1) Adjuster. • (2) Upper return spring. • (3) Hold down spring. • (4) Expanding lock. • (5) Lower return spring. INSTALLATION Note: Coat all bearing and sliding surfaces on the 1. Install the parking brake adjuster (1). 2. Install the upper return spring (2). 3. Install the parking brake shoes by placing the assembly over rear axle shaft flange. 4. Install the hold down spring (3) by using a pair of needle-nose pliers (2). ZH BRAKES - BASE 5 - 81 |
