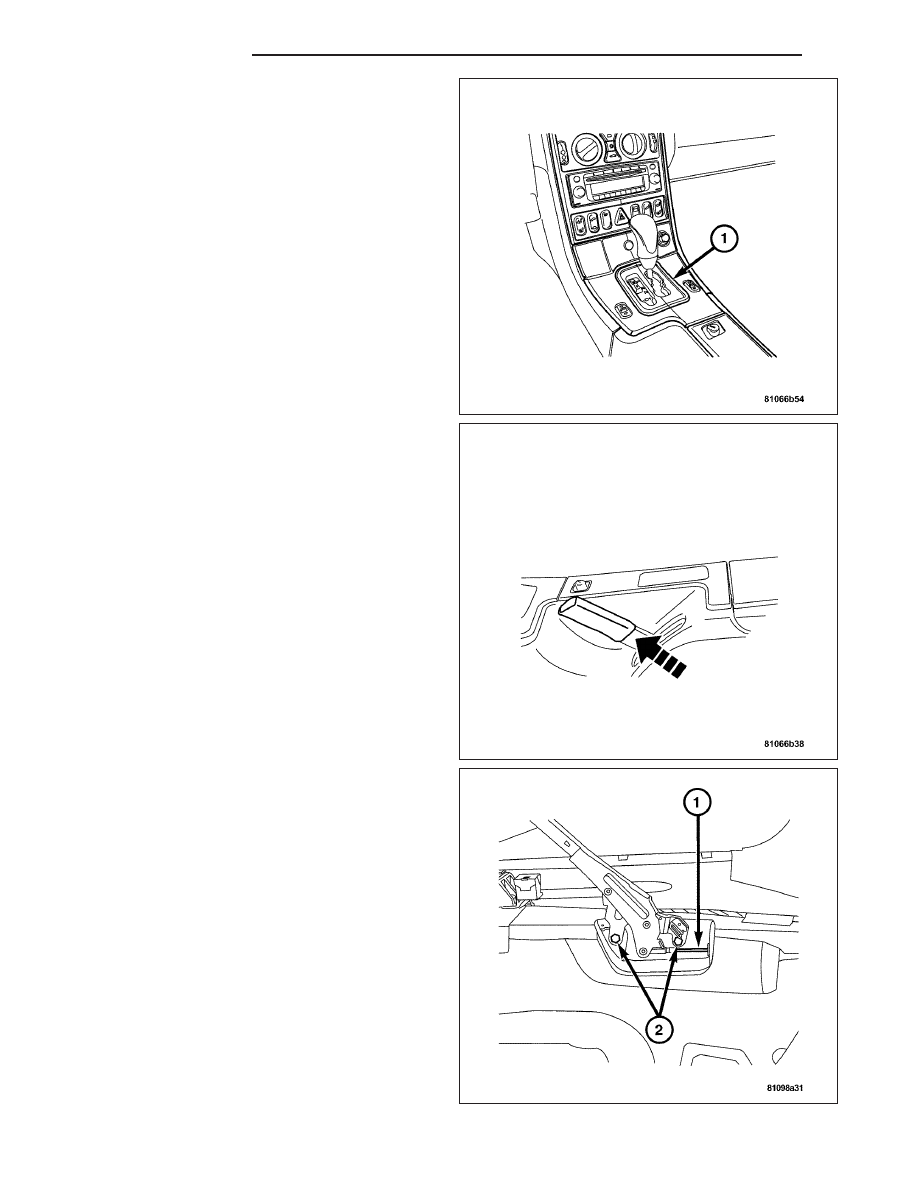

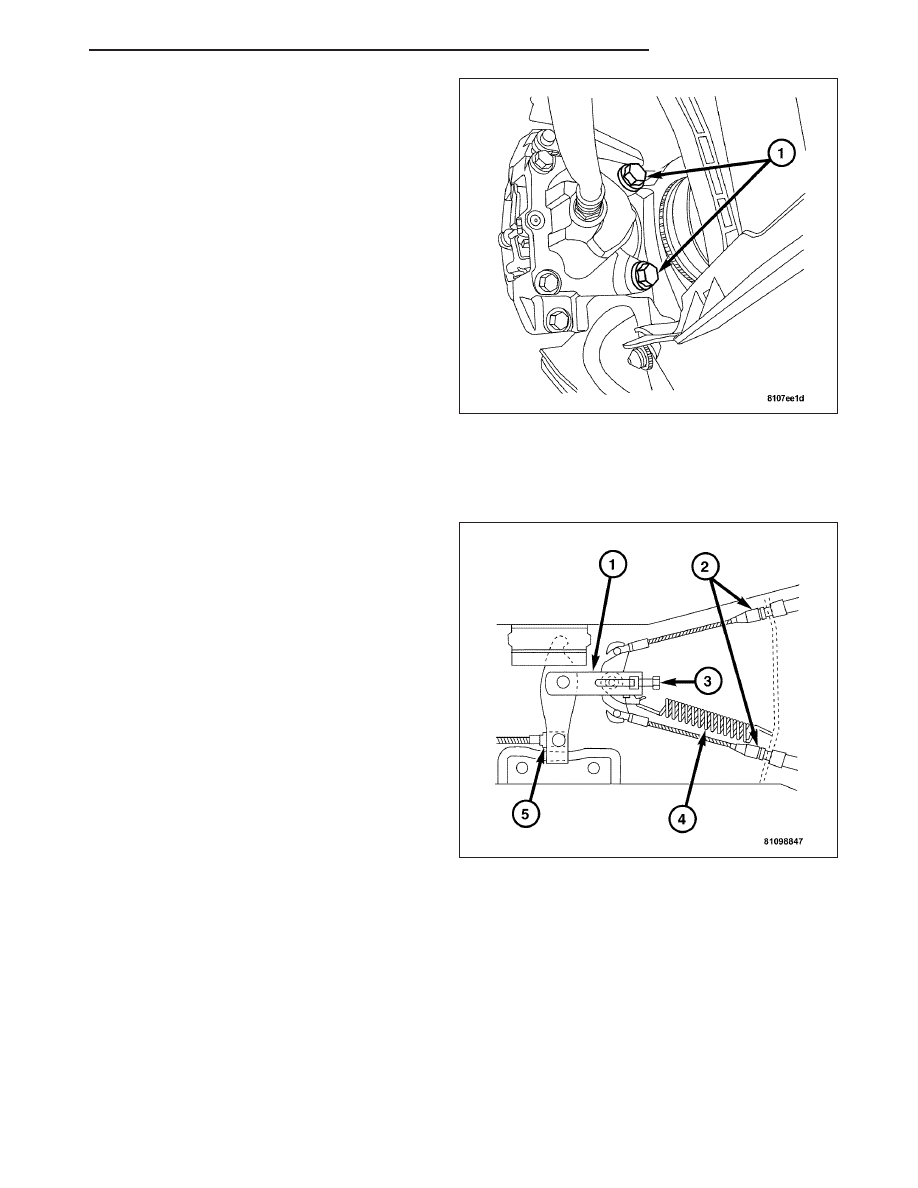

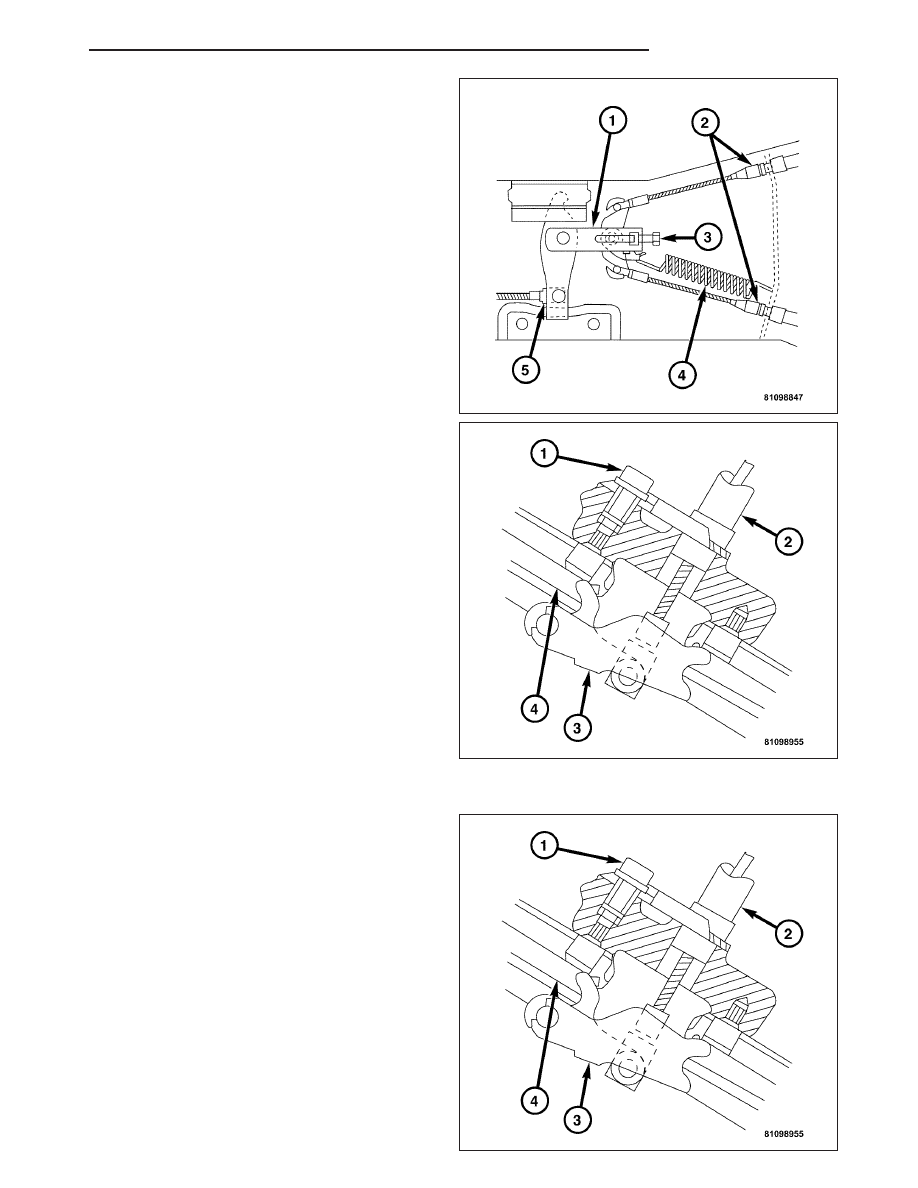

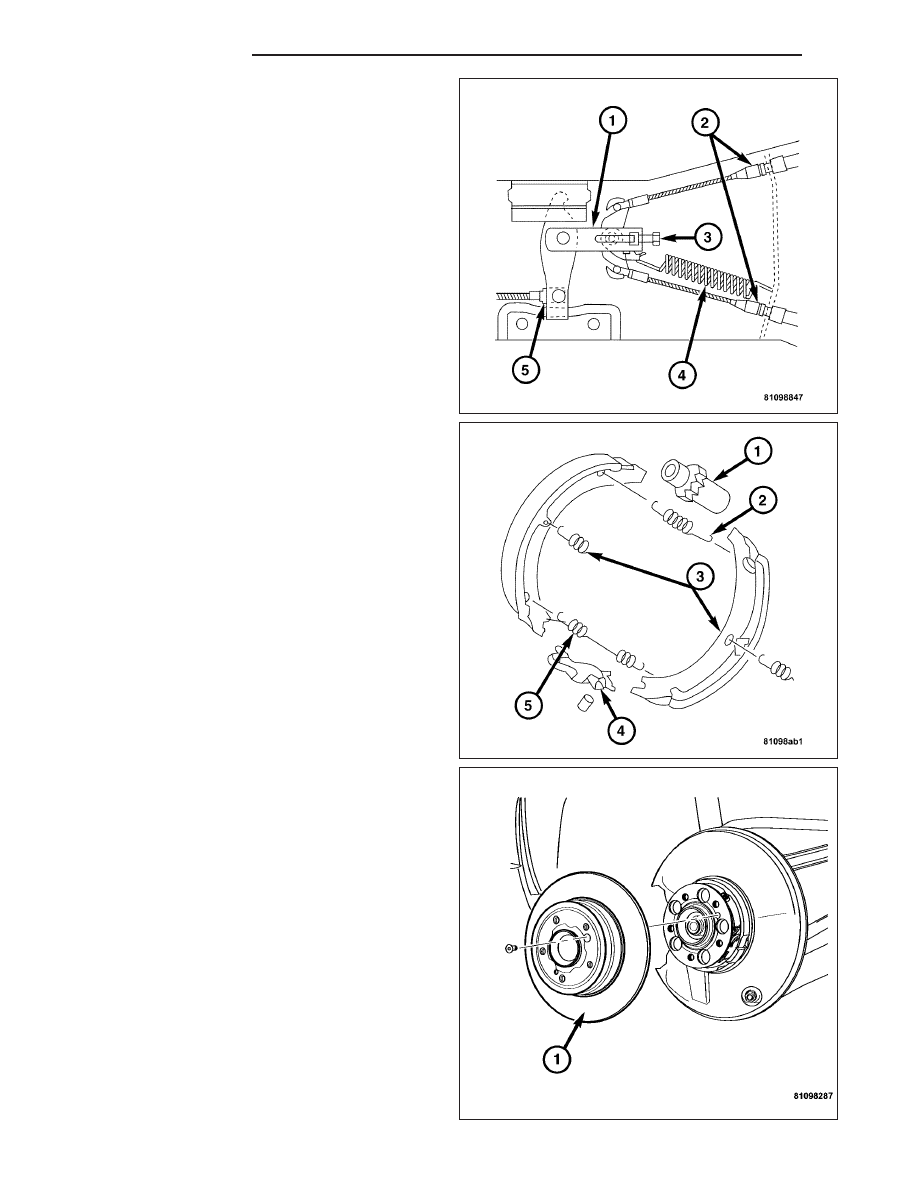

8. Remove the parking brake cables (2) from the parking brake cable equalizer (1). 9. Remove the parking brake shoe actuator arm by pulling the actuator arm (3) away from the rear 10. Open the actuator arm (3) top cover exposing the parking brake cable pin. 11. Push the cable pin through the arm and remove the actuator from the cable (2). 12. Remove the parking brake cable (2) from the rear wheel carrier assembly (4) by removing the 13. Pull the parking brake cable (2) from the eyelets and remove it from vehicle. INSTALLATION 1. Install the parking brake cable through the eyelets. 2. Attach the parking brake cable (2) to the rear wheel carrier assembly (4) by installing the mount- 3. Push the cable pin through the arm (3) attaching the actuator to the cable (2). 4. Close the actuator arm top cover (3) encasing the cable pin. 5. Install the actuator arm (3) to the rear wheel carrier assembly (4) ensuring the actuator rests on the ZH BRAKES - BASE 5 - 73 |
