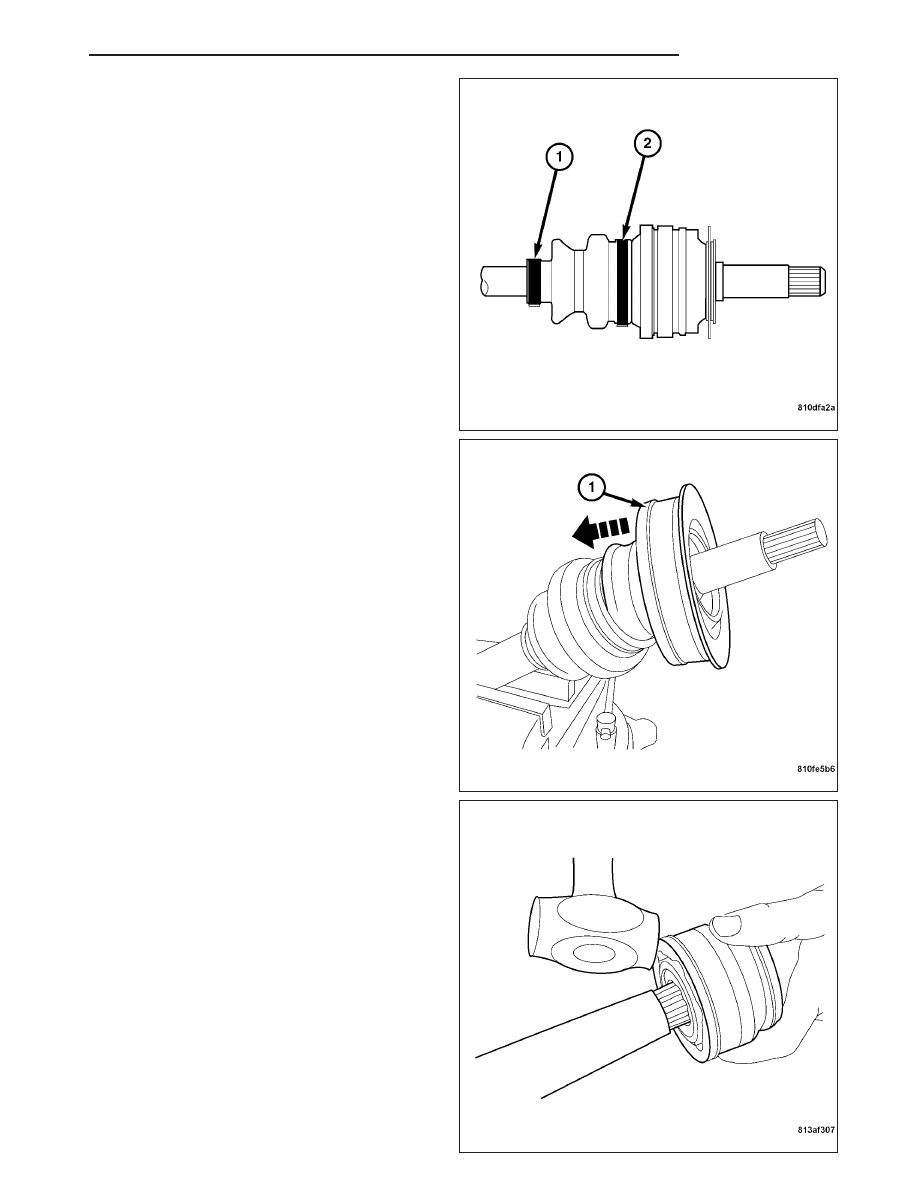

2. Remove the inner C/V boot retaining clamp (1)

from the axle halfshaft.

3. Remove the outer C/V boot retaining clamp (2)

from the C/V joint housing.

4. Clamp the axle halfshaft in a vise.

CAUTION: Insure to use a vise that is equipped
with protective caps on the jaws of the vise to pre-
vent any damage to the axle halfshaft.

5. Remove the C/V boot from the inner C/V joint

housing and slide it down the axle halfshaft.

6. Wipe away the grease to expose the inner C/V

joint and the halfshaft.

7. Using a soft–faced hammer sharply hit the end of

the C/V joint housing to dislodge the housing from
the internal circlip on the axle halfshaft.

8. Slide the inner C/V joint off the end of the halfshaft.

ZH

HALFSHAFTS

3 - 7

9. Slide the C/V boot off of the axle halfshaft.

10. Thoroughly clean and inspect the inner C/V joint

assembly for any signs of excessive wear. (Refer
to

3

-

DIFFERENTIAL

&

DRIVELINE/HALF

SHAFT/CV JOINT - INSPECTION)

INSTALLATION

1. Clean and inspect the C/V joint for wear and pit-

ting. Replace as required. (Refer to 3 - DIFFEREN-
TIAL & DRIVELINE/HALF SHAFT/C/V JOINT -
INSPECTION).

2. Remove any road grime and debris from the axle

shaft splines.

3. Before installing the C/V boot, cover the shaft

splines to protect the C/V boot during installation.

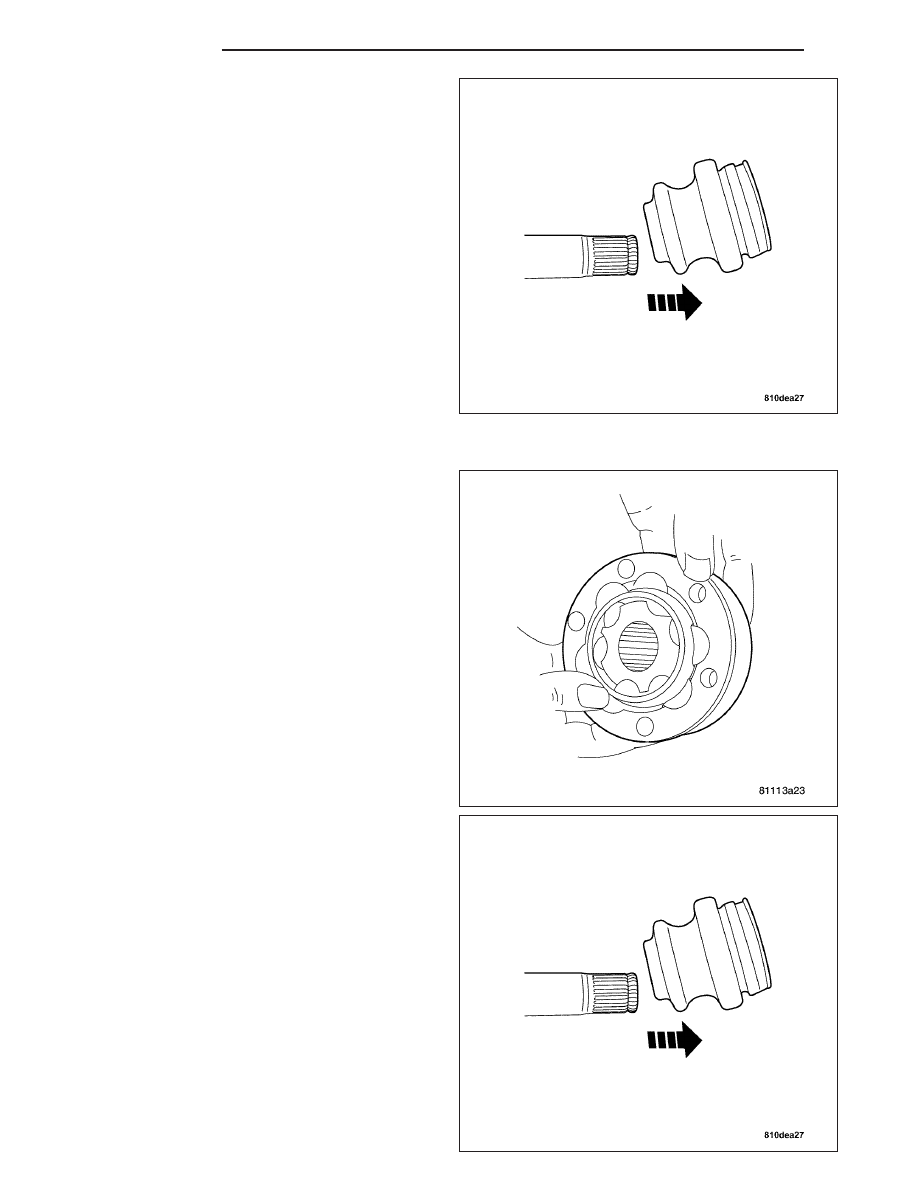

4. Slide the new C/V boot onto the axle halfshaft.

3 - 8

HALFSHAFTS

ZH

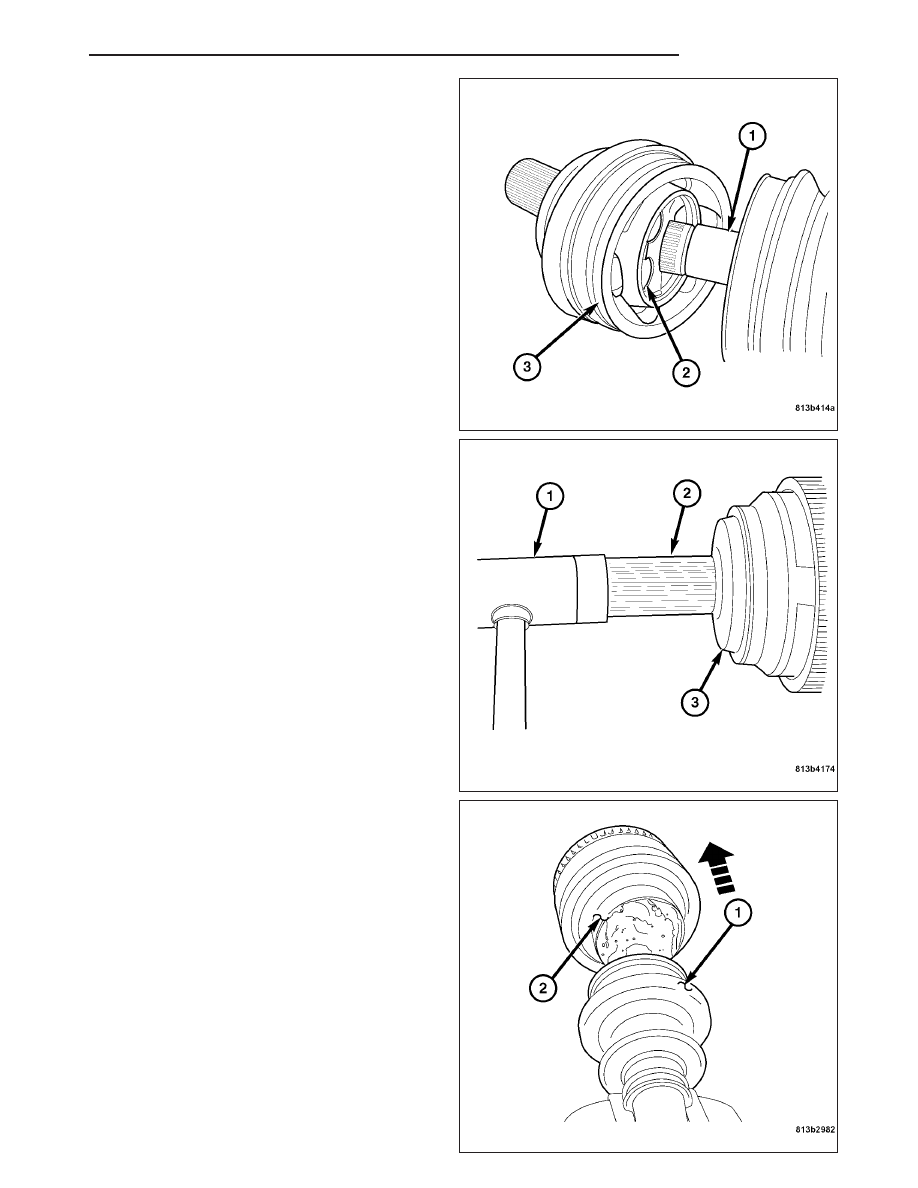

5. Align the splines on the axle halfshaft (1) with the

splines on the C/V joint assembly (3).

Note: The C/V joint assembly must be installed on
axle halfshaft until the C/V joint assembly is
seated against the circlip on the halfshaft.

6. Install the outer C/V joint assembly onto the axle

halfshaft by using a soft–faced hammer and tap-
ping the end of the stub axle (with nut installed)
until the outer C/V joint is fully seated on the axle
halfshaft.

Note: Do not use any other type of grease other
than what is supplied in the C/V boot service
package.

7. Pack approximately 1/2 the amount of grease pro-

vided in the C/V boot service package into the
outer C/V joint cavity.

8. Pack the remaining amount of grease into the C/V

boot.

ZH

HALFSHAFTS

3 - 9

Note: The C/V boot must be positioned on the axle
halfshaft so the raised bead on the inside of the
C/V boot is in the groove on the axle halfshaft.

9. Install the C/V boot outer end into the sealing

groove (1) of the C/V joint housing.

10. Install the C/V boot inner end into the sealing

groove of the axle halfshaft.

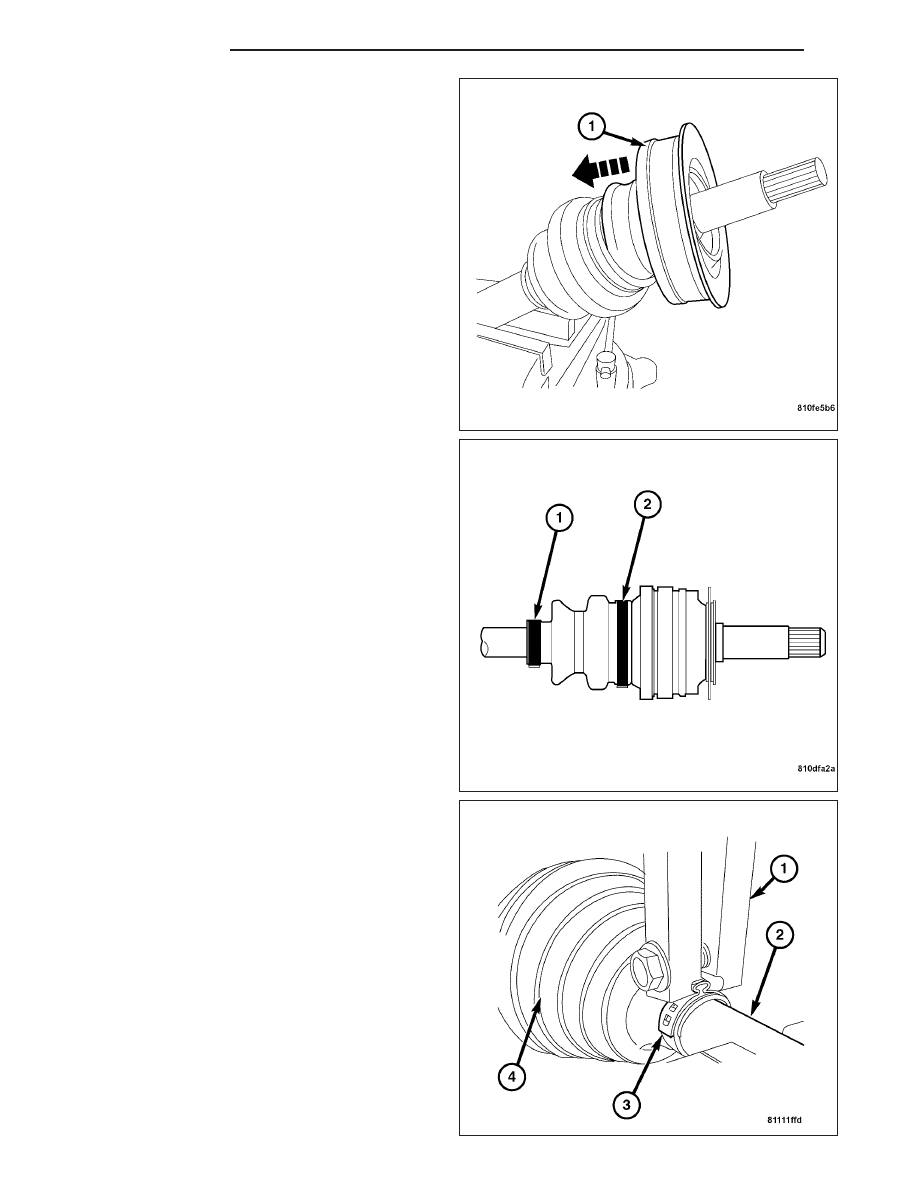

11. Position the inner C/V boot retaining clamp (1)

and the outer C/V boot retaining clamp (2) into the
sealing grooves on the C/V boot.

12. Position the crimping tool (1) on the C/V boot

retaining clamp (3).

3 - 10

HALFSHAFTS

ZH
