INSTALLATION

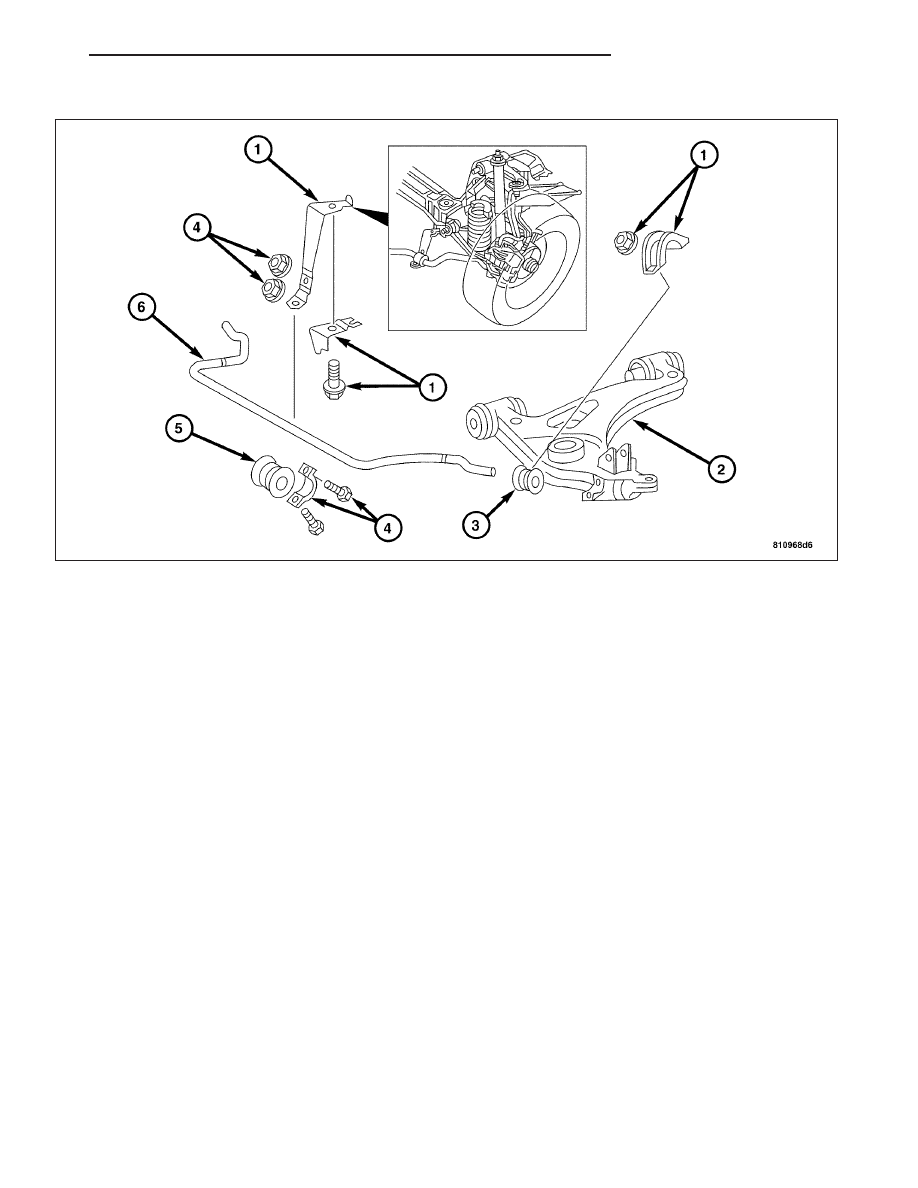

1. Install both right and left stabilizer bar bushings (3 and 5) onto the stabilizer bar (6).

Note: The lower control arms (2) may need to be raised to accept the stabilizer bar bushing (2) to its mating
surface.

2. Install the stabilizer bar (6) to the vehicle by loosely installing the bolts and nuts to all four brackets (1 and 4).

3. Align the stabilizer bar (6) so it is centered in the vehicle.

Note: Due to the preload of the bracket, install the hexagon socket bolt first.

4. Tighten both stabilizer bar bolts to frame.

5. Tighten both stabilizer bar hexagon socket bolts to the retainer (4).

6. Tighten both right and left stabilizer bar bracket nuts to the lower control arm (2). Torque to 20 N·m (15 ft. lbs.).

7. Install the stabilizer bar retainer and mounting plate (if removed).

8. Tighten the retainer bolt (4) to frame (if removed). Torque to 60 N·m (44 ft. lbs.).

9. Tighten the lower retainer nut to the fastening bracket (if removed). Torque to 20 N·m (15 ft. lbs.).

10. Tighten the upper retainer lever nut to the fastening bracket (if removed). Torque to 40 N·m (29 ft. lbs.).

11. Lower the vehicle and check vehicle alignment. (Refer to 2 - SUSPENSION/WHEEL ALIGNMENT - STANDARD

PROCEDURE).

ZH

FRONT SUSPENSION

2 - 43

REAR SUSPENSION

TABLE OF CONTENTS

page

page

REAR SUSPENSION

SPECIFICATIONS - TORQUE

. . . . . . . . . . . . . . 44

SPECIAL TOOLS

. . . . . . . . . . . . . . . . . . . . . . . . 45

CAMBER STRUT

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 46

TRAILING LINK

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 47

LATERAL LINK

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 48

TRACK BAR

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 49

LOWER CONTROL ARM

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 52

KNUCKLE

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 59

HUB / BEARING

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 66

STABILIZER BAR

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 72

SHOCK

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 76

SPRING

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 80

REAR AXLE CARRIER

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 87

REAR SUSPENSION

SPECIFICATIONS - TORQUE

TORQUE SPECIFICATIONS

Description

N·m

Ft. Lbs.

In. Lbs.

Stabilizer Link to Stabilizer Bar

30

22

266

Stabilizer Bar to Stabilizer Link Nut

20

15

177

Bolt, Stabilizer Bar Clamp

20

15

177

Upper Shock Nut

18

13

159

Shock Absorber to Lower Control Arm

55

41

487

Rear Axle Carrier Nut

90

66

797

Rear Axle Carrier Rear Nut

90

66

797

Rear Axle Center Assembly At Front to Rear Axle Carrier

50

37

443

Rear Axle Center Assembly At Rear to Rear Axle Carrier

110

81

974

Lower Control Arm to Rear Axle Carrier

70

52

620

Lower Control Arm to Wheel Carrier

120

88

1060

Camber Strut to Rear Axle Carrier

70

52

620

Camber Strut to Wheel Carrier

70

52

620

Trailing Link to Rear Axle Carrier

70

52

620

Trailing Link to Wheel Carrier

70

52

620

Lateral Link to Rear Axle Carrier

70

52

620

Lateral Link to Wheel Carrier

30

22

266

Track Bar to Rear Axle Carrier

70

52

620

Track Bar to Wheel Carrier

70

52

620

2 - 44

REAR SUSPENSION

ZH

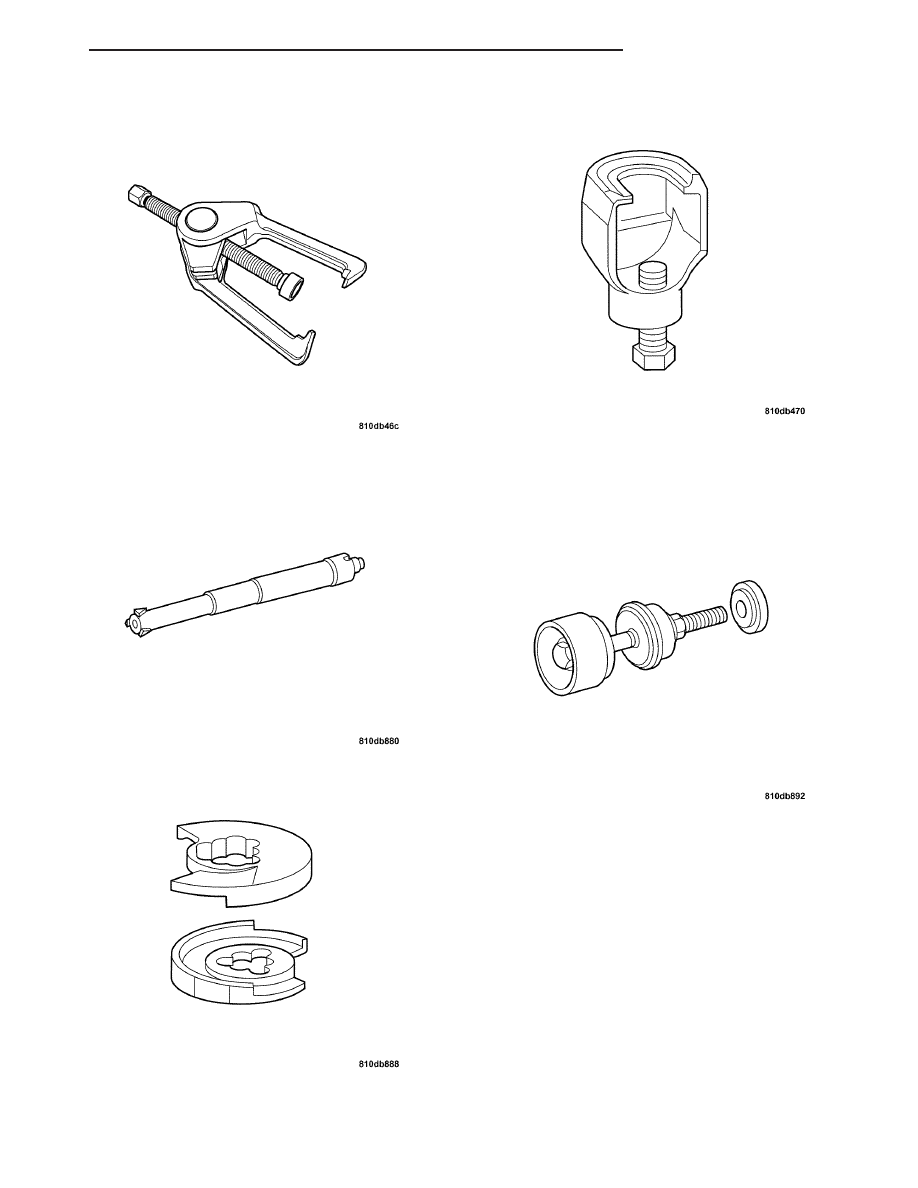

SPECIAL TOOLS

C-3894–A Tie Rod Puller

9150 Rear Spring Compressor

9152 Spring Compressor Plates

9168 Ball Joint Puller

9199 BEARING TOOL

ZH

REAR SUSPENSION

2 - 45

CAMBER STRUT

REMOVAL

1. Raise and support the vehicle.

2. Remove the wheel and tire assembly.

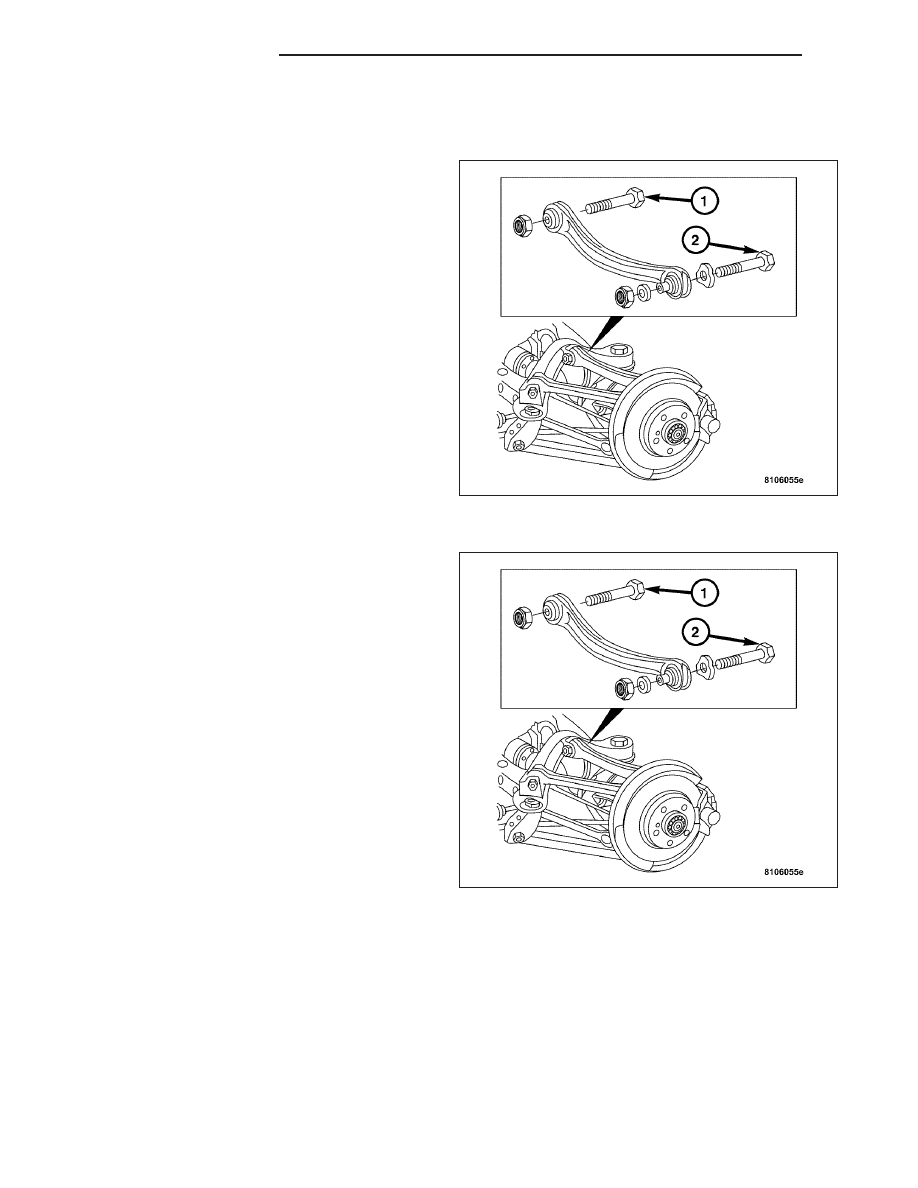

3. Remove the inner camber strut bolt (1) attaching

the camber strut to the rear axle carrier.

4. Remove the outer camber strut bolt (2) attaching

the camber strut to the wheel carrier.

Note: Lightly tap the camber strut with a plastic
headed hammer to loosen the rubber mounts from
the mounting flanges.

5. Remove the camber strut from the vehicle.

INSTALLATION

CAUTION: Vehicle must be at normal ride height
before tightening components to specified torque.

1. Install the camber strut onto the vehicle.

2. Install the outer camber strut bolt attaching the

camber strut to the wheel carrier.

3. Install the inner camber strut bolt attaching the

camber strut to the rear axle carrier.

4. Install the wheel and tire assembly.

5. Lower the vehicle so it is not being supported by

the lift.

6. Tighten the outer camber strut bolt attaching the

camber strut to the wheel carrier to 70 N·m (52 ft.
lbs.).

7. Tighten the inner camber strut bolt attaching the

camber strut to the rear axle carrier to 70 N·m (52
ft. lbs.).

8. Check vehicle alignment. (Refer to 2 - SUSPEN-

SION/WHEEL ALIGNMENT - STANDARD PROCEDURE).

2 - 46

REAR SUSPENSION

ZH
