Chrysler Crossfire. Manual - part 16





SPRING

REMOVAL

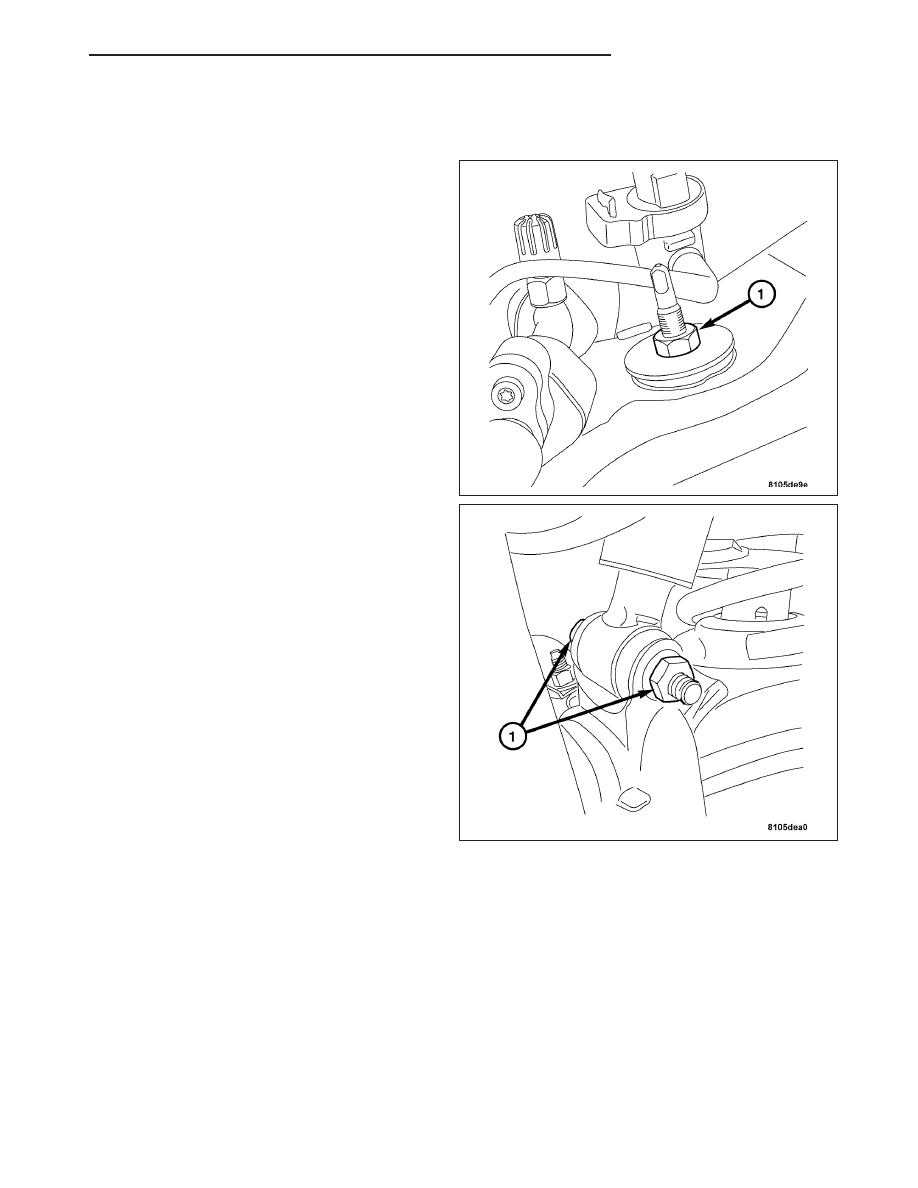

1. With the vehicle resting on its wheels remove the

upper shock absorber nut (1).

2. Remove the washer and rubber mount.

3. Raise and support the vehicle then remove the

lower shock absorber bolt and nut (1). Remove the
shock from the vehicle.

ZH

FRONT SUSPENSION

2 - 39

4. Support the lower control arm with a suitable sup-

porting device. Raise the lower control arm up until
it is almost level.

WARNING:

ONLY

USE APPROVED

CLAMPING

DEVICES AND IF APPROPRIATE ALSO SCREEN
OFF THE DANGER AREA. INSPECT SPECIAL
TOOLS FOR DAMAGE AND FUNCTION. WEAR
SAFETY GLOVES AND EYE PROTECTION.

CAUTION: Risk of injury to hands and fingers from
being trapped or crushed when working on pre-
loaded springs or spring bodies.

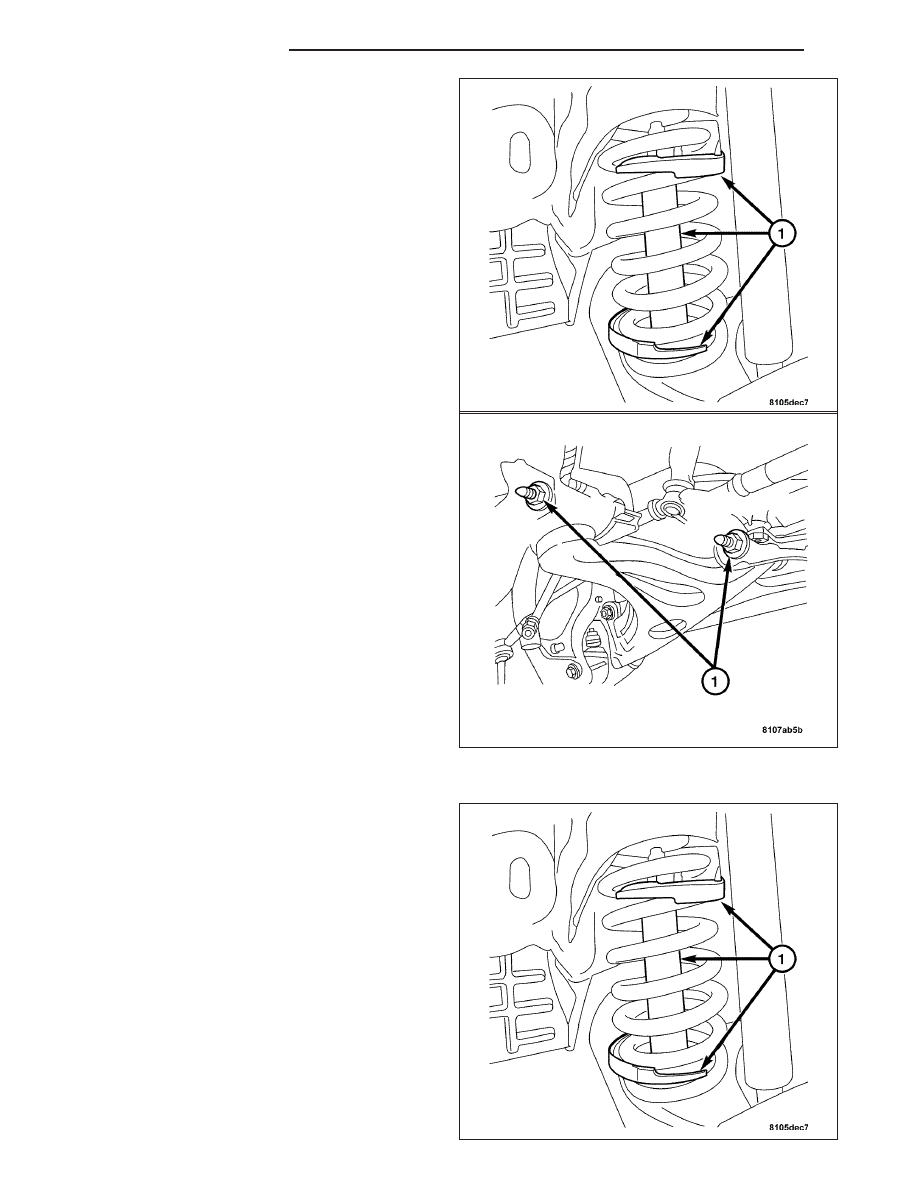

5. Using Special Tool 9151 Spring Compressor and

9152 Clamping Plates (1), carefully compress the
front spring.

6. Remove the nuts from the lower control arm

mounting bolts.

7. Carefully remove the lower control arm mounting

bolts from the body.

8. Lower the supporting device and swing the lower

control arm down while holding the front spring.
When enough clearance has been achieved from
the lower control arm and the upper spring perch,
remove the front spring from the vehicle.

INSTALLATION

1. Install the compressed front spring (1) with the rub-

ber mount to the vehicle.

2 - 40

FRONT SUSPENSION

ZH

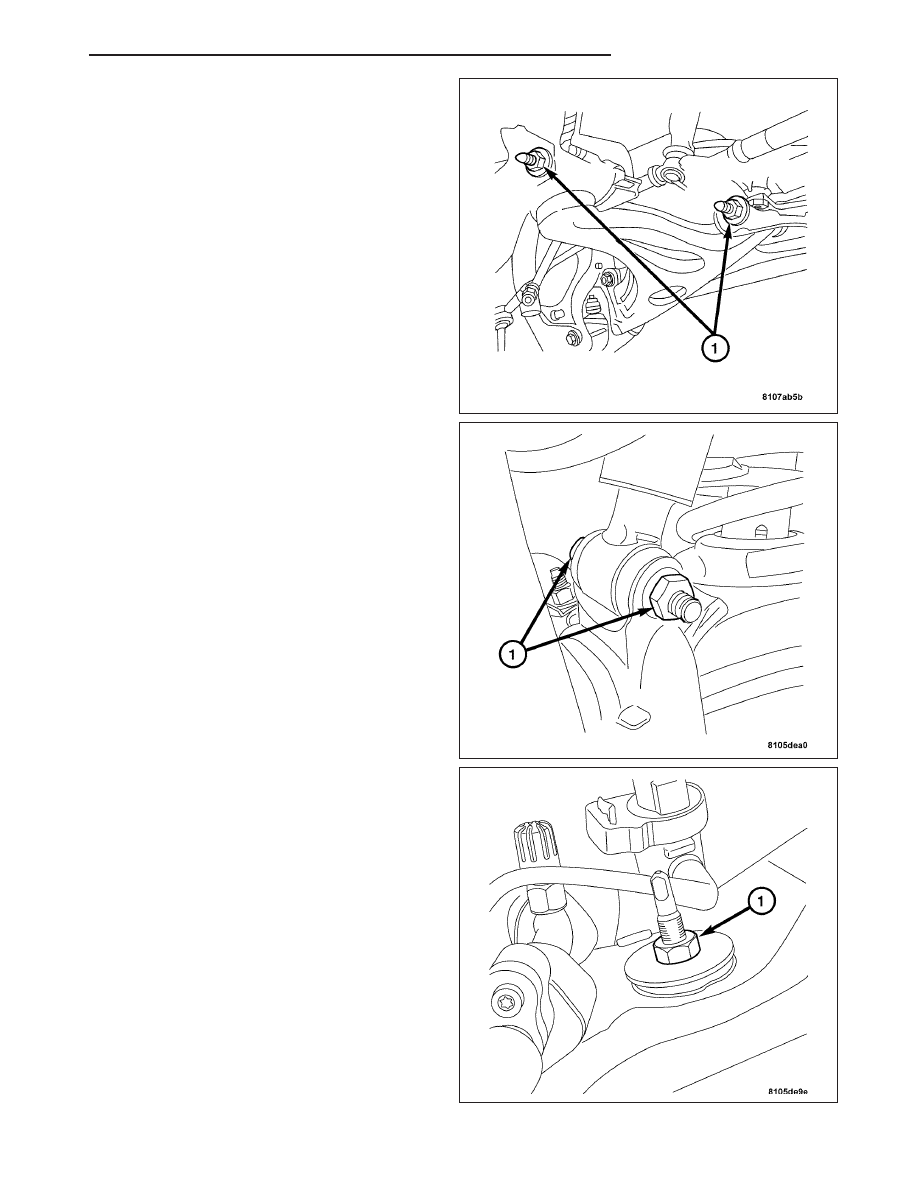

2. Swing the lower control arm up to its mounting

position and install the bolts and nuts (1).

Note: To avoid suspension preload, the vehicle
must be at normal ride height before tightening
lower control arm bolts to final specifications.

3. Install the supporting device to the lower control

arm. Position the lower control arm so the distance
between the spring and the upper and lower
perches is snug making sure the spring is in its
correct mounting position.

4. Slowly release the front spring making sure it is in

its correct mounting position.

5. Lower and remove the supporting device so the

lower control arm is in its down position.

6. Install the shock absorber lower bolt and nut (1) to

the lower control arm. Tighten to 55 N·m (41 ft.
lbs.).

7. Lower the vehicle while guiding the shock into the

upper mounting surface.

8. Install the rubber mount and washer over the shock

absorber stud.

9. Install the shock absorber upper mounting nut (1).

Tighten to 18 N·m (13 ft. lbs.).

10. Tighten the lower control arm to 120 N·m (88 ft.

lbs.).

11. Lower the vehicle and check vehicle alignment.

(Refer to 2 - SUSPENSION/WHEEL ALIGNMENT
- STANDARD PROCEDURE).

ZH

FRONT SUSPENSION

2 - 41

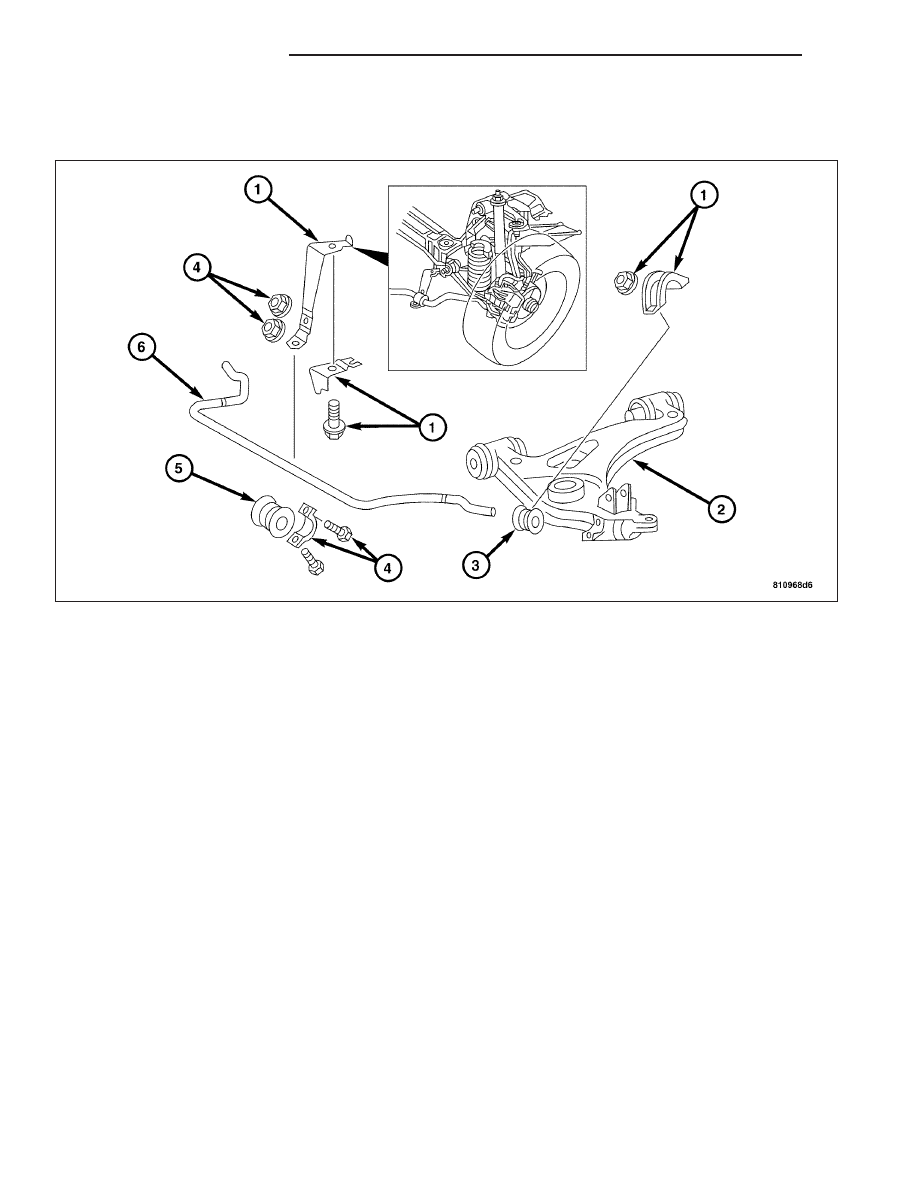

STABILIZER BAR

REMOVAL

1. Remove the stabilizer bar brackets (1) from the right and left lower control arms.

2. Remove the stabilizer bar bracket (4) from the retainer bracket.

3. Remove retainer bracket (4) and bracket mounting plate (if necessary).

4. Remove the stabilizer bar (6) from the vehicle.

5. Remove all rubber bushings (3 and 5) off of the stabilizer bar (6).

2 - 42

FRONT SUSPENSION

ZH
