3.

CHECK THE INTRUSION SENSOR RECEIVER

Turn the ignition off.

Install a known good Intrusion Sensor Receiver.

Turn the ignition on.

With the scan tool erase DTC’s.

Turn the ignition off and remove the key from the ignition.

Close all doors and arm the VTSS and wait one minute.

Disarm the VTSS turn the ignition on and wait one minute.

With the scan tool, read DTC’s.

Does the scan tool display B1A44–SECURITY RECEIVER SENSOR CIRCUIT OPEN?

Yes

>> Replace the Intrusion Transceiver Module in accordance with the Service Information.

Perform BODY VERIFICATION TEST – VER 1 (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL
MODULES - STANDARD PROCEDURE)

No

>> Replace the original Intrusion Sensor Receiver.

Perform BODY VERIFICATION TEST – VER 1 (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL
MODULES - STANDARD PROCEDURE)

4.

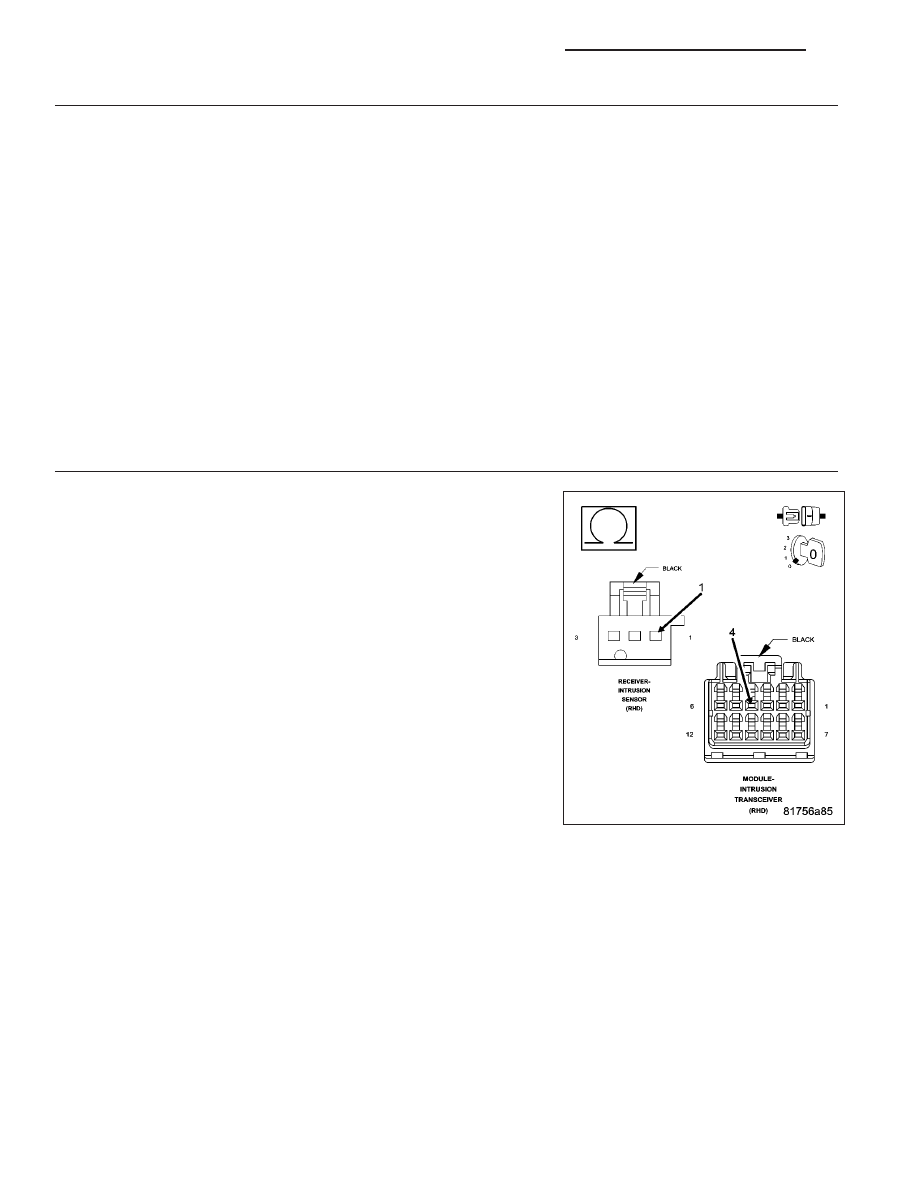

CHECK THE (G460) INTRUSION RECEIVER SENSOR SIGNAL WIRE

Turn the ignition off.

Disconnect the Intrusion Transceiver Module connector.

Measure the resistance of the (G460) Intrusion Receiver Sensor Signal
circuit between the Intrusion Sensor Receiver connector and the Intru-
sion Transceiver Module connector.

Is the resistance below 5.0 ohms?

Yes

>> Repair the (G460) Intrusion Receiver Sensor Signal circuit

for an open.

Perform BODY VERIFICATION TEST – VER 1 (Refer to 8 -
ELECTRICAL/ELECTRONIC

CONTROL

MODULES

-

STANDARD PROCEDURE)

No

>> Go To 5

Perform BODY VERIFICATION TEST – VER 1 (Refer to 8 -
ELECTRICAL/ELECTRONIC

CONTROL

MODULES

-

STANDARD PROCEDURE)

8Q - 72

VEHICLE THEFT SECURITY - ELECTRICAL DIAGNOSTICS

LX

5.

CHECK THE (G946) SENSOR GROUND WIRE FOR AN OPEN

Ensure Ignition is off.

Measure the resistance of the (G946) Intrusion Receiver Sensor Ground
circuit from the Intrusion Sensor Receiver connector to the Intrusion
Transceiver Module connector.

Is the resistance below 5.0 ohms?

Yes

>> Replace the Intrusion Transceiver Module in accordance

with the Service Information.

Perform BODY VERIFICATION TEST – VER 1 (Refer to 8 -
ELECTRICAL/ELECTRONIC

CONTROL

MODULES

-

STANDARD PROCEDURE)

No

>> Repair the (G946) Intrusion Receiver Sensor Ground circuit

for an open.

Perform BODY VERIFICATION TEST – VER 1 (Refer to 8 -
ELECTRICAL/ELECTRONIC

CONTROL

MODULES

-

STANDARD PROCEDURE)

LX

VEHICLE THEFT SECURITY - ELECTRICAL DIAGNOSTICS

8Q - 73

B1A45-SECURITY RECEIVER SENSOR CIRCUIT SHORTED TOGETHER

For a complete wiring diagram Refer to Section 8W.

8Q - 74

VEHICLE THEFT SECURITY - ELECTRICAL DIAGNOSTICS

LX

When Monitored:
During the VTSS pre-arm process.

Set Condition:
If the voltage current is below a specified range this DTC will set.

Possible Causes

INTRUSION SENSOR RECEIVER

(G460) INTRUSION RECEIVER SENSOR SIGNAL SHORTED TO (G946) INTRUSION RECEIVER SENSOR
GROUND

INTRUSION TRANSCEIVER MODULE

Diagnostic Test

1.

DETERMINING IF DTC IS CURRENT

NOTE: Diagnose any related Communication DTC(s) before continuing.
With a scan tool, read and record DTC(s).

With the scan tool, clear DTC(s).

Turn the ignition off and remove the key from the ignition.

Lock and close all doors to allow the VTSS to go from pre-arm to armed status and wait one minute.

Disarm the VTSS.

Using the scan tool, read DTC(s).

Does the DTC reset?

Yes

>> Go To 2

No

>> DTC is not active at this time. Test complete.

Perform BODY VERIFICATION TEST – VER 1 (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL
MODULES - STANDARD PROCEDURE)

2.

INTRUSION SENSOR RECEIVER

Disconnect the Intrusion Sensor Receiver connector.

NOTE: Check connectors - Clean/repair as necessary.
Connect a known good Intrusion Sensor Receiver.

Turn the ignition on.

With the scan tool, clear DTC(s).

Turn the ignition off and remove the key from the ignition.

Lock and close all doors to allow the VTSS to go from pre-arm to armed status and wait one minute.

Disarm the VTSS.

Using the scan tool, read DTC(s).

Does the DTC reset?

Yes

>> Go To 3

No

>> Replace the original Intrusion Sensor Receiver.

Perform BODY VERIFICATION TEST – VER 1 (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL
MODULES - STANDARD PROCEDURE)

LX

VEHICLE THEFT SECURITY - ELECTRICAL DIAGNOSTICS

8Q - 75
