SPOT LAMP - POLICE

REMOVAL

1. Remove the PDC cover and pull the fuse, depend-

ing on which spot lamp is being serviced.

2. Raise the spot lamp from the stowed to the oper-

ating position.

3. Support the spot lamp sealed beam in position.

4. Remove the screws (1) retaining the bezel to the

spot lamp head assembly.

5. Remove the bezel from the spot lamp head assem-

bly.

6. Tilt the sealed beam (2) away from the spot lamp

head assembly.

7. Disconnect the electrical connector to the spot

lamp head assembly.

8. Remove the bulb from the lamp housing by moving

the hold downs.

9. Remove bulb from lamp.

INSTALLATION

1. Position bulb into spot lamp assembly.

2. Install the hold downs.

3. Connect the electrical connector to the spot lamp

head assembly.

4. Tilt the sealed beam (2) toward the spot lamp head

assembly.

5. Install the bezel to the spot lamp head assembly.

6. Install the screws (1) retaining the bezel to the spot

lamp head assembly.

7. Lower the spot lamp from the operating to stowed

position.

8. Install the fuse and PDC cover.

8L - 134

LAMPS/LIGHTING - EXTERIOR - SERVICE INFORMATION

LX

SPOT LAMP ASSEMBLY - POLICE

DESCRIPTION

This vehicle may be equipped with up to two spot
lamp assemblies attached to the A-Pillars. The spot
lamp assembly switch is located on the handle just
above the rotating handle grip.

Each spot lamp assembly contains a 100 watt halogen
bulb. The spot lamp assemblies are fused individually
and powered hot at all times. There are three fuses in
the Power Distribution Center (PDC) that control the
spot lamp assemblies:

The parts available for service are:

Complete spot lamp assembly.

H3 100 watt halogen bulb.

Inside control handle w/switch.

OPERATION

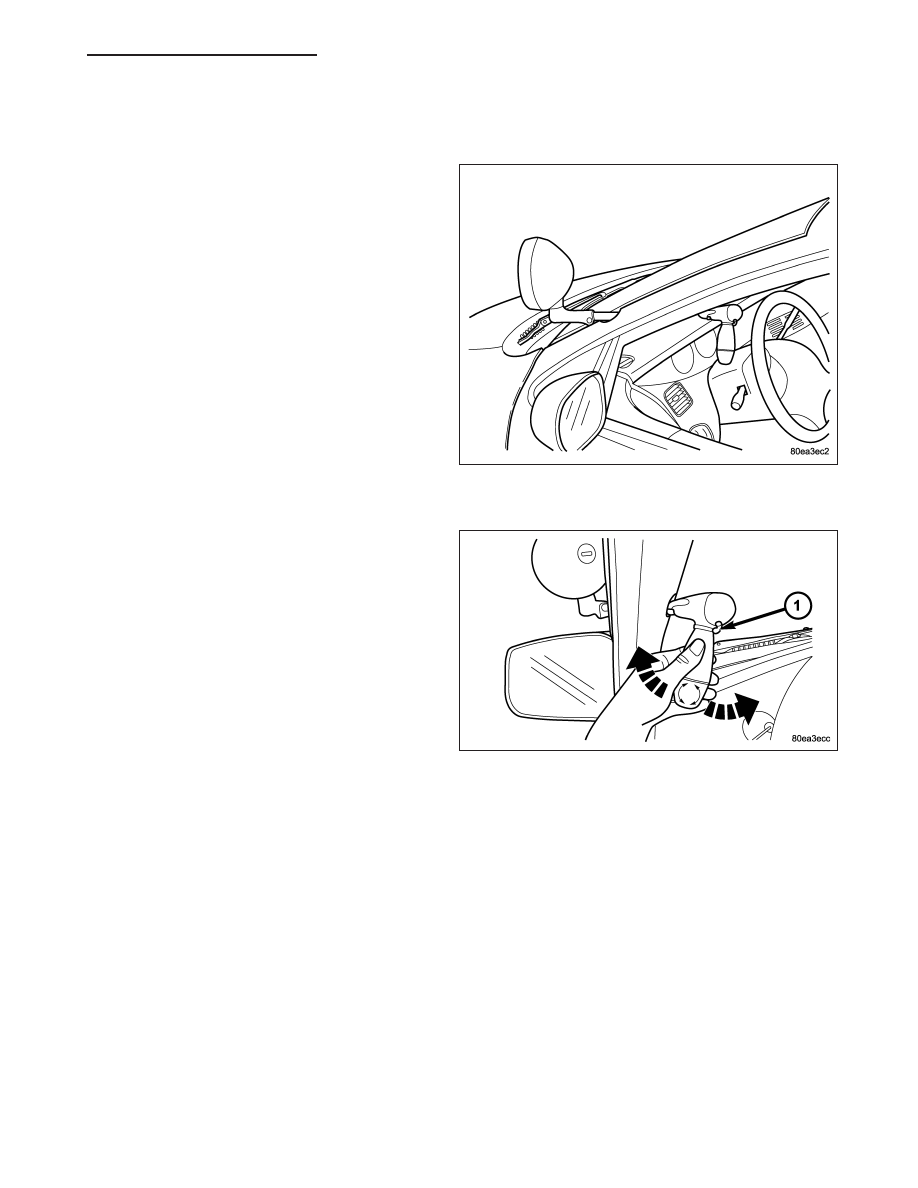

Use this switch (1) to turn the spot lamp assembly ON
and OFF. Rotate and twist the handle to adjust the
position of the spot lamp assembly.

DIAGNOSIS AND TESTING

SPOT LAMP ASSEMBLY - POLICE

IF SPOT LAMP DOES NOT LIGHT

1. If both spot lamps are inoperative, check spot lamp master fuse. Refer to Wiring Diagrams for fuse locations. If

fuse is OK, refer to Step 4. If fuse is damaged or inoperative, replace as necessary.

2. If the left spot lamp is inoperative, check fuse. If fuse is OK, refer to Step 4. If fuse is damaged or inoperative,

replace as necessary. If fuse blows again, find short to ground. Refer to Wiring Diagrams for circuit information.

3. If the right spot lamp is inoperative, check fuse. If fuse is OK, refer to Step 4. If fuse is damaged or inoperative,

replace as necessary. If fuse blows again, find short to ground. Refer to Wiring Diagrams for circuit information.

4. Check for B+ power at the spot lamp bulb with switch turned ON (Refer to 8 - ELECTRICAL/LAMPS/LIGHTING

- EXTERIOR/SPOT LAMP - REMOVAL). If there is B+ power at the spot lamp bulb connector, replace bulb. If
there is not B+ power present, refer to Step 5.

5. If there is not B+ power present at the spot lamp with the switch turned on, check circuit for an open. Possibly

the connector in the A-pillar. Refer to Wiring Diagrams for circuit information.

LX

LAMPS/LIGHTING - EXTERIOR - SERVICE INFORMATION

8L - 135

6. If there is B+ power at the spot lamp connector, and no B+ power at the spot lamp bulb, then the switch is

damaged or inoperative within the spot lamp assembly and the entire unit must be replaced. (Refer to 8 - ELEC-
TRICAL/LAMPS/LIGHTING - EXTERIOR/SPOT LAMP - REMOVAL).

7. If lamp still does not light, remove the handle (Refer to 8 - ELECTRICAL/LAMPS/LIGHTING - EXTERIOR/SPOT

LAMP - REMOVAL), and check the contact on the shaft end of the head assembly into the handle to make sure
the contact is not damaged.

IF SPOT LAMP IS HARD TO TURN

1. Check that the head housing clamping screw creates just enough drag to hold the spot lamp head in position in

windy conditions. Extreme drag will require more force on the handle to move the spot lamp head and cause
damage.

REMOVAL

CAUTION: Make sure that the master spot lamp
feed or either the left or right spot lamp feed are
removed from the Power Distribution Center (PDC)
before performing service on the spot lamps.

1. Remove the fuse cover and pull the fuse, depend-

ing on which spot lamp is being serviced.

2. Raise the spot lamp from the stowed to the oper-

ating position.

3. Using a trim stick or equivalent, gently pry out on

the A-pillar trim to release it. This will allow access
to the spot lamp electrical connector.

4. Remove the instrument panel end cap.

5. Disconnect the spot lamp electrical connector

(located behind the instrument panel end-cap).

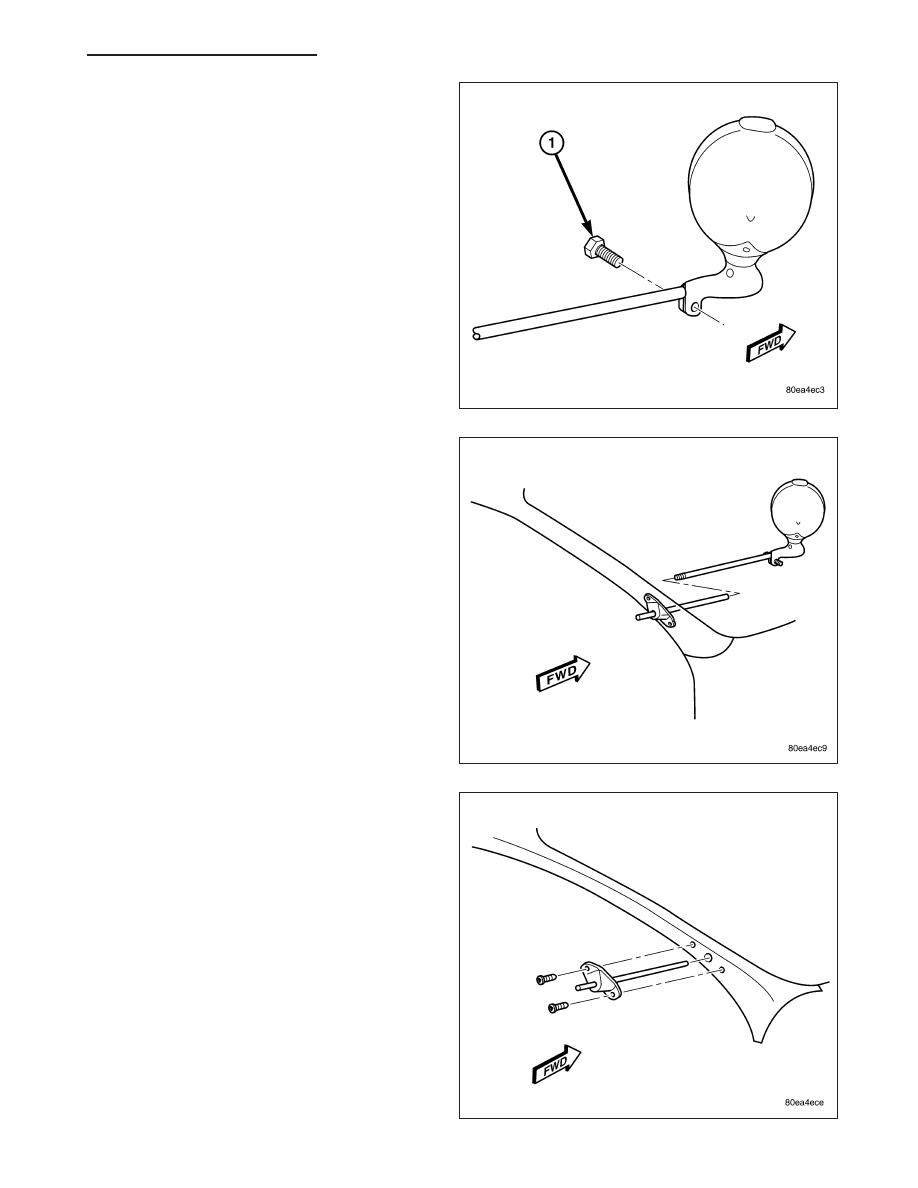

6. Loosen, but do not remove the bolt (1) retaining

the handle to the outer tube.

NOTE: Do not remove the bolt all the way.

7. Using a plastic tipped hammer, gently tap the head

of the handle retaining bolt and the opposing
wedge nut.

8. Remove the handle from the outer tube.

9. Remove the A-pillar trim from the spot lamp outer

tube.

8L - 136

LAMPS/LIGHTING - EXTERIOR - SERVICE INFORMATION

LX

CAUTION: Support the head of the spot lamp
while loosening the head assembly clamp screw.

10. Loosen the clamp screw (1) at the base of the

spot lamp head assembly.

11. Carefully remove the spot lamp head with the

intermediate and inner shafts from the outer tube
and mounting bracket.

12. Remove the screws retaining the spot lamp

mounting bracket to the A-pillar.

13. Remove the spot lamp outer tube and mounting

bracket from the A-pillar.
