When Monitored:Continously with the ignition on.

Set Condition:This code is set immediately when the Cluster detects low voltage on the heated seat indicator
control circuit.

Possible Causes

PDC FUSE #8

PDC FUSE #40

(F23) FUSED IGNITION SWITCH OUTPUT (RUN-START) CIRCUIT OPEN

(P83) LEFT HEATED SEAT HIGH INDICATOR DRIVER CIRCUIT OPEN/SHORTED TO GROUND

LEFT HEATED SEAT SWITCH

CLUSTER

Diagnostic Test

1.

VERIFY THAT DTC B120F-LEFT HEATED SEAT HI INDICATOR CONTROL CIRCUIT OPEN IS ACTIVE

With the scan tool, record and erase DTC’s

Operate the Heated Seat Switch in both positions several times.

With the scan tool, read DTC’s.

Does the DTC B120F-LEFT HEATED SEAT HI INDICATOR CON-
TROL CIRCUIT OPEN reset?

Yes

>> Go To 2

No

>> The conditions that caused this code to set are not present

at this time. Using the wiring diagram/schematic as a guide,
inspect the wiring and connectors.

Perform BODY VERIFICATION TEST – VER 1. (Refer to
BODY VERIFICATION TEST – VER 1).

2.

INSPECT PDC FUSES

Check PDC fuses #8 and #40.

Is either fuse open?

Yes

>> Check for a possible short to ground on the (F23) Fused Ignition Switch Output (Run-Start) Circuit and

replace the fuse as necessary.

Perform BODY VERIFICATION TEST – VER 1. (Refer to BODY VERIFICATION TEST – VER 1).

No

>> Go To 3

8G - 38

HEATED SEATS - ELECTRICAL DIAGNOSTICS

LX

3.

DISCONNECT THE CLUSTER C3 CONNECTOR AND CHECK FOR VOLTAGE

Reinstall fuse if removed in previous test.

Disconnect the Cluster C3 connector.

NOTE: Check connectors - Clean and repair as necessary.
Turn the ignition on.

Measure the voltage at the (P83) Left Heated Seat High Indicator
Driver circuit at the Cluster C3 connector.

Is the voltage above 10.0 volts?

Yes

>> Replace the Cluster in accordance with the Service Infor-

mation.

Perform BODY VERIFICATION TEST – VER 1. (Refer to
BODY VERIFICATION TEST – VER 1).

No

>> Go To 4

4.

CHECK THE (F23) FUSED IGNITION SWITCH OUTPUT (RUN-START)

Disconnect the Left Heated Seat switch connector.

NOTE: Check connectors - Clean and repair as necessary.
Turn the ignition on.

Measure the voltage of the (F23) Fused Ignition Switch Output (Run-
Start) circuit at the Left Heated Seat Switch connector.

Is the voltage above 10.0 volts ?

Yes

>> Go To 5

No

>> Repair the (F23) Fused Ignition Switch Output (Run-Start)

circuit for an open.

Perform BODY VERIFICATION TEST – VER 1. (Refer to
BODY VERIFICATION TEST – VER 1).

5.

CHECK THE (P83) LEFT HEATED SEAT HIGH INDICATOR DRIVER CIRCUIT FOR A SHORT TO GROUND

Measure the resistance between ground and the (P83) Left Heated
Seat High Indicator Driver circuit.

Was the resistance below 5.0 ohms?

Yes

>> Repair the (P83) Left Heated Seat High Indicator Driver cir-

cuit for a short to ground

Perform BODY VERIFICATION TEST – VER 1. (Refer to
BODY VERIFICATION TEST – VER 1).

No

>> Go To 6

LX

HEATED SEATS - ELECTRICAL DIAGNOSTICS

8G - 39

6.

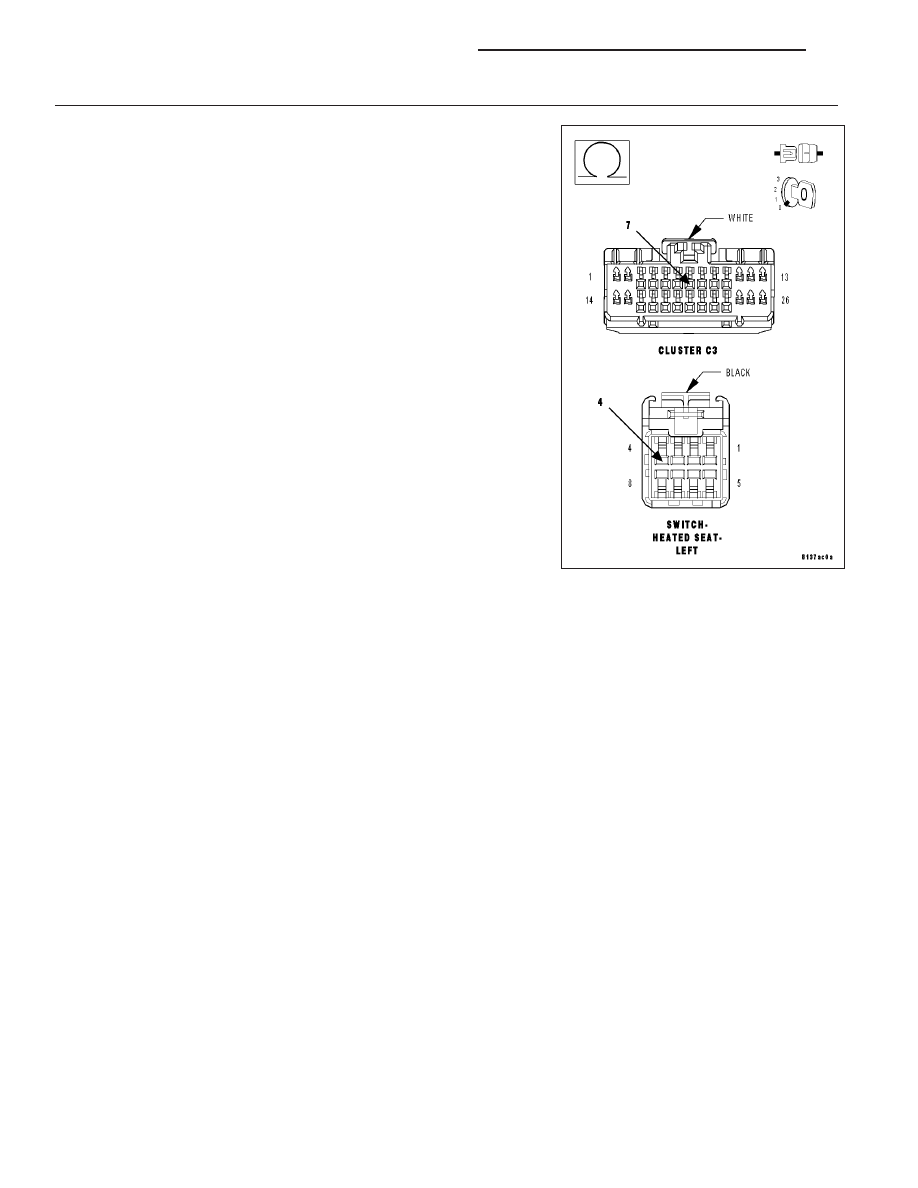

CHECK THE (P83) LEFT HEATED SEAT HIGH INDICATOR DRIVER CIRCUIT FOR AN OPEN

Measure the resistance of the (P83) Left Heated Seat High Indicator
Driver circuit between the Cluster C3 connector and the Left Heated
Seat Switch connector.

Is the resistance below 5.0 ohms?

Yes

>> Replace the Left Heated Seat Switch.

Perform BODY VERIFICATION TEST – VER 1. (Refer to
BODY VERIFICATION TEST – VER 1).

No

>> Repair the (P83) Left Heated Seat High Indicator Driver cir-

cuit for an open.

Perform BODY VERIFICATION TEST – VER 1. (Refer to
BODY VERIFICATION TEST – VER 1).

8G - 40

HEATED SEATS - ELECTRICAL DIAGNOSTICS

LX

B1216-LEFT HEATED SEAT LO INDICATOR CONTROL CIRCUIT HIGH

For a complete wiring diagram Refer to Section 8W.

LX

HEATED SEATS - ELECTRICAL DIAGNOSTICS

8G - 41
