13. Clean the backlite fence with an ammonia based

glass cleaner and a lint-free cloth.

14. Apply pinch weld primer 15 mm (0.75 in.) wide (1)

around the backlite fence (2). Allow at least three
minutes drying time.

15. Using a flashlight, verify that the primer is com-

pletely and evenly installed along the backlite
fence.

16. Re-prime any area that is not fully and evenly

primed.

CAUTION: Always apply the bead of adhesive to
the backlite. Always install the backlite within 5
minutes after applying the adhesive.

NOTE: If the original urethane adhesive has been
exposed for more than 12 hours, the entire adhe-
sive area will need to be re-primed prior to install-
ing new adhesive.

17. Apply approximately a 10 mm (0.4 in.) wide bead

of adhesive (1) with a triangular nozzle approxi-
mately 6 mm (0.230 in.) from the edge of the
glass (2) starting at the bottom center of the
backlite.

18. Run the end of the adhesive bead (1) on the

backlite (2) parallel to the start of the bead and
smooth the ends flush.

23 - 276

STATIONARY GLASS

LX

19. Using an assistant, position the backlite (2) over

the backlite opening.

20. Using the grease pencil marks or tape as refer-

ence points, align the backlite to the opening.

21. Carefully lower the backlite onto the backlite fence

(3). Guide the backlite and the rubber seal (1)
around the backlite into its proper location.

CAUTION: It is not possible to move the backlite
after installation. The backlite should never be
pressed into place by more than one person,
because the backlite can break if pressed simulta-
neously on both sides.

22. Push the backlite inward until the backlite comes

into contact with the spacers located on each side
of the backlite fence.

23. Connect the wire connectors to the rear window

defogger terminals and, rear window mounted
radio antenna, if equipped.

24. Install the trim panel to the rear shelf (Refer to 23 - BODY/INTERIOR/REAR SHELF TRIM PANEL - INSTAL-

LATION).

25. Install the quarter trim panels (Refer to 23 - BODY/INTERIOR/QUARTER TRIM PANEL - INSTALLATION).

LX

STATIONARY GLASS

23 - 277

GLASS-LIFTGATE

REMOVAL

NOTE: Windshield removal shown, liftgate glass
similar.

1. Before proceeding with the following repair proce-

dure, review all warnings and cautions. (Refer to
23 - BODY/STATIONARY GLASS - WARNING)

2. Remove the liftgate trim panels (Refer to 23 -

BODY/LIFTGATE/TRIM PANEL - REMOVAL).

3. Remove rear window wiper arm, if equipped (Refer

to 8 - ELECTRICAL/WIPERS/WASHERS/WIPER
ARMS - REMOVAL).

4. Disconnect the wire connectors from rear window

defogger terminals and, rear window mounted radio
antenna, if equipped.

5. Using an assistant and a wire-type windshield cut-

out tool (1, 3 and 4), cut and separate the urethane
adhesive (2) securing the backlite to the liftgate.

6. Carefully remove the backlite from the vehicle.

INSTALLATION

CAUTION: To help prevent water leaks, partially roll down the left and right door glass before installing the
liftgate glass. This avoids pressurizing the passenger compartment if a door is slammed before the ure-
thane is cured.

CAUTION: Protect all painted and trimmed surfaces from coming in contact with urethane or primers.

1. If the liftgate glass (1) is being reused, remove the

as much original urethane (3) as possible from the
glass surface using a razor knife (2).

23 - 278

STATIONARY GLASS

LX

NOTE: To prevent corrosion, do not damage paint
on the liftgate glass fence when removing original
urethane.

NOTE: The liftgate glass fence should be cleaned
of most of its old urethane adhesive. A small
amount of old urethane, approximately 1 mm in
height should remain on the fence. Do not com-
pletely remove all old urethane from the fence, the
paint finish and bonding strength will be adversely
affected. Replace any missing or damaged spac-
ers around the perimeter of the liftgate glass
fence.

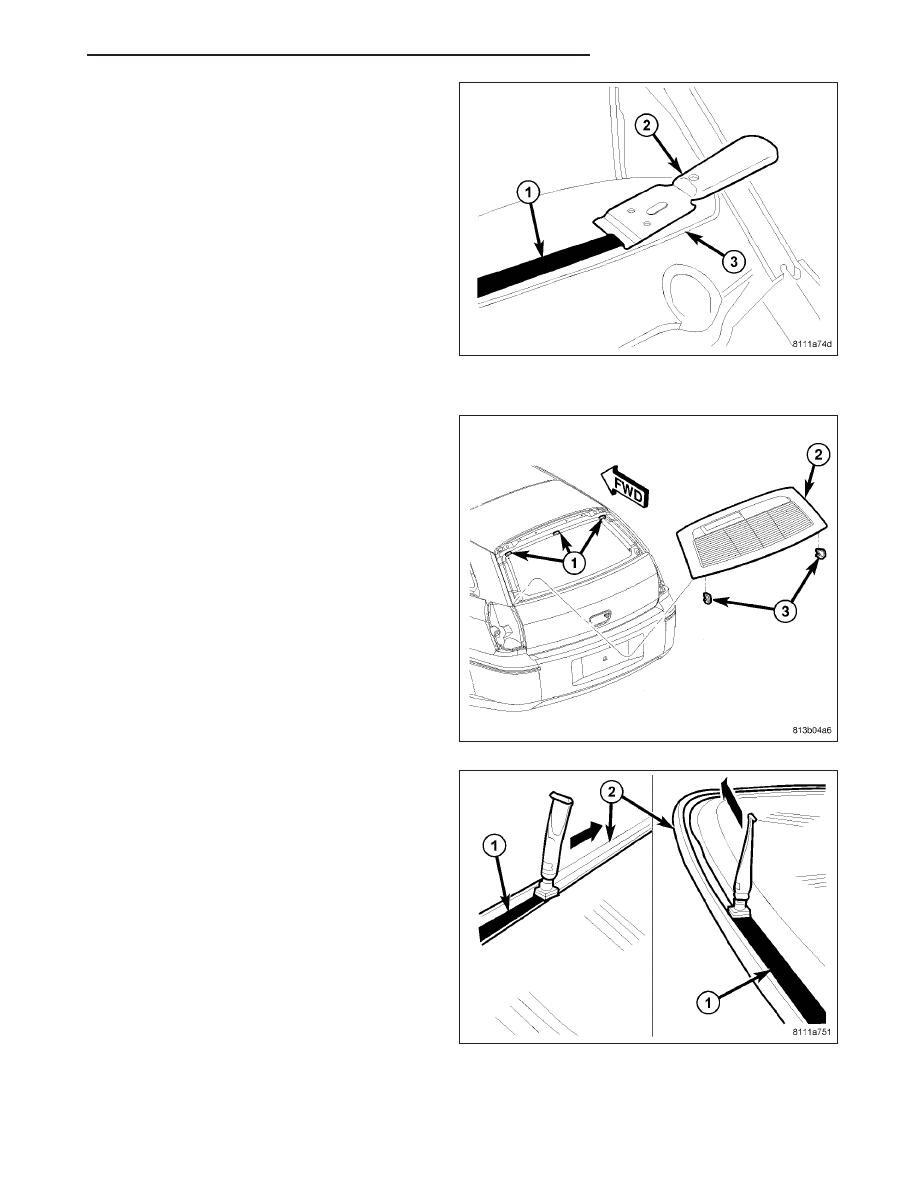

2. Using a razor knife (2), level the original bead of

urethane (1) on the liftgate glass fence (3) to a
thickness of approximately 1 mm (0.04 in.) and remove the loose adhesive.

3. Replace any damaged or missing spacers (1 and

3).

4. Using an assistant, position the liftgate glass (2)

into the liftgate glass opening and against the sup-
port spacers.

5. Verify the liftgate glass lays evenly against the lift-

gate fence at the top, bottom and sides of the
opening. If not, the fence must be formed to the
shape of the liftgate glass.

6. Mark the liftgate glass and fence with a grease

pencil or pieces of masking tape to use as a refer-
ence for installation.

7. Using an assistant, remove the liftgate glass from

the liftgate glass opening and place it on a suitable
padded work surface.

WARNING: Do not use solvent based glass clean-
ers to clean the liftgate glass before applying
glass prep and primer or poor glass adhesion may
result.

8. Clean the inside of the liftgate glass with an ammo-

nia based glass cleaner and a lint-free cloth.

9. Apply glass prep adhesion promoter 25 mm (1 in.)

wide (1) around the perimeter of the liftgate glass
(2) and 5 mm (0.2 in.) from the edge of the glass
and wipe dry with a clean lint-free cloth until no
streaks are visible.

10. Apply glass primer 25 mm (1 in.) wide around the

perimeter of the liftgate glass and 5 mm (0.2 in.)
from the edge of the glass. Allow at least three
minutes drying time.

11. Using a flashlight, verify that the primer is completely and evenly installed along the perimeter of the liftgate

glass.

12. Re-prime any area that is not fully and evenly primed.

LX

STATIONARY GLASS

23 - 279
