INSTALLATION

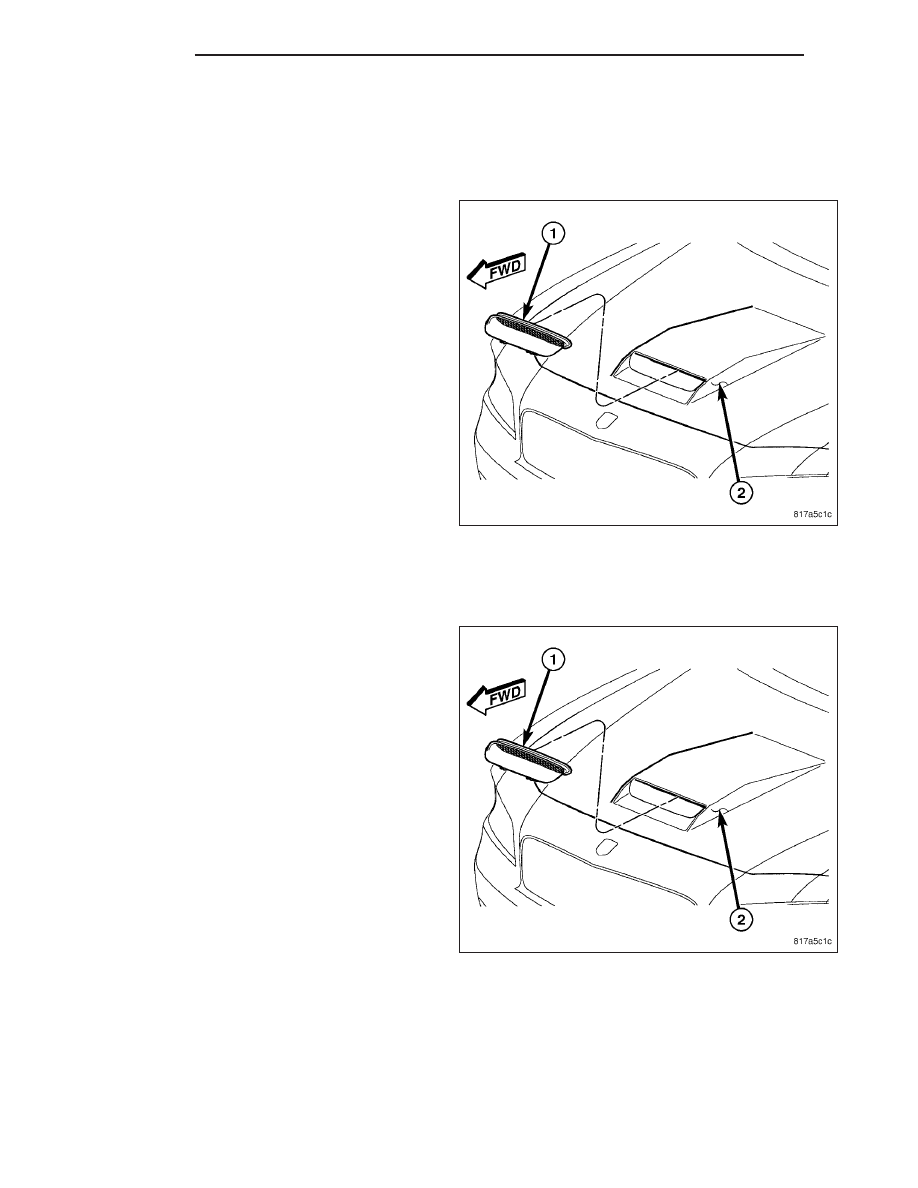

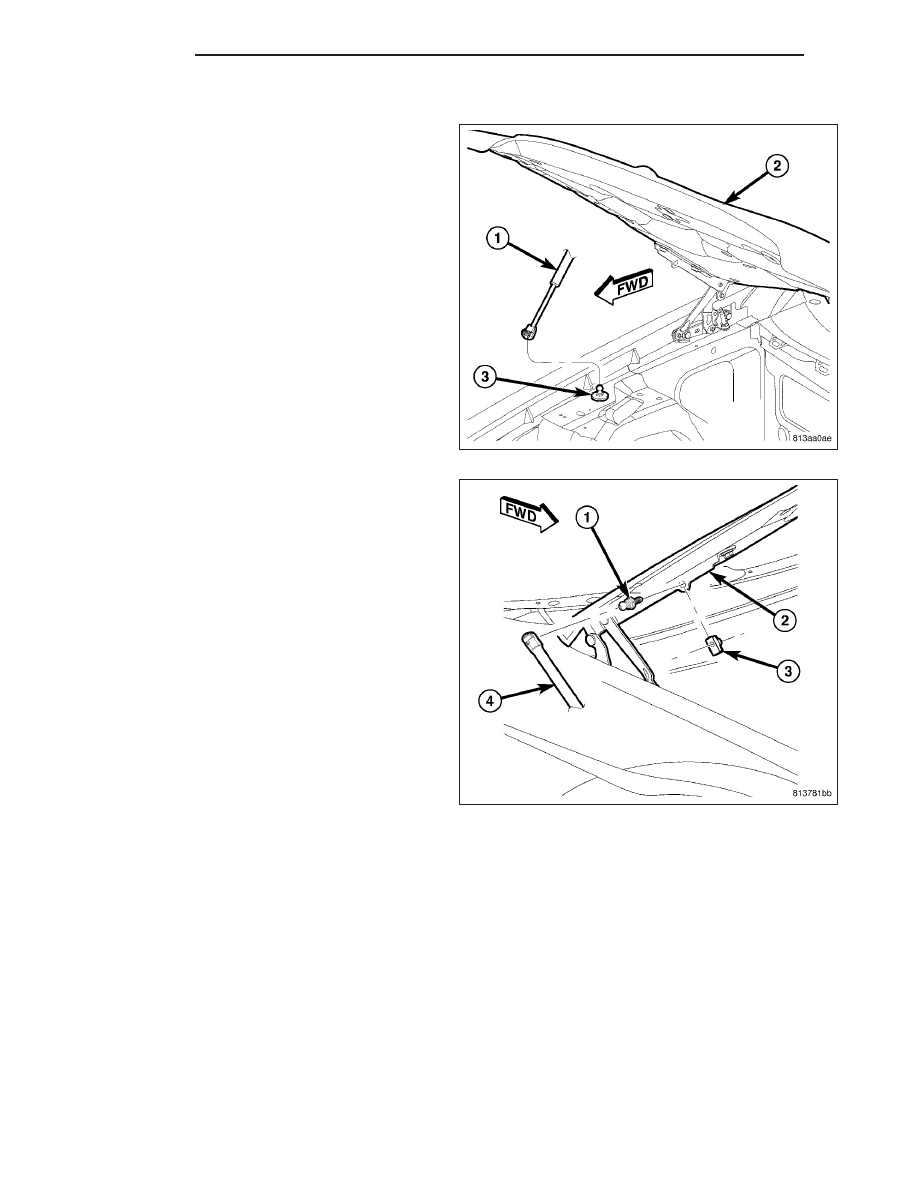

1. Check to be certain that the ball stud (3) on the top
of the fender load beam is in good condition and
properly installed. Tighten the ball stud to 28 N·m
(21 ft. lbs.).
2. Position the ball socket on the rod end of the sup-
port cylinder (1) to the ball stud on the top of the
fender load beam.
3. Check to be certain that the ball stud (1) secured
by a U-nut (3) to the upper bracket (2) of the hood
hinge is in good condition and properly installed.
Tighten the ball stud to 28 N·m (21 ft. lbs.).
4. Position the ball socket on the cylinder end of the
support cylinder (4) to the ball stud on the upper
bracket of the hood hinge.
5. Using hand pressure, press the ball socket onto
the ball stud until the retainer clip snaps into place.
6. Inspect to be certain that the retaining clip on each
of the support cylinder ball socket ends is fully
seated.
7. Remove the service prop or block and close the
hood.
