8. Carefully pull the body wire harness connector(s)

(1) out from the A-pillar far enough to reconnect
them to the door wire harness boot and connector
(2).

9. Engage the front door wire harness boot and con-

nector (1) into the wiring clearance hole on the out-
side of the lower A-pillar (2).

10. Reconnect the battery negative cable.

NOTE: For vehicles equipped with the optional
Automatic Express Up power window feature,
recalibration of this feature is required whenever
power to the door module is disrupted. (Refer to 8
- ELECTRICAL/BATTERY SYSTEM - STANDARD
PROCEDURE - BATTERY CONNECTION).

11. Adjust the door hinge positions as necessary to

achieve proper door spacing and operation.

23 - 36

DOOR - FRONT

LX

EXTERIOR HANDLE

REMOVAL

1. Remove the trim panel from the inside of the front

door. (Refer to 23 - BODY/DOOR - FRONT/TRIM
PANEL - REMOVAL).

2. Remove the speaker from the inside of the front

door. (Refer to 8 - ELECTRICAL/AUDIO/SPEAKER
- REMOVAL).

3. Remove the watershield from the inside of the front

door. (Refer to 23 - BODY/DOOR - FRONT/WA-
TERSHIELD - REMOVAL).

4. Remove the screw (3) that secures the bottom of

the pull cup bracket (2) and the bottom of the win-
dow regulator rear rail to the inside of the front
door.

5. Loosen the screw (1) that secures the top of the

pull cup bracket to the inside of the front door.

6. Disengage the upper pull cup bracket screw from

the keyed hole and remove the bracket from the
inside of the front door.

7. Reach up into the back of the door shell to unsnap

the plastic clip (2) that secures the end of the latch
release link to the exterior door handle (1) and dis-
engage the latch release link from the handle.

8. For the driver side handle only, reach up into the

back of the door shell to unsnap the plastic clip (3)
that secures the end of the lock actuator link to the
lock cylinder and disengage the link from the lock
cylinder.

LX

DOOR - FRONT

23 - 37

9. Remove the three screws (2) from the inside of the

door that secure that exterior handle to the door.

10. Remove the handle from the outside of the door.

INSTALLATION

1. Position the exterior handle (1) to the mounting

holes on the outside of the door.

2. From the inside of the door, install and tighten the

three screws (2) that secure that exterior handle to
the door. Tighten the screws to 5 N·m (44 in. lbs.).

23 - 38

DOOR - FRONT

LX

3. For the driver side handle only, reach up into the

back of the door shell to engage the lock actuator
link (3) to the lock cylinder and snap the plastic clip
over the link to secure it to the lock cylinder.

4. Reach up into the back of the door shell to engage

the latch release link (2) to the exterior door handle
(1) and snap the plastic clip over the link to secure
it to the handle.

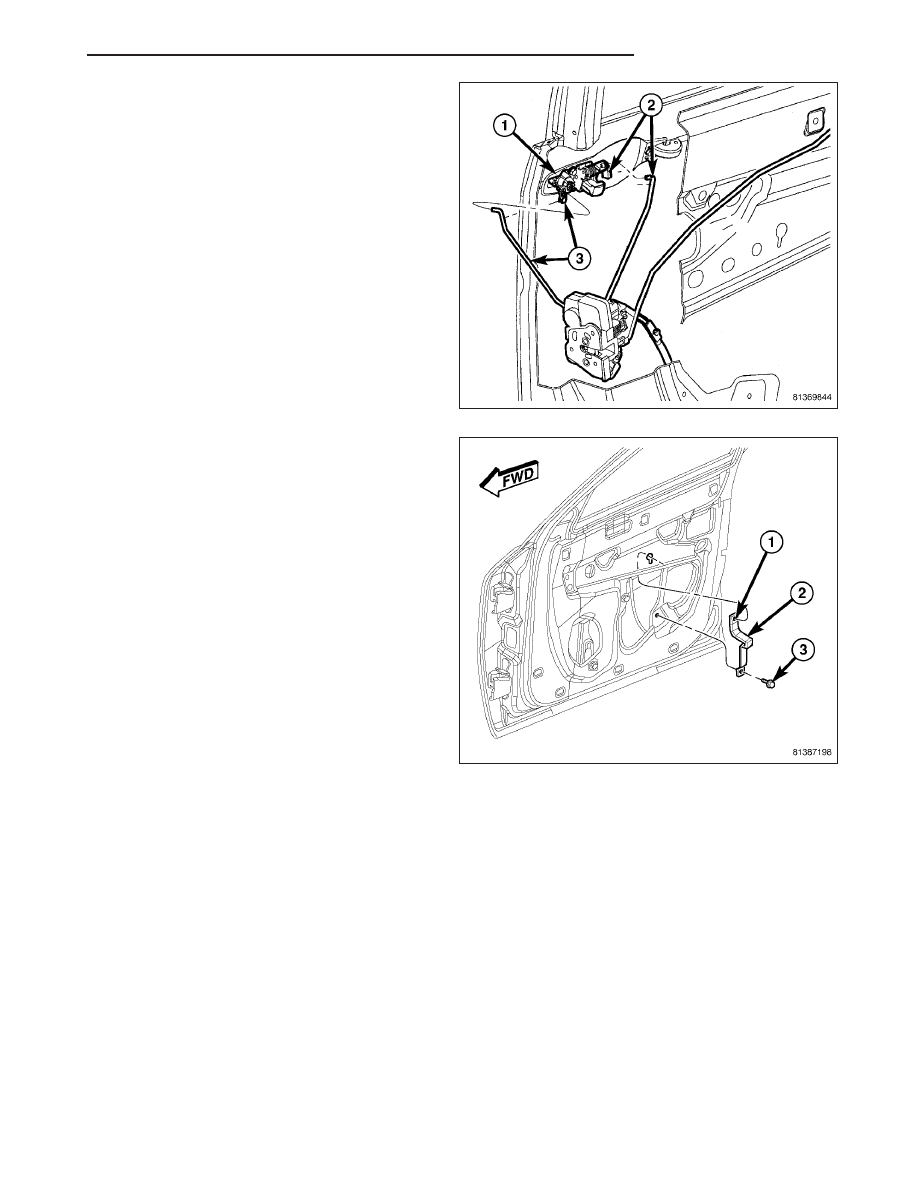

5. With the upper screw (1) hand-started into the pull

cup bracket (2), position the screw into the keyed
hole on the inside of the front door.

6. Install and tighten the screw (3) that secures the

bottom of the pull cup bracket and the bottom of
the window regulator rear rail to the inside of the
front door. Tighten the screw to 11 N·m (100 in.
lbs.).

7. Tighten the screw that secures the top of the pull

cup bracket to the inside of the front door. Tighten
the screw to 10 N·m (90 in. lbs.).

8. Reinstall the watershield onto the inside of the front

door. (Refer to 23 - BODY/DOOR - FRONT/WA-
TERSHIELD - INSTALLATION).

9. Reinstall the speaker onto the inside of the front

door. (Refer to 8 - ELECTRICAL/AUDIO/SPEAKER
- INSTALLATION).

10. Reinstall the trim panel onto the inside of the front

door. (Refer to 23 - BODY/DOOR - FRONT/TRIM
PANEL - INSTALLATION).

LX

DOOR - FRONT

23 - 39
