CAUTION: When handling the steering column,
care must be taken not to squeeze the boot or dis-
tort the seal to the body.

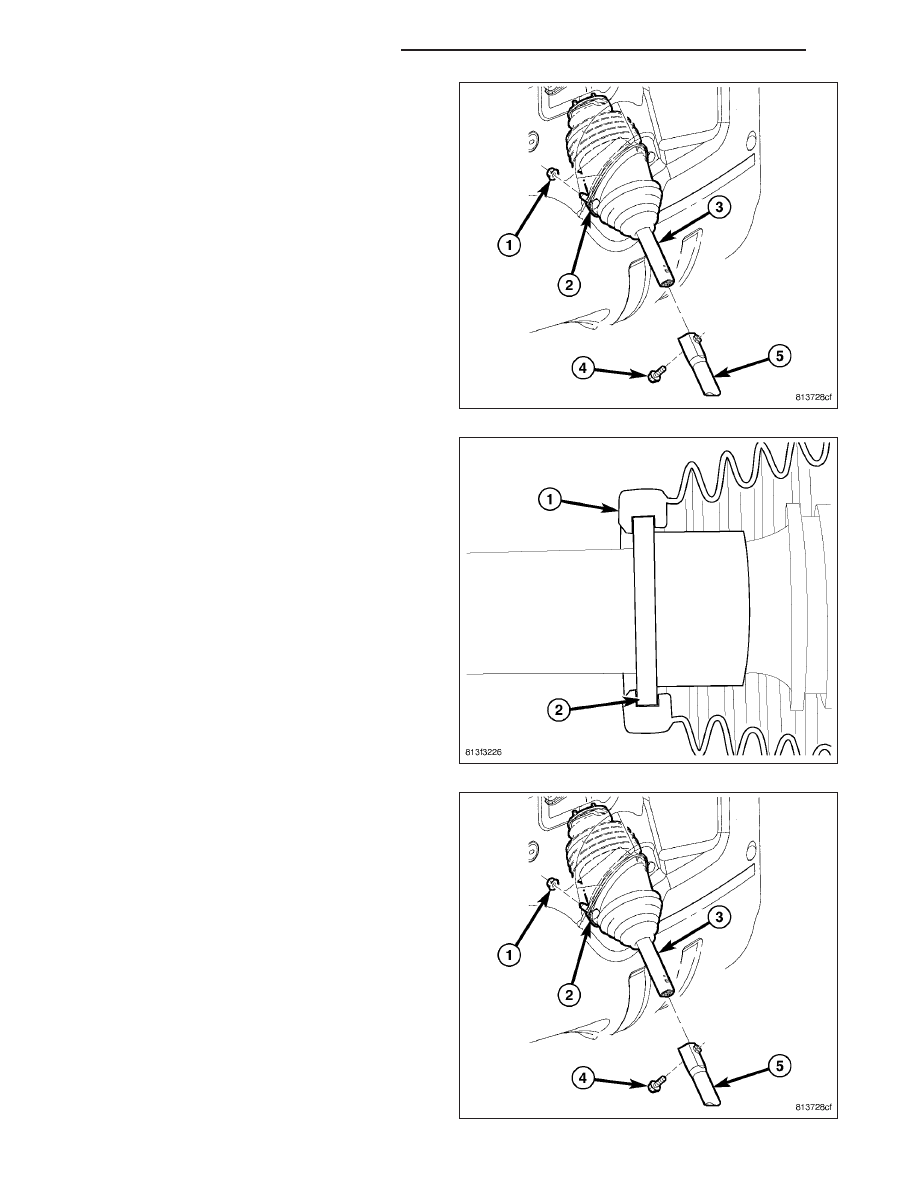

6. Center the boot for the steering column at the bulk-

head (2). Install and tighten the two mounting nuts
(1) to 7 N·m (62 in. lbs.).

7. Raise and support the vehicle.

8. Check and make sure the plastic collar (2) on the

column shaft is engaged in the groove within the
boot (1).

9. Align the pin on the steering shaft with the nut in

the lower coupling shaft and slide the steering shaft
(3) into the lower coupling (5).

10. Install a NEW pinch bolt (4). Tighten pinch bolt to

31 N·m (23 ft. lbs.).

11. Lower the vehicle.

19 - 142

COLUMN SERVICE INFORMATION

LX

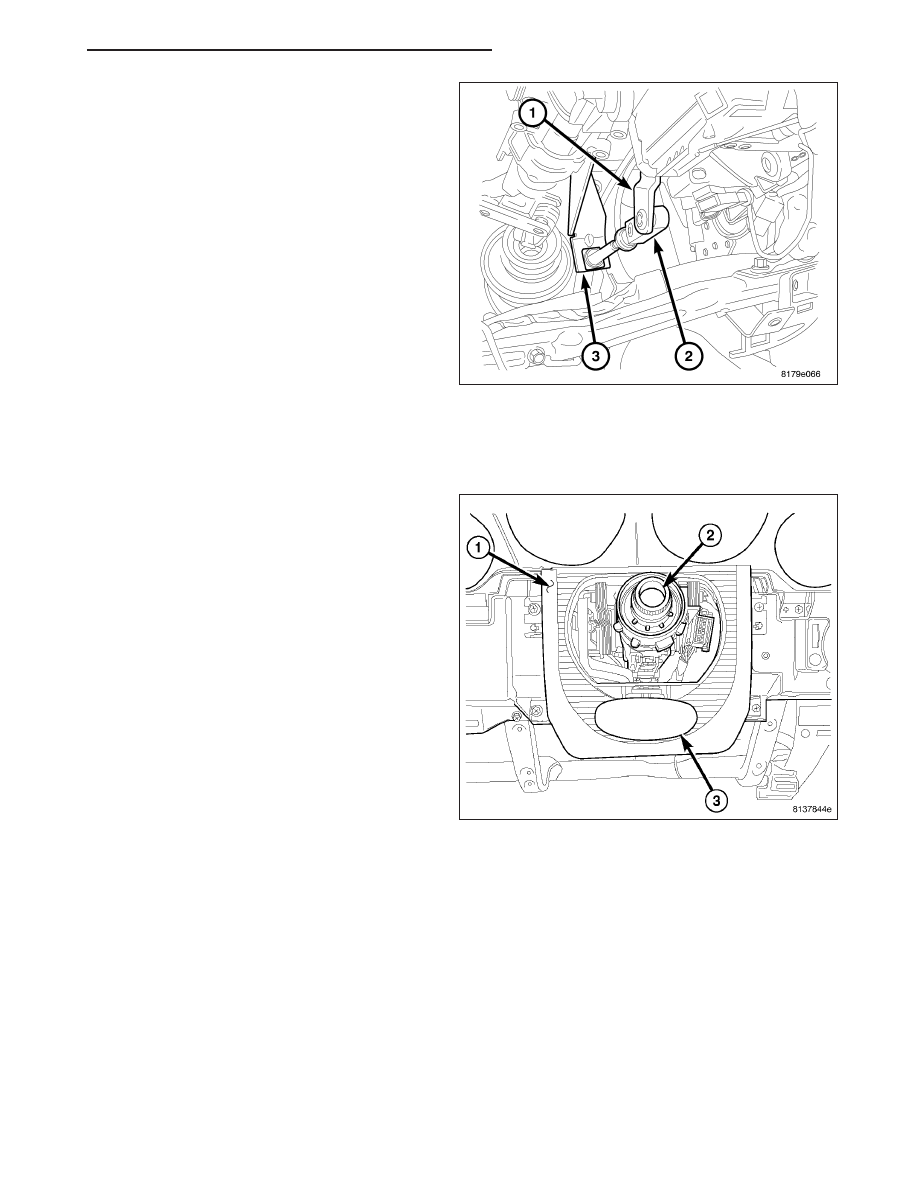

12. Install the shift cable (2) in the mounting bracket

(3).

13. Connect the shift cable (2) to the shift mechanism

(1).

14. Install the steering column wiring harness connector into the holder on the steering column. Make sure the

connector is captured in the holder.

15. Install the instrument cluster (but not cluster bezel). (Refer to 8 - ELECTRICAL/INSTRUMENT CLUSTER -

INSTALLATION)

16. Position the roll top shroud (1) and install the

three mounting screws.

LX

COLUMN SERVICE INFORMATION

19 - 143

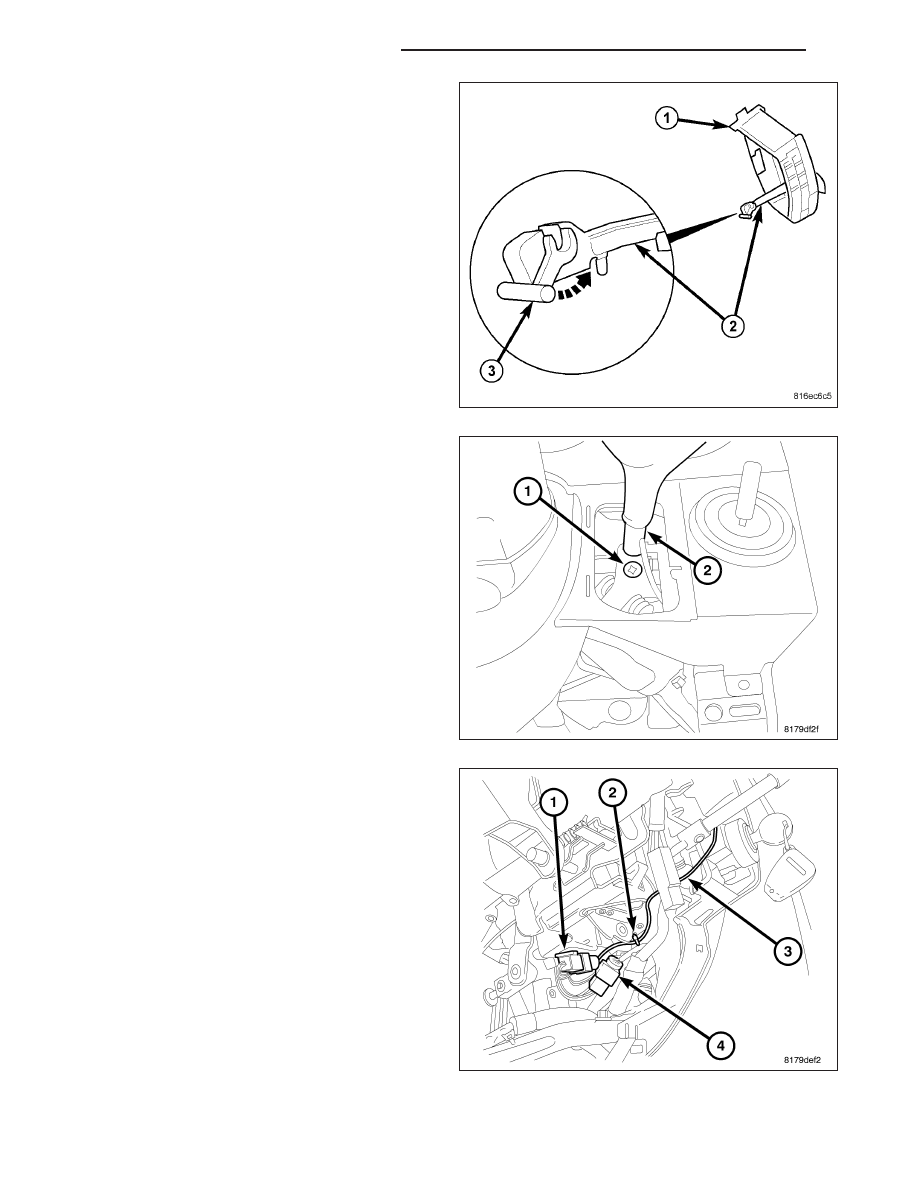

17. Position the manual adjustment handle (2) over

the column adjustment pin and rotate the locking
tab (3) rearward as shown latching the handle to
the column. Make sure the tab snaps into locked
position.

18. Install the cluster bezel (3). (Refer to 23 - BODY/

INSTRUMENT

PANEL/CLUSTER

BEZEL

-

INSTALLATION)

19. Slide the gear shift lever (2) into the column shift

mechanism.

20. Line up the threaded hole in the lever with the

hole in the shift mechanism and install the gear
shift lever mounting screw (1). Tighten the screw
to 12 N·m (106 in. lbs.).

21. Route the autostick wiring down the right side of

the column and secure to the column using a wir-
ing tie strap (2).

22. Connect the autostick wiring connector (1).

23. Connect the 6-Way electronic shift module wiring

connector (4).

19 - 144

COLUMN SERVICE INFORMATION

LX

24. Slide the gear shift lever boot down gear shift

lever (1) and snap it into place on the cluster
bezel (3).

25. Install the SCCM assembly (1) onto the steering

column.

26. Tighten the set screw (1) securing the SCCM

assembly (2).

LX

COLUMN SERVICE INFORMATION

19 - 145
