3. Tighten

the

steering

column

upper

mounting

screws (1) to 30 N·m (22 ft. lbs.).

4. Tighten the pivot bolt (2) to 30 N·m (22 ft. lbs.).

19 - 134

COLUMN SERVICE INFORMATION

LX

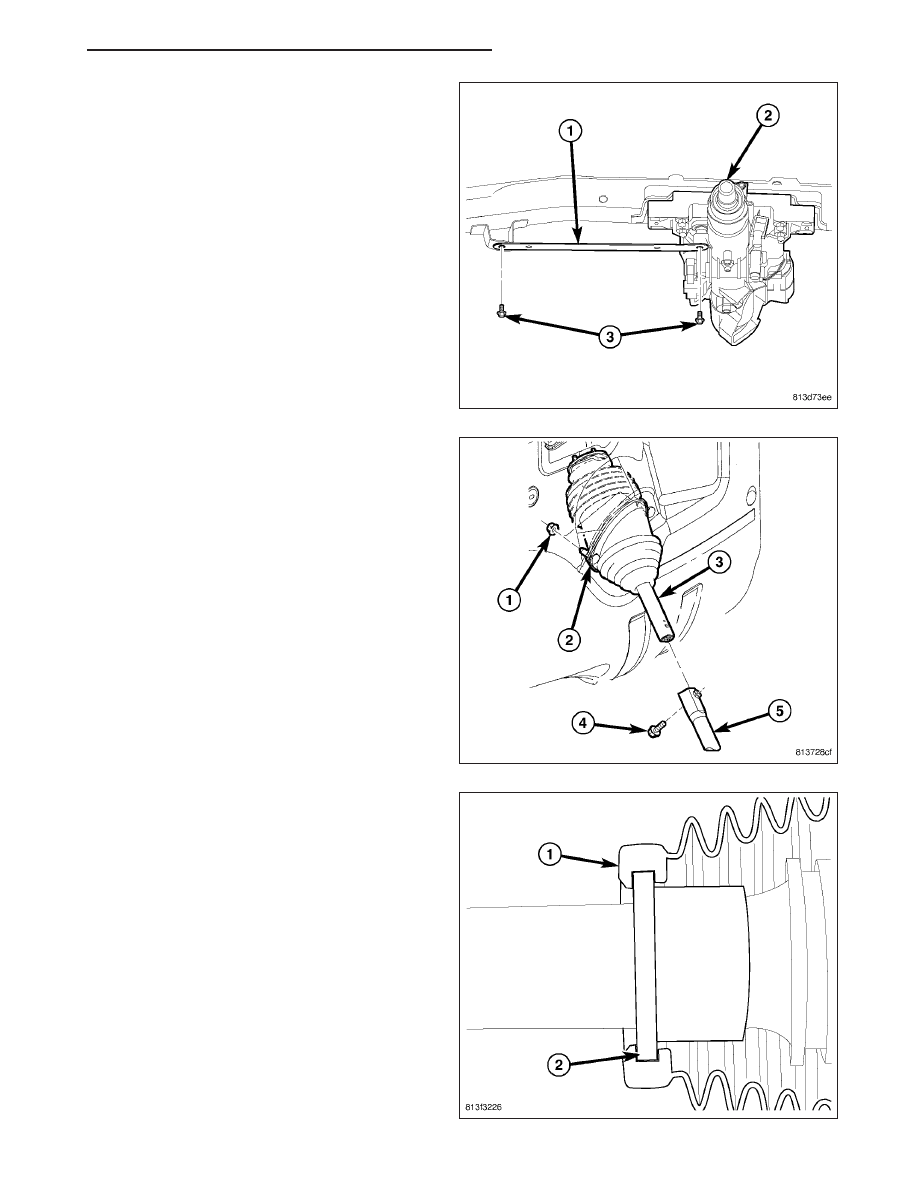

5. If equipped with electronic telescoping column,

Install the screws (3) fastening the brace (1) to the
steering column (2) and support beam bracket.
First, tighten mounting screw at the column to 29
N·m (21 ft. lbs.). Then, tighten mounting screw at
the support beam to 12 N·m (106 in. lbs.).

CAUTION: When handling the steering column,
care must be taken not to squeeze the boot or dis-
tort the seal to the body.

6. Center the boot for the steering column at the bulk-

head (2). Install and tighten the two mounting nuts
(1) to 7 N·m (62 in. lbs.).

7. Raise and support vehicle.

8. Check and make sure plastic collar (2) on column

shaft is engaged in groove within boot (1).

LX

COLUMN SERVICE INFORMATION

19 - 135

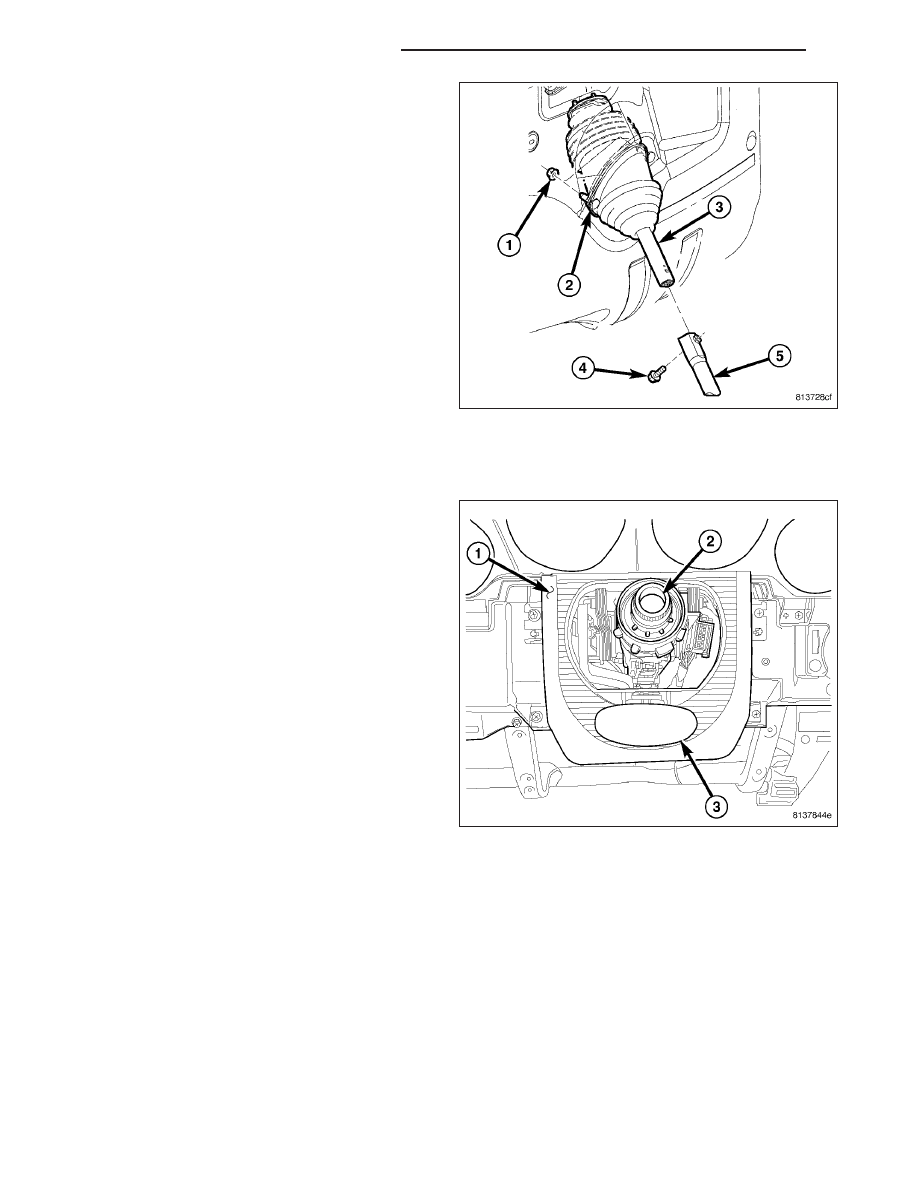

9. Align the pin on the steering shaft with the nut in

the lower coupling shaft and slide the steering shaft
(3) into the lower coupling (5).

10. Install a NEW pinch bolt (4). Tighten pinch bolt to

31 N·m (23 ft. lbs.).

11. Lower the vehicle.

12. Install the steering column wiring harness connector into the holder on the steering column. Make sure the

connector is captured in the holder.

13. Install the instrument cluster. (Refer to 8 - ELECTRICAL/INSTRUMENT CLUSTER - INSTALLATION)

14. Position the roll top shroud (1) and install the four

mounting screws.

19 - 136

COLUMN SERVICE INFORMATION

LX

15. Manual tilt and telescoping columns – Position the

manual adjustment handle (2) over the column
adjustment pin and rotate the locking tab (3) rear-
ward as shown latching the handle to the column.
Make sure the tab snaps into locked position.

16. Install the SCCM assembly (1) onto the steering

column.

17. Tighten the set screw (1) securing the SCCM

assembly (2).

LX

COLUMN SERVICE INFORMATION

19 - 137
