Chrysler 300/300 Touring/300C, Dodge Magnum. Manual - part 1827





29. Remove the lower steering column mounting pivot

bolt and nut (2).

CAUTION: When handling the steering column use
care to avoid holding the column by any part of
the tilt/telescope mechanism or by the shaft boot.
The column should be held by its mounting
bracket and the shaft by the exposed portions.

30. Remove the two upper mounting screws (1) from

the steering column (2).

31. Lower the steering column assembly to access

the park lock cable.

CAUTION: Before removing the park lock (inter-
lock) cable, make sure the ignition key is removed
or placed in LOCK position. If otherwise, damage
to the park lock system may occur.

32. Remove the park lock (interlock) cable housing

(1) from the column.

33. Remove the park lock cable button (2) from the

lever.

34. Remove the steering column assembly from the

vehicle.

35. If necessary, transfer any parts to the new

column.

19 - 126

COLUMN SERVICE INFORMATION

LX

COLUMN - RHD

WARNING: Before servicing the steering column the airbag system must be disarmed. Refer to electrical
restraint system for service procedures. Failure to do so may result in accidental deployment of the airbag
and possible personal injury.

CAUTION: All fasteners must be torqued to specification to ensure proper operation of the steering column.

1. Position the front wheels straight-ahead.

2. Disconnect the negative (ground) cable from the battery.

3. Remove the airbag (3). (Refer to 8 - ELECTRICAL/

RESTRAINTS/DRIVER AIRBAG - REMOVAL).

4. Remove the steering wheel retainer bolt (2), then

slide the steering wheel (3) off the steering column
(1) shaft.

LX

COLUMN SERVICE INFORMATION

19 - 127

5. Remove the steering column opening cover (1).

(Refer

to

23

-

BODY/INSTRUMENT

PANEL/

STEERING

COLUMN

OPENING

COVER

-

REMOVAL)

6. Remove the steering column opening reinforce-

ment (3).

7. Remove two left side parking brake lever mounting

nuts (8) and loosen the right lower mounting nut
(5). Remove the lever from the studs (2, 3) and
move it down, away from the column.

19 - 128

COLUMN SERVICE INFORMATION

LX

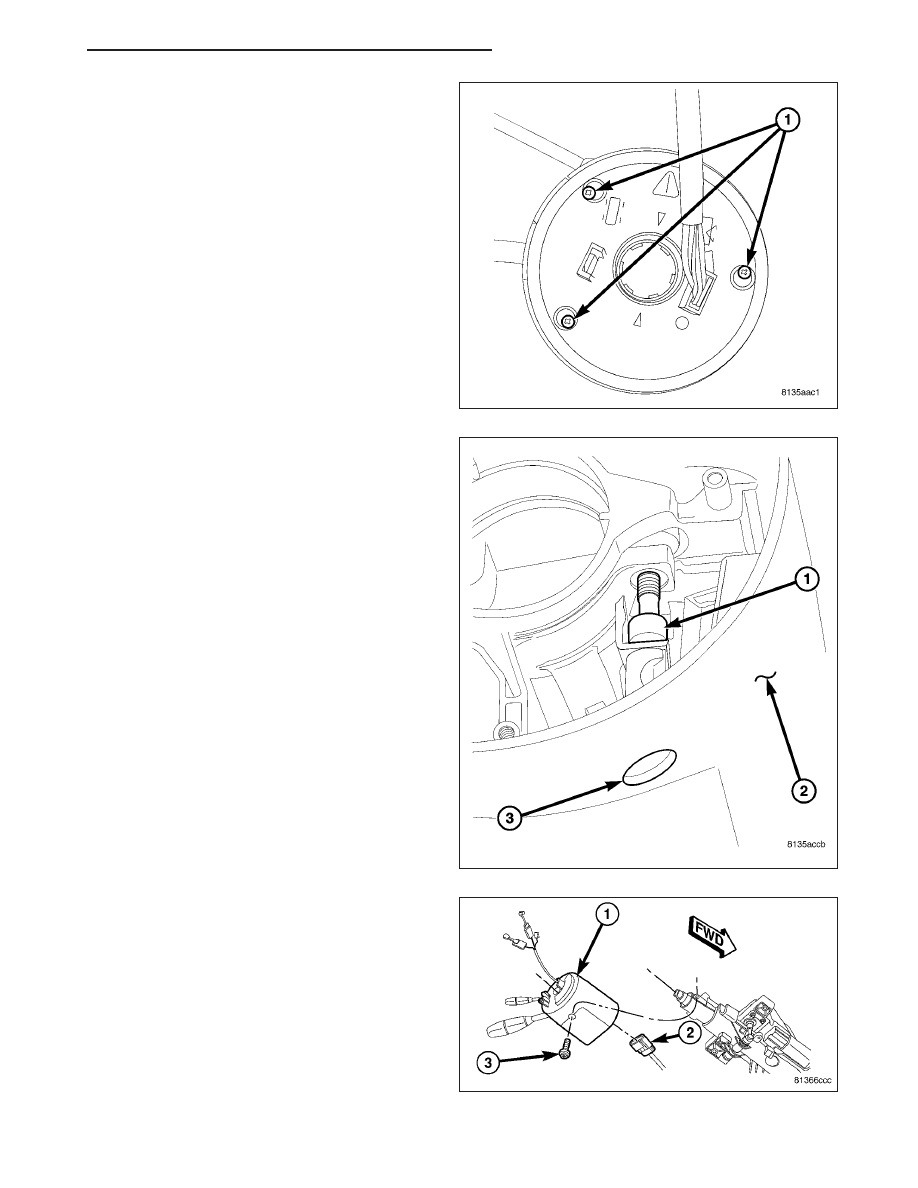

8. Loosen any one of the three clockspring screws

(1). The others may be left in.

9. Back out the set screw (1) through the access hole

(3) in the steering column control module (SCCM)
(2) securing the multi-function SCCM assembly.

10. Pull the SCCM assembly (1) off the steering col-

umn shaft.

11. Remove the instrument cluster bezel. (Refer to 23 - BODY/INSTRUMENT PANEL/CLUSTER BEZEL -

REMOVAL)

LX

COLUMN SERVICE INFORMATION

19 - 129
