Chrysler 300/300 Touring/300C, Dodge Magnum. Manual - part 1832

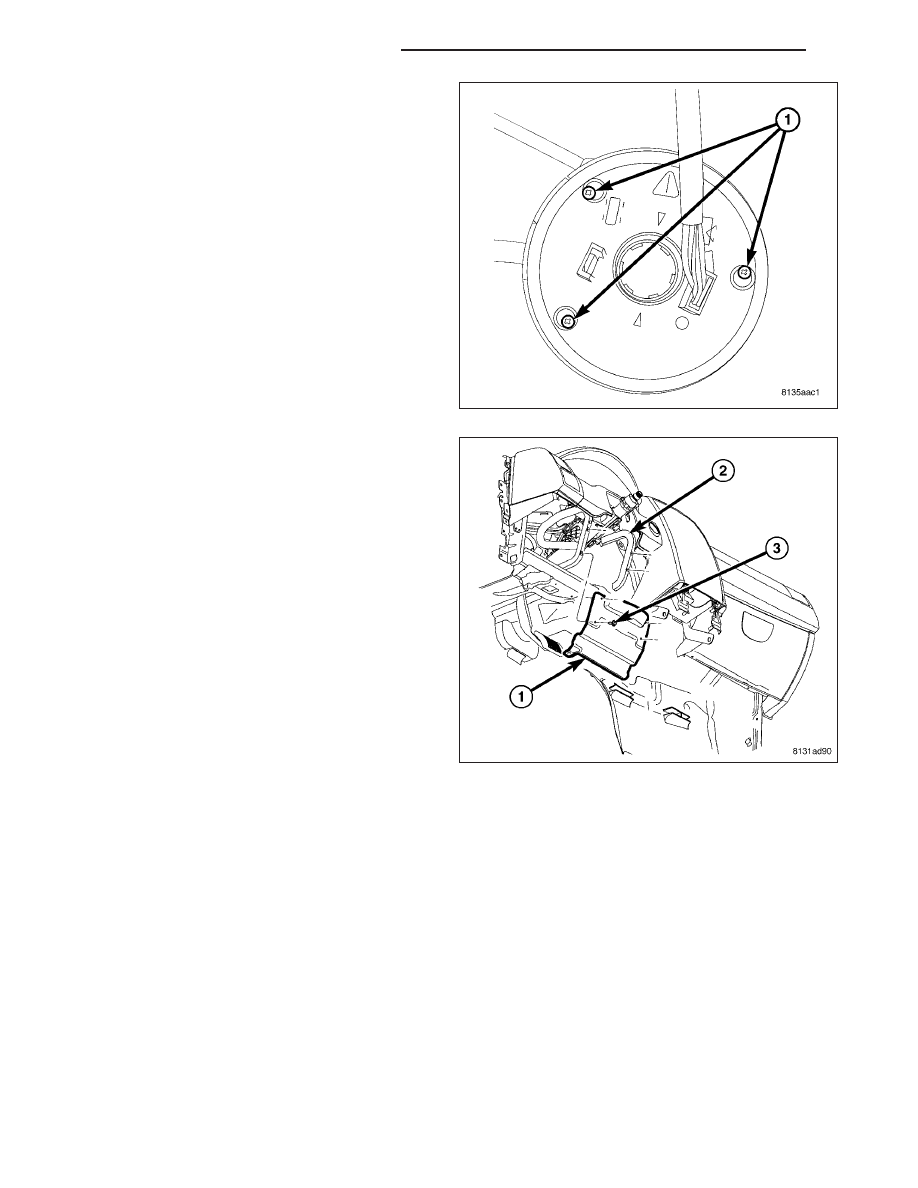

27. Tighten clockspring screw(s) (1) that were backed

out to keep the clockspring from unwinding.

28. Install the steering column opening reinforcement

(1).

19 - 146

COLUMN SERVICE INFORMATION

LX

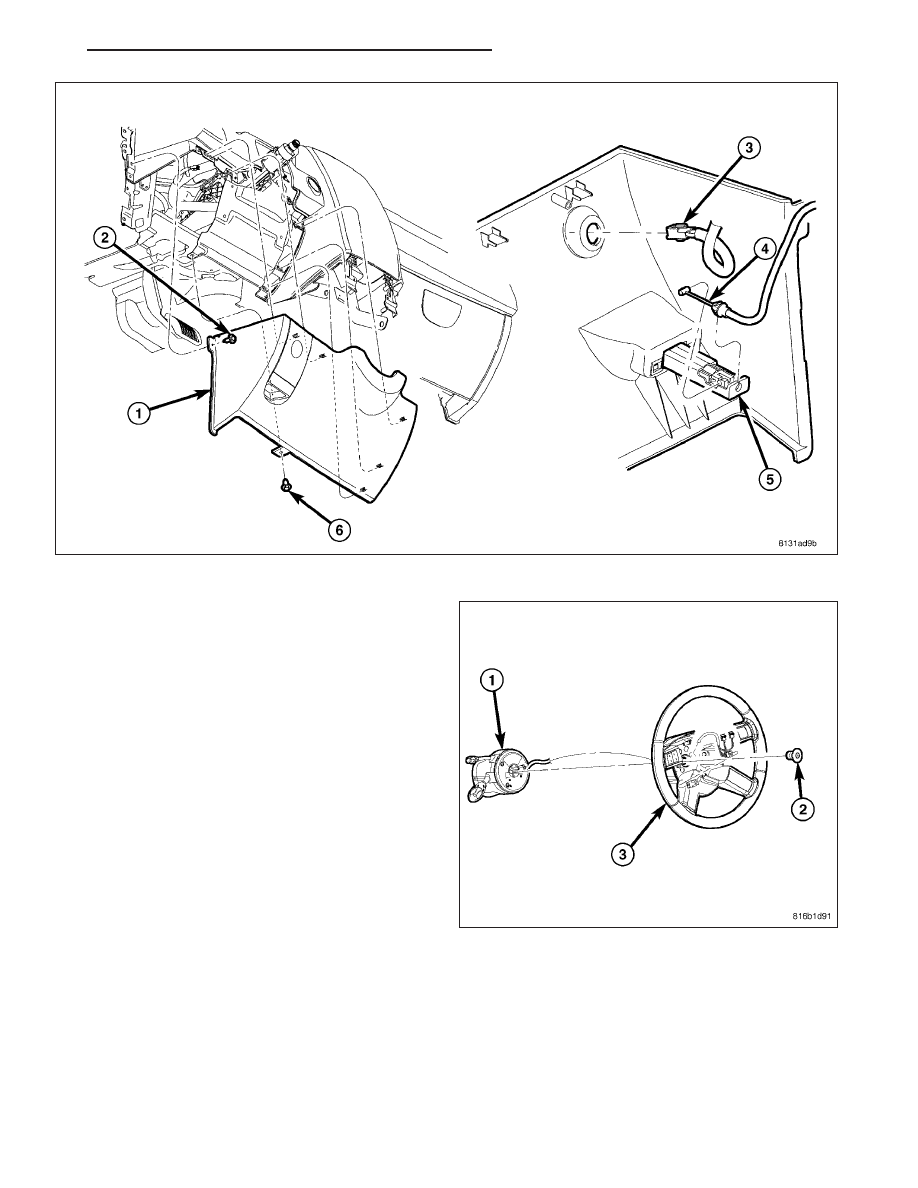

29. Install the steering column opening cover (1).

30. Align the spline on the steering wheel hub to the

shaft.

31. Install the steering wheel (3) and install a NEW

retainer bolt (2). Tighten the bolt to 70 N·m (52 ft.
lbs.).

LX

COLUMN SERVICE INFORMATION

19 - 147

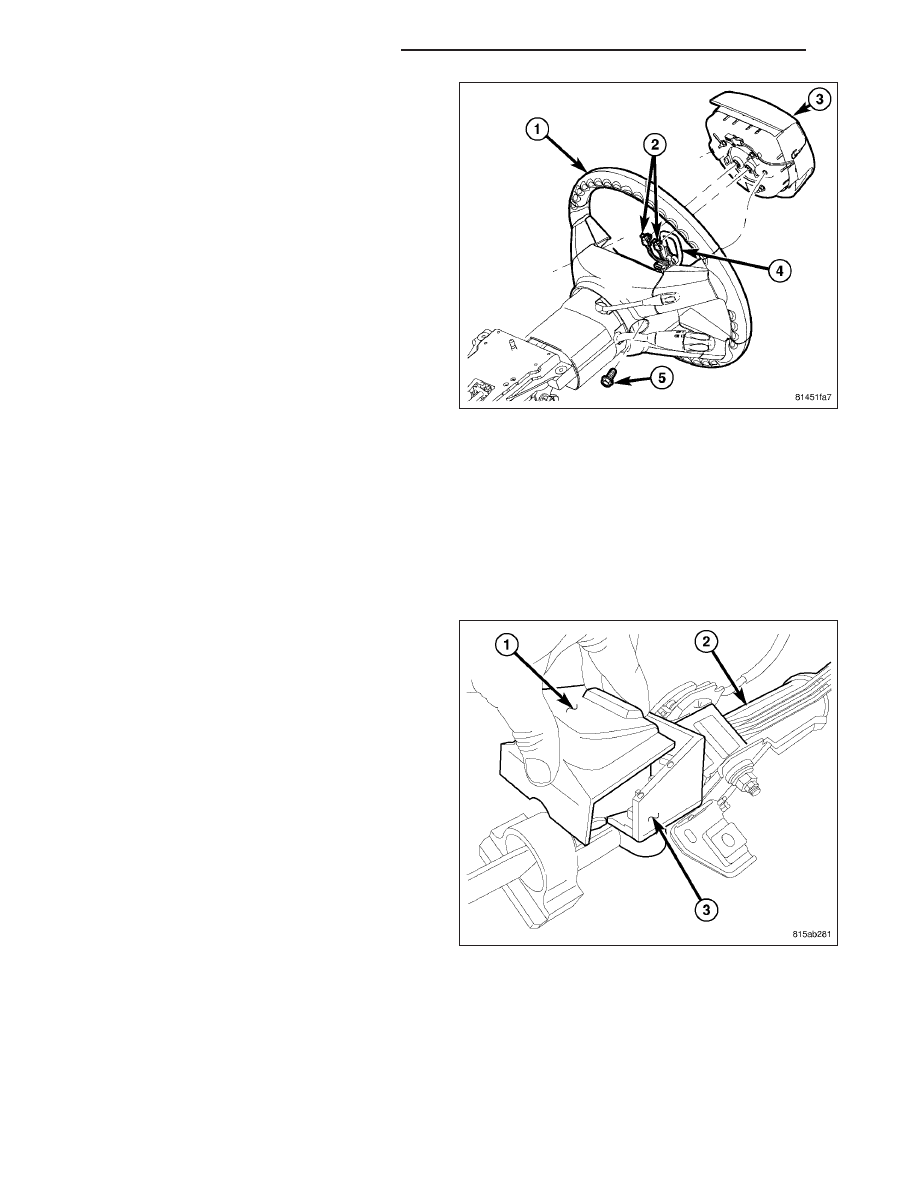

32. Install the airbag (3). (Refer to 8 - ELECTRICAL/

RESTRAINTS/DRIVER

AIRBAG

-

INSTALLA-

TION)

33. Install the negative battery terminal on the battery.

It is important that this is performed properly
(including calibration of steering angle sensor if
equipped with ESP). (Refer to 8 - ELECTRICAL/
BATTERY SYSTEM - STANDARD PROCEDURE)

CAUTION: If the steering wheel is excessively off-
center while driving, outside of Chassis specifica-
tions, inadvertent ESP activations may occur on a
vehicle so equipped.

34. Test the operation of the gear shift lever, switches,

horn, lights and any other functions that are steer-
ing column operated.

COLUMN - RHD

CAUTION: When handling the steering column use care to avoid holding the column by any part of the
tilt/telescope mechanism. The column should be held by its mounting bracket.

CAUTION: All fasteners must be torqued to specification to ensure proper operation of the steering column.

NOTE: New bolts must be used for column installation.

CAUTION: Do not attempt to transfer the shaft
lock module from one steering column to another.

1. If the steering column being installed is a NEW col-

umn, a NEW shaft lock module must be installed
on the bottom of the column. To install the shaft
lock module perform the following:

a. Align the engagement and slide tabs integral to

the housing of the shaft lock module (1) with
the slots and channels in the mounting bracket
(3) on the steering column (2).

b. Slide the module toward the top of the column

far enough for the spring clips on the module
to engage the bracket.

NOTE: Once the column has been installed, the
new module MUST be initialized using a diagnos-
tic scan tool before the vehicle can be operated.

19 - 148

COLUMN SERVICE INFORMATION

LX

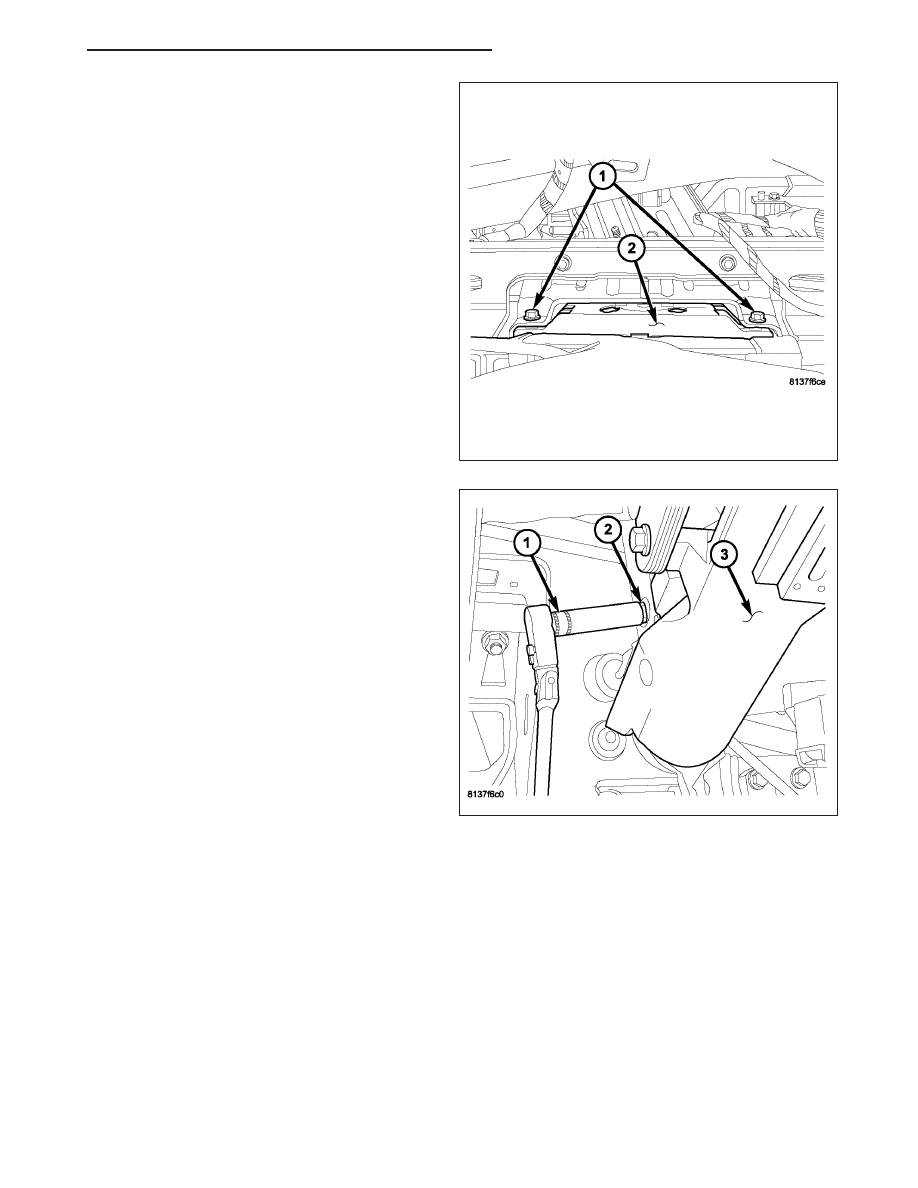

2. Position the steering column (2) on the instrument

panel and loosely install the upper mounting
screws (1).

3. Firmly slide the steering column upward against the

instrument panel and loosely install the pivot bolt
and nut (2).

LX

COLUMN SERVICE INFORMATION

19 - 149
