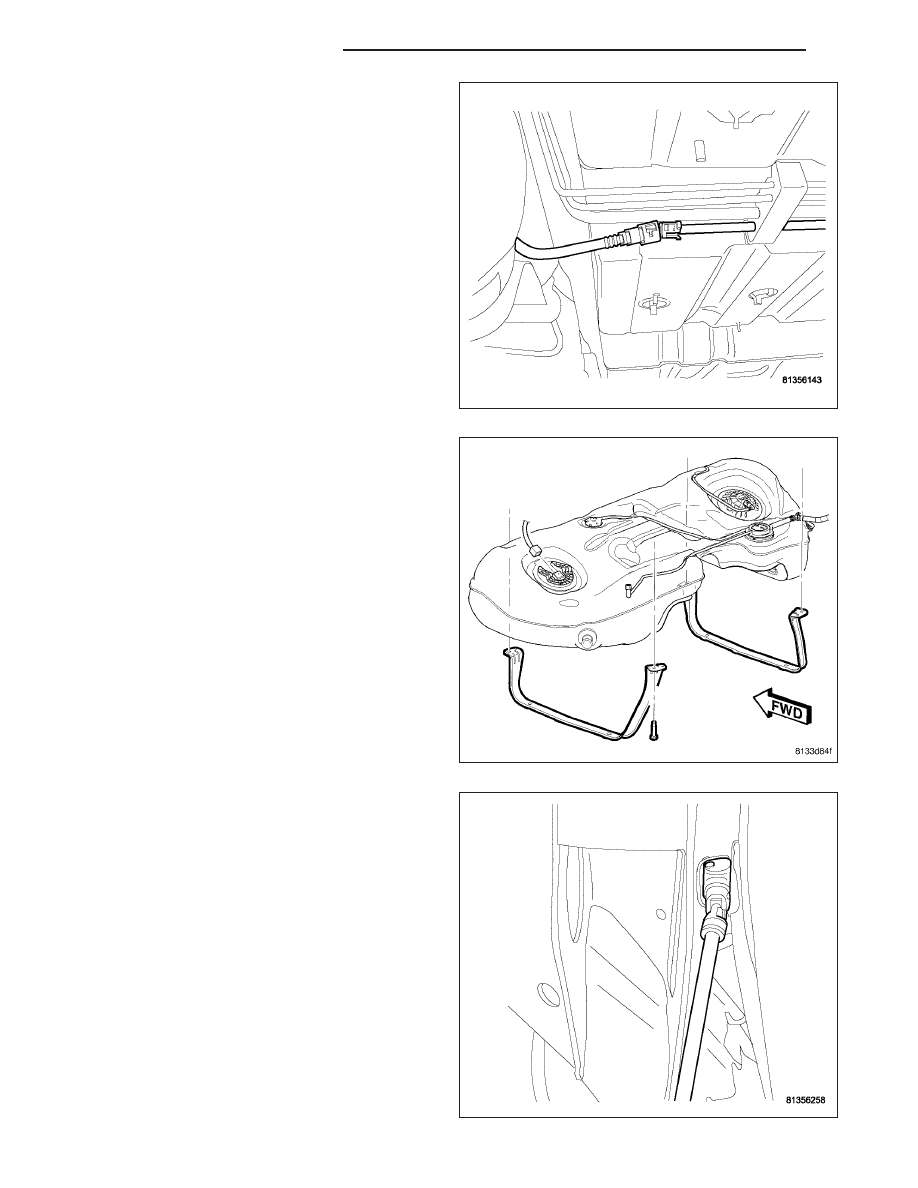

29. Disconnect the fuel supply line.

30. Support fuel tank with transmission jack.

31. Fuel tank strap bolt locations.

32. Remove bolt for fuel tank strap.

14 - 122

FUEL DELIVERY - DIESEL

LX

33. Remove bolt for fuel tank strap.

34. Lower tank and pull filler tube vent line through

bracket.

35. Lower Fuel tank and remove from vehicle.

LX

FUEL DELIVERY - DIESEL

14 - 123

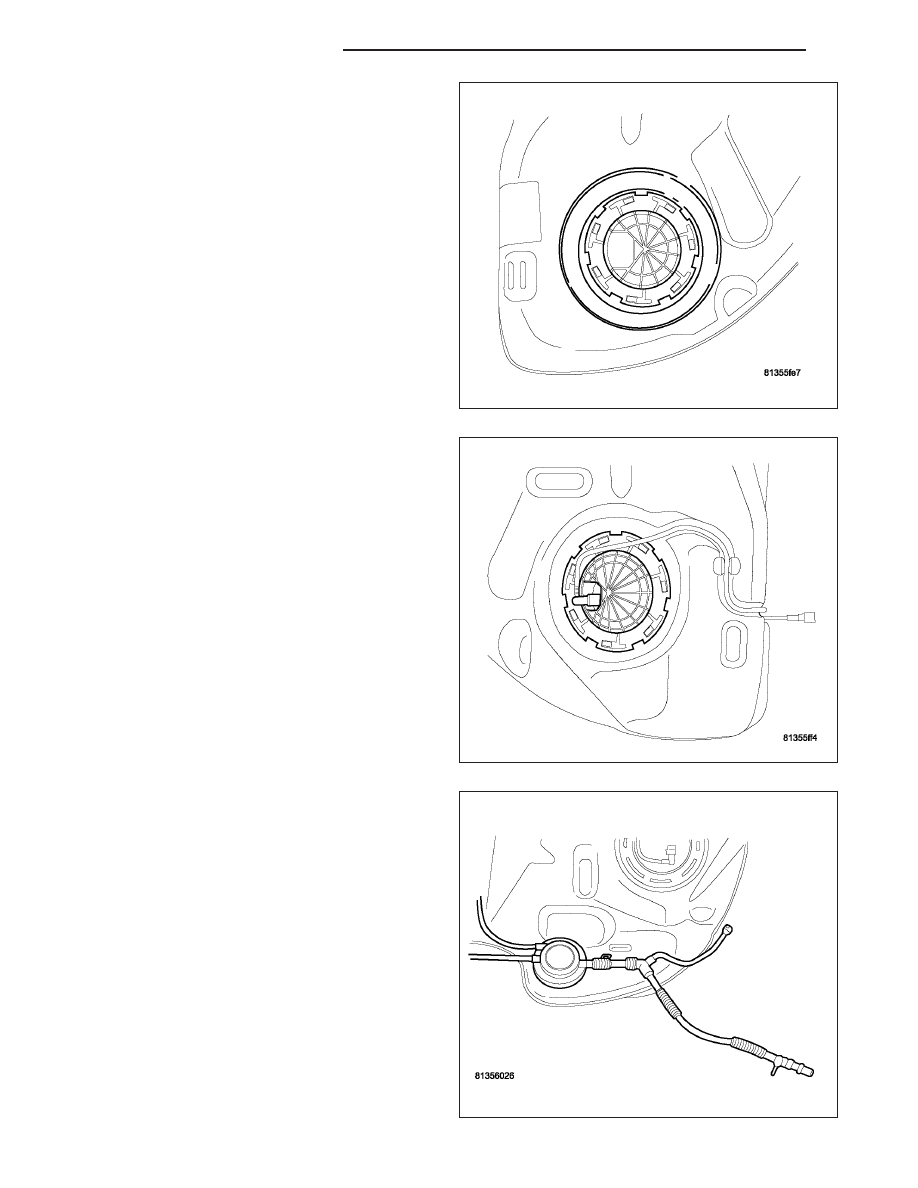

36. Left Side Module (Fuel Pump Module).

37. Right Side Module.

38. Control Valve and lines.

14 - 124

FUEL DELIVERY - DIESEL

LX

INSTALLATION

1. Support fuel tank with transmission jack.

2. Raise tank and push filler tube vent line through

bracket.

LX

FUEL DELIVERY - DIESEL

14 - 125
