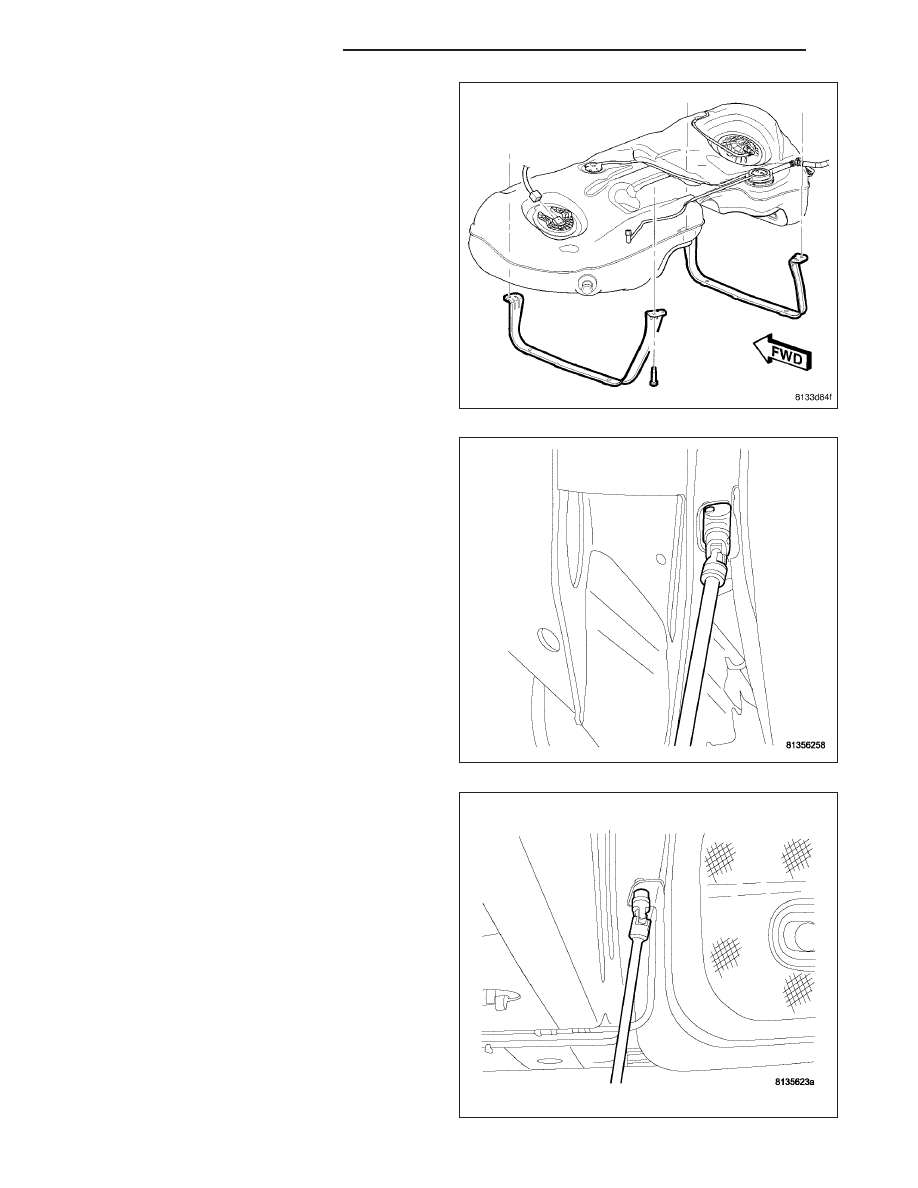

3. Fuel tank strap bolt locations.

4. Install bolt for fuel tank strap and tighten.

5. Install bolt for fuel tank strap and tighten.

14 - 126

FUEL DELIVERY - DIESEL

LX

6. Connect vapor line.

7. Connect the fuel supply line.

8. Connect the EVAP line in the right rear wheel well.

9. Install the drive shaft, (Refer to 3 - DIFFERENTIAL

& DRIVELINE/PROPELLER SHAFT - INSTALLA-
TION)

10. Install

the

exhaust

system,

(Refer

to

11

-

EXHAUST SYSTEM/EXHAUST PIPE - INSTAL-
LATION)

LX

FUEL DELIVERY - DIESEL

14 - 127

11. Install metal filler tube to rubber tube on fuel tank.

12. Install clamp to filler tube and tighten

13. Connect the filler tube vent line.

14 - 128

FUEL DELIVERY - DIESEL

LX

14. Install the inner splash shield.

15. Install the left underbody splash shield.

16. Install the right underbody splash shield.

17. Install left rear tire.

18. Lower vehicle.

LX

FUEL DELIVERY - DIESEL

14 - 129
