11. Drain fuel from right side of fuel tank. Lift module

up enough to push hose into tank and drain. Do
not spill fuel in interior of vehicle.

12. Disconnect the electrical connector from left side

module.

13. Mark the module orientation.

14. Use special tool #9340 to remove left side module

lock ring.

14 - 118

FUEL DELIVERY - DIESEL

LX

15. Drain fuel from left side of fuel tank. Lift module

up enough to push hose into tank and drain. Do
not spill fuel in interior of vehicle.

16. Install both module temporally, hand tighten the

lock ring to hold modules in place.

17. Raise vehicle and support.

18. Remove left rear tire.

19. Remove the inner splash shield.

20. Disconnect the filler tube vent line.

LX

FUEL DELIVERY - DIESEL

14 - 119

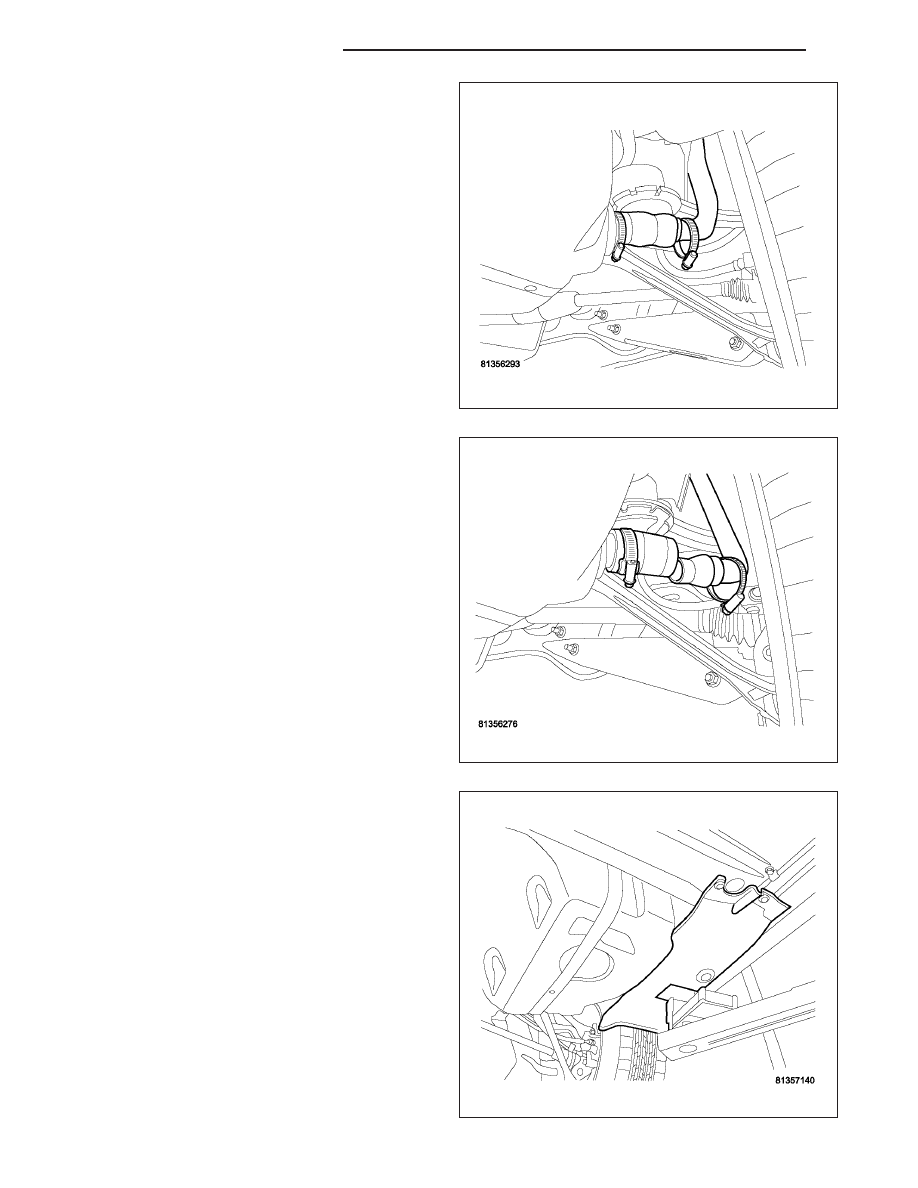

21. Remove clamp from filler tube.

22. Remove metal filler tube from rubber tube on fuel

tank.

23. Remove the exhaust system, (Refer to 11 -

EXHAUST

SYSTEM/EXHAUST

PIPE

-

REMOVAL)

24. Remove the drive shaft, (Refer to 3 - DIFFEREN-

TIAL

&

DRIVELINE/PROPELLER

SHAFT

-

REMOVAL)

25. Remove the left underbody splash shield.

14 - 120

FUEL DELIVERY - DIESEL

LX

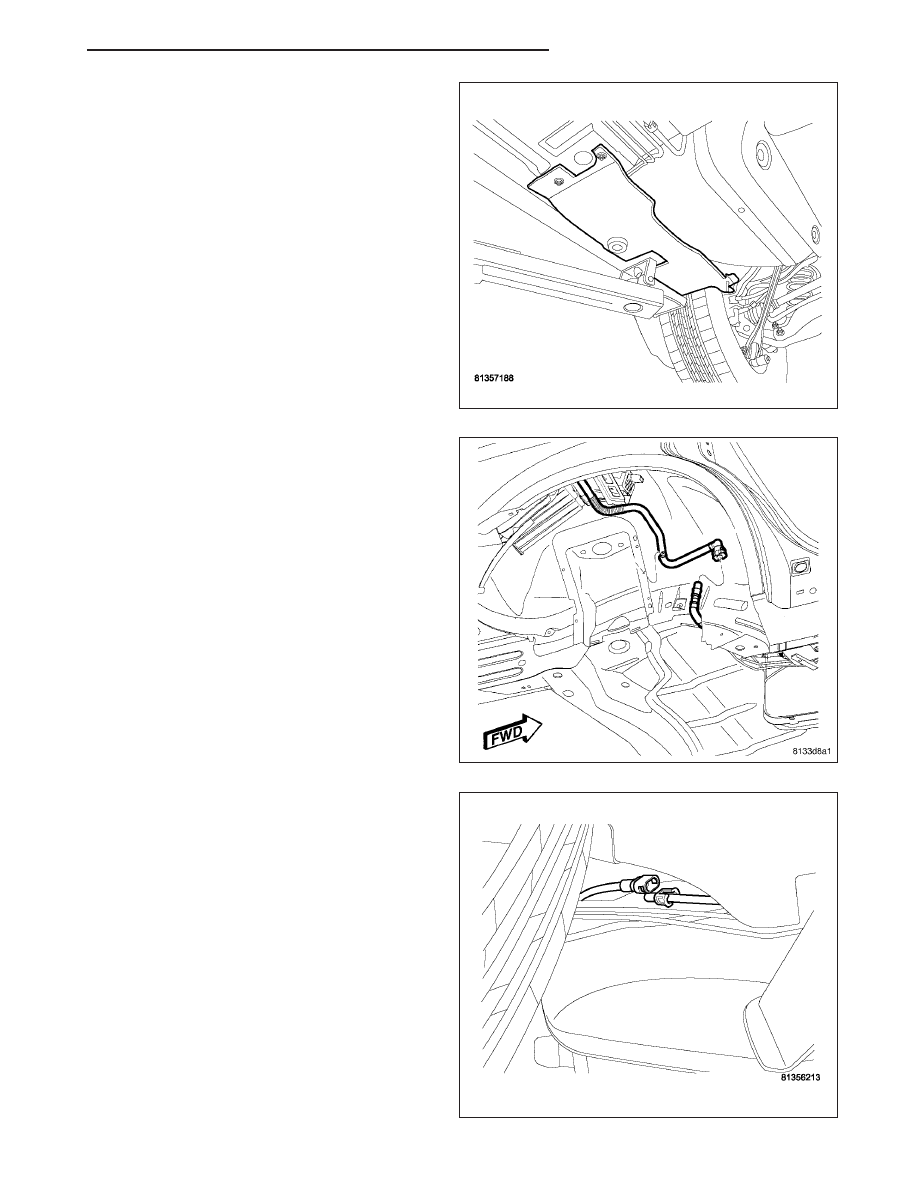

26. Remove the right underbody splash shield.

27. Disconnect the EVAP line in the right rear wheel

well.

28. Disconnect vapor line.

LX

FUEL DELIVERY - DIESEL

14 - 121
