1. Lubricate caliper pistons, piston seals (1) and pis-

ton bores (2) with clean, fresh brake fluid.

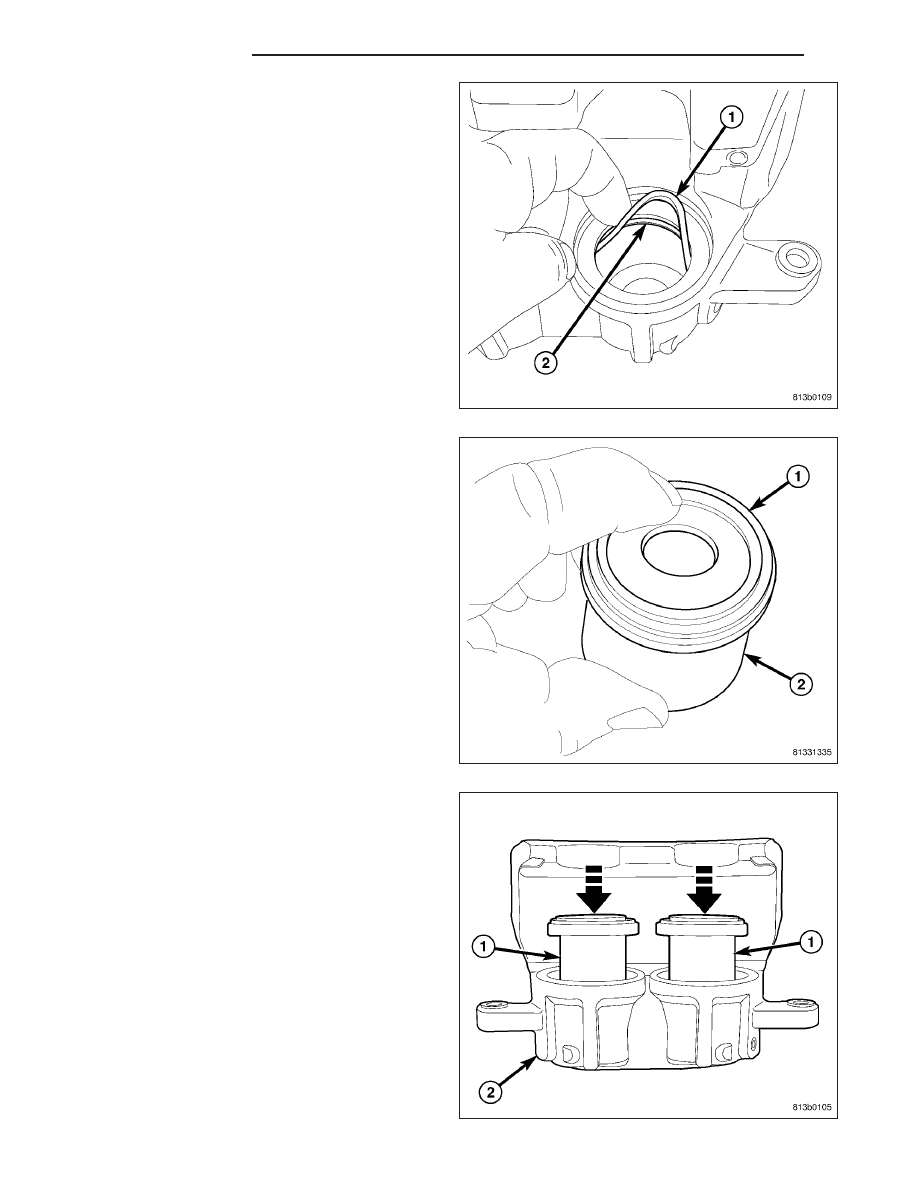

2. Install NEW piston seal (1) into groove of each cal-

iper piston bore (2).

NOTE: Make sure seal is fully seated and not
twisted in groove.

3. Install NEW boot (1) on each piston (2) and work

boot lip into groove at top of piston. Stretch boot
rearward straightening boot folds, then move boot
forward as necessary until folds snap uniformly into
place.

4. Install each piston (1), one at a time, into its caliper

piston (2) bore, pressing piston down to bottom of
bore using hand-pressure. Using a piece of wood
or wooden hammer handle may also suffice as
long as piston and boot damage is avoided.

5 - 50

BRAKES - BASE

LX

CAUTION: When seating dust boots in following
step, use care not to over-install boots or damage
will occur. Each boot (2) will bottom in the coun-
terbore before the top of the boot reaches the sur-
face of the caliper. The boot will bottom with
approximately 2 mm (1/16 inch) (3) of boot still
showing above caliper housing.

5. Seat dust boots (3) in caliper counterbores using

Installer (2), Special Tool 9315, with Handle (1),
Special Tool C-4171. Install each dust boot until it
bottoms. Do not over-seat dust boot or damage will
occur.

6. Install caliper bleeder screw (2) in caliper housing

(1). Tighten bleeder screw to 15 N·m (125 in. lbs.)
torque.

7. Install caliper on vehicle. (Refer to 5 - BRAKES/HY-

DRAULIC/MECHANICAL/DISC BRAKE CALIPER -
INSTALLATION)

LX

BRAKES - BASE

5 - 51

INSTALLATION

AWD

CAUTION: Always inspect brake pads before installing disc brake caliper and replace as necessary. (Refer
to 5 - BRAKES/HYDRAULIC/MECHANICAL/BRAKE PADS/SHOES - INSPECTION)

1. Completely retract caliper pistons back into bores of caliper. Use hand pressure or a C-clamp may also be used

to retract pistons, first placing a wood block over piston before installing C-clamp to avoid damaging piston.

CAUTION: Use care when installing caliper onto disc brake adapter to avoid damaging boots on caliper
guide pins.

2. Push caliper guide pins into caliper adapter to clear caliper mounting bosses when installing.

3. Slide caliper (3) over brake pads and onto caliper

adapter (2).

CAUTION: Extreme caution should be taken not to
crossthread caliper guide pin bolts (1) when they
are installed.

4. Align caliper mounting holes with guide pins, then

install guide pin bolts (1). While holding guide pins
from turning, tighten bolts to 60 N·m (44 ft. lbs.)
torque.

5. Install banjo bolt (3) attaching brake hose (1) to

caliper (4). Install NEW washers (2) on each side
of hose fitting as banjo bolt is placed through fit-
ting. Thread banjo bolt into caliper and tighten to
50 N·m (37 ft. lbs.) torque.

5 - 52

BRAKES - BASE

LX

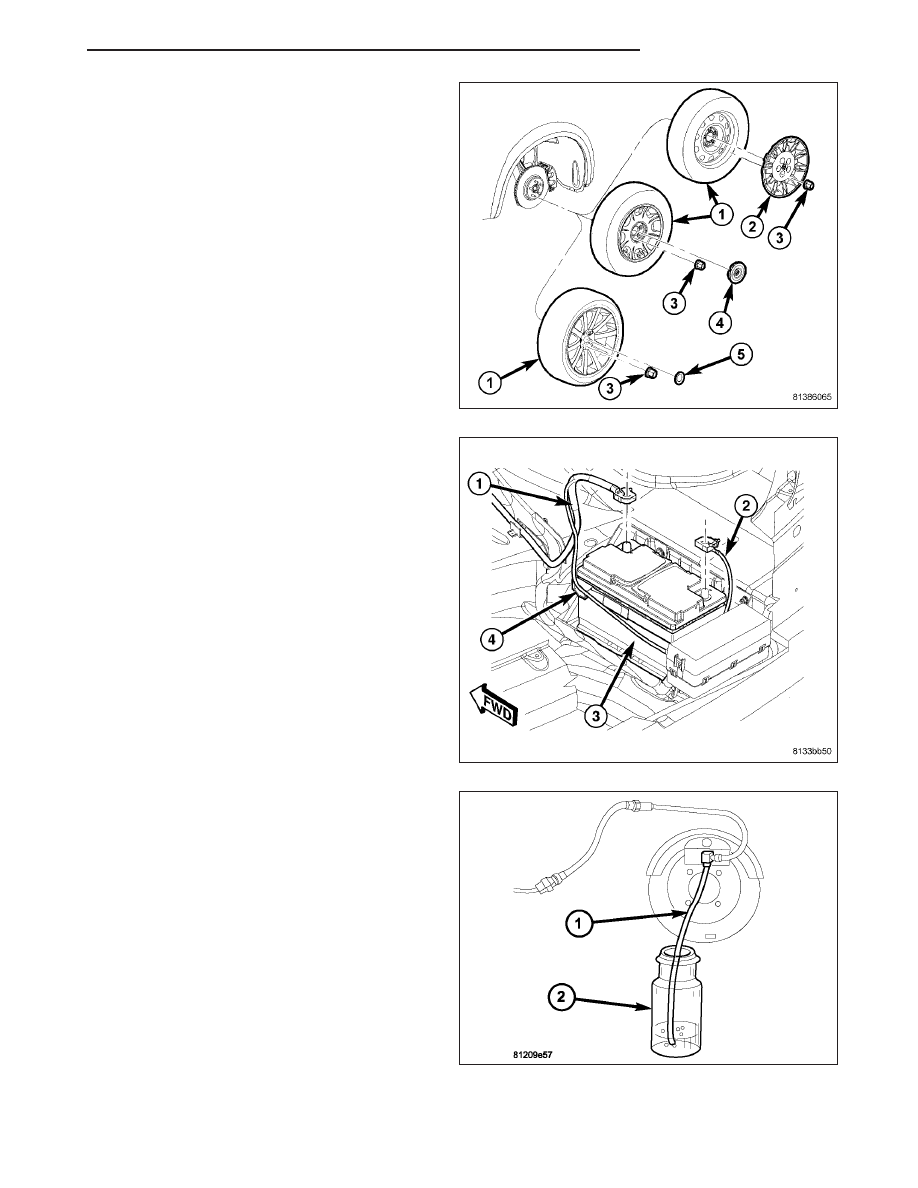

6. Install tire and wheel assembly (1). Tighten wheel

mounting nuts (3) to 150 N·m (110 ft. lbs.) torque.
(Refer to 22 - TIRES/WHEELS - INSTALLATION)

7. Lower vehicle.

8. Remove brake pedal holding tool.

9. Connect battery negative cable (2) to battery post.

It is important that this is performed properly. (Refer
to 8 - ELECTRICAL/BATTERY SYSTEM - STAN-
DARD PROCEDURE)

10. Bleed (1) base brake hydraulic system as neces-

sary. (Refer to 5 - BRAKES - STANDARD PRO-
CEDURE)

11. Road test vehicle making several stops to wear off

any foreign material on brakes and to seat brake
shoes.

LX

BRAKES - BASE

5 - 53
