LAMPS

CONTENTS

page

page

BULB APPLICATION TABLE

. . . . . . . . . . . . . . . 11

EXTERIOR LAMPS, SWITCHES AND

SYSTEMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

GENERAL INFORMATION

. . . . . . . . . . . . . . . . . . 1

ILLUMINATED ENTRY SYSTEM

. . . . . . . . . . . . . 9

GENERAL INFORMATION

Each vehicle is equipped with lamps used for illumi-

nating and indicating purposes. A circuit must have a
good ground to be complete. Circuit ground occurs
when the lamp socket makes contact with the metal
body. On vehicles with plastic lamps, a wire between
the socket and the body makes the grounds.

When changing lamp bulbs, check the socket for

corrosion. If corrosion is present, clean contacts with a
wire brush and coat the inside of the socket with
Mopar

t Multi-purpose Grease or equivalent.

CAUTION: Do not touch the glass of halogen bulbs
with fingers or any possibly oily surface, reduced
bulb life will result.

DIAGNOSTIC PROCEDURES

Begin electrical system failure diagnosis by testing

all related fuses and circuit breakers in the fuse block
and engine compartment. Also refer to Group 8W,
Wiring Diagrams for component location and circuit
information.

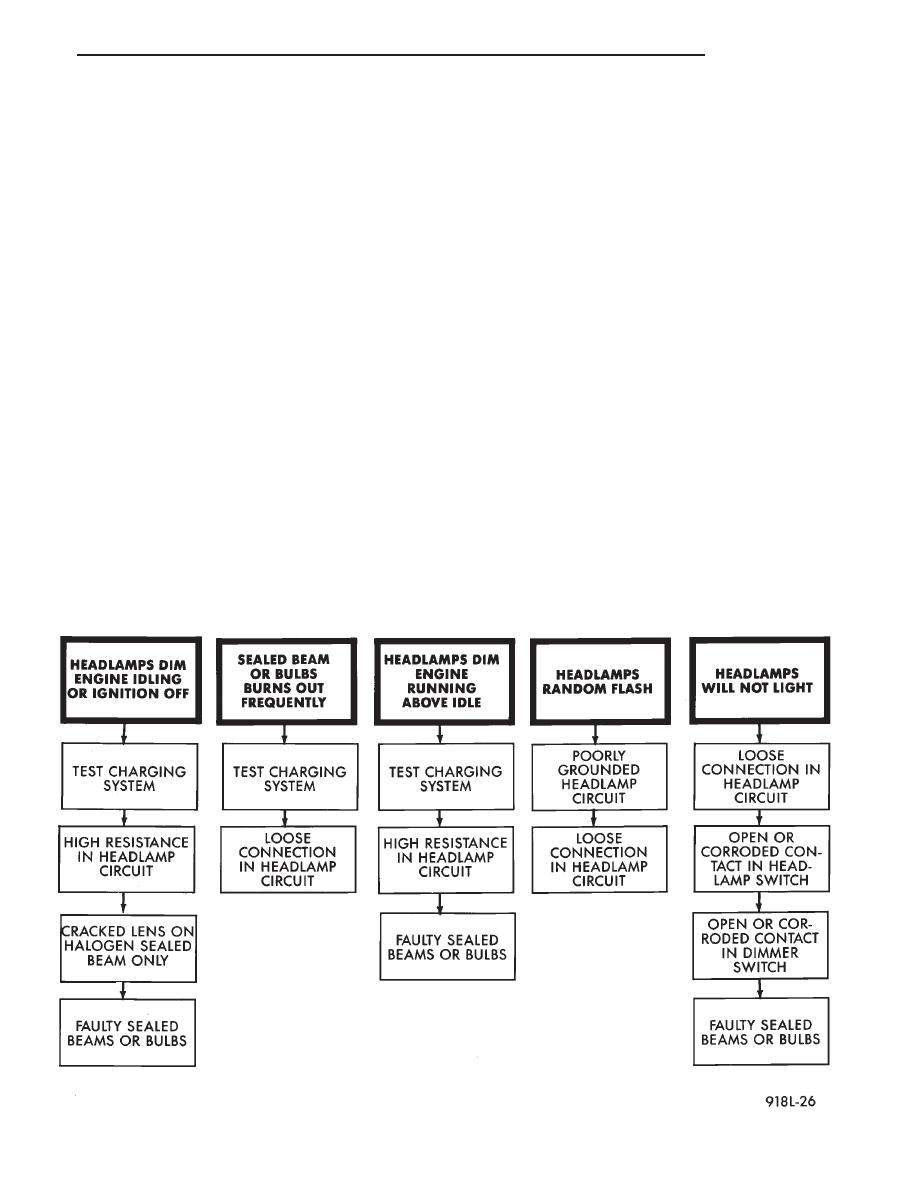

HEADLAMP DIAGNOSIS

.

LAMPS

8L - 1

EXTERIOR LAMPS, SWITCHES AND SYSTEMS

INDEX

page

page

Aero Headlamp Bulb

. . . . . . . . . . . . . . . . . . . . . . . 3

Aero Headlamp Lens/Housing

. . . . . . . . . . . . . . . . 4

Center High-Mounted Stop Lamp (CHMSL)

. . . . . . 7

Daytime Running Lamps—Canada Only

. . . . . . . . . 8

Fog Lamp

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Headlamp Adjustment Using Alignment Screen

. . . . 2

Headlamp Alignment

. . . . . . . . . . . . . . . . . . . . . . . 2

Headlamp Alignment Preparation

. . . . . . . . . . . . . . 2

Headlamp Dimmer Switch

. . . . . . . . . . . . . . . . . . . 2

Headlamp Switch

. . . . . . . . . . . . . . . . . . . . . . . . . . 2

Headlamp Time Delay System

. . . . . . . . . . . . . . . . 8

License Plate Lamp/Bulb

. . . . . . . . . . . . . . . . . . . . 7

Park/Turn Signal and Side Marker Lamp

. . . . . . . . . 6

Park/Turn Signal and Side Marker Lamp—

Aero Headlamps

. . . . . . . . . . . . . . . . . . . . . . . . . 5

Tail Lamp

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

HEADLAMP SWITCH

Service procedures for the headlamp switch can be

found in Group 8E, Instrument Panel and Gauges.
More information can be found in Group 8W, Wiring
Diagrams.

HEADLAMP DIMMER SWITCH

The headlamp dimmer switch is incorporated into

the turn signal switch. Proper procedures can be found
in Group 8J, Turn Signal and Flashers. More informa-
tion can be found in Group 8W, Wiring Diagrams.

HEADLAMP ALIGNMENT

Headlamps can be aligned using the screen method

provided in this section. Alignment Tool C4466-A or
equivalent can also be used. Refer to instructions
provided with the tool for proper procedures. The
preferred headlamp alignment setting is 0 for the
left/right adjustment and 0 for the up/down ad-
justment.

HEADLAMP ALIGNMENT PREPARATION

(1) Verify headlamp dimmer switch and high beam

indicator operation.

(2) Inspect and correct damaged or defective compo-

nents that could interfere with proper headlamp align-
ment.

(3) Verify proper tire inflation.
(4) Clean headlamp lenses.
(5) Verify that luggage area is not heavily loaded.
(6) Fuel tank should be FULL. Add 2.94 kg (6.5 lbs.)

of weight over the fuel tank for each estimated gallon of
missing fuel.

HEADLAMP ADJUSTMENT USING ALIGNMENT
SCREEN

ALIGNMENT SCREEN PREPARATION (FIG. 1)

(1) Position vehicle on a level surface perpendicular

to a flat wall 7.62 meters (25 ft) away from front of
headlamp lens.

(2) If necessary, tape a line on the floor 7.62 meters

(25 ft) away from and parallel to the wall.

(3) From the floor up 1.27 meters (5 ft), tape a line on

the wall at the centerline of the vehicle. Sight along the
centerline of the vehicle (from rear of vehicle forward)
to verify accuracy of the line placement.

(4) Rock vehicle side-to-side three times to allow

suspension to stabilize.

(5) Jounce front suspension three times by pushing

downward on front bumper and releasing.

(6) Measure the distance from the center of head-

lamp lens to the floor. Transfer measurement to the
alignment screen (with tape). Use this line for up/down
adjustment reference.

(7) Measure distance from the centerline of the ve-

hicle to the center of each headlamp being aligned.
Transfer measurements to screen (with tape) to each
side of vehicle centerline. Use these lines for left/right
adjustment reference.

HEADLAMP ADJUSTMENT (FIG. 2 OR 3)

A properly aimed low beam headlamp will project the

top edge of high intensity pattern on the alignment
screen from 50 mm (2 in.) above to 50 mm (2 in.) below
the headlamp centerline. The side-to-side outboard
edge of high intensity pattern should be from 50 mm (2
in.) left to 50mm (2 in.) right of headlamp centerline
(Fig. 1). The preferred headlamp alignment is 0
for the up/down adjustment and 0 for the
left/right adjustment.
The high beams on a vehicle
with aero headlamps cannot be aligned. The high beam
pattern should be correct when the low beams are
aligned properly.

To adjust headlamp aim, rotate alignment screws to

achieve the specified high intensity pattern (Fig. 2 or
3).

FOG LAMP ALIGNMENT (FIG. 4)

Prepare a alignment screen. Refer to Alignment

Screen Preparation paragraph in this section. A prop-
erly aligned fog lamp will project a pattern on the
alignment screen 100 mm (4 in.) below the fog lamp
centerline and straight ahead.

8L - 2

LAMPS

.

AERO HEADLAMP BULB

REMOVAL (FIG. 5)

(1) Open hood.
(2) Disconnect wire connector from behind head-

lamp in the engine compartment.

CAUTION: Do not touch the bulb with fingers or any
possibly oily surface, reduced bulb life will result.

(3) Rotate the bulb retaining ring counterclockwise

one quarter turn and remove the retaining ring

(4) Pull bulb from back of lamp.

INSTALLATION

(1) Align the guide notches on the bulb base with the

guides in lamp receiver hole.

(2) Push the socket into the lamp until it seats.
(3) Install retaining ring.

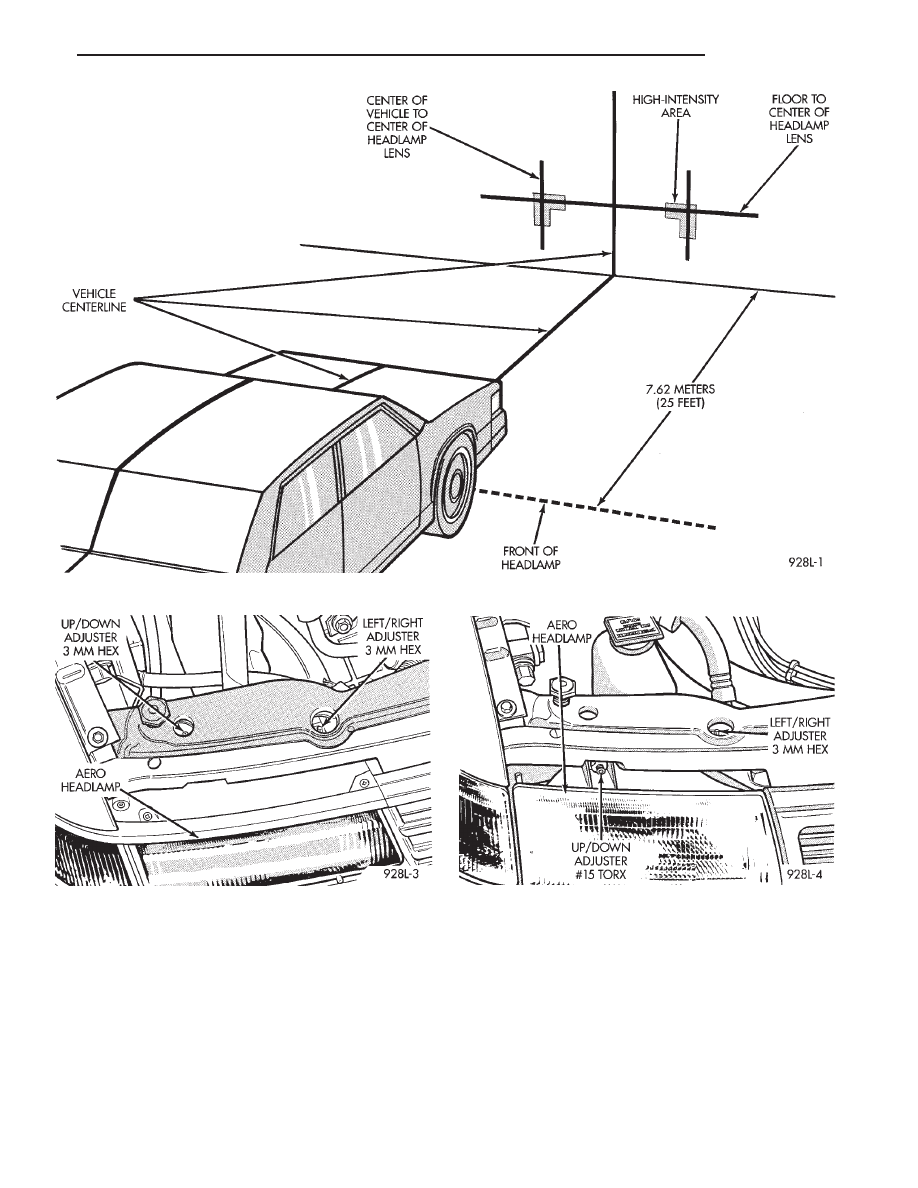

Fig. 1 Headlamp Alignment Screen

Fig. 2 Aero Headlamp Alignment Screws—AS/D-K

Vehicle

Fig. 3 Aero Headlamp Alignment Screws—AS/H-P-Y

Vehicle

.

LAMPS

8L - 3

(4) Connect wire connector to back of lamp and test

operation.

AERO HEADLAMP LENS/HOUSING

REMOVAL

(1) Open hood.
(2) Remove grill, refer to Group 23, Body.
(3) Remove screws holding grille extension molding

to headlamp housing, on AS/H-Y vehicles.

(4) Separate grille extension molding from vehicle.
(5) Disconnect wire connector from back of head-

lamp.

(6) Remove Park/Turn Signal Lamp.
(7) Turn headlamp retainer blocks one quarter turn

in either direction to align the retainer to the hole in

the headlamp housing. There is one retainer on top of
headlamp and two on the bottom (Fig. 6).

(8) Separate lamp from vehicle.

INSTALLATION

Reverse the preceding operation.

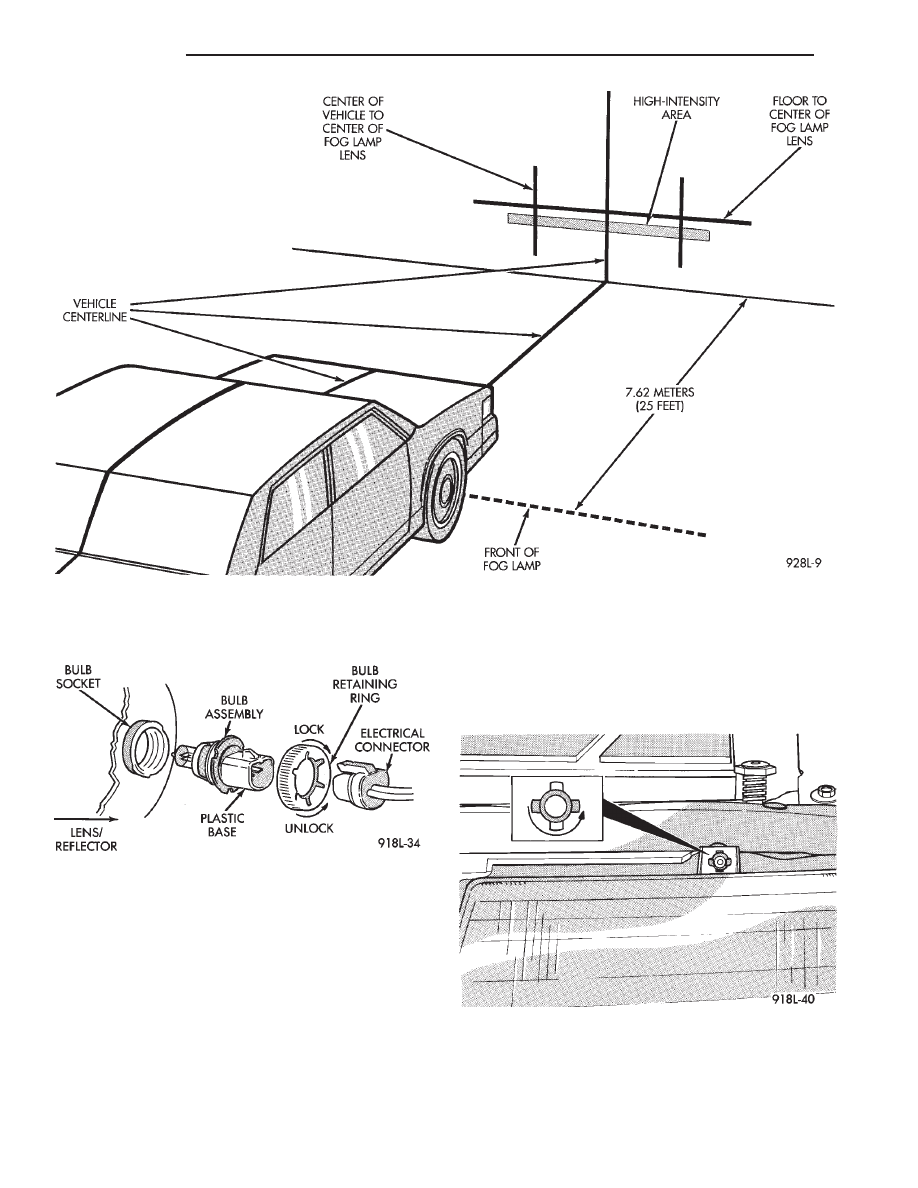

Fig. 4 Fog Lamp Alignment

Fig. 5 Aero Headlamp Bulb

Fig. 6 Aero Headlamp/Lens Retaining Blocks

8L - 4

LAMPS

.
